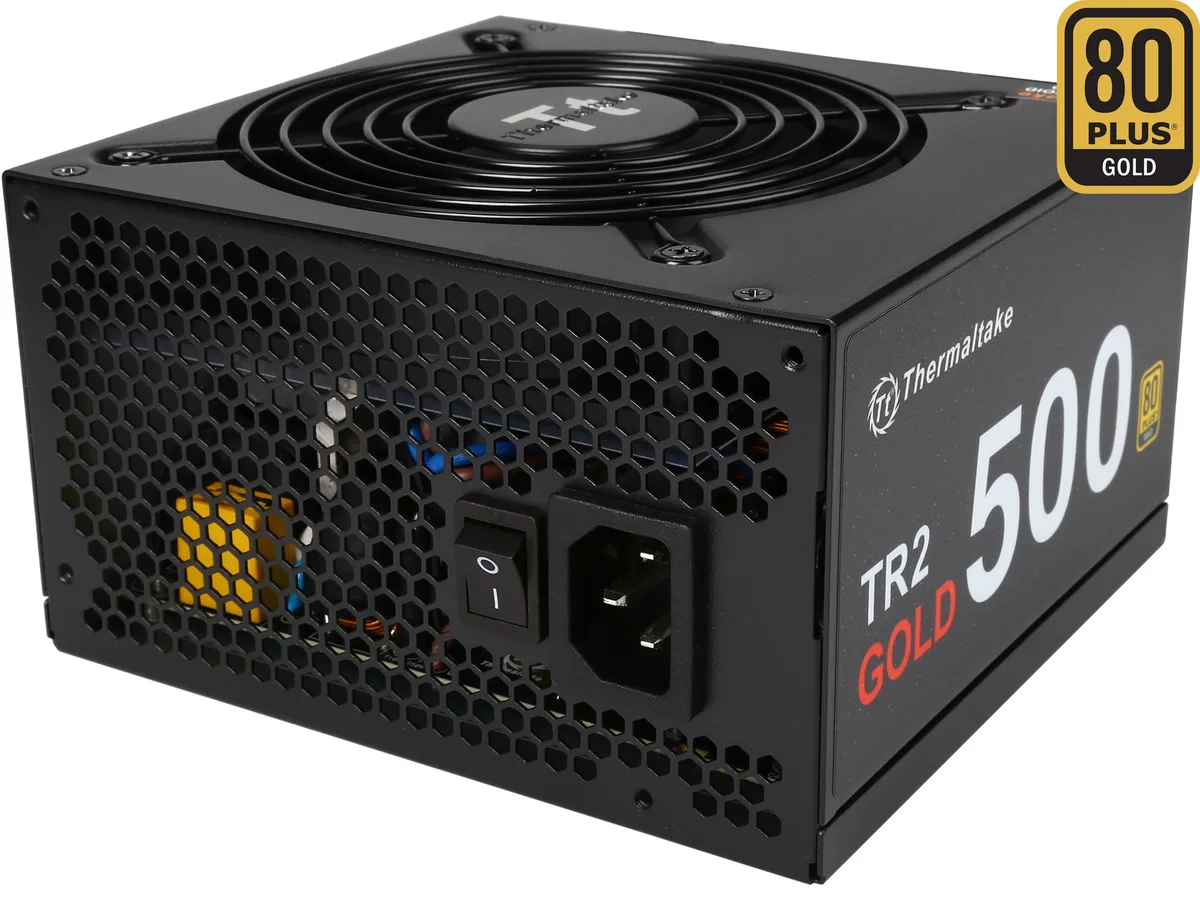

Black rectangular ATX power supply with 120mm fan and sleeved cables

Thermaltake

Thermaltake PS-TR2-0500NPCGUS-G 500W power supply

SKU CH-MG3A-7YR9B MPN PS-TR2-0500NPCGUS-G

Delivers 500 W continuous power with 80 PLUS Gold efficiency and a 120 mm fan running at 1500 RPM

  • TypeATX12V / EPS12V
  • Maximum Power500 W
  • Fans120mm Fan: 1500 R.P.M. ± 10%
  • PFCActive
  • PCI-Express Connector2 x 6+2-Pin
  • SLIYes
  • 80 PLUS Gold certification delivers 87-92% efficiency at 20-100% load
  • Active PFC maintains stable power across 100-240 V input range
  • Single +12V rail design provides continuous 500 W output for demanding builds

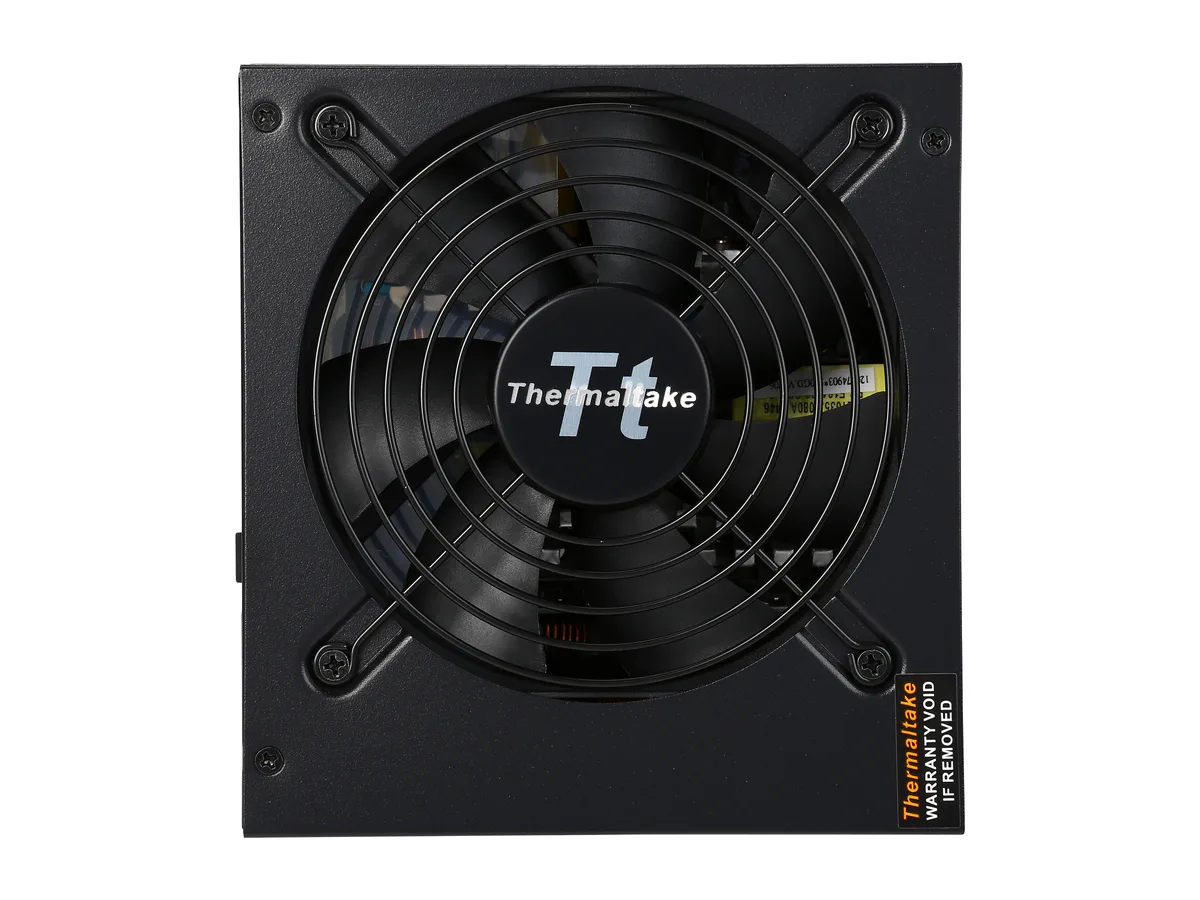

  • 120 mm fan runs at 1500 RPM with intelligent speed control for quiet cooling

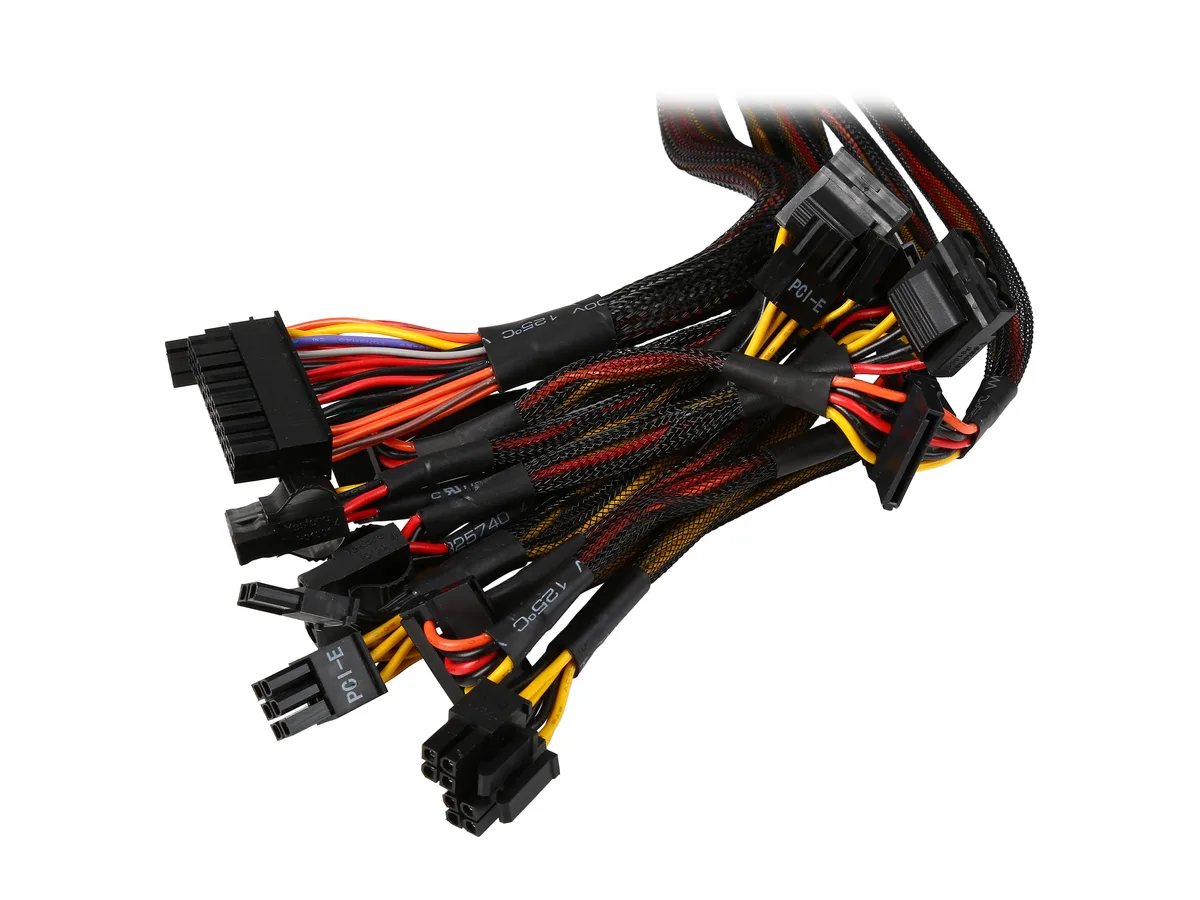

  • 2 x 6+2-pin PCI-Express connectors support SLI and CrossFire multi-GPU configurations

Product identity

Thermaltake TR2 Gold 500W is an ATX12V / EPS12V power supply delivering 500 W maximum output. It carries 80 PLUS Gold certification with 87 to 92 percent efficiency across 20 to 100 percent load and uses Active PFC for 100 to 240 V input.

Who it suits and who it does not

Builders assembling a mainstream desktop with a single graphics card will find the two 6+2-pin PCIe connectors and SLI / CrossFire readiness adequate. Systems that require more than two PCIe power cables or a higher total wattage should look at a larger unit.

Deciding specification

The single +12 V rail design provides the full 500 W on one rail, which determines whether the supply can handle the combined load of CPU and GPU without splitting currents across multiple rails.

Highlights

  • 80 PLUS Gold certification delivers 87-92% efficiency at 20-100% load
  • Active PFC maintains stable power across 100-240 V input range
  • Single +12V rail design provides continuous 500 W output for demanding builds
  • 120 mm fan runs at 1500 RPM with intelligent speed control for quiet cooling
  • 2 x 6+2-pin PCI-Express connectors support SLI and CrossFire multi-GPU configurations

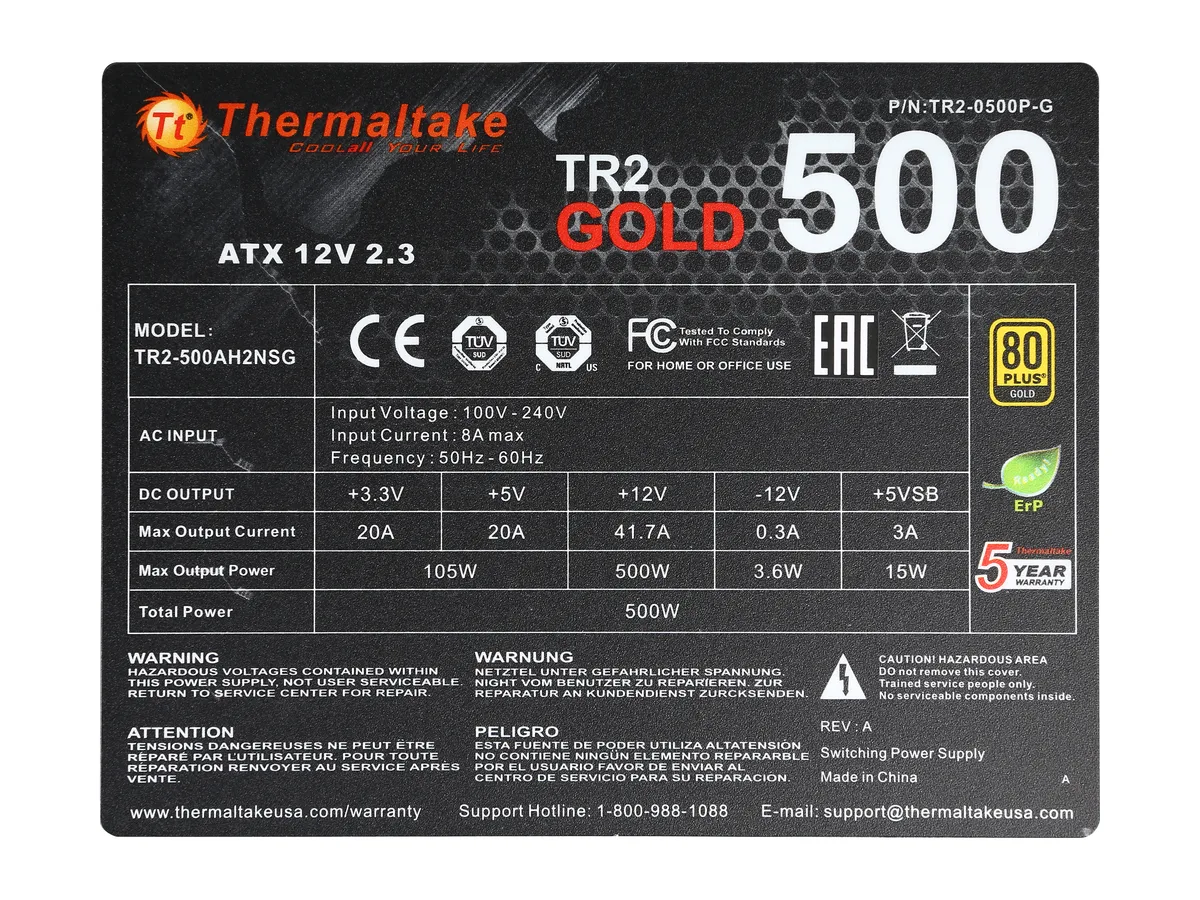

Specifications

BrandThermaltake
ModelPS-TR2-0500NPCGUS-G
TypeATX12V / EPS12V
Maximum Power500 W
Fans120mm Fan: 1500 R.P.M. ± 10%
PFCActive
PCI-Express Connector2 x 6+2-Pin
SLIYes
Haswell SupportReady
CrossFireCrossFire Ready
Power Good Signal100-500ms
Hold-up Time16ms min.@115V/60Hz; 10ms min.@230V/50Hz
Efficiency87-92% efficiency @ 20-100% load
Energy-Efficient80 PLUS GOLD Certified
Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
Input Current8A max
MTBF>100,000 Hours
ApprovalsCE/UL/CUL/FCC/TUV/GOST.
Dimensions3.39" x 5.91" x 5.51"
Shipping weight2.19 kg
Package size236 × 180 × 107 mm

Questions about this item

Will the 500W unit power a legacy Core 2 Quad build that still uses a 20-pin motherboard connector?

The main cable ends in a 20+4 pin plug that separates to fit older 20-pin sockets, and the 4+4 pin EPS connector splits for 4-pin CPU headers, so the supply works with that platform.

How can I confirm the 120mm fan is running at its rated 1500 RPM after installation?

The fan uses intelligent RPM control; you can verify speed in BIOS hardware monitor or with any fan-speed utility that reads the PSU fan header.

Does the box include SATA power cables or must they be purchased separately?

Six SATA connectors are pre-attached to the sleeved cables inside the box, so no extra SATA power cables are needed.
