Black all-in-one liquid cooler with 240 mm radiator, two 120 mm fans, copper block and 2.1 inch rotational LCD display

Thermaltake

Thermaltake TOUGHLIQUID Ultra 240 liquid cooler CL-W322-PL12GM-B

SKU CH-H6FR-K56FR MPN CL-W322-PL12GM-B

A 240 mm liquid CPU cooler with a 2.1 inch rotational LCD display, copper cold plate and two 120 mm fans running up to 2500 RPM

  • TypeLiquid Cooling System
  • Block CompatibilityIntel LGA 2066 / 2011-3 / 2011 / 1700 / 1366 / 1200 / 1156 /
  • Block Compatibility - AMDAMD AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2 / FM1
  • Block Compatibility - IntelIntel LGA 2066 / 2011-3 / 2011 / 1700 / 1366 / 1200 / 1156 /
  • Block MaterialCopper
  • Radiator Size273.00 x 120.00 x 27.00 mm

Series TOUGHLIQUID Ultra

Struck-through versions exist but are not stocked here.

Fan Size 2 Fan Slots (120mm)

Color Black

Struck-through versions exist but are not stocked here.

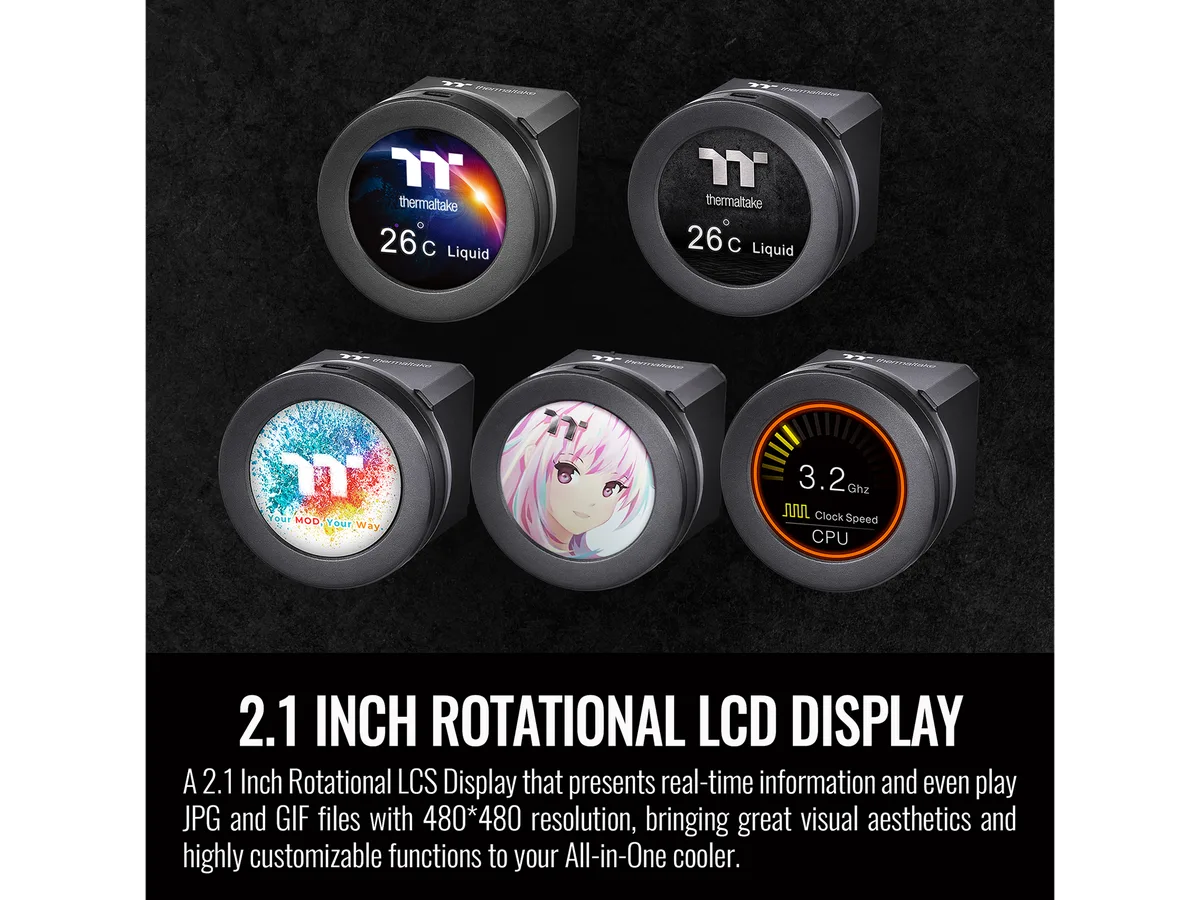

  • Rotational 2.1 inch LCD shows real-time CPU data

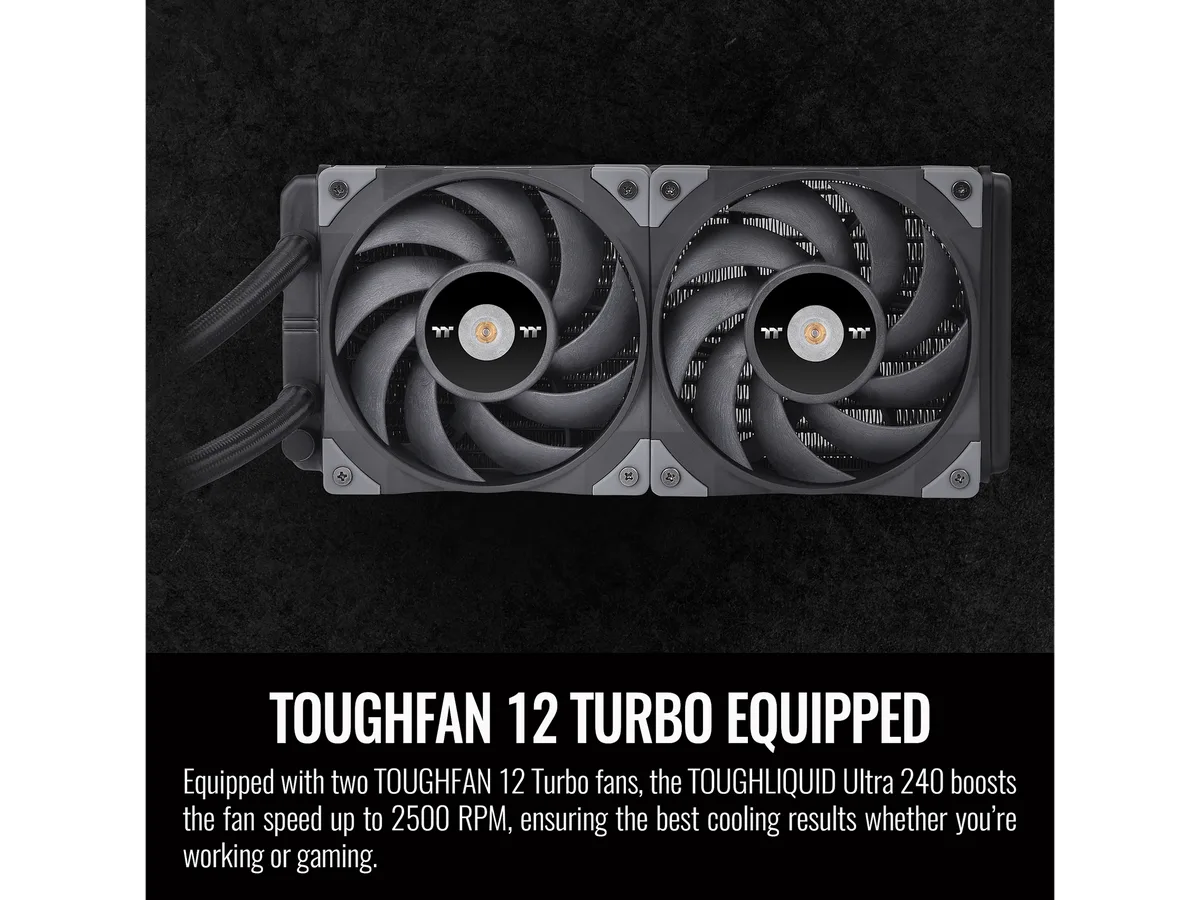

  • TOUGHFAN 12 Turbo fans spin 500 to 2500 RPM for up to 72.69 CFM airflow

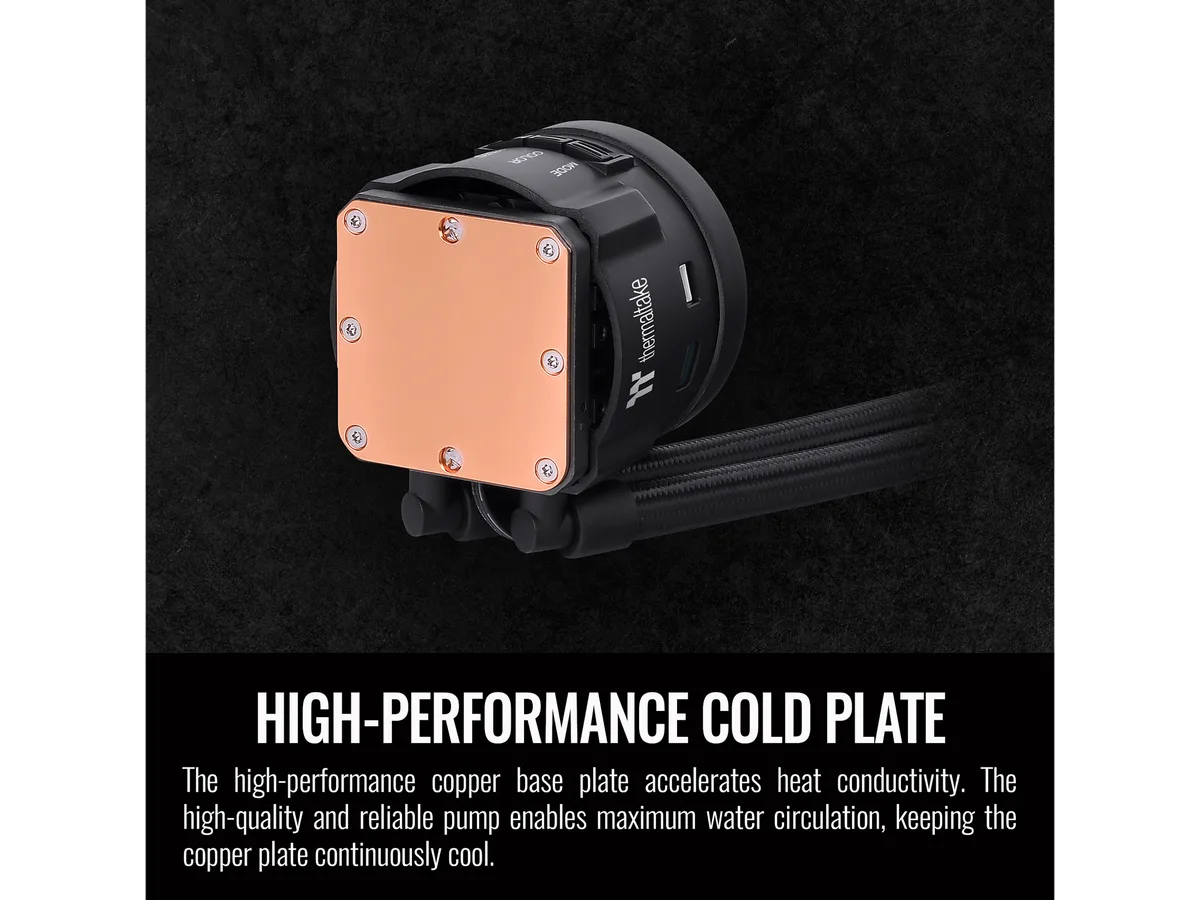

  • Copper cold plate covers Intel LGA 1700 and AMD AM4 sockets

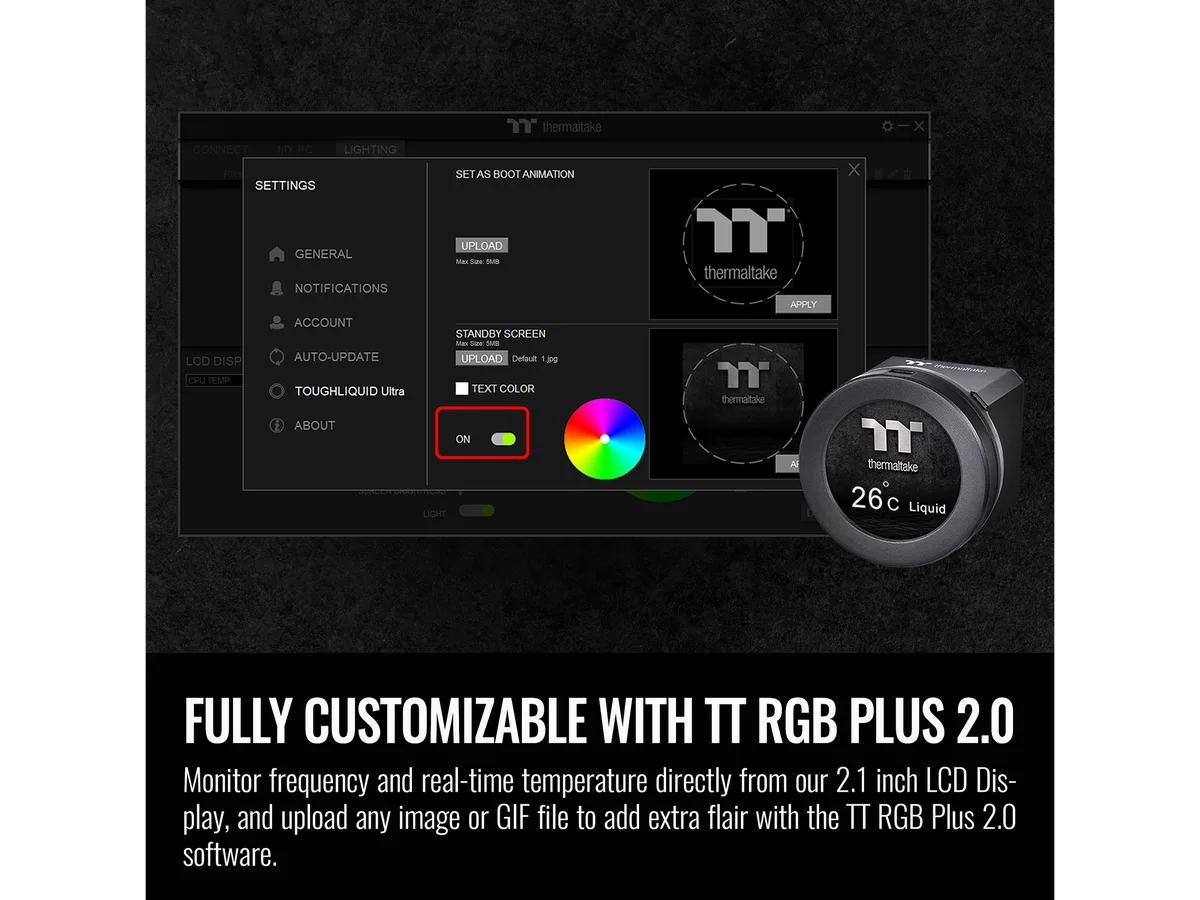

  • TT RGB Plus 2.0 software syncs lighting with Alexa and Razer Chroma
  • 273 mm aluminium radiator with 400 mm rubber tubes fits standard 240 mm mounts

2.1-inch LCD AIO for mainstream sockets

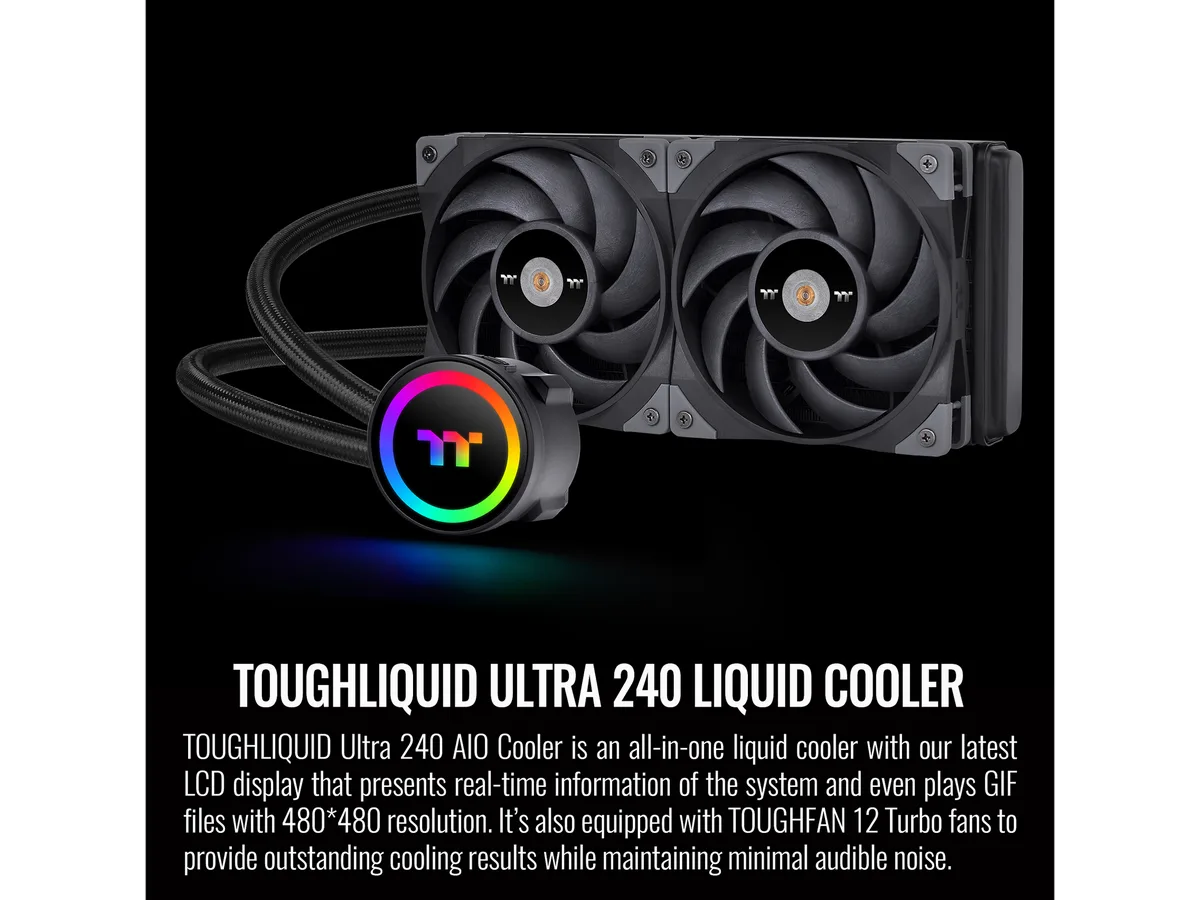

The Thermaltake TOUGHLIQUID Ultra 240 is an all-in-one liquid CPU cooler with a 2.1-inch rotational LCD display. It fits Intel LGA 1700, 1200, 115x, 2011, 2066 and AMD AM4, AM3, FM2 platforms. The copper cold plate and aluminium radiator target builders who want visual monitoring with standard mounting.

Radiator footprint limits case choice

The 273 x 120 x 27 mm radiator occupies two 120 mm fan slots and needs matching clearance in the chassis. Fans run at 500 to 2500 RPM, delivering up to 72.69 CFM each at 28.1 dBA. Tube length is 400 mm, so the block must reach the CPU socket from the chosen mount location.

Verify socket bracket and mount space

Confirm your motherboard uses one of the listed Intel or AMD sockets before ordering. Check that the case can accept a 273 mm long radiator with 27 mm thickness plus fan depth. Ensure the 400 mm tubing reaches the CPU block without strain and that the LCD cable can route to a USB header.

Highlights

  • Rotational 2.1 inch LCD shows real-time CPU data
  • TOUGHFAN 12 Turbo fans spin 500 to 2500 RPM for up to 72.69 CFM airflow
  • Copper cold plate covers Intel LGA 1700 and AMD AM4 sockets
  • TT RGB Plus 2.0 software syncs lighting with Alexa and Razer Chroma
  • 273 mm aluminium radiator with 400 mm rubber tubes fits standard 240 mm mounts

Specifications

BrandThermaltake
SeriesTOUGHLIQUID Ultra
ModelCL-W322-PL12GM-B
TypeLiquid Cooling System
Block CompatibilityIntel LGA 2066 / 2011-3 / 2011 / 1700 / 1366 / 1200 / 1156 / 1155 / 1151 / 1150
AMD AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2 / FM1
Block Compatibility - AMDAMD AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2 / FM1
Block Compatibility - IntelIntel LGA 2066 / 2011-3 / 2011 / 1700 / 1366 / 1200 / 1156 / 1155 / 1151 / 1150
Block MaterialCopper
Radiator Size273.00 x 120.00 x 27.00 mm
Radiator MaterialAluminum
Fan Size2 Fan Slots (120 mm)
Fan Dim.120.00 x 120.00 x 25.00 mm
Fan RPM500~2500 RPM
Fan Air FlowMax. Air Flow: 72.69 CFM (one fan)
Fan Noise28.1 dBA
ColorBlack
Tube Dim.Length: 400 mm
Tube MaterialRubber
Shipping weight2.00 kg
Package size330 × 206 × 140 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Which version of the TOUGHLIQUID Ultra 240 should I pick for an Intel LGA 1700 or AMD AM4 socket?

This single model CL-W322-PL12GM-B includes mounting hardware for Intel LGA 1700, 1200, 1151, 1150, 1155, 1156, 1366, 2011, 2011-3, 2066 and AMD AM4, AM3+, AM3, AM2+, AM2, FM2, FM1, so no separate version is needed.

What does the 2.1 inch rotational LCD display actually show once the cooler is installed?

The 2.1 inch LCD can be rotated for visibility and displays real-time CPU temperature, coolant temperature, fan speed or custom graphics through the TT RGB Plus 2.0 software.

How does the 500 to 2500 RPM fan range and 72.69 CFM airflow limit cooling performance in practice?

At 2500 RPM each 120 mm fan delivers up to 72.69 CFM at 28.1 dBA, giving strong airflow for a 240 mm radiator while staying relatively quiet at lower speeds.
