Black all-in-one liquid cooler with 360 mm radiator, three 120 mm fans, square pump block featuring 2.1 inch rotational LCD display

Thermaltake

Thermaltake TOUGHLIQUID Ultra 360 liquid cooler CL-W323-PL12GM-B

SKU CH-YCH4-2E30V MPN CL-W323-PL12GM-B

A 360 mm all-in-one liquid CPU cooler with a 2.1 inch rotational LCD display, three 120 mm fans running up to 2500 RPM, and broad Intel and AMD socket support

  • TypeLiquid Cooling System
  • Block CompatibilityIntel LGA 2066 / 2011-3 / 2011 / 1700 / 1366 / 1200 / 1156 /
  • Block Compatibility - IntelIntel LGA 2066 / 2011-3 / 2011 / 1700 / 1366 / 1200 / 1156 /
  • Block MaterialCopper
  • Radiator Size273.00 x 120.00 x 27.00 mm
  • Radiator MaterialAluminum

Series TOUGHLIQUID Ultra

Struck-through versions exist but are not stocked here.

Fan Size 3 Fan Slots (120mm)

Color Black

Struck-through versions exist but are not stocked here.

  • Real-time stats on a 2.1 inch rotational LCD display
  • High airflow at 72.69 CFM per fan up to 2500 RPM
  • Quiet operation at 28.1 dBA maximum noise
  • Broad socket support for Intel LGA 1700 and AMD AM5
  • Customisable lighting via TT RGB Plus 2.0 software

360 mm liquid cooler for Intel and AMD sockets

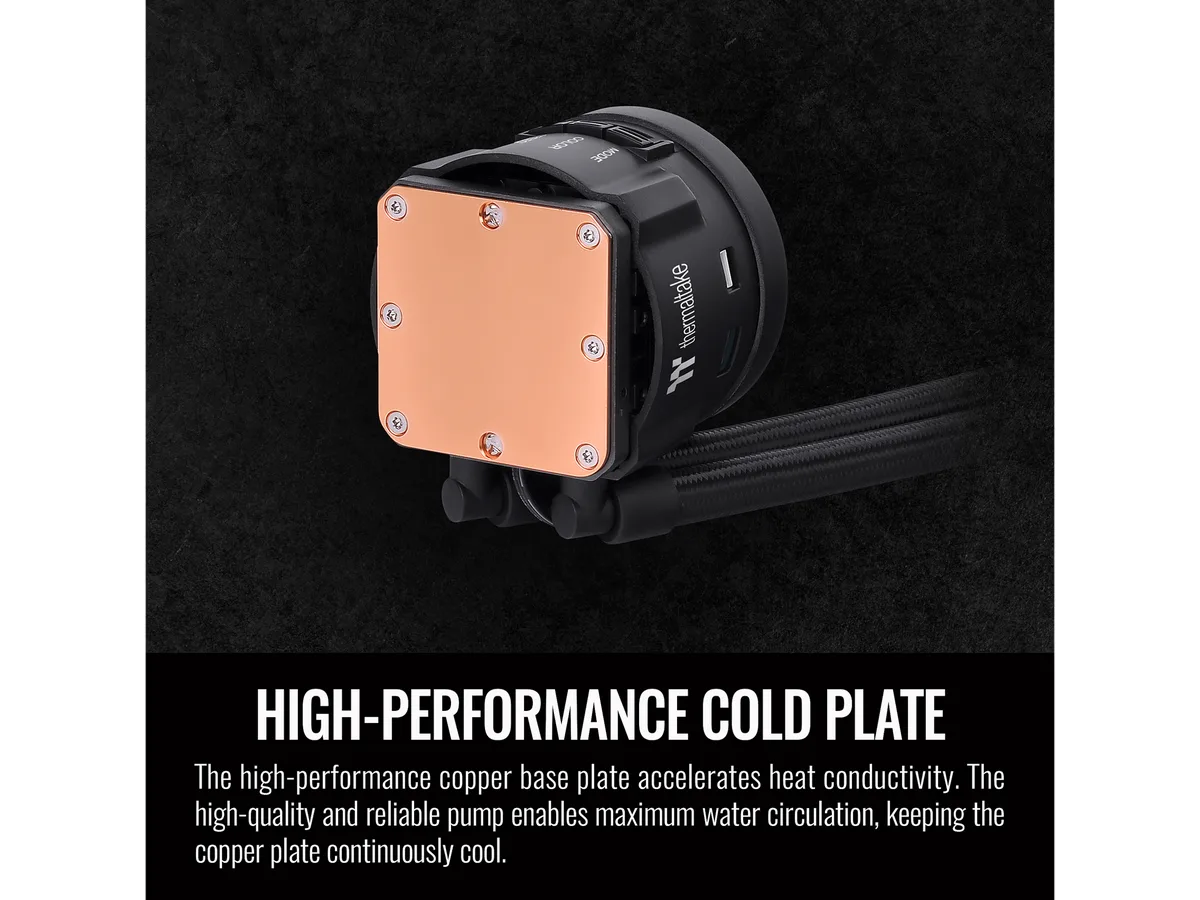

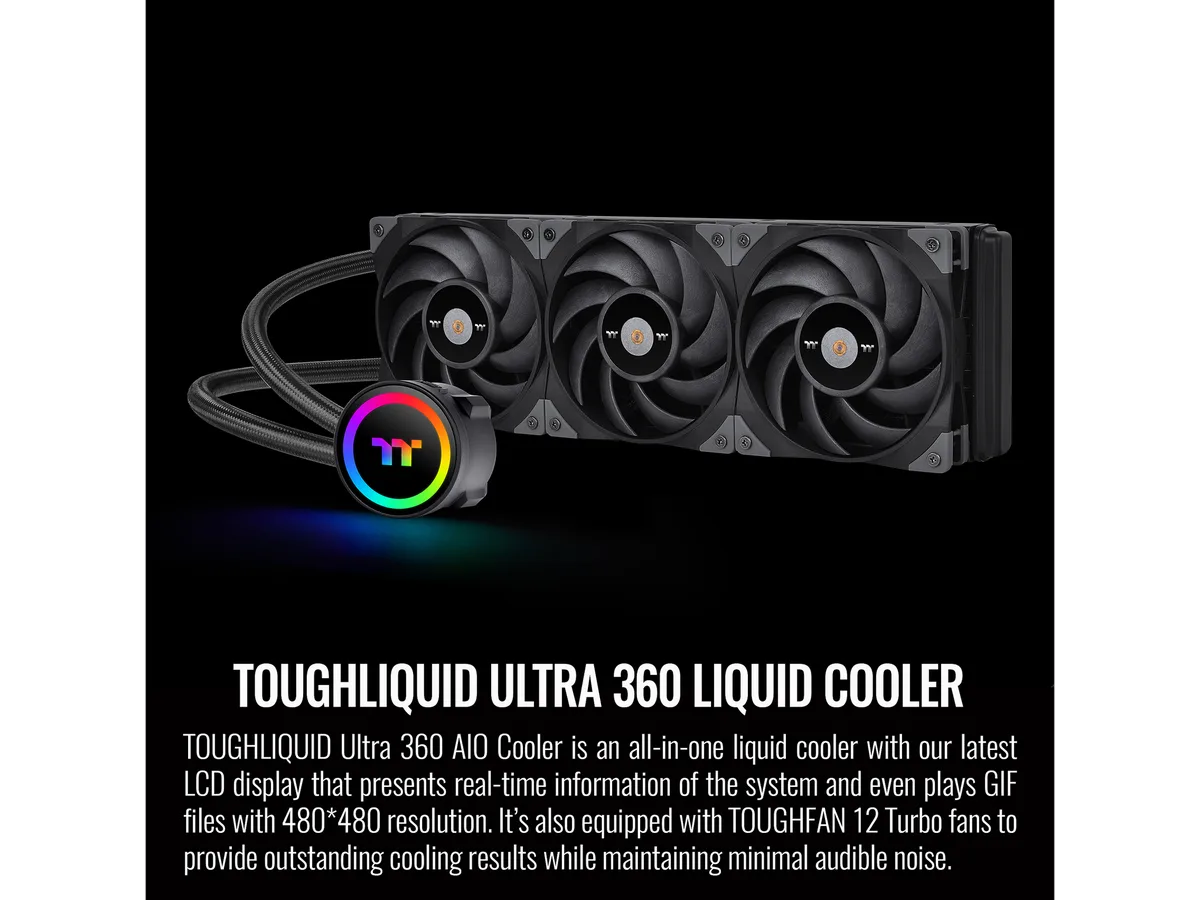

This all-in-one unit fits Intel LGA 1700, 1200, 115x and 20xx platforms plus AMD AM5, AM4 and older AM3, FM2 sockets. A copper cold plate transfers heat to a 273 mm aluminium radiator served by three 120 mm fans. The 400 mm rubber tubes give routing flexibility inside standard chassis.

2.1 inch rotational LCD and RGB ecosystem

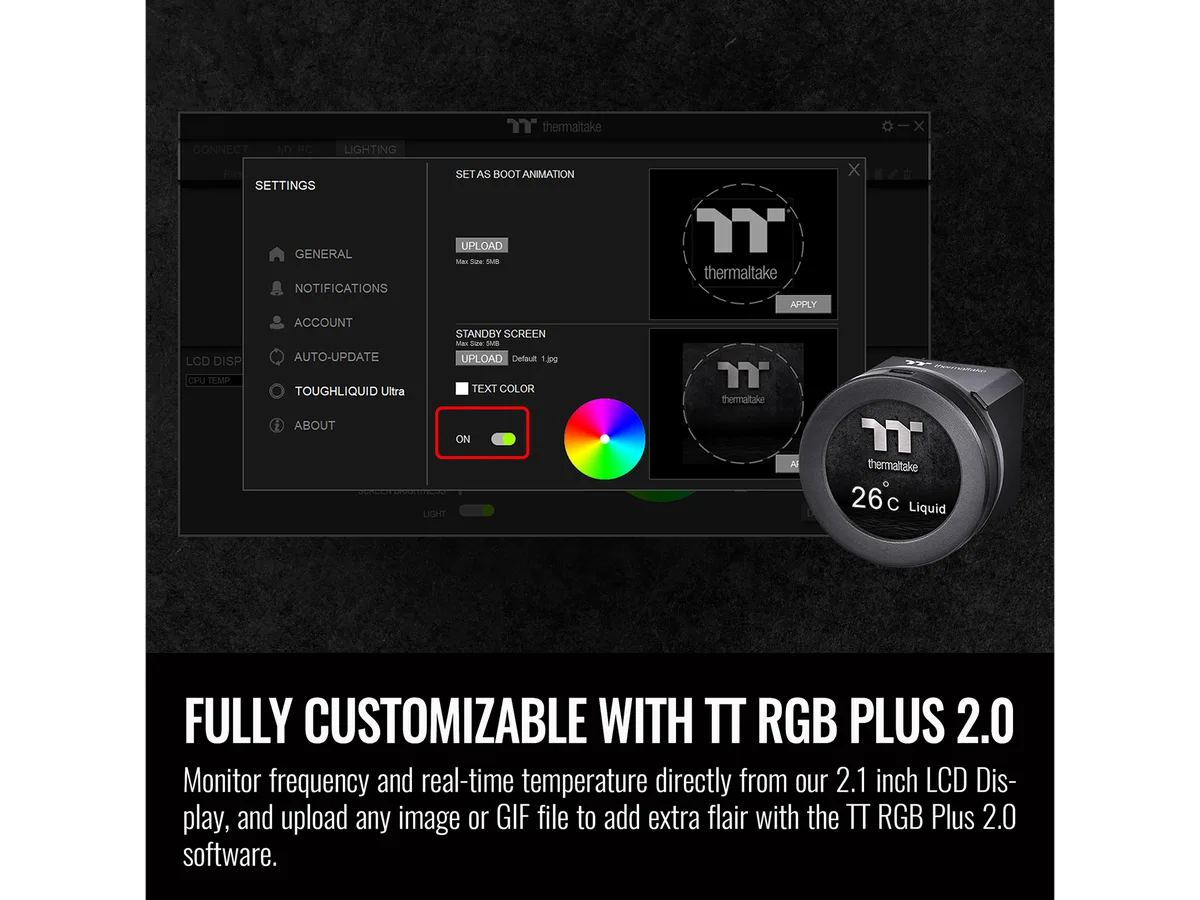

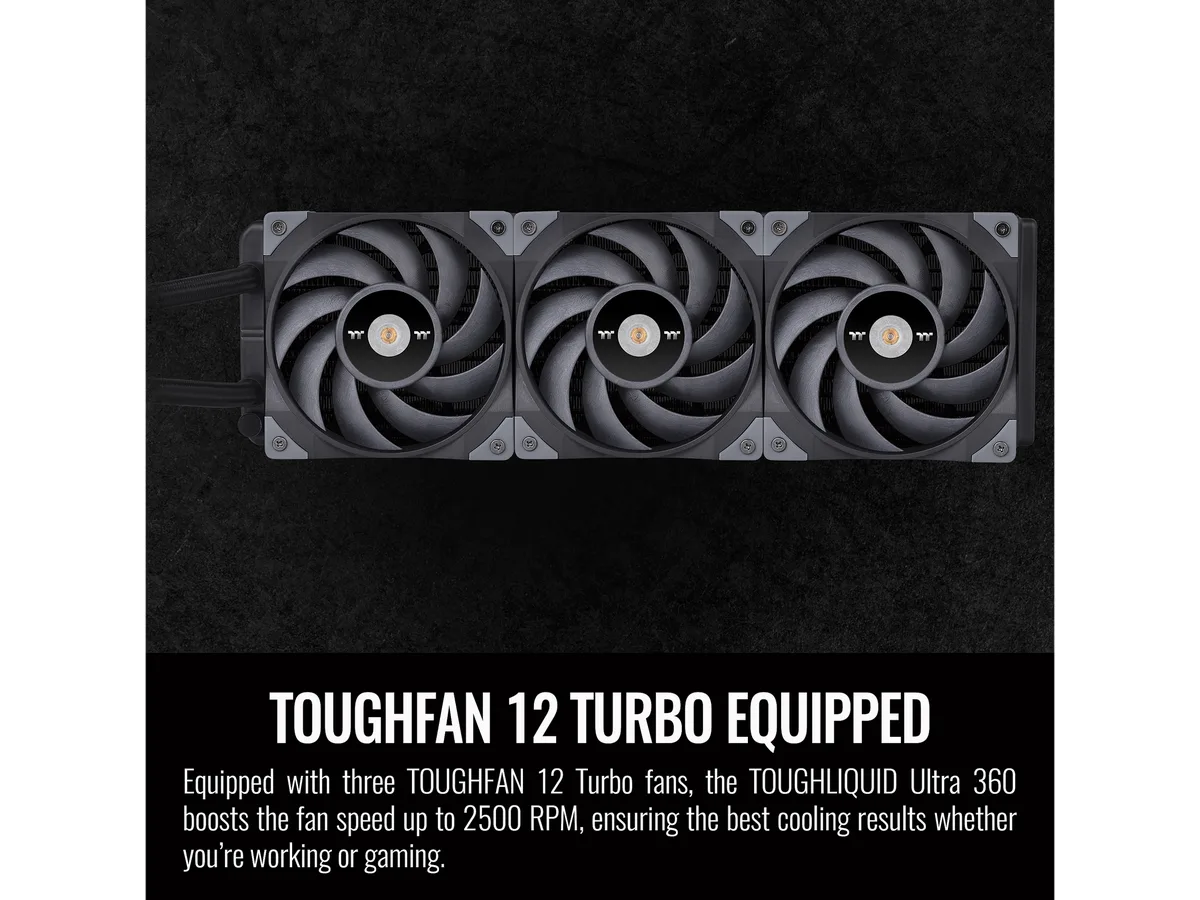

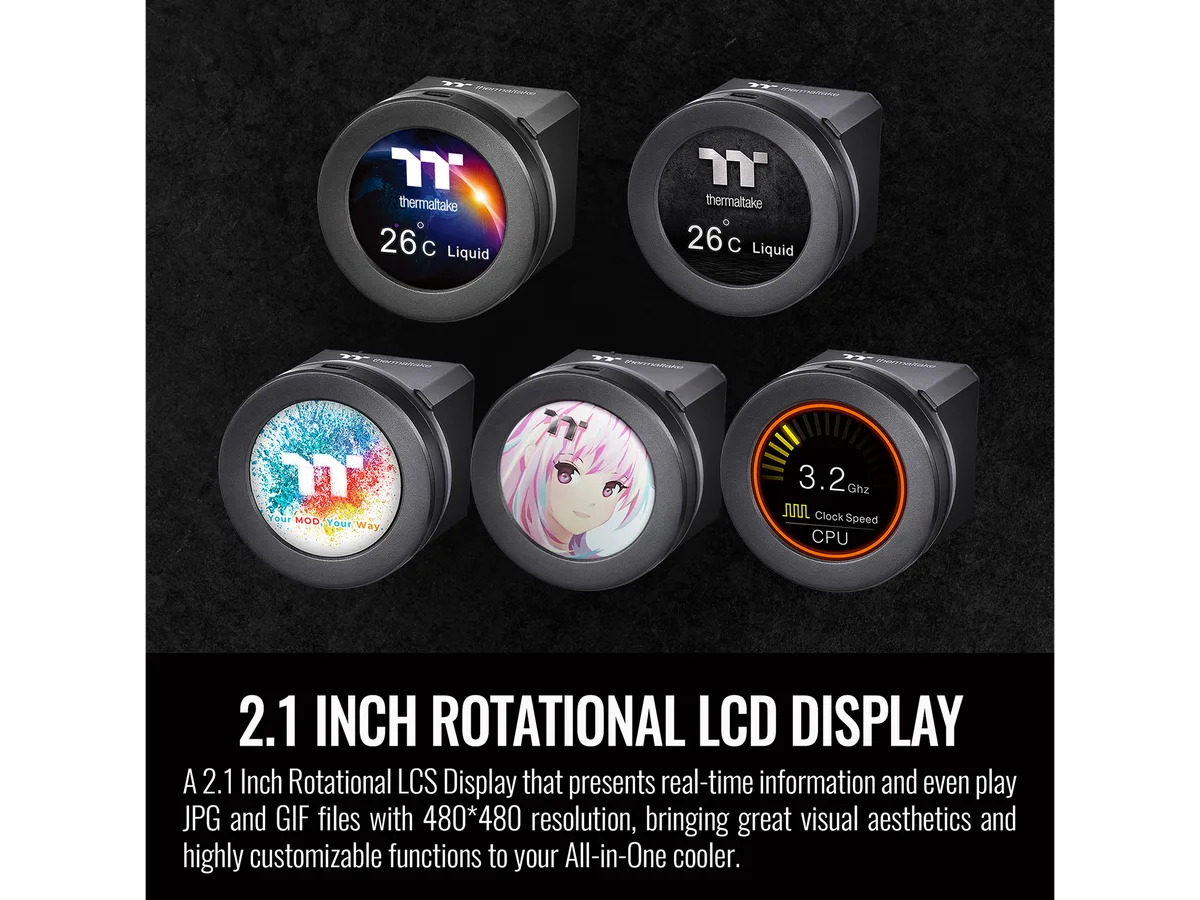

A 2.1 inch LCD screen on the pump block rotates for readable orientation and shows custom images or live data through TT RGB Plus 2.0 software. The same utility synchronises addressable lighting on the pump and fans with Razer Chroma and Alexa voice control. TOUGHFAN 12 Turbo fans run at 500 to 2500 RPM, moving up to 72.69 CFM each at 28.1 dBA.

Check socket, radiator space and fan headers

Verify your motherboard socket appears in the supported Intel or AMD lists above. Confirm the case can mount a 273 mm long, 27 mm thick radiator with three 120 mm fan slots. Ensure the board provides enough 4-pin PWM headers or a splitter for three fans plus the pump power lead. The LCD requires a USB 2.0 internal header for software control.

Highlights

  • Real-time stats on a 2.1 inch rotational LCD display
  • High airflow at 72.69 CFM per fan up to 2500 RPM
  • Quiet operation at 28.1 dBA maximum noise
  • Broad socket support for Intel LGA 1700 and AMD AM5
  • Customisable lighting via TT RGB Plus 2.0 software

Specifications

BrandThermaltake
SeriesTOUGHLIQUID Ultra
ModelCL-W323-PL12GM-B
TypeLiquid Cooling System
Block CompatibilityIntel LGA 2066 / 2011-3 / 2011 / 1700 / 1366 / 1200 / 1156 / 1155 / 1151 / 1150
AMD AM5 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2 / FM1
Block Compatibility - IntelIntel LGA 2066 / 2011-3 / 2011 / 1700 / 1366 / 1200 / 1156 / 1155 / 1151 / 1150
Block MaterialCopper
Radiator Size273.00 x 120.00 x 27.00 mm
Radiator MaterialAluminum
Fan Size3 Fan Slots (120 mm)
Fan Dim.120.00 x 120.00 x 25.00 mm
Fan RPM500~2500 RPM
Fan Air FlowMax. Air Flow: 72.69 CFM (one fan)
Fan Noise28.1 dBA
ColorBlack
Tube Dim.Length: 400 mm
Tube MaterialRubber
Shipping weight2.54 kg
Package size451 × 206 × 137 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How often will the 400 mm rubber tubes and copper cold plate need servicing or replacement?

The sealed loop is maintenance-free; the 400 mm rubber tubes and copper cold plate are rated for the cooler's lifetime without fluid changes.

What thermal limit appears first when the three 120 mm fans run at 2500 RPM under continuous load?

At 2500 RPM each fan delivers 72.69 CFM, so radiator airflow saturates before the pump or cold plate reaches its limit.

What noise and heat output should I expect from the 360 mm radiator and three fans running all day?

Maximum fan noise is 28.1 dBA at 2500 RPM; the 273 x 120 x 27 mm aluminum radiator dissipates heat into the case at that airflow.
