Rectangular black ATX power supply with modular cable sockets and 140mm fan grille

Thermaltake

Thermaltake Toughpower GF1 750W 80+ Gold Full Modular Power Supply PS-TPD-0750FNFAGU-1

SKU CH-RDWE-2M9RG MPN PS-TPD-0750FNFAGU-1

Fully modular 750W ATX PSU with 80 PLUS Gold efficiency, 140mm hydraulic-bearing fan and Japanese capacitors for stable low-ripple power

  • TypeATX12V
  • Maximum Power750 W
  • Fans140mm hydraulic bearing fan
  • PFCActive
  • Main Connector20+4Pin
  • +12V RailsSingle

Options ATX 80+ Gold (750W) Black

  • 80 PLUS Gold certified for up to 90% efficiency
  • 140mm hydraulic bearing fan with smart zero fan mode below 30% load
  • Fully modular design with 16AWG CPU and PCIe cables
  • 100% Japanese 105°C capacitors for stable long-term operation

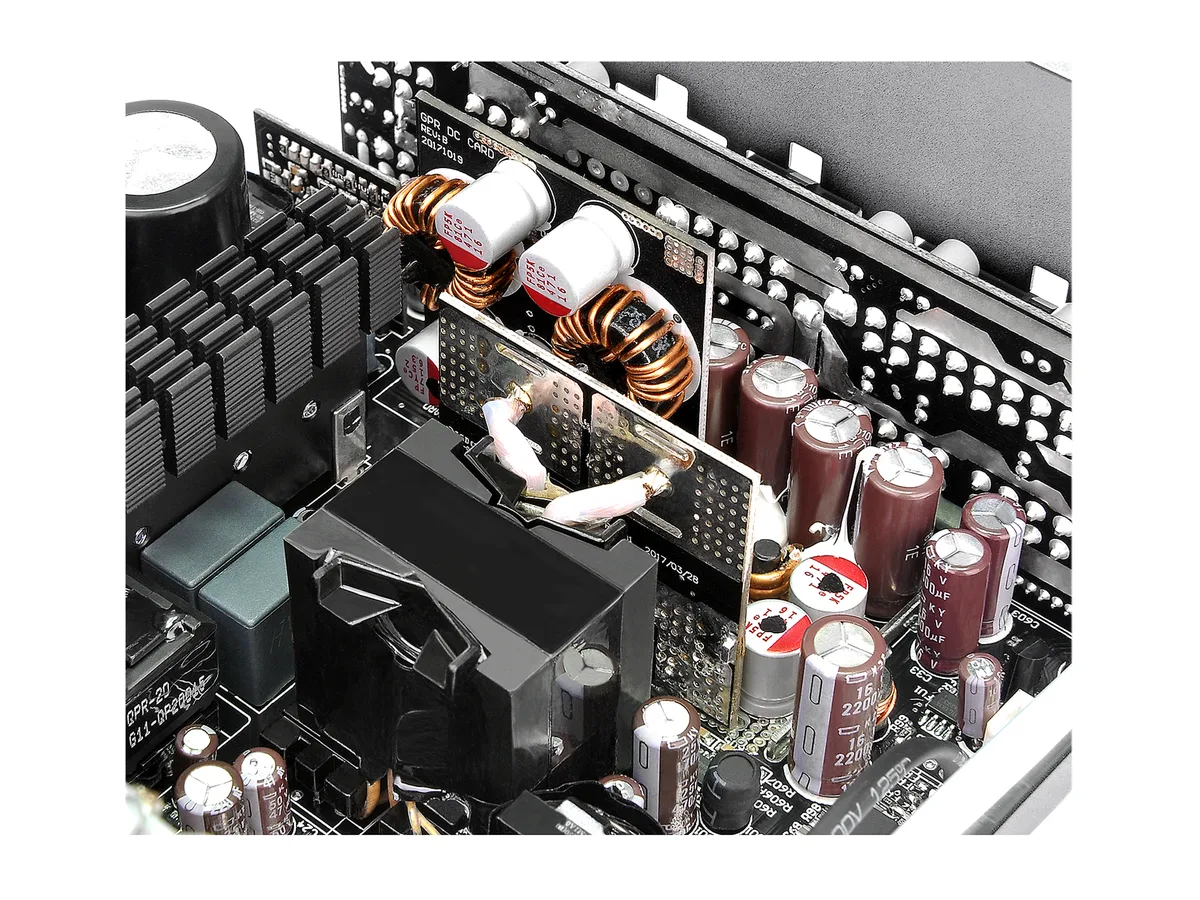

  • Zero-cable platform with direct-soldered daughterboards for lower ripple noise

Premium 750W ATX Power Supply

The Thermaltake Toughpower GF1 750W is an 80 PLUS Gold certified ATX12V unit built for enthusiasts who want stable, efficient power for high-end graphics cards and multi-GPU setups. A single +12V rail delivers the full 750W, while active PFC and Intel C6/C7 state support keep efficiency high across modern platforms.

Full Modular Cabling and Compact Length

Full modularity lets you connect only the cables your build needs, reducing clutter and improving airflow inside the case. The unit measures 160mm long, so it fits a wide range of chassis, and the 20+4-pin main connector, four 6+2-pin PCIe plugs, and nine SATA power connectors cover CPUs, graphics cards, and storage drives without adapters.

Sustained Output at 50°C with Low Ripple

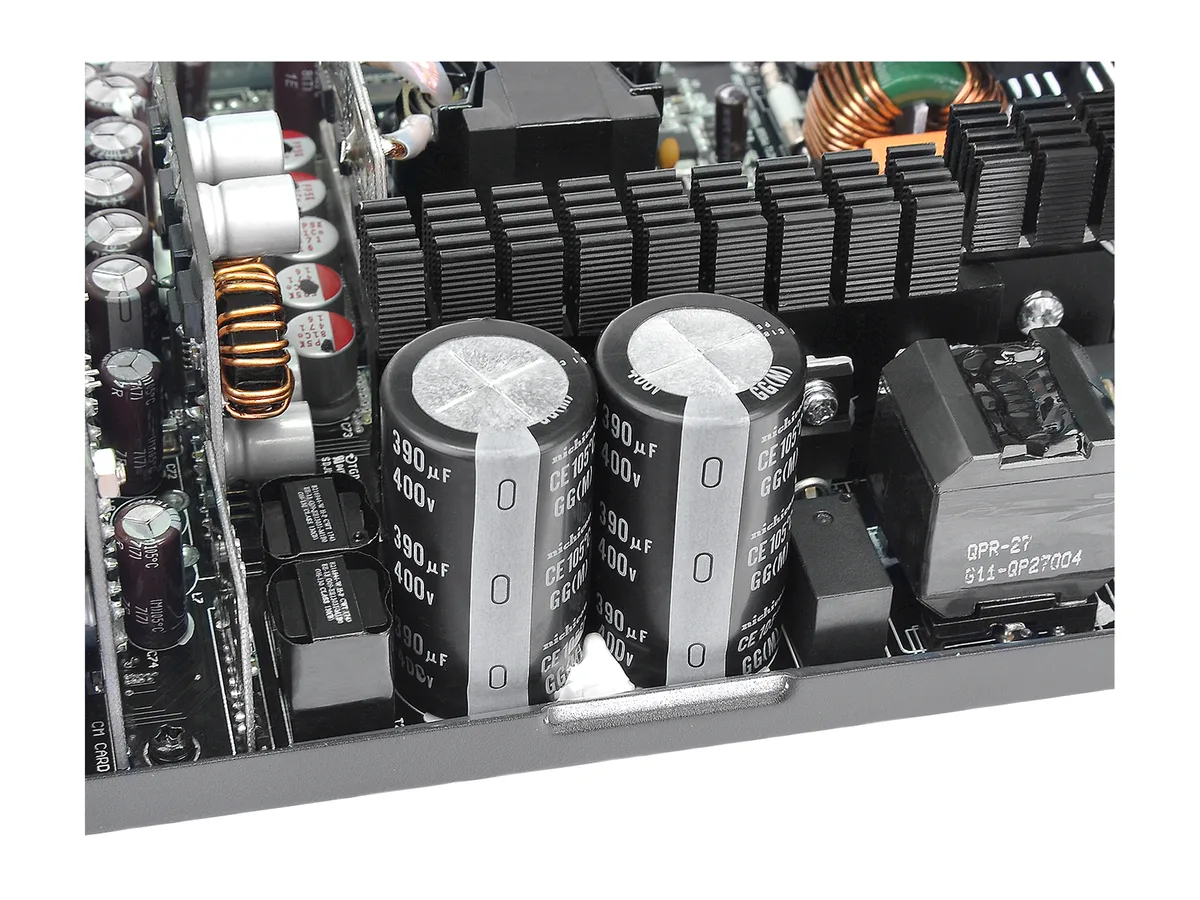

Rated for continuous operation at up to 50°C ambient, the PSU uses 105°C Japanese capacitors and a zero-cable copper-plate platform to maintain tight voltage regulation. Ripple stays below 30mV on the +12V, +5V, and +3.3V rails from zero to full load, while the 140mm hydraulic-bearing fan remains off until load exceeds 30%, then spins under PWM control for quiet cooling under sustained demand.

Highlights

  • 80 PLUS Gold certified for up to 90% efficiency
  • 140mm hydraulic bearing fan with smart zero fan mode below 30% load
  • Fully modular design with 16AWG CPU and PCIe cables
  • 100% Japanese 105°C capacitors for stable long-term operation
  • Zero-cable platform with direct-soldered daughterboards for lower ripple noise

Specifications

BrandThermaltake
SeriesToughpower GF1 750W - TT Premium Edition
ModelPS-TPD-0750FNFAGU-1
TypeATX12V
Maximum Power750 W
Fans140mm hydraulic bearing fan
PFCActive
Main Connector20+4Pin
+12V RailsSingle
PCI-Express Connector4 x 6+2-Pin
SATA Power Connector9
SLISLI Ready
CrossFireCrossFire Ready
Max PSU Length160 mm
ModularFull Modular
Power Good Signal100-500ms
Hold-up Time> 16msec at 100% of full load
Energy-Efficient80 PLUS GOLD Certified
Over Voltage ProtectionYes
Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
Input Current10A
Output+3.3V@22A, +5V@22A, [email protected] , [email protected] , +5VSB@3A
MTBF>120,000 Hours
ApprovalsCE / cTUVus / TÜV SÜD / FCC / BSMI / EAC

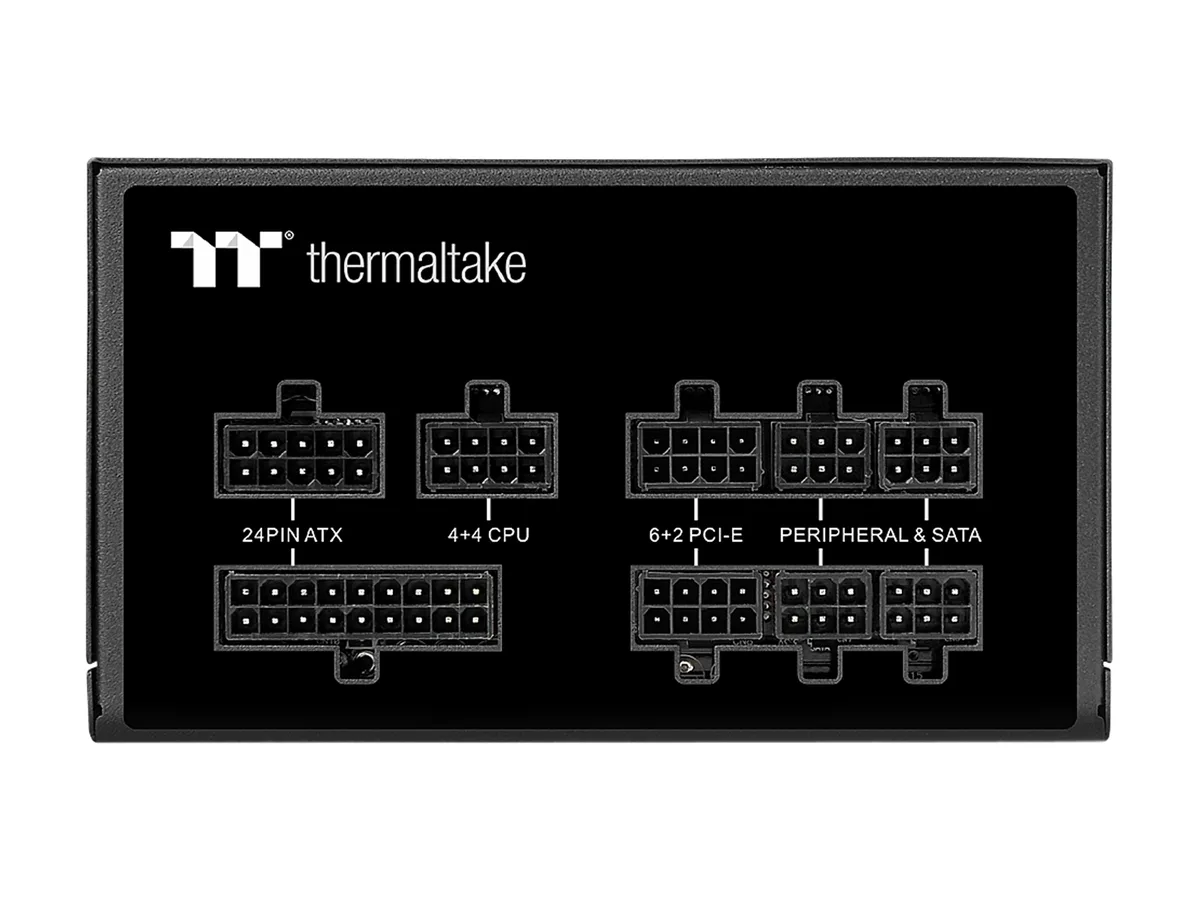

Connectors1 x 24-pin Main Power
1 x 4+4-pin ATX 12V
4 x PCI-E (6+2 pin)
9 x SATA
4 x Peripheral
1 x Floppy
FeaturesToughpower GF1 750W - TT Premium Edition
Zero Cable Platform
Ultra Quiet 140mm Hydraulic Bearing Fan
<30mV Low Ripple Noise
Extremely Strict Voltage Regulation <+/-2%
Fully Modular Low-Profile Flat Cable
Premium Japanese 105°C/221°F Capacitors
High Amperage Single +12V Rail
80 PLUS Gold Certified and Intel C6/C7 States Ready
Dimensions3.39" x 5.91" x 6.30"
Weight6.6
Shipping weight3.02 kg
Package size320 × 234 × 160 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will this 160 mm long unit fit in my case?

The power supply is 160 mm long; check your case specification for maximum PSU length to confirm clearance.

Does it include enough PCIe connectors for a dual-GPU build?

Four 6+2-pin PCIe connectors are supplied, supporting SLI or CrossFire configurations with two graphics cards.

Can I run the fan continuously instead of the semi-passive mode?

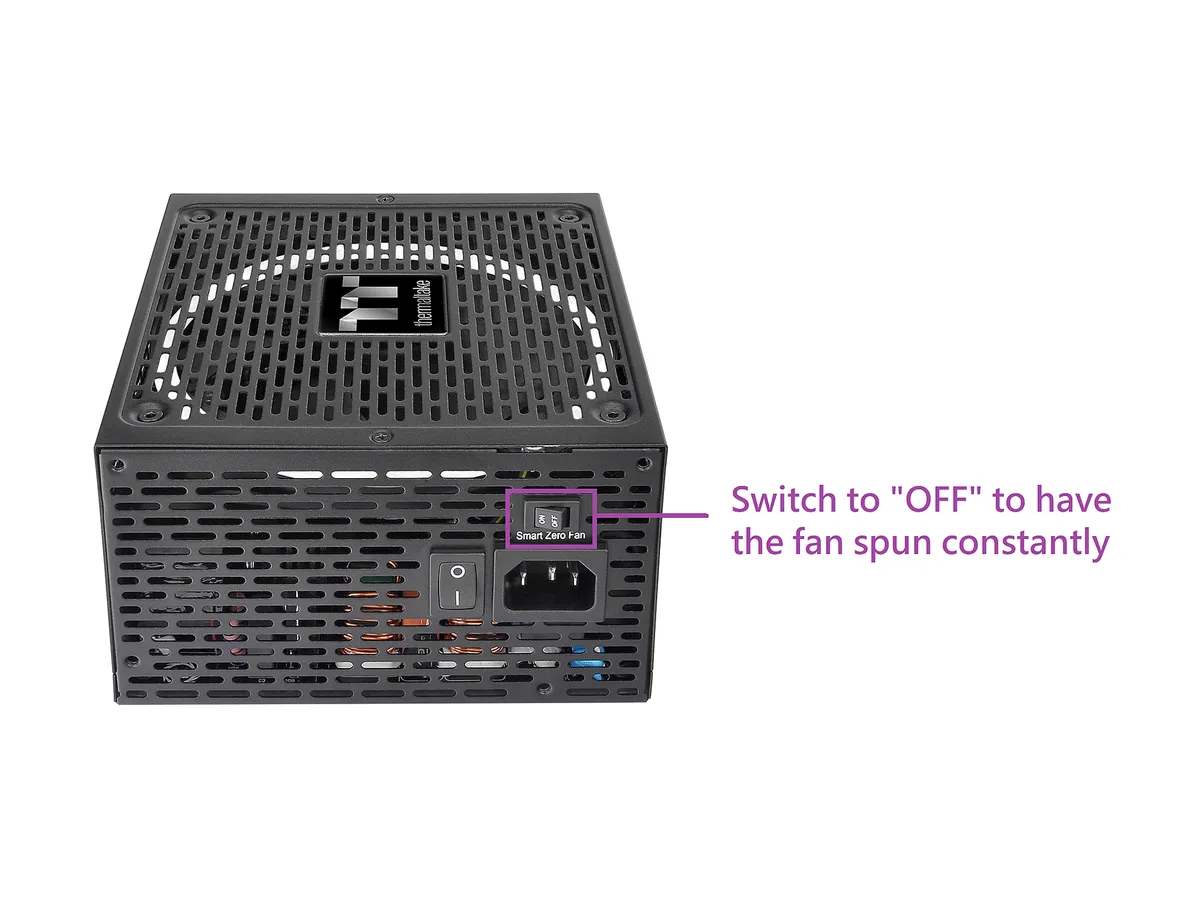

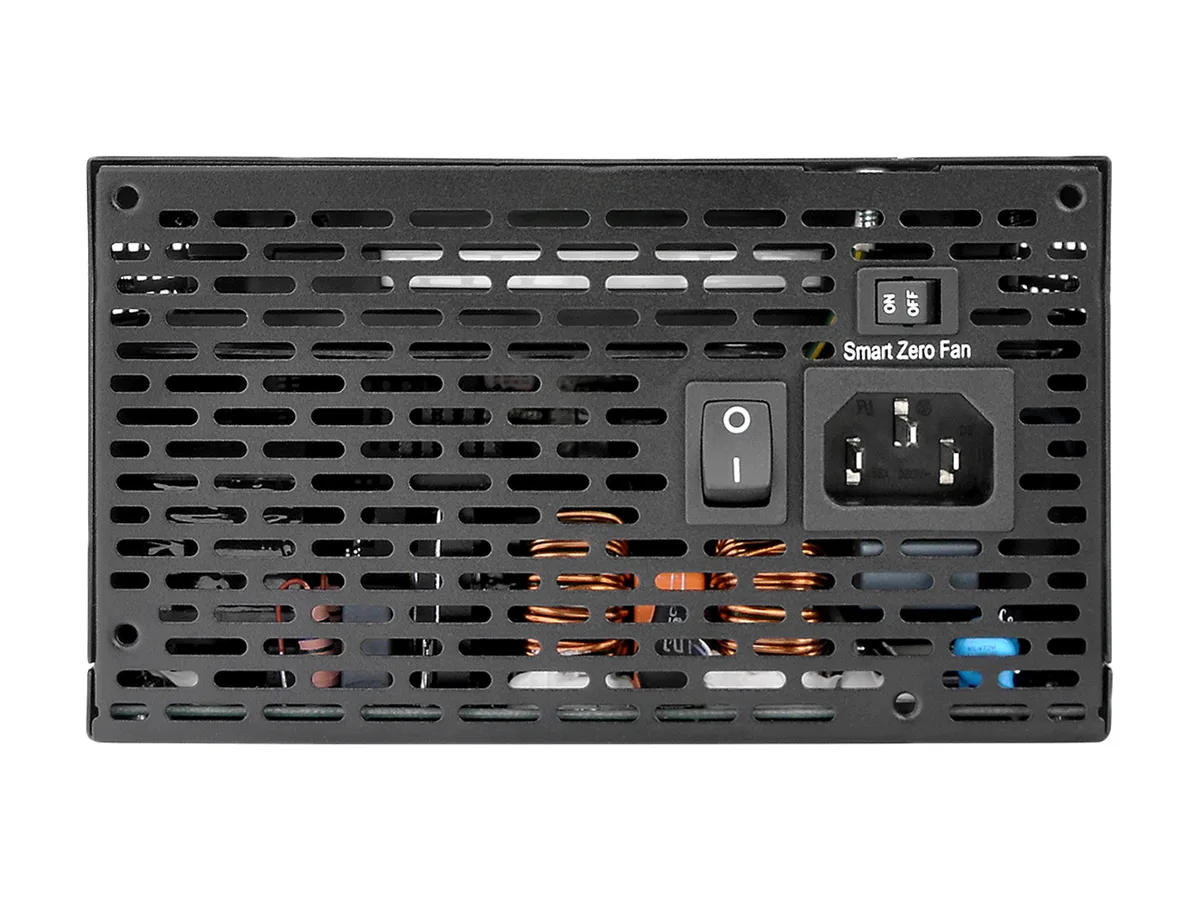

A rear switch lets you disable the Smart Zero Fan feature so the 140 mm hydraulic-bearing fan spins at all times.
