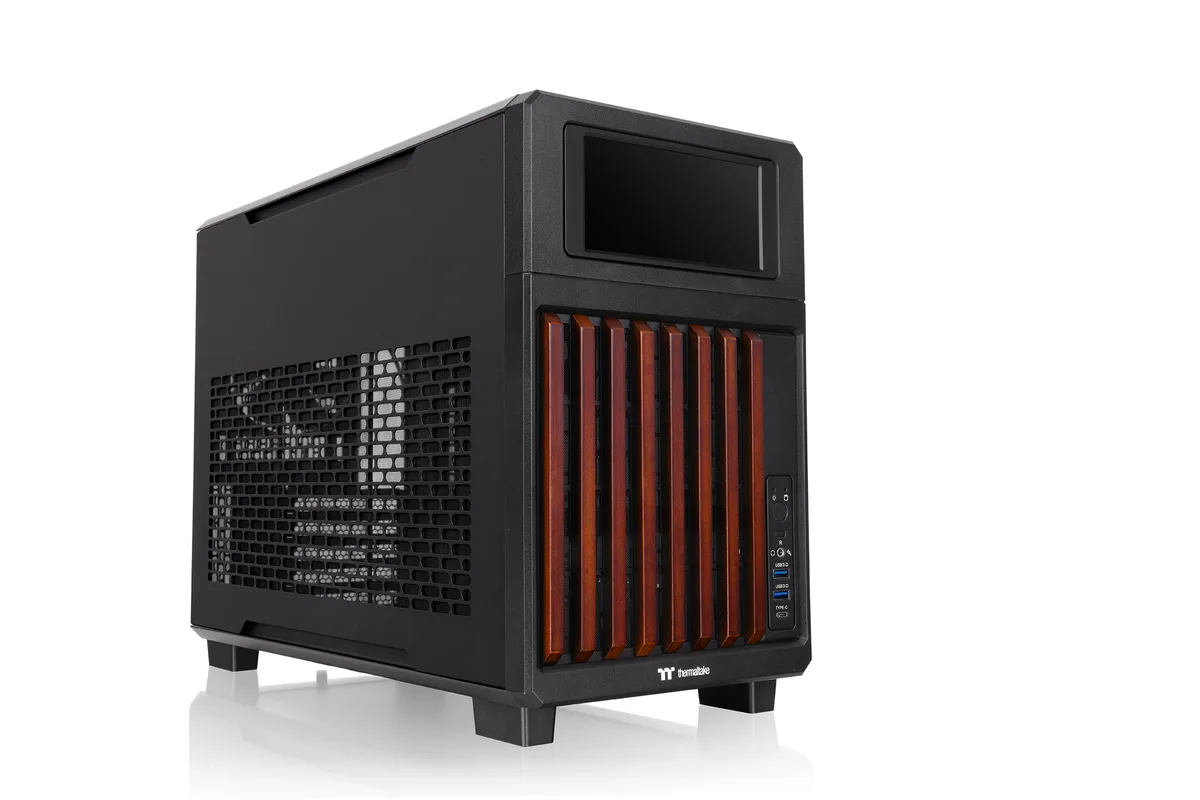

Black micro-ATX case with 6.0 inch LCD screen and wood front trim

Thermaltake

Thermaltake TR200 WS CA-11L-00S1NN-W1 PC case 6.0" LCD Wood Front Trim

SKU CH-ABEV-3QNFG MPN CA-11L-00S1NN-W1

A micro-ATX chassis with a 6.0" LCD, wood front trim, 365mm GPU clearance and 360mm radiator support

  • TypeMicro ATX Cases
  • ColorBlack
  • Case MaterialSPCC
  • With Power SupplyNo
  • Power Supply MountedFront
  • Motherboard CompatibilityMicro ATX / Mini ITX
  • Pre-installed 6.0 inch LCD screen shows real-time system data
  • Micro-ATX and Mini-ITX support fits full-size components in a compact frame
  • 365 mm GPU clearance and 175 mm CPU cooler height handle high-performance hardware
  • Top-mounted 360 mm radiator support enables liquid cooling in a small case
  • Adjustable GPU brace and removable dust filters simplify building and maintenance

Portable Micro Chassis for mATX Builds

The TR200 WS is a compact Micro ATX case designed for portable systems that still accept full-size hardware. It supports Micro ATX and Mini ITX motherboards, a 365 mm graphics card, a 175 mm CPU cooler and a 258 mm power supply. A preinstalled 6.0 inch LCD screen and wood front trim give the chassis a distinctive look for home or travel use.

Sustained Load Cooling Capacity

The chassis accommodates up to seven 120 mm fans and a top-mounted 360 mm radiator, allowing liquid-cooled configurations to dissipate heat over long sessions. A single rear 120 mm fan running at 1400 rpm and 23.2 dBA is included for baseline exhaust airflow. With the optional 5.25 inch bay plate installed, the top radiator limit reduces to 240 mm, trading some liquid-cooling capacity for accessory space.

Front I/O and Expansion Limits

The front panel provides one USB 3.2 Gen 2 Type-C port, two USB 3.0 ports and an HD audio jack for external connectivity. Internally the case offers two 3.5 inch and two 2.5 inch drive bays plus five expansion slots for add-in cards. The side mesh panel and removable dust filters simplify maintenance without requiring tools.

Highlights

  • Pre-installed 6.0 inch LCD screen shows real-time system data
  • Micro-ATX and Mini-ITX support fits full-size components in a compact frame
  • 365 mm GPU clearance and 175 mm CPU cooler height handle high-performance hardware
  • Top-mounted 360 mm radiator support enables liquid cooling in a small case
  • Adjustable GPU brace and removable dust filters simplify building and maintenance

Specifications

BrandThermaltake
SeriesTR Series
ModelTR200 WS
Part NumberCA-11L-00S1NN-W1
TypeMicro ATX Cases
ColorBlack
Case MaterialSPCC
With Power SupplyNo
Power Supply MountedFront
Motherboard CompatibilityMicro ATX / Mini ITX
Side PanelMesh Panel
Internal 3.5" Drive Bays2
Internal 2.5" Drive Bays2
Expansion Slots5
Front PortsUSB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
Fan OptionsTop - 3 x 120mm
Pre-installed FansRear(exhaust): 120 x 120 x 25 mm Standard fan (1400rpm, 23.2 dBA) x 1
Radiator OptionsRear - Up to 120mm / Top - Up to 280mm / Top - Up to 360mm
Max GPU Length365 mm
Max CPU Cooler Height175 mm
Max PSU Length258 mm
Dimensions14.33" x 8.66" x 19.45"
Weight16.7 lbs.
Shipping weight7.62 kg
Package size565 × 451 × 298 mm

Questions about this item

Will a 365 mm graphics card fit with the pre-installed rear fan in place?

Yes, the case allows up to 365 mm GPU clearance regardless of the rear fan.

Can I install a 360 mm radiator on the top and still use the 5.25 inch bay?

No, the top radiator is limited to 240 mm when the 5.25 inch bay is fitted.

What motherboard sizes are supported and how many expansion slots are available?

Micro-ATX and Mini-ITX boards are supported with five expansion slots.
