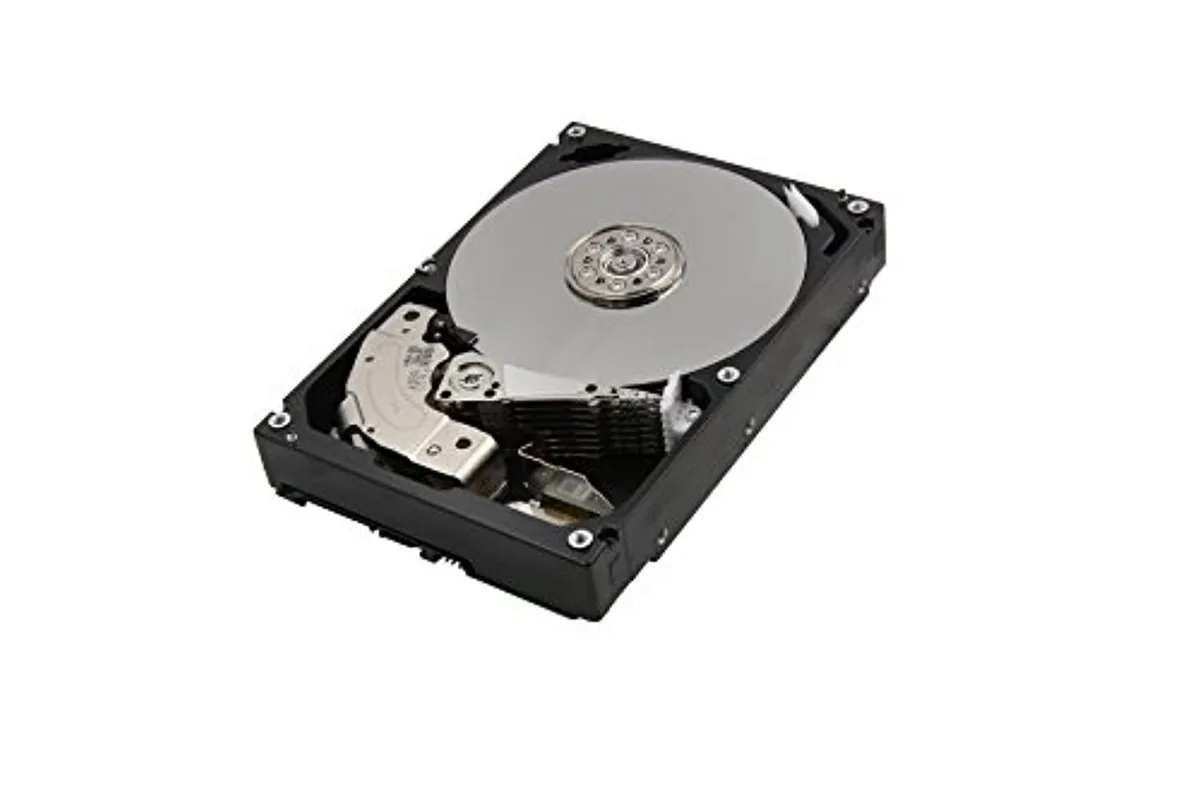

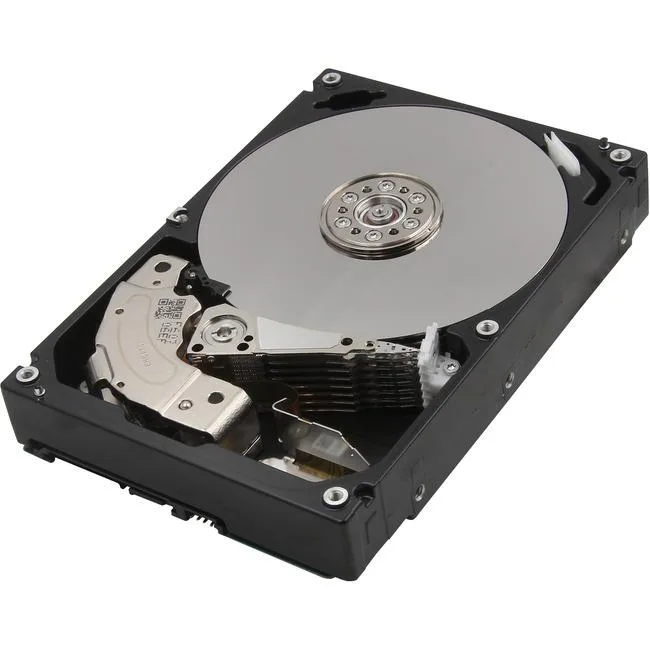

Silver 3.5-inch internal hard drive bare unit

Toshiba

Toshiba MG06ACA10TE 10TB 7200 RPM 256MB SATA 3.5" internal hard drive

SKU CH-YNCQ-PT0SX MPN MG06ACA10TE

10 TB enterprise hard drive with 7200 RPM speed, 256 MB cache and SATA 6.0 Gb/s interface in a helium-sealed 3.5" form factor

  • PackagingBare Drive
  • InterfaceSATA 6.0Gb/s
  • Capacity10TB
  • NAND Flash Memory TypeSLC
  • RPM7200 RPM
  • Cache256MB

Options 10TB 256MB Cache

Struck-through versions exist but are not stocked here.

  • 10 TB capacity for large enterprise datasets
  • 7200 RPM spindle speed for fast data access
  • 256 MB cache to accelerate read and write operations
  • SATA 6.0 Gb/s interface for high-throughput connectivity
  • Helium-sealed 9-disk design enables 10 TB in a 3.5" form factor

10TB helium-sealed enterprise drive

The Toshiba MG06ACA10TE is a 10TB 3.5" internal hard drive built for enterprise storage workloads. It runs at 7200 RPM with a 256MB cache and connects through a SATA 6.0Gb/s interface. The helium-sealed nine-disk design increases storage density while reducing power draw and vibration.

Upgrade from smaller air-filled drives

This model replaces lower-capacity air-filled drives when a single-bay upgrade to 10TB is needed. The jump is worth it for arrays that require higher density without adding spindles. Larger 12TB and 14TB models exist in the same series for workloads that need even more capacity per slot.

SATA 6.0Gb/s interface ceiling

Sequential throughput is limited by the SATA 6.0Gb/s link, so sustained reads and writes cannot exceed that bus ceiling. Random I/O performance is bound by 7200 RPM rotational latency and the 256MB buffer size. The 512e sector format ensures compatibility with legacy operating systems and controllers.

Highlights

  • 10 TB capacity for large enterprise datasets
  • 7200 RPM spindle speed for fast data access
  • 256 MB cache to accelerate read and write operations
  • SATA 6.0 Gb/s interface for high-throughput connectivity
  • Helium-sealed 9-disk design enables 10 TB in a 3.5" form factor

Specifications

BrandTOSHIBA
ModelMG06ACA10TE
PackagingBare Drive
InterfaceSATA 6.0Gb/s
Capacity10TB
NAND Flash Memory TypeSLC
RPM7200 RPM
Cache256MB
Features14TB and 12TB capacity models
Innovative 9-disk helium-sealed design for superior storage density
Industry Standard 3.5-inch 26.10mm Form Factor
7,200 RPM Performance
SATA 6.0Gbit/s Interface
Low operational power profile, providing excellent power efficiency (W/TB) for better TCO
550 Total TB Transferred per Year Workload Rating
512e Advanced Format Sector Technology; (512e Model) Includes Toshiba Persistent Write Cache Technology for Data-Loss Protection in Sudden Power-Loss Events
UsageFor Enterprise Storage
Form Factor3.5"
Height (maximum)26.10mm
Width (maximum)101.85mm
Length (maximum)147.00mm
Shipping weight0.91 kg
Package size457 × 305 × 203 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What are the exact dimensions of the 3.5" MG06ACA10TE so I can confirm it fits my drive bay?

The drive measures 26.10mm in height, 101.85mm in width and 147.00mm in length, matching the industry-standard 3.5-inch form factor.

Which cables and jumpers are needed to install this SATA 6.0Gb/s drive correctly?

Connect a standard SATA data cable to the motherboard and a SATA power connector from the PSU; no jumpers are required for SATA operation.

How do I maintain the helium seal on this 9-disk enterprise drive over its service life?

The helium-sealed enclosure is maintenance-free for the life of the drive; no user service or gas replenishment is possible or required.
