Toshiba

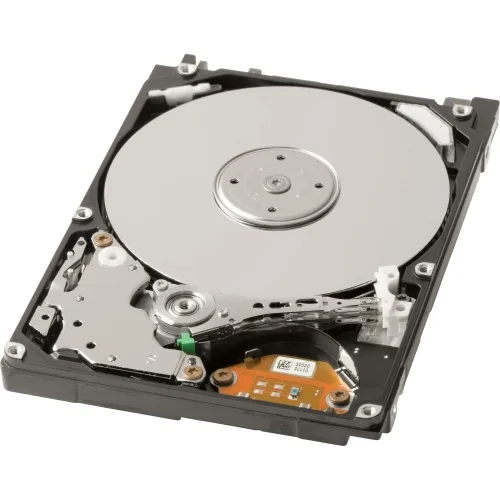

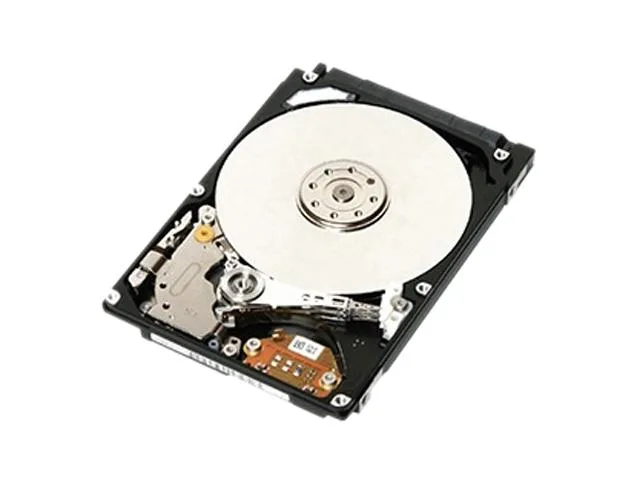

Toshiba MK1656GSY 2.5" 7200 RPM 16MB SATA 3.0Gb/s internal hard drive
A 2.5" 7200 RPM SATA internal hard drive with 16MB cache and 11ms seek time
- InterfaceSATA 3.0Gb/s
- RPM7200 RPM
- Cache16MB
- Average Seek Time11ms
- Average Write Time12ms
- FeaturesTop-of-the-line performance, low-power consumption and field
- 7200 RPM spin speed cuts load times
- 16 MB cache smooths bursty workloads
- 11 ms average seek locates data fast
- 23 dBA acoustics keep systems quiet
- 5 mm height fits standard 2.5″ bays
2.5" 7200 RPM SATA 3.0Gb/s drive
The Toshiba MK1656GSY is a new 2.5-inch internal hard drive spinning at 7200 RPM with a 16MB cache and a SATA 3.0Gb/s interface. It measures 9.5mm in height, 69.75mm in width and 100.3mm in length. Average seek time is 11ms and average write time is 12ms.
Suits compact systems needing 7200 RPM speed
This drive fits notebook PCs, Energy Star desktops, tiny all-in-one systems and graphics workstations that require a 2.5-inch form factor and 7200 RPM performance. It operates between 5°C and 55°C with idle and seek acoustics of 23 dBA. Builders needing a 3.5-inch form factor, a SATA 6.0Gb/s interface or solid-state speed should look elsewhere.
SATA 3.0Gb/s interface decides fit
The drive connects via a SATA 3.0Gb/s interface, so the host must provide a matching SATA port and 2.5-inch bay with 9.5mm clearance. If the system only accepts SATA 6.0Gb/s for full throughput or requires a different physical connector, this unit will not meet the requirement.
Highlights
- 7200 RPM spin speed cuts load times
- 16 MB cache smooths bursty workloads
- 11 ms average seek locates data fast
- 23 dBA acoustics keep systems quiet
- 5 mm height fits standard 2.5″ bays
Specifications
| Brand | TOSHIBA |
|---|---|
| Model | MK1656GSY |
| Interface | SATA 3.0Gb/s |
| RPM | 7200 RPM |
| Cache | 16MB |
| Average Seek Time | 11ms |
| Average Write Time | 12ms |
| Features | Top-of-the-line performance, low-power consumption and field-proven durability make the MKxx56GSY Series well-suited for a wide variety of data-intensive mobile and stationary computing systems including consumer and commercial notebook PCs, Energy Star, tiny and all-in-one desktops, as well as graphic and image rendering workstations Track-to-track Seek: 1ms Temp - Operating: 5° to 55°C (41° to 131°F) Temp - Non-Operating: -40° to 60°C (-40° to 140°F) Vibration - Operating: 9.8 m/s² (1.0G) 5 to 500 Hz Vibration - Non-Operating: 49 m/s² (5.0G) 15 to 500Hz Shock - Operating: 3,185 m/s |
| Form Factor | 2.5" |
| Height (maximum) | 9.5mm |
| Width (maximum) | 69.75mm |
| Length (maximum) | 100.3mm |
| Shipping weight | 0.09 kg |
| Package size | 102 × 86 × 23 mm |
Questions about this item
How can I verify the drive is healthy after installing it in my laptop?
Check that the BIOS detects the MK1656GSY at 7200 RPM with a SATA 3.0Gb/s link and run a SMART self-test; idle acoustics should be around 23 dBA.
What comes in the box and what must I supply myself?
The drive ships in retail or OEM packaging that may vary; you will need a 2.5" 9.5 mm drive bay or caddy, a SATA data cable and a SATA power connection.
Which capacity version of the MK1656GSY should I choose?
The MK1656GSY is a single model with 16 MB cache, 7200 RPM and SATA 3.0Gb/s; no other capacities are offered under this MPN.
