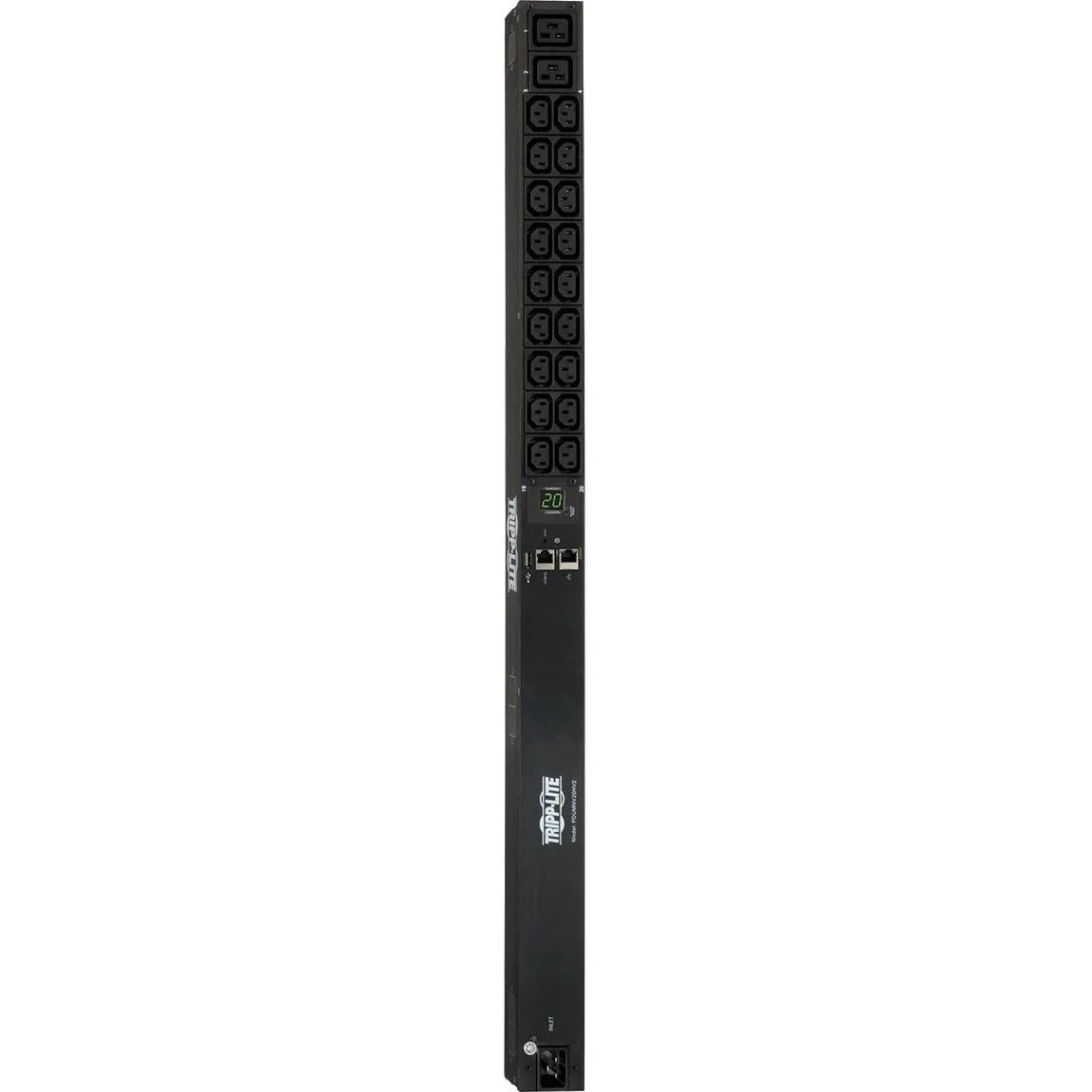

Vertical black metal PDU with 18 C13 and 2 C19 outlets, digital ammeter, LX interface, 10ft L6-20P cord

Tripp Lite

Tripp Lite PDUMNV20HV2LX PDU 3.3/3.7 kW 208/230V 18 C13 2 C19 LX

SKU CH-4XYQ-1BG43 MPN PDUMNV20HV2LX

Monitored 0U PDU delivers 3.3/3.7 kW at 208/230V with 18 C13 and 2 C19 outlets, built-in LX interface and digital ammeter

  • TypeMonitored
  • Rack Size0U
  • StyleVertical
  • CertificationsTested to UL60950-1:2007, IEC60950-1: 2005 (USA), CAN/CSA-C2
  • ROHSYes
  • Package IncludesPDUMNV20HV2LX 3.3/3.7kW Single-Phase Monitored PDU Built-in

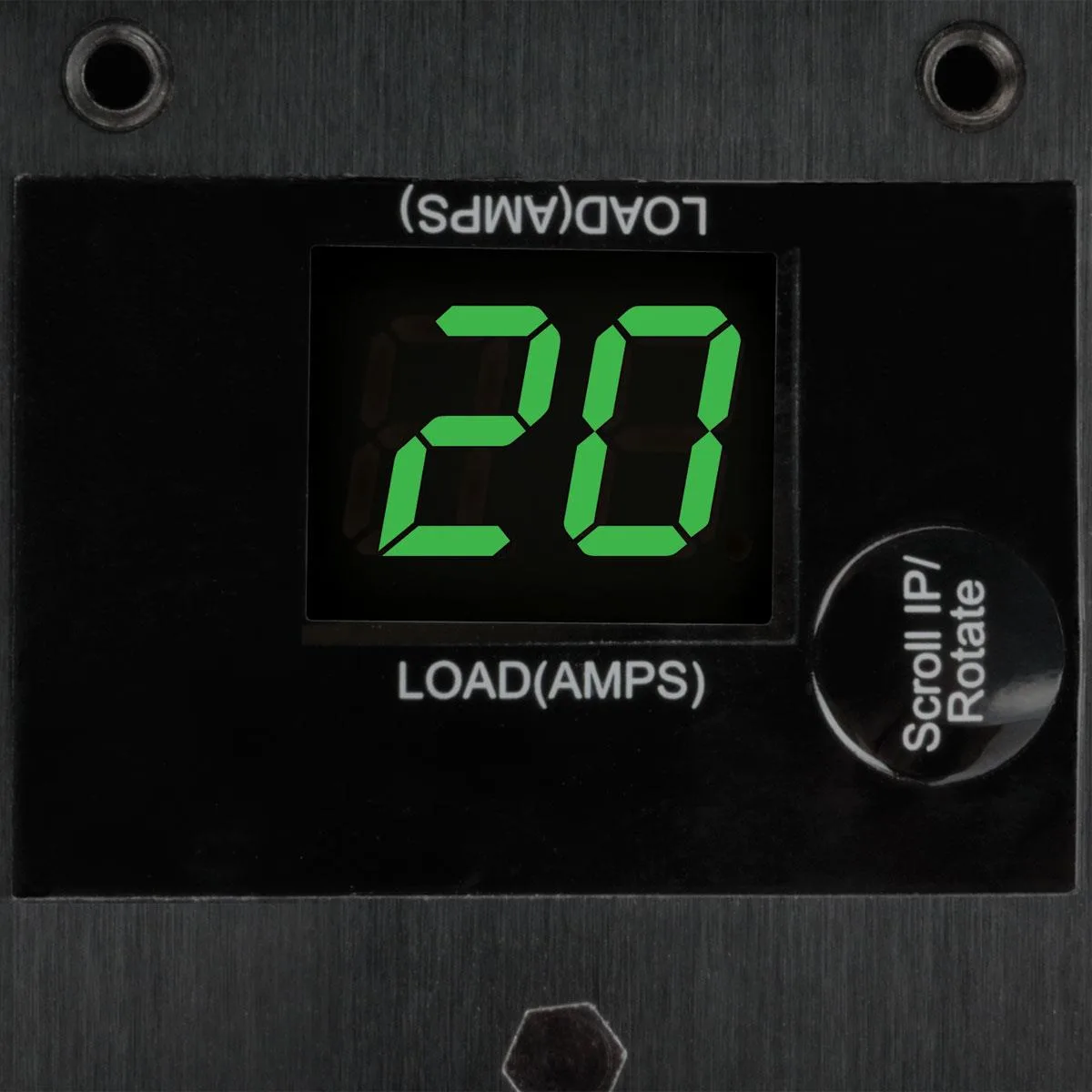

  • Monitors power draw in real time via digital ammeter

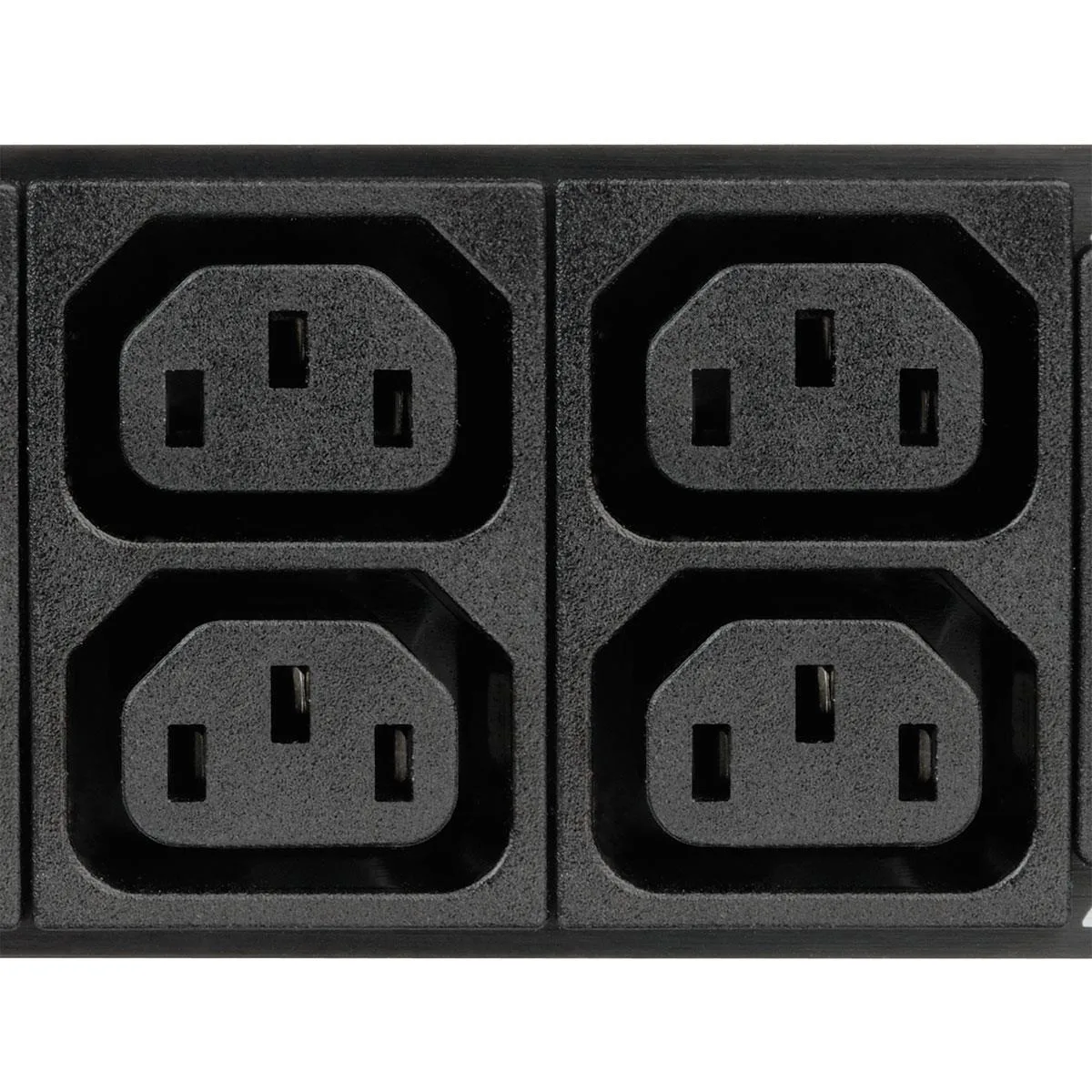

  • 20 outlets (18 C13, 2 C19) with plug-lock inserts prevent accidental disconnects

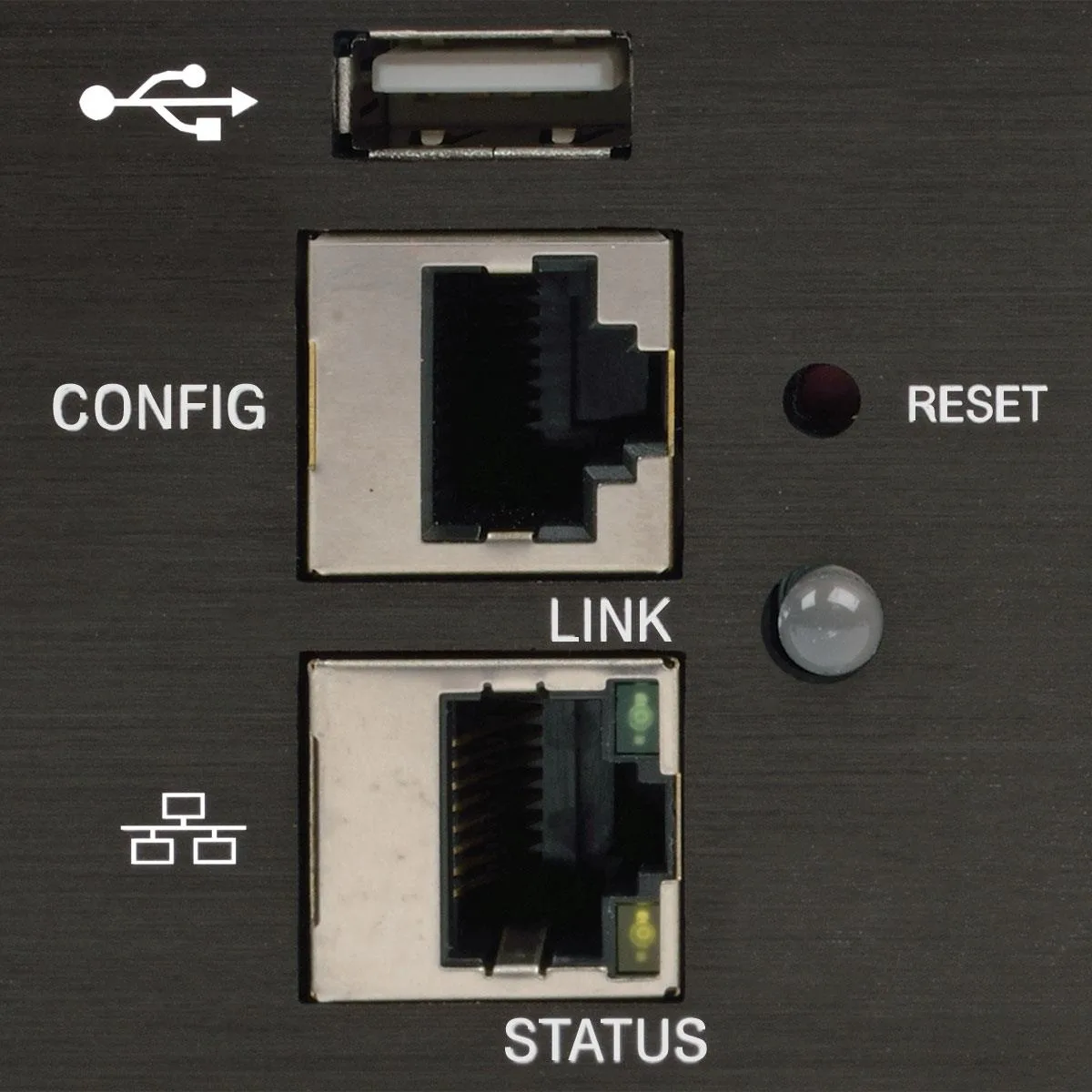

  • Built-in LX Platform interface enables 24/7 remote monitoring access
  • 3/3.7 kW capacity at 208/230V supports high-density rack deployments
  • 0U vertical design fits 35.5" rack height without consuming rack units

Monitored PDU for rack power distribution

The Tripp Lite PDUMNV20HV2LX is a single-phase monitored power distribution unit rated at 3.3 kW at 208 V or 3.7 kW at 230 V. It provides 20 outlets — 18 C13 and 2 C19 — for server and network equipment in data centres and rack environments.

Upgrade from basic unmonitored strips

This unit replaces non-metered power strips when real-time load visibility is required. The built-in digital ammeter and LX Platform interface enable remote monitoring 24/7, making the jump worthwhile for teams that need to track circuit utilisation without additional sensors.

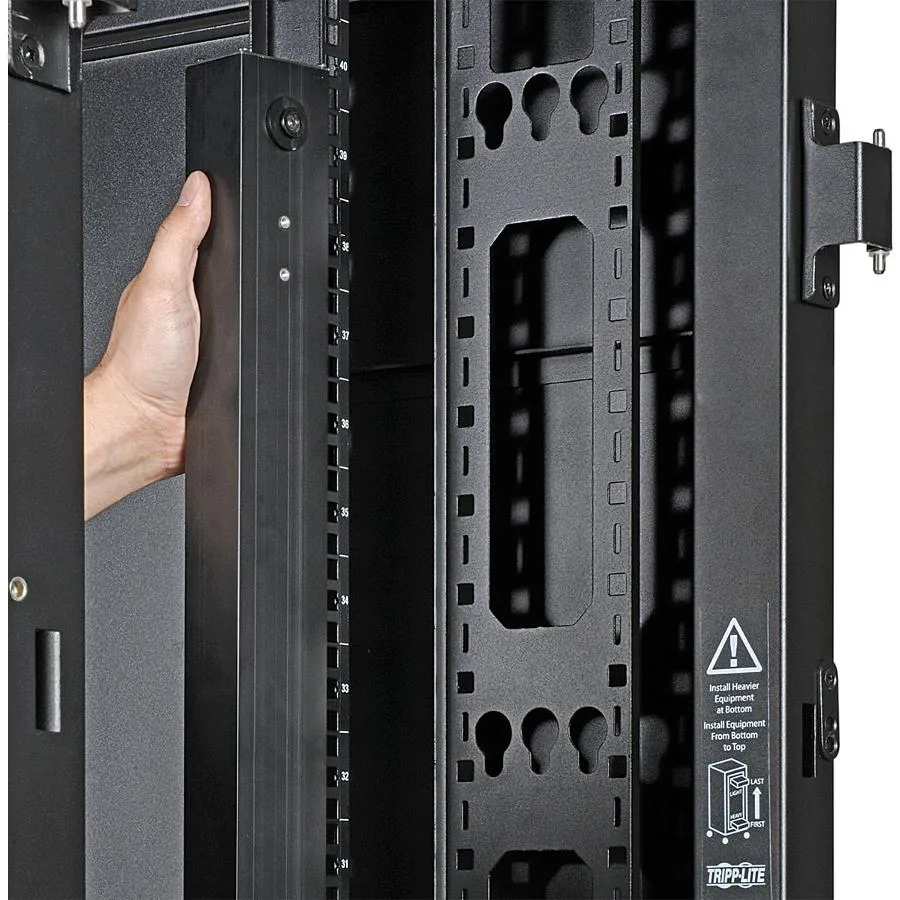

0U vertical mounting with plug-lock inserts

Installation uses the included 0U vertical brackets and hardware in a standard rack. The 10.0 ft detachable cord with NEMA L6-20P and C20 inlet connects to the supply, while 20 supplied plug-lock inserts secure C13 and C19 cords against accidental disconnection.

Highlights

  • Monitors power draw in real time via digital ammeter
  • 20 outlets (18 C13, 2 C19) with plug-lock inserts prevent accidental disconnects
  • Built-in LX Platform interface enables 24/7 remote monitoring access
  • 3/3.7 kW capacity at 208/230V supports high-density rack deployments
  • 0U vertical design fits 35.5" rack height without consuming rack units

Specifications

BrandTripp Lite
ModelPDUMNV20HV2LX
TypeMonitored
Rack Size0U
StyleVertical
CertificationsTested to UL60950-1:2007, IEC60950-1: 2005 (USA), CAN/CSA-C22.2 NO. 60950-1-07 (Canada), CE IEC60950-1:2005, EN55022:2010+2011, EN55024:2010 (International), FCC Class A (Emissions), NOM (Mexico), RoHS compliant, TAA Compliant
ROHSYes
Package IncludesPDUMNV20HV2LX 3.3/3.7kW Single-Phase Monitored PDU
Built-in LX Platform interface
Detachable NEMA L6-20P to C19 power cord, 10.0 Feet
Configuration cable
20 x Plug-lock inserts
Rack-mounting hardware
PDUMVROTATEBRKT mounting bracket accessory
Owner's manual
Input Voltage208V, 230V
Maximum Input Current20A
Input Connector(s)NEMA L6-20P; IEC-320 C20
Cord Length10.0 Feet
Output Voltage208V, 230V
Output Frequency50/60Hz
Output Connector(s)18 x C13, 2 x C19
Operating Relative Humidity5 - 95%
Operating Elevation0 - 3000 m
Storage Temperature-15 - 60 Degree Celcius
Storage Relative Humidity5 - 95%
FeaturesDistributes and Monitors Network-Grade AC Power
18 C13 and 2 C19 Outlets Distribute AC Power
Digital Ammeter
Built-In LX Platform Interface
Broad Communications Compatibility
Essential Safety Features
Easy 0U Installation in EIA-Standard 19.0" Racks
TAA-Compliant
Dimensions2.20" x 1.85" x 35.50"
Weight6.50 lbs.
Shipping weight5.22 kg
Package size1067 × 157 × 114 mm

Questions about this item

How much vertical rack space does the 35.5-inch 0U PDU require for mounting?

The unit mounts in 0U vertical space, using the included rack-mounting hardware along the side of a standard rack without consuming horizontal rack units.

Which input connector must be used with the detachable 10.0-foot cord for a 208/230V 20A supply?

Connect the supplied NEMA L6-20P plug to a matching L6-20R receptacle; the C20 inlet on the PDU accepts the cord's C19 end.

When should the digital ammeter reading be checked to verify balanced loading across the 18 C13 and 2 C19 outlets?

Check the ammeter after initial power-up and whenever equipment is added or removed to ensure the total load stays below the 20A input rating.
