Tripp Lite
Tripp Lite PDUMV30HV2 PDU Metered Vertical 5.8kW 208/240V 8 C19 40 C13 L6-30P 0U TAA
Metered vertical PDU delivers 5.8 kW at 208/240 V through 40 C13 and 8 C19 outlets with dual 20 A breakers and NEMA L6-30P input
- TypeMetered
- Rack Size0U
- StyleVertical
- Front Panel LEDsSet of two digital current meters report output current in t
- CertificationsTested to UL/CAN 60950-1 (USA, Canada), NOM (Mexico), FCC Cl
- ROHSYes
- Dual load banks with 20A breakers protect connected equipment
- Metered current display shows real-time load per segment

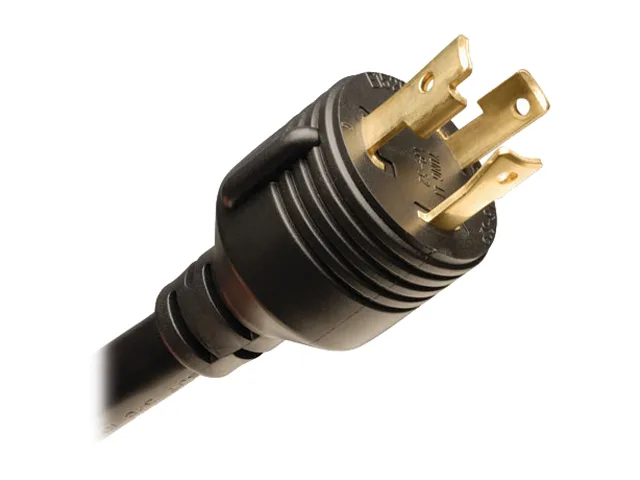

- 10 ft input cord with L6-30P plug connects to 208/240V supply

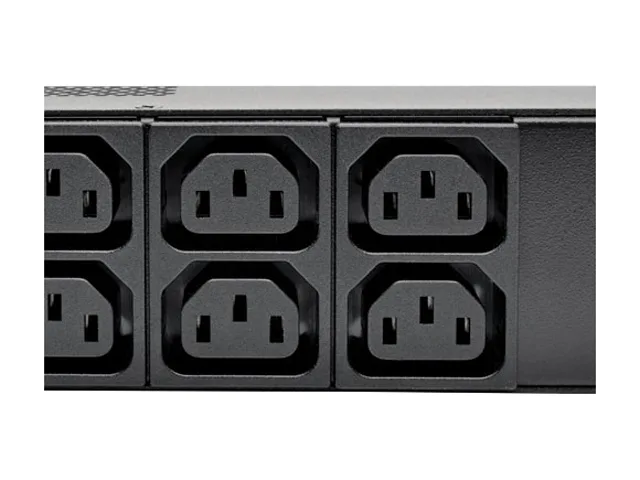

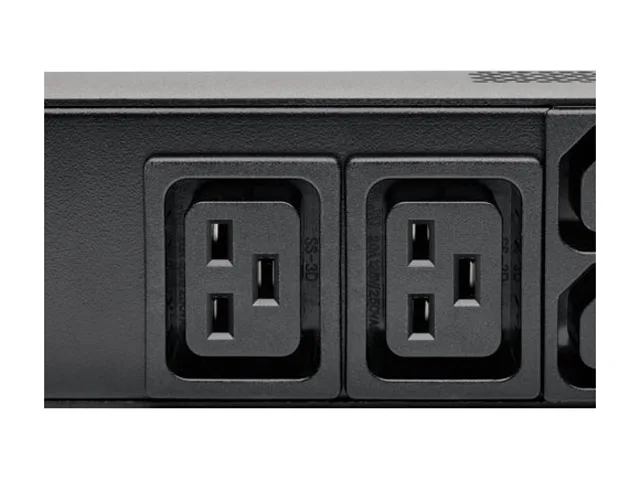

- 40 C13 and 8 C19 outlets support dense rack deployments
- TAA compliant and UL/CAN 60950-1 tested for regulated environments
Metered vertical PDU for 30 A three-phase feeds
The Tripp Lite PDUMV30HV2 is a 0 U vertical power distribution unit rated for 5.8 kW at 208/240 V single-phase input. It accepts a NEMA L6-30P plug on a 10 ft cord and delivers power through 40 IEC C13 and 8 IEC C19 outlets split across two metered load banks. Dual digital current meters on the front panel report output current for each bank so operators can balance loads in real time. The unit ships with plug-lock inserts, mounting hardware and a ground screw for secure rack installation.
Two 20 A breakers protect each outlet bank
Overload protection is provided by a pair of 20 A circuit breakers, one dedicated to Bank 1 and the other to Bank 2, limiting continuous draw to 24 A per agency derating. This breaker arrangement is the single specification that determines whether the PDU matches a facility’s branch-circuit design; each bank serves 20 C13 and 4 C19 outlets, so any rack plan must stay within the 20 A per-bank limit. The input connector, voltage range and breaker ratings are fixed and cannot be altered in the field.
Fanless convection cooling in 0 °C to 50 °C
The PDU operates without fans, relying on passive convection within the stated temperature range of 0 °C to 50 °C and relative humidity of 5 % to 95 % non-condensing. Rated for elevations up to 3000 m, it adds no audible noise to the rack environment and draws only the power required by connected equipment. Certifications include UL/CAN 60950-1, NOM, FCC Class A and TAA compliance, with RoHS adherence confirmed.
Highlights
- Dual load banks with 20A breakers protect connected equipment
- Metered current display shows real-time load per segment
- 10 ft input cord with L6-30P plug connects to 208/240V supply
- 40 C13 and 8 C19 outlets support dense rack deployments
- TAA compliant and UL/CAN 60950-1 tested for regulated environments
Specifications
| Brand | Tripp Lite |
|---|---|
| Model | PDUMV30HV2 |
| Type | Metered |
| Rack Size | 0U |
| Style | Vertical |
| Front Panel LEDs | Set of two digital current meters report output current in two segments |
| Certifications | Tested to UL/CAN 60950-1 (USA, Canada), NOM (Mexico), FCC Class A (Emissions), TAA Compliant |
| ROHS | Yes |
| Package Includes | PDUMV30HV2 30A 208/240V 5.8kW Single-Phase Metered PDU Plug-lock inserts (8 C20, 40 C13) Spare installation buttons, 2.9 mm/4.6 mm Ground screw Mounting hardware Owner's Manual |
| Input Voltage | 200 - 240V |
| Maximum Input Current | 24A |
| Input Connector(s) | NEMA L6-30P |
| Cord Length | 10 ft |
| Output Voltage | 200 V - 240 V nominal, single phase |
| Output Frequency | 50/60Hz |
| Output Connector(s) | 40 x C13; 8 x C19 |
| Overload Protection | Set of 2 20A breakers protect output Bank 1 and Bank 2 |
| Operating Environment | 0 degrees to 50 degrees C |
| Operating Relative Humidity | 5 - 95% |
| Operating Elevation | 0 - 3000 m |
| Storage Temperature | -15 - 60 degrees C |
| Features | Ideal for server rooms, network closets and data centers Dual load banks with 24 outlets each (4 C19 and 20 C13) Dedicated 20A circuit breakers protect output NEMA L6-30P input plug with 10-ft. (3 m) cord Ready for immediate toolless 0U installation |
| Dimensions | 70.00" x 2.17" x 2.52" |
| Weight | 12.35 lbs. |
| Shipping weight | 8.17 kg |
| Package size | 1930 × 184 × 152 mm |
Questions about this item
What does the 5.8 kW rating mean once the unit is installed?
The agency-derated continuous limit is 24 A, so the usable capacity at 208 V is about 5.0 kW and at 240 V about 5.8 kW.
What does the NEMA L6-30P input cap in practice?
The locking plug is rated for 30 A, but the built-in 20 A breakers and the 24 A derating limit continuous draw to 24 A.
What hardware is needed to mount the 0U vertical chassis?
The package includes spare installation buttons for 2.9 mm and 4.6 mm holes, a ground screw and mounting hardware.
