Ugreen Group Limited
Ugreen Group Limited DH2300 NAS 2-Bay Rockchip RK3576 8-Core 2.2 GHz 4GB LPDDR4X
Two-bay desktop NAS with an 8-core Rockchip processor, 4 GB LPDDR4X and RAID 0, 1 or JBOD for up to 64 TB of personal cloud storage
- TypeDesktop NAS
- Port USB1 x USB-C (5Gb/s) + 2 x USB-A (5Gb/s)
- HDD Interface2 x SATA (2 x Bay)
- Form Factor2-Bay
- Operating SystemUGOS Pro
- ProcessorRockchip ARM A72+A53 8-Core 2.2 GHz
- 8-core Rockchip RK3576 processor handles multi-user media streaming
- 4 GB soldered LPDDR4X memory runs the UGOS Pro OS smoothly
- Two SATA bays accept up to 64 TB of raw storage
- RAID 0, 1 and JBOD protect data or maximise capacity
- 72 W active power draw keeps running costs low

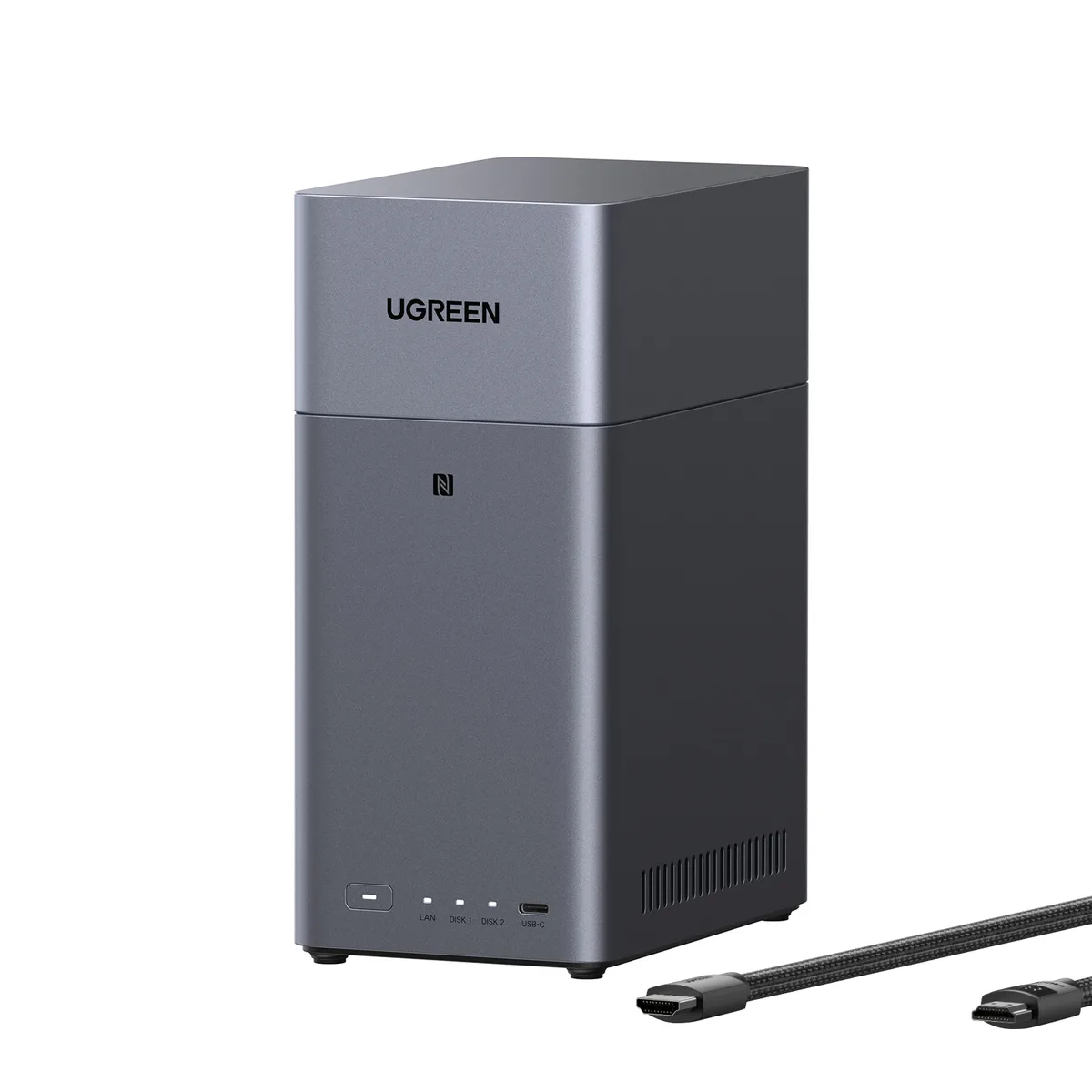

Two-Bay Desktop NAS for Home Storage
The DH2300 is a 2-bay desktop NAS powered by a Rockchip RK3576 eight-core ARM processor running at 2.2 GHz with 4 GB of soldered LPDDR4X memory. It runs the UGOS Pro operating system and is designed for families and personal users who want a private cloud for backup and media streaming. The unit accepts two 3.5-inch SATA hard drives or 2.5-inch SATA SSDs up to 32 TB each for a total raw capacity of 64 TB.
Sustained Operation and Power Draw
Under continuous drive access the system draws 13.72 W, dropping to 3.30 W when the drives enter hibernation. RAID 0, RAID 1 and JBOD modes are supported, so data protection or maximum capacity can be maintained during long backup jobs or extended media streaming sessions. The fixed 4 GB memory and passive cooling design keep performance consistent without fan noise during prolonged workloads.
Interface and Expansion Limits

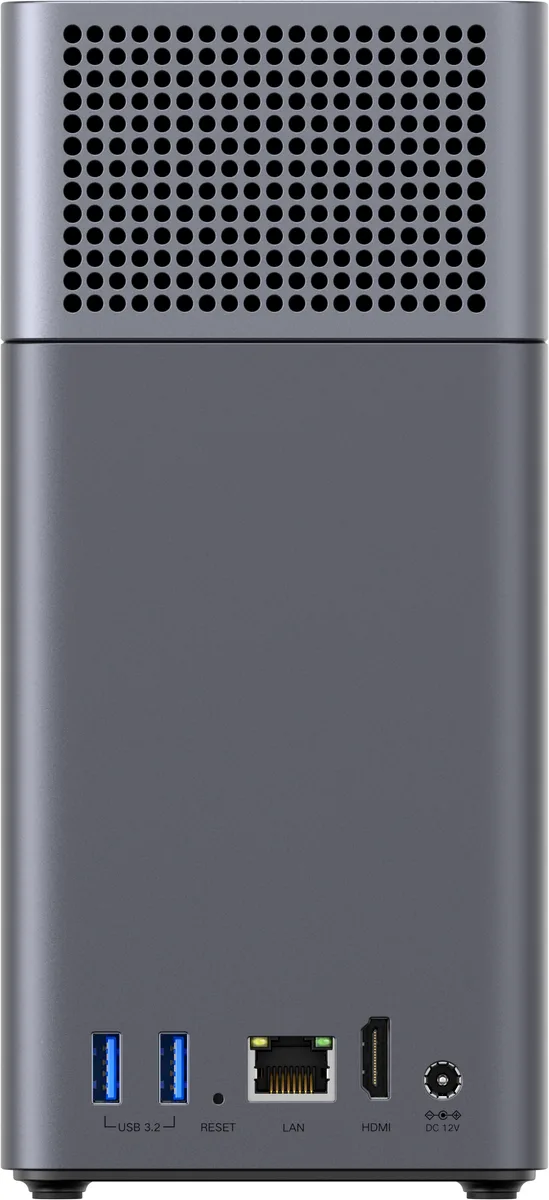

External connectivity is limited to one USB-C and two USB-A ports, all operating at 5 Gb/s, plus a single 2.5 GbE network port and an HDMI output with a 1-metre cable included. There are no PCIe slots, M.2 sockets or additional drive bays, so storage expansion beyond the two internal SATA drives and attached USB devices is not possible. The memory is not upgradeable.
Highlights
- 8-core Rockchip RK3576 processor handles multi-user media streaming
- 4 GB soldered LPDDR4X memory runs the UGOS Pro OS smoothly
- Two SATA bays accept up to 64 TB of raw storage
- RAID 0, 1 and JBOD protect data or maximise capacity
- 72 W active power draw keeps running costs low
Specifications
| Series | NASync |
|---|---|
| Model | DH2300 |
| Type | Desktop NAS |
| Port USB | 1 x USB-C (5Gb/s) + 2 x USB-A (5Gb/s) |
| HDD Interface | 2 x SATA (2 x Bay) |
| Form Factor | 2-Bay |
| Operating System | UGOS Pro |
| Processor | Rockchip ARM A72+A53 8-Core 2.2 GHz |
| Max Memory Capacity | 4GB LPDDR4X (not expandable) |
| Memory Slot | Not Upgradeable (4GB LPDDR4X soldered) |
| Max Capacity | 64TB (2 x 32TB SATA) |
| RAID | RAID 0, 1 and JBOD |
| Drive Compatibility | 3.5" SATA HDD / 2.5" SATA SSD |
| Power Consumption | 13.72W (drive access) / 3.30W (drive hibernation) |
| Usage | Backup & stream media through personal cloud |
| Dimensions | L151 x W98 x H213.7mm |
| Package Contents | NASync DH2300 x1 Screws & Screwdriver x1 User Manual x1 Power Adapter (DC 12V/6A) x1 Ethernet Cable (CAT7) x1 |
| Shipping weight | 1.79 kg |
| Package size | 241 × 216 × 198 mm |
Questions about this item
How much power does the DH2300 draw when the drives are active versus when they are hibernating?
The unit consumes 13.72W during drive access and drops to 3.30W when the drives are hibernating.
Do I need to buy any drives separately for the DH2300 to function?
Yes, the DH2300 ships without drives; you must supply 3.5" SATA HDDs or 2.5" SATA SSDs.
Will the DH2300 work with my existing SATA drives and connect to my current router?
It supports 3.5" SATA HDDs and 2.5" SATA SSDs up to 32TB each and links to your network via the included CAT7 Ethernet cable.
