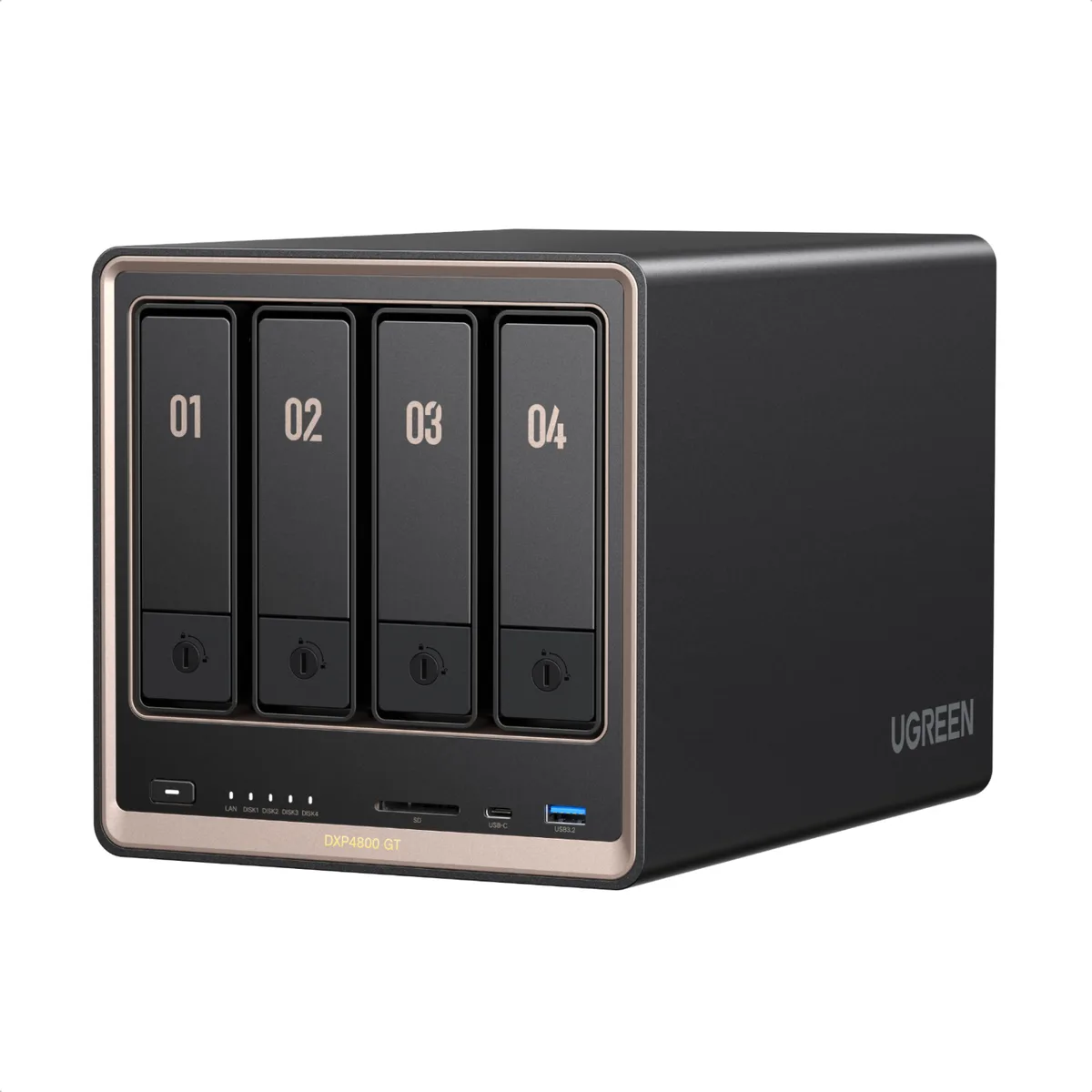

Compact four-bay desktop NAS in a dark matte finish with front USB-C and card slot

Ugreen Group Limited

Ugreen Group Limited DXP4800 GT 4-bay NAS, AMD Ryzen Embedded R2514, 8GB DDR4, Dual 10GbE, 2 M.2, Diskless

SKU CH-CPD8-0FQ7N MPN DXP4800 GT

Four-bay desktop NAS with an AMD Ryzen Embedded R2514 processor, 8GB DDR4, dual 10GbE ports and two M.2 slots for cache or storage expansion

  • TypeDesktop NAS
  • Ports1 x USB-C, 1 x USB-A (both 10Gb/s) 1 x USB-A (10Gb/s) 2 x US
  • Port OthersSD 3.0 Card Reader
  • HDD Interface4 x SATA (4 x Bay)
  • Form Factor4-Bay
  • Operating SystemUGOS Pro
  • Massive 144TB storage ceiling with four 32TB SATA bays and two M.2 slots
  • Dual 10GbE ports deliver up to 20Gbps for 4K and 8K editing workflows
  • AMD Ryzen Embedded R2514 with four cores and eight threads powers Docker and VMs

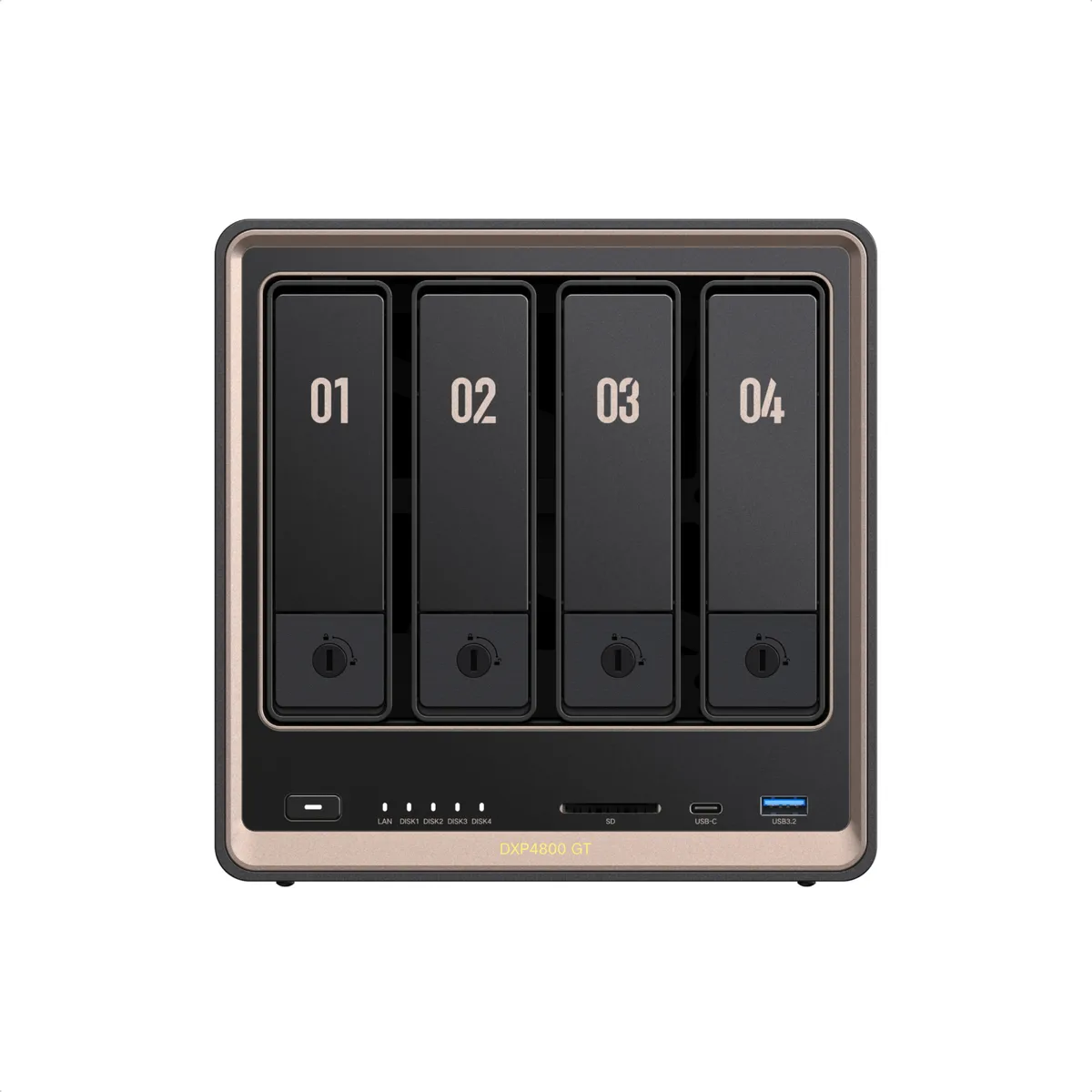

  • Front USB-C 10Gbps and SD 3.0 reader enable fast direct backups
  • UGOS Pro runs Docker, virtual machines and a poster-wall media player

Desktop NAS for media and virtualisation

The Ugreen DXP4800 GT is a four-bay desktop NAS built around an AMD Ryzen Embedded R2514 processor with eight threads and 8 GB of DDR4 memory. It runs UGOS Pro and targets users who want a personal cloud for backup, media streaming, Docker containers and virtual machines. Two M.2 slots and four SATA bays allow a mix of NVMe cache and high-capacity hard drives.

Verify network and drive compatibility

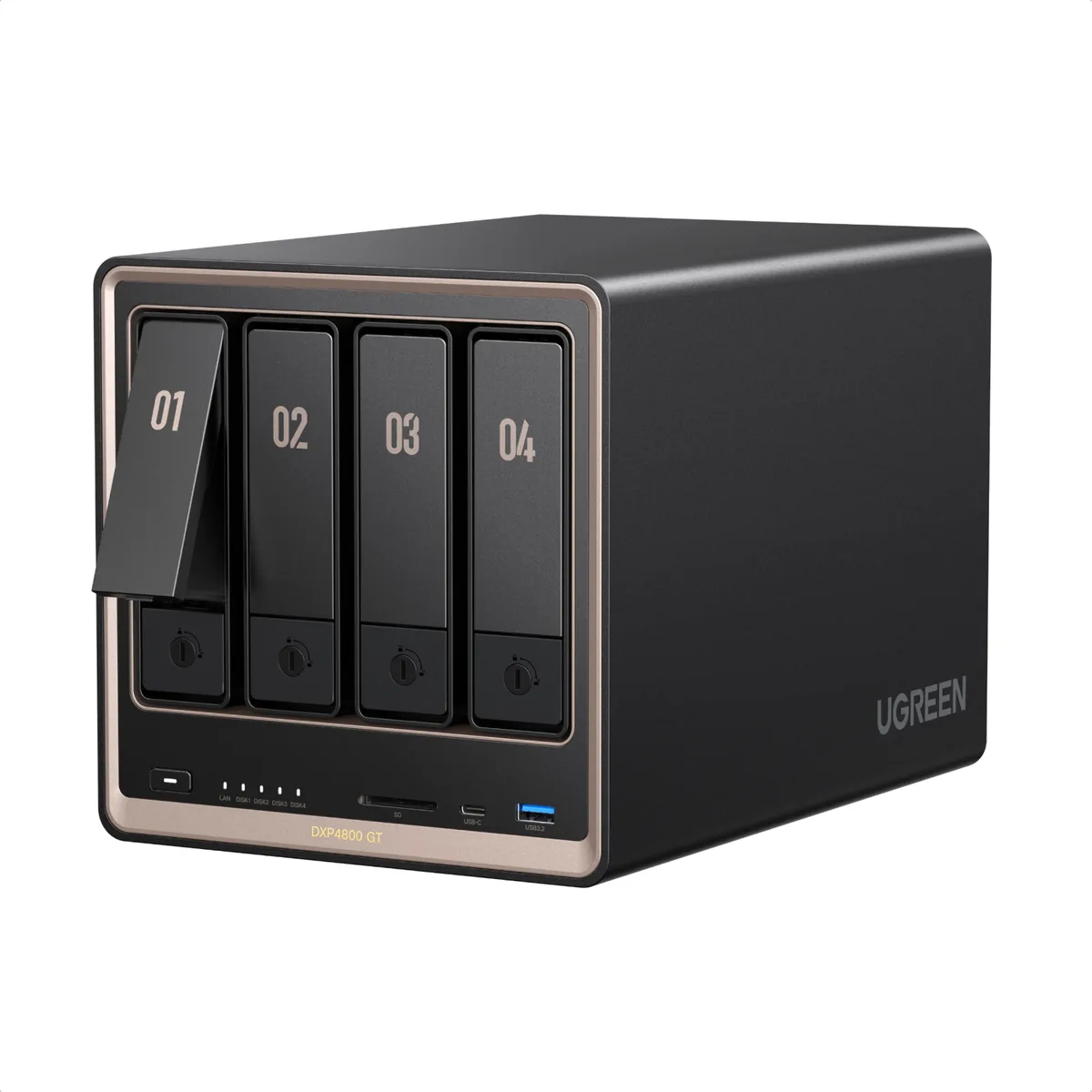

Your router or switch must provide 10 GbE ports to use the dual 10 GbE links at full speed; slower links will fall back to lower rates. The four drive bays accept SATA hard drives up to 32 TB each, while the two M.2 slots take NVMe SSDs and bays one and two also support U.2 devices. The unit ships diskless, so you must supply all storage before first boot.

Sustained load behaviour and power draw

Under continuous drive access the system draws 42.36 W, dropping to 18.12 W when the drives enter hibernation. The AMD Ryzen Embedded CPU maintains steady throughput for long-running tasks such as 4K or 8K video editing, large file transfers and multiple concurrent virtual machines without the thermal throttling seen in short bursts. UGOS Pro manages Docker workloads and VM deployment across the eight threads for consistent performance.

Highlights

  • Massive 144TB storage ceiling with four 32TB SATA bays and two M.2 slots
  • Dual 10GbE ports deliver up to 20Gbps for 4K and 8K editing workflows
  • AMD Ryzen Embedded R2514 with four cores and eight threads powers Docker and VMs
  • Front USB-C 10Gbps and SD 3.0 reader enable fast direct backups
  • UGOS Pro runs Docker, virtual machines and a poster-wall media player

Specifications

BrandUgreen
ModelDXP4800GT
TypeDesktop NAS

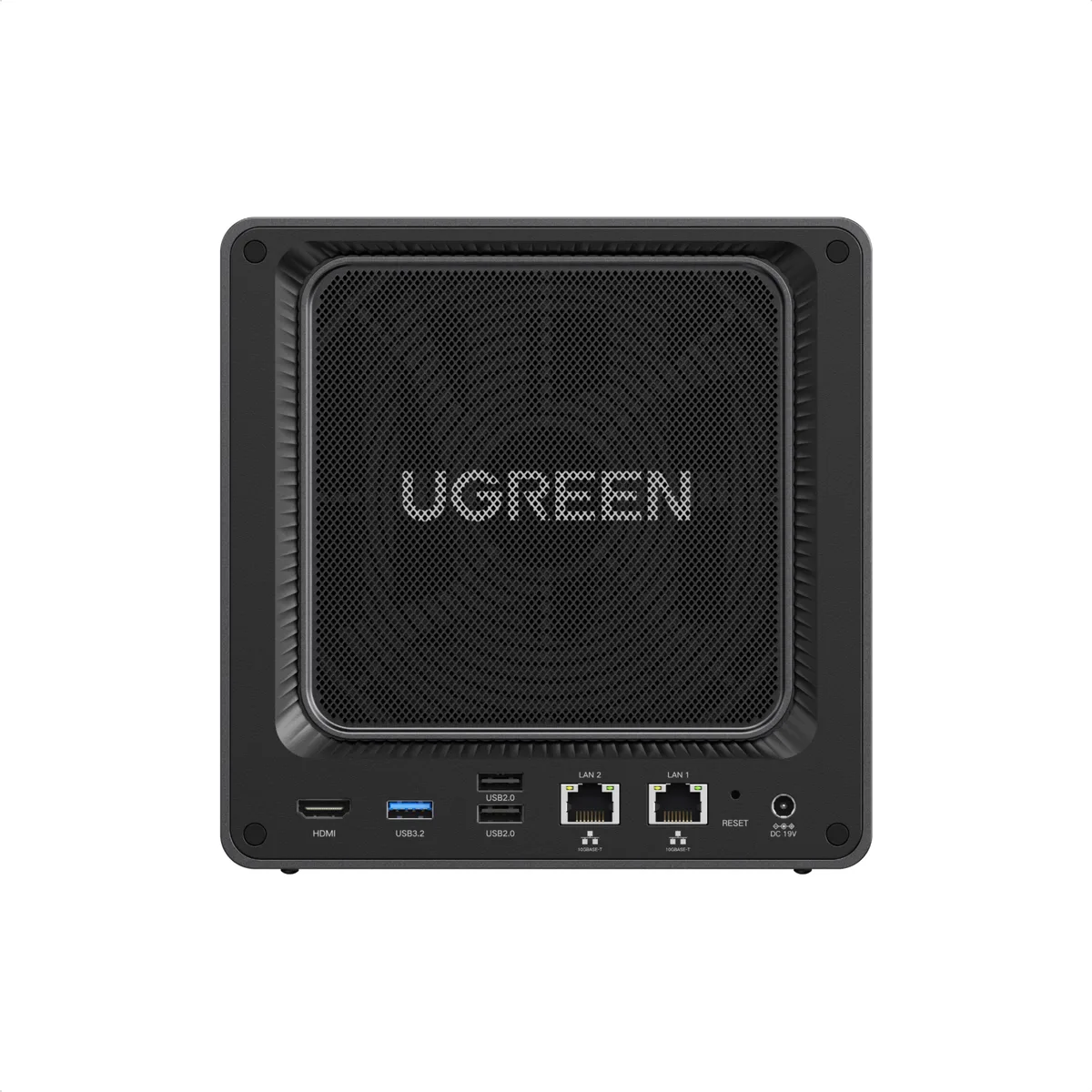

Ports1 x USB-C, 1 x USB-A (both 10Gb/s)
1 x USB-A (10Gb/s)
2 x USB-A (5Gb/s)
2 x 10GbE
Port OthersSD 3.0 Card Reader
HDD Interface4 x SATA (4 x Bay)
Form Factor4-Bay
Operating SystemUGOS Pro
ProcessorAMD Ryzen Embedded R2514
Installed Memory8GB DDR4
Max Memory Capacity64GB
Included HDD Capacity128TB (4 x 32TB)
Max Capacity144TB (4 x 32TB + 2 x 8TB)
RAIDJBOD/Basic/0/1/5/6/10
M.22 x M.2 Slots
Power Consumption42.36W (drive access)
18.12W (drive hibernation)
UsageBackup & stream media through personal cloud
Dimensions10.1" x 7.0" x 7.0"
Shipping weight6.17 kg
Package size368 × 254 × 254 mm

Questions about this item

Does the DXP4800 GT come with drives or must I buy the four SATA drives and two M.2 NVMe SSDs separately?

The unit is sold diskless, so you must supply four SATA hard drives up to 32TB each and up to two M.2 NVMe SSDs up to 8TB each.

Should I choose the 128TB four-drive limit or the 144TB limit that adds the two M.2 slots?

The 144TB figure includes both the four SATA bays and the two M.2 NVMe slots; select it if you plan to install NVMe SSDs for caching or fast storage.

What does the dual 10GbE rating of up to 20Gbps mean when the NAS is running Docker containers and VMs?

The two 10GbE ports can be aggregated for up to 20Gbps throughput, letting the Ryzen R2514 serve multiple containers and VMs with high network bandwidth.
