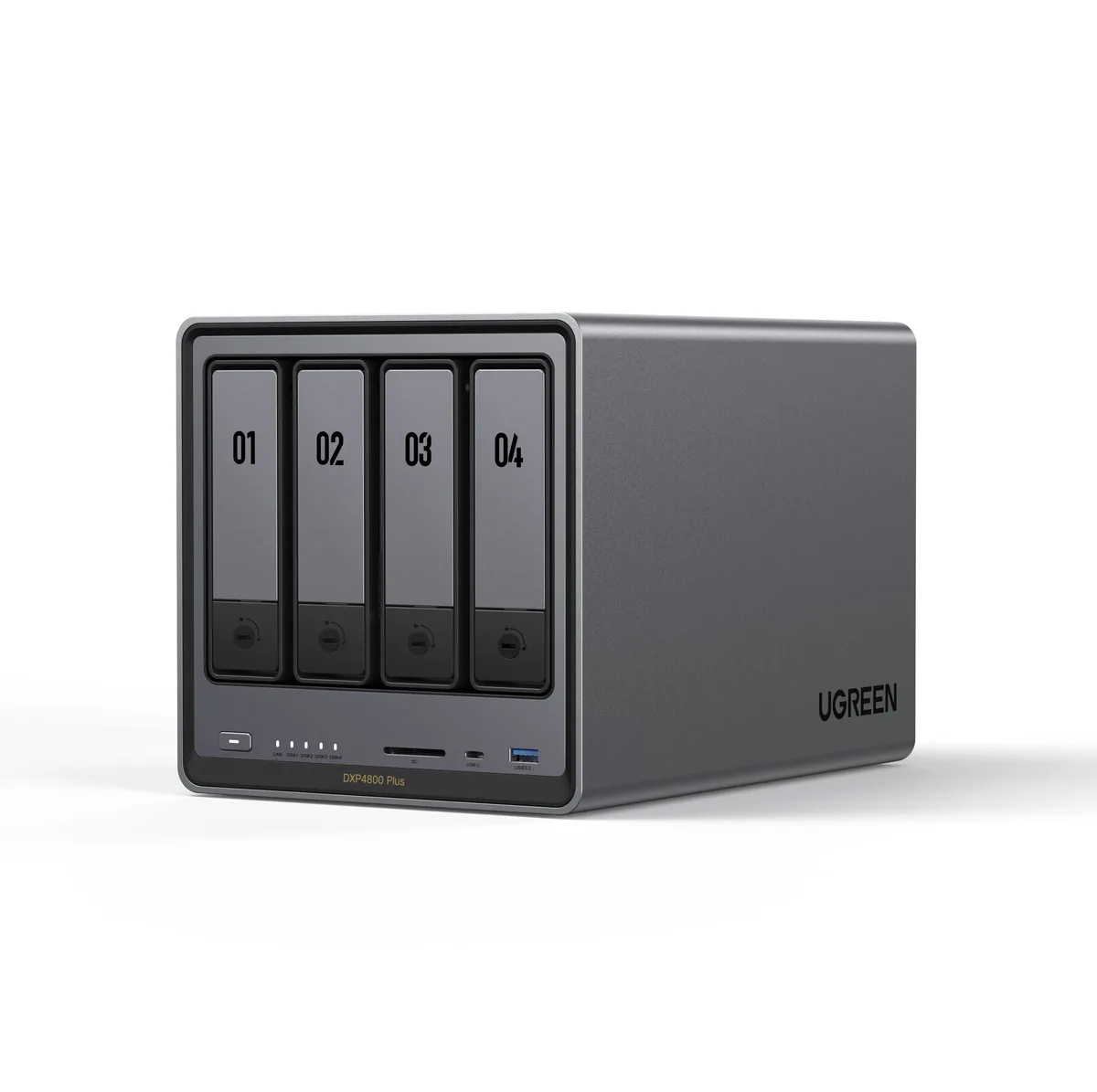

Compact four-bay desktop NAS in dark grey finish

Ugreen Group Limited

Ugreen Group Limited DXP4800 Plus 4-Bay NAS Intel Pentium Gold 8505 8GB DDR5 10GbE 2.5GbE Diskless

SKU CH-4C2G-36V6H MPN DXP4800 Plus

Four-bay desktop NAS with Intel Pentium Gold 8505 processor, 8GB DDR5, 10GbE and 2.5GbE ports, plus two M.2 slots for up to 144TB capacity

  • TypeDesktop NAS
  • Ports1 x 10GbE / 1 x 2.5GbE / 1 x USB 3.1 Gen 1 / 1 x USB 3.2 Gen
  • Port RJ-451 x 10GbE + 1 x 2.5GbE
  • Port USBUSB 3.0 and USB-C ports
  • HDD Interface4 x SATA (4 x Bay)
  • Form Factor4-Bay

Form Factor 4-Bay

Processor Intel Pentium

Memory Slot 2 x SO-DIMM

  • 10GbE LAN enables 1250 MB/s transfers
  • 5-core Pentium Gold 8505 handles heavy workloads
  • 4 SATA bays plus 2 M.2 slots support 144 TB
  • 8 GB DDR5 expandable to 64 GB for multitasking
  • UGOS Pro unifies file, photo and backup apps

Four-bay desktop NAS for local storage

The Ugreen NASync DXP4800 Plus is a diskless four-bay desktop NAS built around a 12th-generation Intel Pentium Gold 8505 processor with five cores and six threads. It ships with 8 GB of DDR5 memory installed and supports up to 64 GB across two SO-DIMM slots. The unit runs UGOS Pro and targets users who want a single appliance for file storage, media libraries and backup without recurring subscription fees.

Build integration and expansion

Four 3.5-inch SATA drive bays and two M.2 NVMe slots accept up to 144 TB of total capacity using 32 TB hard drives and 8 TB solid-state drives. Network connectivity comes from one 10 GbE and one 2.5 GbE RJ-45 port, plus USB 3.2 Gen 2 Type-C, USB 3.2 Gen 2, USB 3.1 Gen 1 and two USB 2.0 ports for external drives or peripherals. RAID options include JBOD, Basic, RAID 0, 1, 5, 6 and 10, letting the builder choose the redundancy level that matches the workload.

Sustained-load behaviour

The 10 GbE link supports transfer rates up to 1250 MB/s, so large sequential moves stay fast over long periods rather than only in short bursts. The five-core processor maintains throughput during concurrent file serving, backup jobs and media transcoding without thermal throttling. Professional-grade encryption protects data in transit and at rest while the all-in-one UGOS Pro app consolidates storage management, file access and photo organisation into a single interface.

Highlights

  • 10GbE LAN enables 1250 MB/s transfers
  • 5-core Pentium Gold 8505 handles heavy workloads
  • 4 SATA bays plus 2 M.2 slots support 144 TB
  • 8 GB DDR5 expandable to 64 GB for multitasking
  • UGOS Pro unifies file, photo and backup apps

Specifications

BrandUgreen
SeriesNASync
ModelDXP4800 Plus
Part NumberDXP4800 Plus
TypeDesktop NAS
Ports1 x 10GbE / 1 x 2.5GbE / 1 x USB 3.1 Gen 1 / 1 x USB 3.2 Gen 2 / 1 x USB 3.2 Gen 2 Type-C / 2 x USB 2.0
Port RJ-451 x 10GbE + 1 x 2.5GbE
Port USBUSB 3.0 and USB-C ports
HDD Interface4 x SATA (4 x Bay)
Form Factor4-Bay
Operating SystemUGOS Pro
ProcessorIntel Pentium Gold 8505 (5 cores, 6 Threads)
Installed Memory8GB DDR5
Max Memory Capacity64GB DDR5
Memory Slot2 x DDR5 SO-DIMM
Included HDD CapacityDiskless System
Max Capacity144TB (4 x 32TB + 2 x 8TB M.2 Slot)
RAIDJBOD/Basic/RAID0/RAID1/RAID5/RAID6/RAID10
Drive Compatibility3.5" SATA HDD & 2.5" SATA SSD
M.22 x M.2 Slots
Power ConsumptionStandby 51.437W, Full load 111.5W
UsageBackup & stream media through personal cloud
Dimensions10 x 7 x 7
Package ContentsNASync DXP4800 Plus x1
After-sales Card x1
User Manual x1
SSD Silicone Pads x2
Hard Drive Tray Keys x2
Screws & Screwdriver x1
Ethernet Cable (CAT7) x2
Power Adapter (DC 19V/7.9A) x1
Shipping weight5.90 kg
Package size363 × 249 × 249 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What limits the DXP4800 Plus first during sustained heavy workloads?

The Intel Pentium Gold 8505 processor reaches its thermal ceiling before the 10GbE or 2.5GbE ports saturate, so sustained throughput drops to the CPU's long-term power envelope.

How much heat and fan noise appear when the DXP4800 Plus runs continuously with drives installed?

The 5-core CPU and four drive bays produce measurable warmth; the internal fan spins up audibly under load but settles to a low hum during idle or light file serving.

Which drives and memory must I supply because the DXP4800 Plus ships without them?

You need up to four 3.5" SATA HDDs or 2.5" SATA SSDs plus optional M.2 NVMe SSDs, and DDR5 SO-DIMM modules if you want more than the installed 8 GB.
