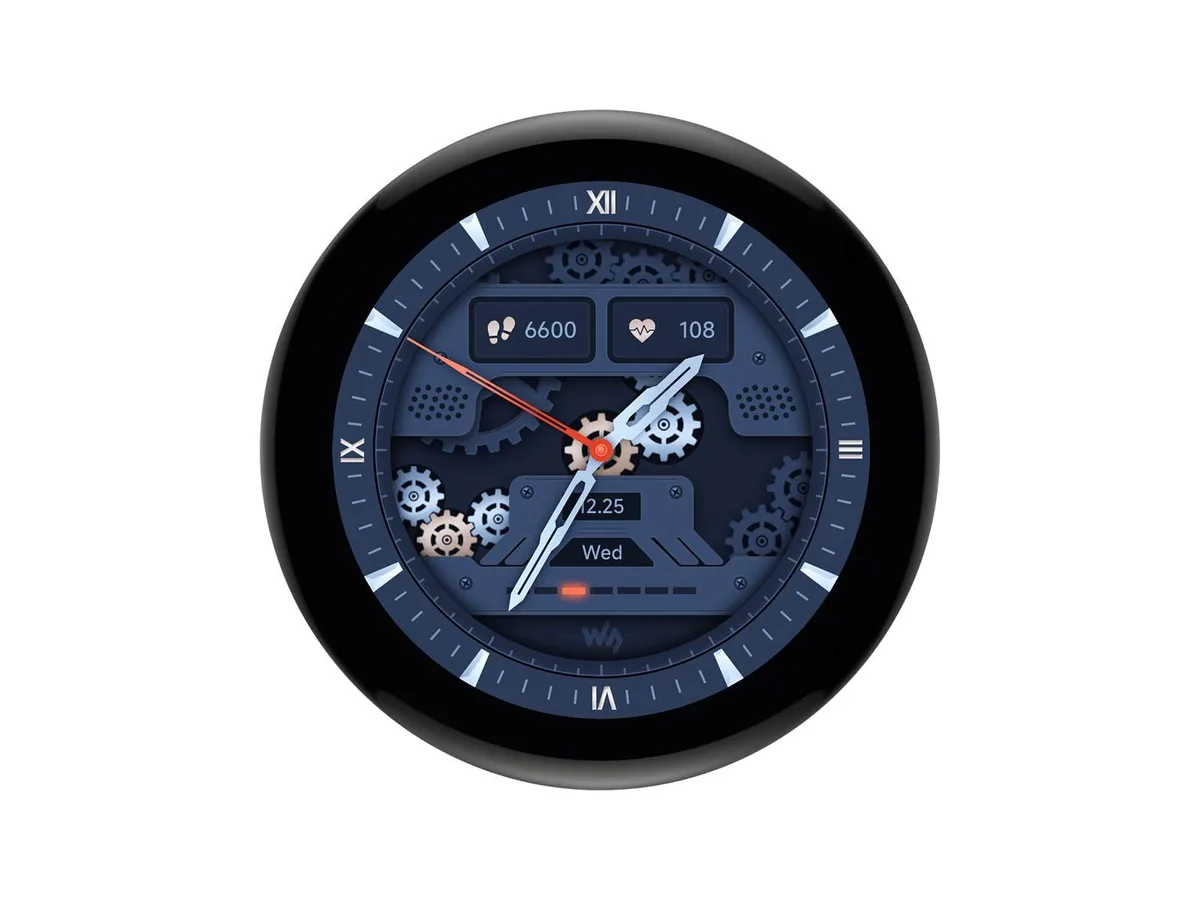

Round 1.43 inch AMOLED development board with capacitive touch display and pin headers

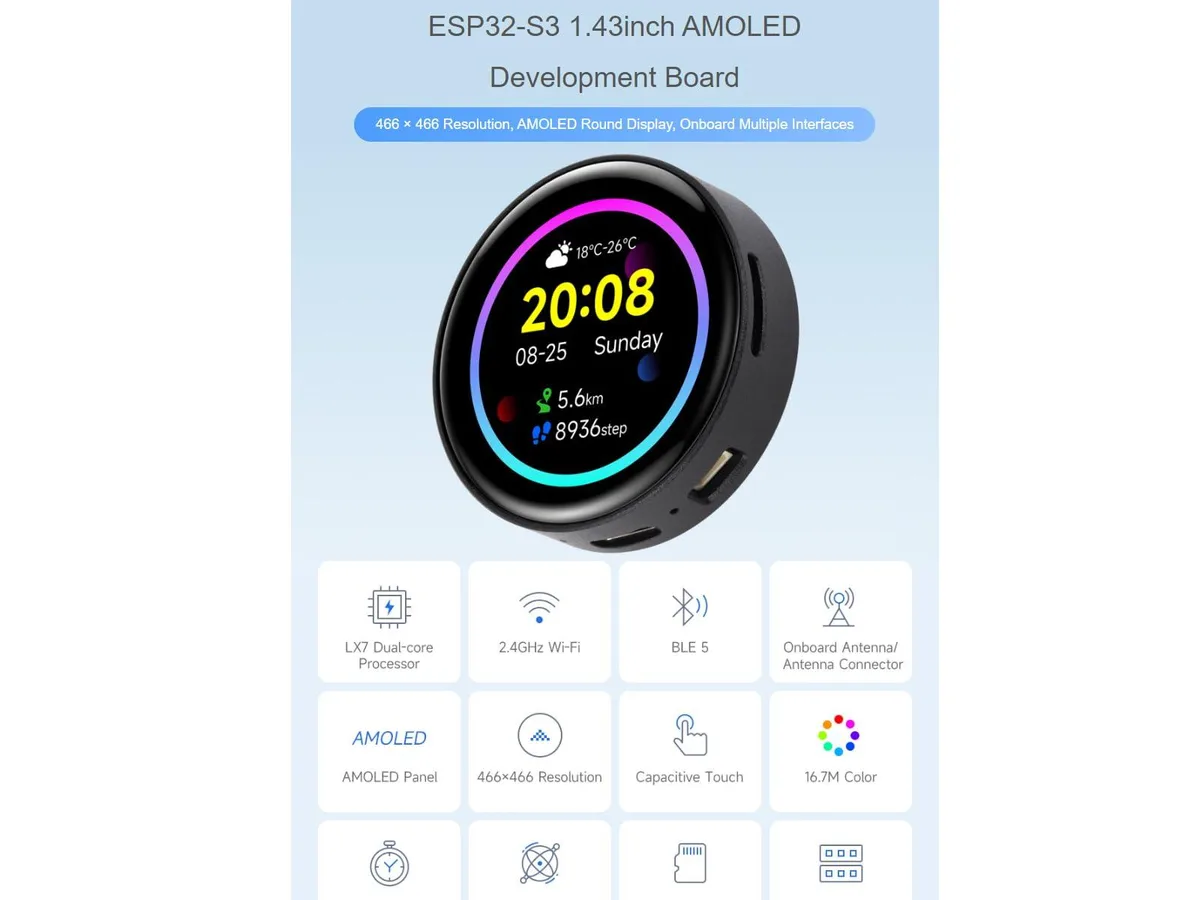

waveshare ESP32-S3 1.43inch AMOLED Development Board 466×466

SKU CH-9V22-0XGTX

A 1.43 inch AMOLED touch display board with ESP32-S3, 466×466 resolution, Wi-Fi, Bluetooth 5, onboard IMU, RTC and TF card slot for rapid HMI development

  • Vivid 16.7M-colour AMOLED round display at 466×466
  • Dual-core Xtensa LX7 processor running up to 240 MHz
  • 16 MB Flash plus 8 MB PSRAM for large GUIs
  • Onboard QMI8658 6-axis IMU and PCF85063 RTC
  • 4 GHz Wi-Fi and Bluetooth 5 with antenna option

ESP32-S3 Development Board with AMOLED Display

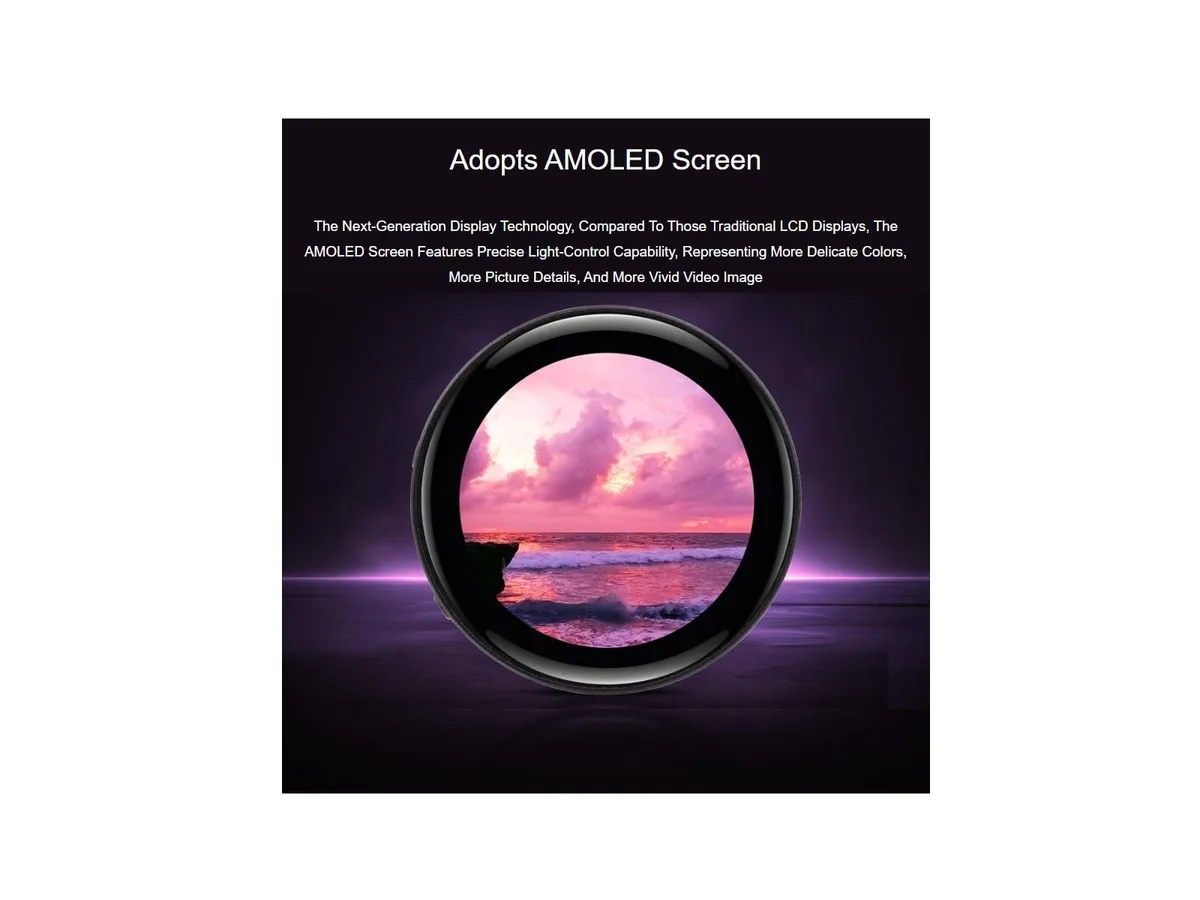

This waveshare board pairs an ESP32-S3R8 dual-core processor running up to 240 MHz with a 1.43 inch round AMOLED panel. The display delivers 466 × 466 resolution and 16.7M colours across a 178° viewing angle. Onboard 16 MB Flash and 8 MB PSRAM support demanding GUI frameworks such as LVGL. Integrated 2.4 GHz Wi-Fi and Bluetooth 5 suit IoT edge prototypes and wearable concepts.

Build Quality and Connectivity for Daily Prototyping

The PCB includes a QMI8658 6-axis IMU and a PCF85063 RTC chip with a dedicated battery header for timekeeping. A TF card slot adds removable storage while USB, UART, I2C and GPIO pin headers expose expansion routes. Capacitive touch on the AMOLED is driven over I2C with interrupt support. An onboard antenna handles wireless traffic and a resistor option allows switching to an external antenna if required.

Thermals Noise and Power in Typical Use

The ESP32-S3R8 integrates 512 KB SRAM and 384 KB ROM alongside the external memory, keeping the silicon footprint compact. With no active cooling fitted, the board runs silently during normal development workloads. Power is drawn from the USB connector or the lithium battery header, letting developers profile consumption for battery-operated designs without fan noise or thermal throttling concerns.

Highlights

  • Vivid 16.7M-colour AMOLED round display at 466×466
  • Dual-core Xtensa LX7 processor running up to 240 MHz
  • 16 MB Flash plus 8 MB PSRAM for large GUIs
  • Onboard QMI8658 6-axis IMU and PCF85063 RTC
  • 4 GHz Wi-Fi and Bluetooth 5 with antenna option

Specifications

Brandwaveshare
ModelESP32-S3 1.43inch AMOLED
Part NumberESP32-S3 1.43inch AMOLED

Questions about this item

What resolution does the 1.43inch AMOLED display run at?

The round panel uses a QSPI interface and runs at 466 × 466 pixels with 16.7M colour depth.

Which pin headers must be accessible for external add-ons?

USB, UART, I2C and GPIO headers are reserved on the board for expansion.

How is the capacitive touch controller connected and what extra line does it need?

Touch is driven over the I2C bus and requires the interrupt pin to be wired for event detection.
