Green rectangular HAT board with SIM7600A-H module, USB port, SIM slot, audio jack, and dual LED indicators

WaveShare

WaveShare SIM7600A-H 4G 3G GNSS HAT Module for Raspberry Pi Zero Zero W Zero WH 2B 3B 3B+ 4B Jetson Nano

SKU CH-ZKPH-EDQTC

Adds 4G LTE CAT4 up to 150 Mbps and multi-GNSS positioning to Raspberry Pi or Jetson Nano via SIM7600A-H with CP2102 UART and audio

  • CPU TypeOther
  • 4G LTE CAT4 up to 150Mbps for fast mobile broadband
  • Multi-constellation GNSS with GPS, BeiDou and Glonass for accurate positioning
  • Onboard CP2102 USB-to-UART converter simplifies serial debugging
  • Compatible with Raspberry Pi Zero to 4B and Jetson Nano
  • Configurable 3.3V or 5V logic via jumper for flexible integration

4G GNSS HAT for Raspberry Pi and Jetson Nano

This HAT module adds LTE CAT4 cellular connectivity and multi-constellation GNSS positioning to Raspberry Pi Zero, Zero W, Zero WH, 2B, 3B, 3B+, 4B and Jetson Nano boards. It uses the SIM7600A-H modem to provide data speeds up to 150 Mbps downstream. The design targets makers and developers who need mobile broadband and satellite location in a single add-on board.

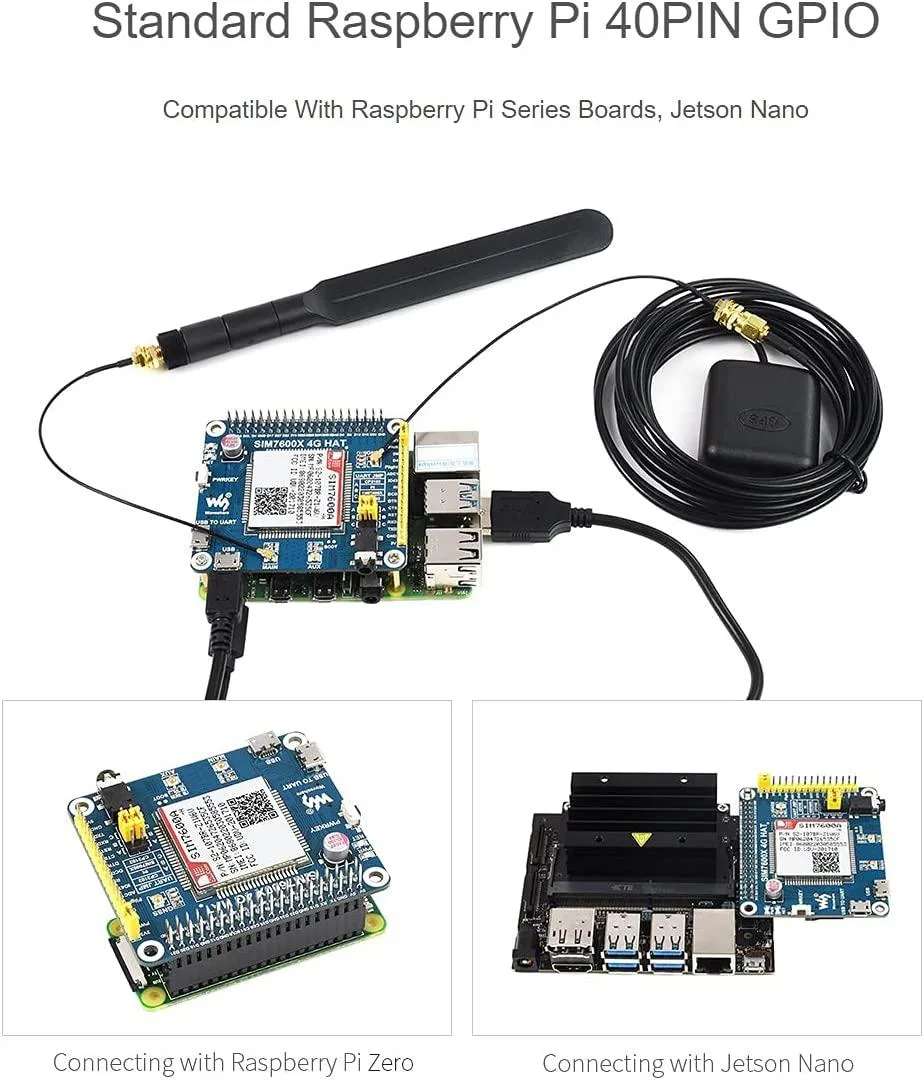

Installation uses the standard 40-pin GPIO header

The module sits directly on the GPIO header of supported Raspberry Pi models or Jetson Nano. An onboard CP2102 USB-to-UART converter handles serial debugging and AT-command access over USB. A voltage-translation jumper selects 3.3 V or 5 V logic to match the host. The SIM slot accepts 1.8 V and 3 V cards. Common issues include forgetting to set the voltage jumper, inserting the SIM upside-down, or neglecting to enable the serial console in the OS before testing AT commands.

Suited for North American IoT projects needing

This board fits developers building connected sensors, trackers or remote monitors in the US, Canada and Mexico where the SIM7600A-H bands are certified. It also serves hobbyists learning AT-command control over USB. Buyers who need operation outside North America, support for 5G NR bands, or a standalone modem without a Raspberry Pi or Jetson host should look at other modules.

Highlights

  • 4G LTE CAT4 up to 150Mbps for fast mobile broadband
  • Multi-constellation GNSS with GPS, BeiDou and Glonass for accurate positioning
  • Onboard CP2102 USB-to-UART converter simplifies serial debugging
  • Compatible with Raspberry Pi Zero to 4B and Jetson Nano
  • Configurable 3.3V or 5V logic via jumper for flexible integration

Specifications

CPU TypeOther

Questions about this item

How can I verify the SIM7600A-H HAT is working after connecting it to my Raspberry Pi?

Check the two onboard LED indicators for power and network status, then use the CP2102 USB-to-UART link to send AT commands and confirm 4G registration and GNSS fix data.

What comes in the box and what must I source separately for the SIM7600A-H module?

The HAT board with CP2102 converter, audio jack, SIM slot and voltage jumper is included; you must supply a 1.8 V or 3 V SIM card, a compatible Raspberry Pi or Jetson Nano, and an antenna for LTE and GNSS.

Which operating-voltage jumper setting should I choose for the SIM7600A-H HAT on a Raspberry Pi 4B?

Set the onboard jumper to 3.3 V to match the Pi 4B GPIO logic level; the 5 V position is available for 5 V-tolerant host boards.
