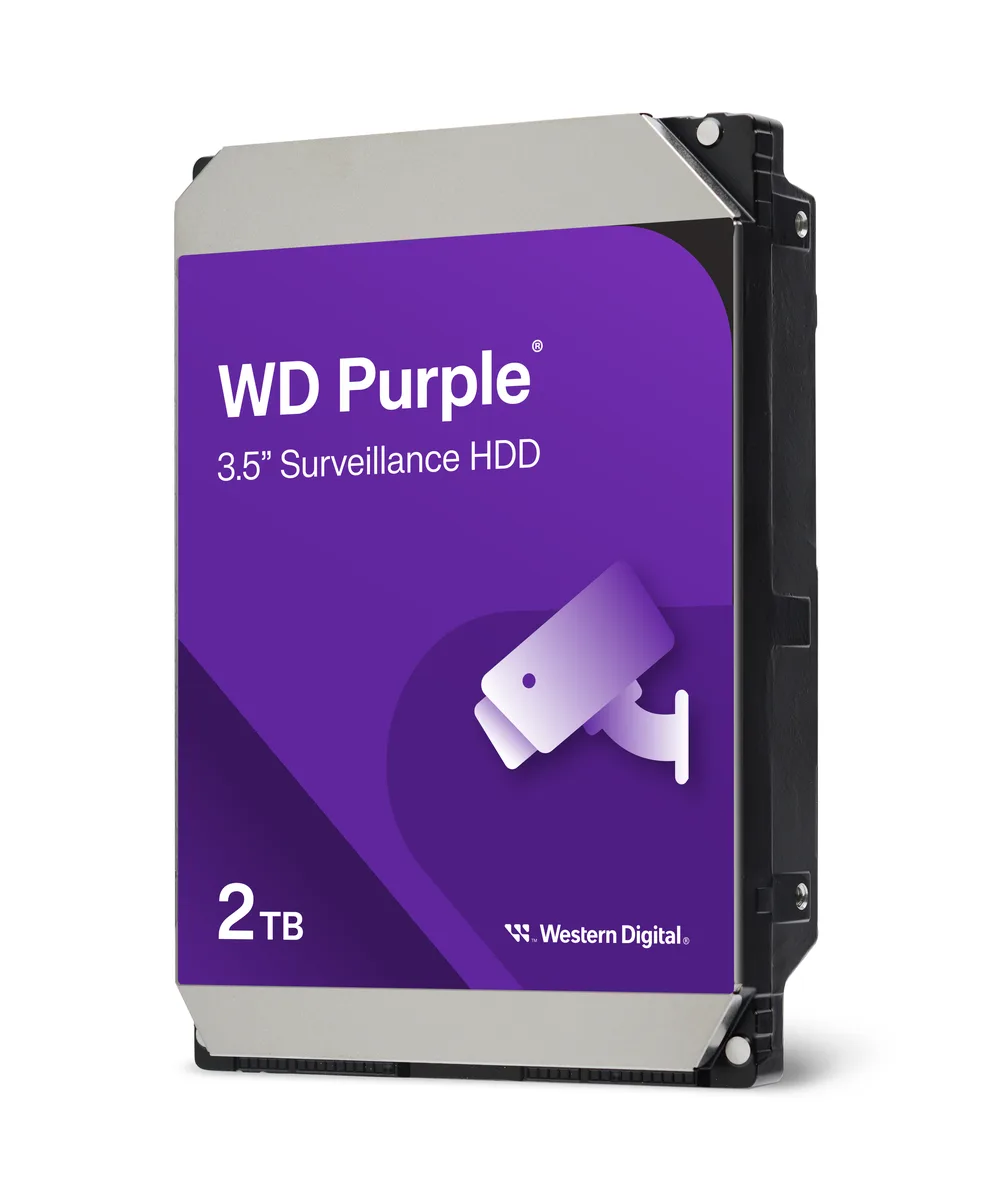

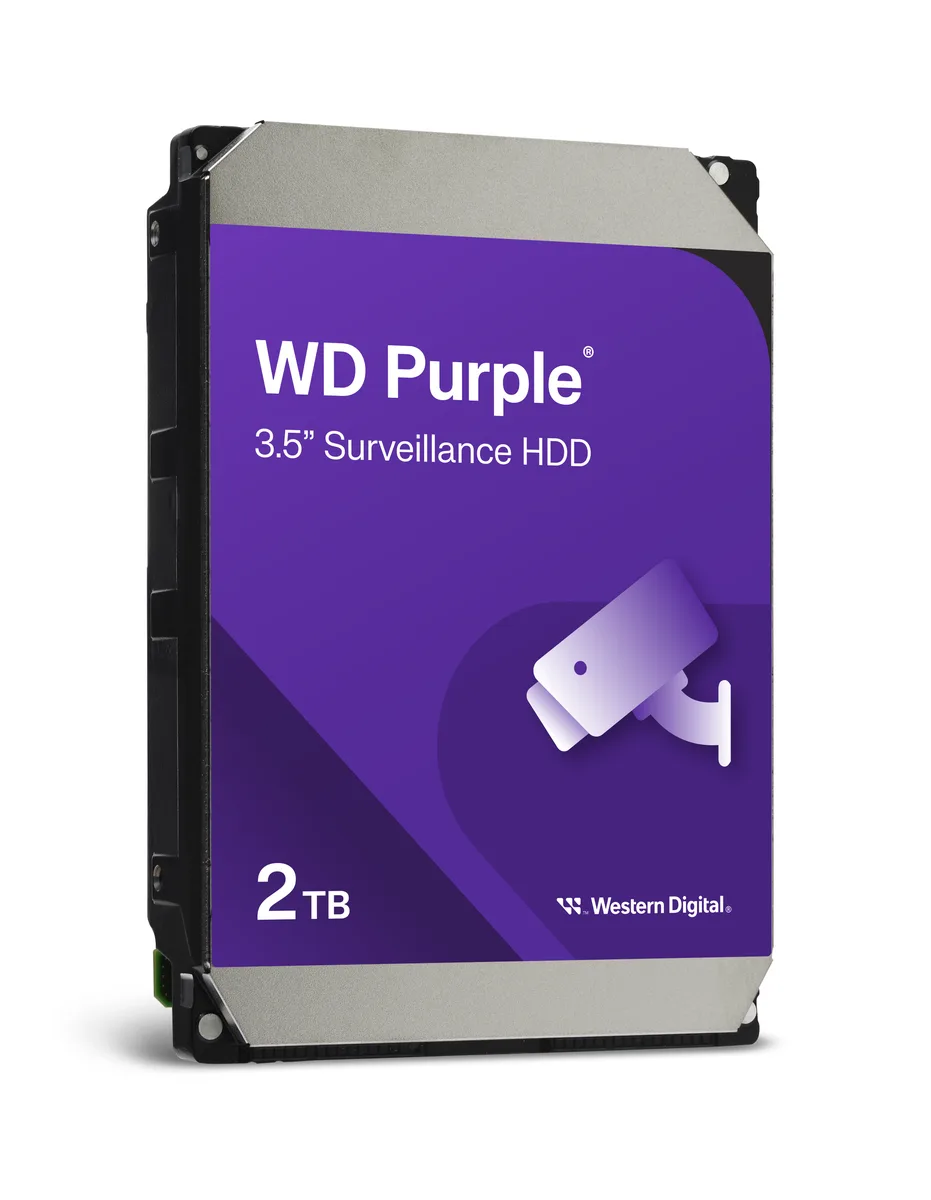

Silver 3.5 inch internal hard drive with circuit board visible

Western Digital

Western Digital WD23PURZ 2TB 3.5" SATA internal hard drive

SKU CH-Q4Z2-PAQ50 MPN WD23PURZ

A 2 TB 3.5" SATA drive using CMR and 64 MB cache, designed for video surveillance workloads up to 180 TB/yr

  • InterfaceSATA 6.0Gb/s
  • Capacity2TB
  • Recording TechnologyCMR
  • RPM5400 RPM
  • Cache64MB
  • UsageFor Video Surveillance

Options 2TB 5400RPM

Struck-through versions exist but are not stocked here.

  • Optimised for write-heavy surveillance streams with AllFrame technology
  • CMR recording method preserves data integrity during continuous recording
  • 180 TB per year workload rating supports multi-camera systems
  • 5400 RPM spindle and 64 MB cache balance throughput and power draw
  • Standard 3.5 inch SATA form factor fits common DVR and NVR bays

Purpose-built surveillance storage

The WD Purple WD23PURZ is a 2TB 3.5-inch internal hard drive engineered for video surveillance systems. It uses Conventional Magnetic Recording and a SATA 6.0Gb/s interface to handle continuous write workloads. The drive is designed for mainstream installations that record multiple camera streams around the clock.

Upgrade from desktop drives

Standard desktop drives are not rated for the sustained write patterns of surveillance recording. This model supports up to 180 TB per year workload rate and includes WD AllFrame technology to reduce frame loss. The jump is worth it when a system records several high-definition channels simultaneously and needs reliable long-term operation.

Capacity and headroom

At 2TB the drive comfortably stores weeks of footage from a modest camera count at typical bit-rates. A 64MB cache helps absorb bursty write traffic from multiple streams. It runs out when retention requirements grow or when additional cameras push the annual workload beyond the rated threshold.

Highlights

  • Optimised for write-heavy surveillance streams with AllFrame technology
  • CMR recording method preserves data integrity during continuous recording
  • 180 TB per year workload rating supports multi-camera systems
  • 5400 RPM spindle and 64 MB cache balance throughput and power draw
  • Standard 3.5 inch SATA form factor fits common DVR and NVR bays

Specifications

BrandWD
SeriesPurple
ModelWD23PURZ
InterfaceSATA 6.0Gb/s
Capacity2TB
Recording TechnologyCMR
RPM5400 RPM
Cache64MB
UsageFor Video Surveillance
Form Factor3.5"
Height (maximum)26.1mm
Width (maximum)101.3mm
Length (maximum)147mm
Shipping weight0.57 kg
Package size147 × 102 × 26 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 26.1 mm height fit my 3.5" drive bay?

Yes, the drive is 26.1 mm tall, 101.3 mm wide and 147 mm long, matching the standard 3.5" form factor used in most desktop cases and surveillance enclosures.

Which SATA cable and power connector do I need, and what step is often missed?

Use a standard SATA 6.0 Gb/s data cable and a 15-pin SATA power connector; the step often missed is enabling AHCI mode in the BIOS before the operating system detects the drive.

How long before the 64 MB cache or CMR mechanism needs replacement?

The CMR recording technology and 64 MB cache have no scheduled replacement; the drive is rated for 180 TB per year workload, so plan a refresh when your total written data approaches that annual figure.
