Green rectangular circuit board with gold edge connector and black controller chip, M.2 2280 form factor

Western Digital

Western Digital WDS500G1B0E 500GB M.2 2280 internal SSD

SKU CH-GSP8-1EGQA MPN WDS500G1B0E

PCIe 4.0 M.2 2280 SSD delivering 3600 MB/s reads and 2000 MB/s writes with 300 TBW endurance

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity500GB
  • InterfacePCI-Express 4.0
  • Max Sequential ReadUp to 3600 MBps

Options 500GB PCIe 4.0

  • Fast load times with up to 3600 MB/s sequential read speed
  • Responsive gameplay from up to 2000 MB/s sequential write performance
  • Smooth multitasking via up to 360,000 random read IOPS
  • Reliable operation with 1,750,000 hour MTTF rating
  • Extended write endurance of 300 TBW for heavy workloads

WD Black SN750 SE 500GB NVMe drive

The WD Black SN750 SE is a 500GB internal SSD built for consumer PCs that need fast storage for games and applications. It uses the M.2 2280 form factor and connects through a PCI-Express 4.0 interface for high throughput. Sequential reads reach up to 3600 MBps and writes up to 2000 MBps. Random performance hits 360000 read IOPS and 480000 write IOPS.

Check motherboard slot and OS support

Verify that your motherboard has an M.2 slot wired for PCIe 4.0 x4 to get the rated speeds; the drive will also work in PCIe 3.0 slots at reduced bandwidth. Ensure your operating system includes an NVMe driver or can load one during installation. The drive ships without a heatsink, so confirm your board provides adequate airflow or a built-in M.2 shield.

Thermals noise and power in normal use

The controller is rated for an operating range of 0°C to 70°C and a storage range of -55°C to 85°C. With no moving parts the drive produces no audible noise during operation. The manufacturer states the SN750 SE draws up to 30 percent less power than its predecessor, helping laptop battery life. Endurance is rated at 300 TBW with a 1750000 hour MTTF.

Highlights

  • Fast load times with up to 3600 MB/s sequential read speed
  • Responsive gameplay from up to 2000 MB/s sequential write performance
  • Smooth multitasking via up to 360,000 random read IOPS
  • Reliable operation with 1,750,000 hour MTTF rating
  • Extended write endurance of 300 TBW for heavy workloads

Specifications

BrandWestern Digital
SeriesBLACK SN750 SE NVMe
ModelWDS500G1B0E
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity500GB
InterfacePCI-Express 4.0
Max Sequential ReadUp to 3600 MBps
Max Sequential WriteUp to 2000 MBps
4KB Random ReadUp to 360,000 IOPS
4KB Random WriteUp to 480,000 IOPS
MTTF1,750,000 hours
HeatSinkwithout HeatSink
FeaturesEndurance (TBW): 300
Next-Gen Gaming

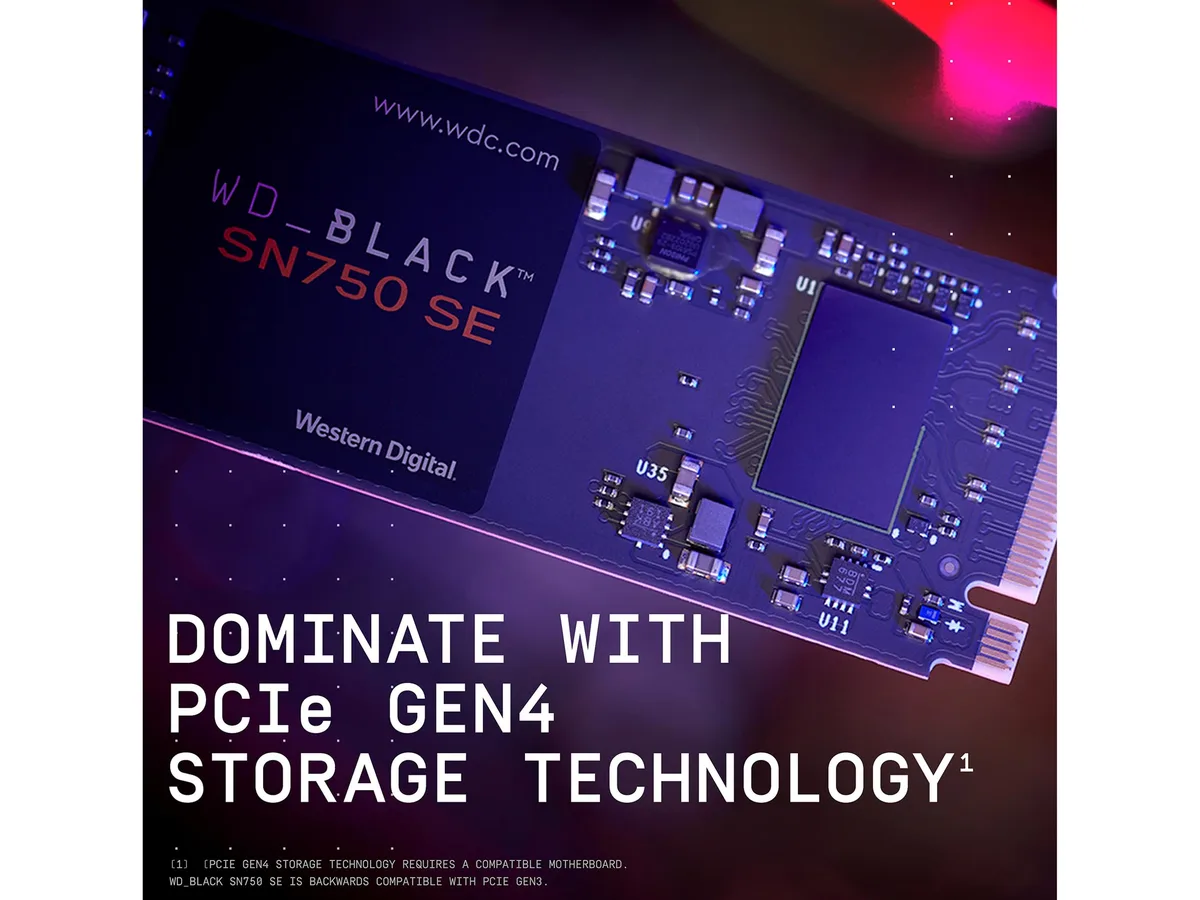

Demolish the competition with PCIe Gen4 storage technology to unleash raging-fast speeds and killer performance. (Also backwards compatible with PCIe Gen3.)
Sustained Peak Performance

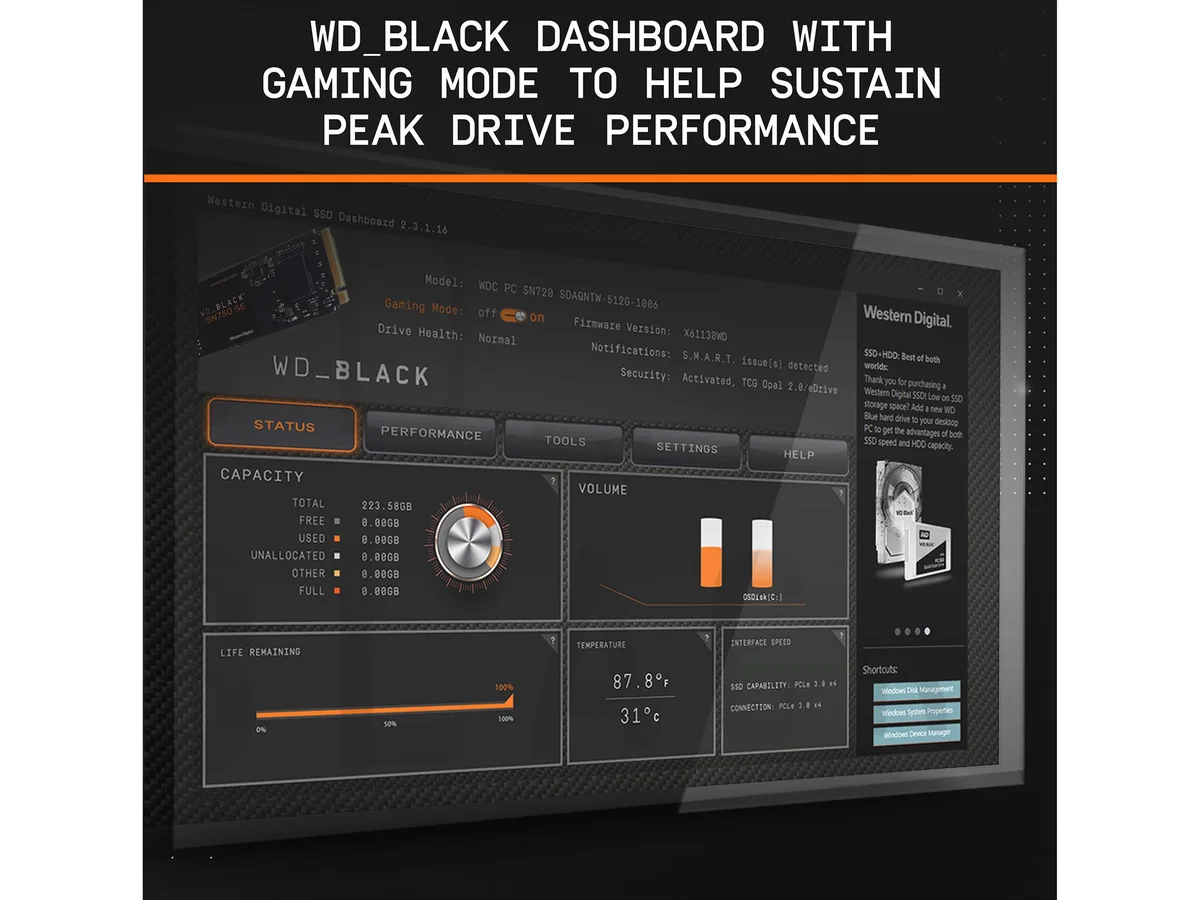

The WD_BLACK Dashboard helps you maintain drive health with an optional gaming mode feature to help both you and your drive reach and sustain maxed-out levels of performance.
Store More

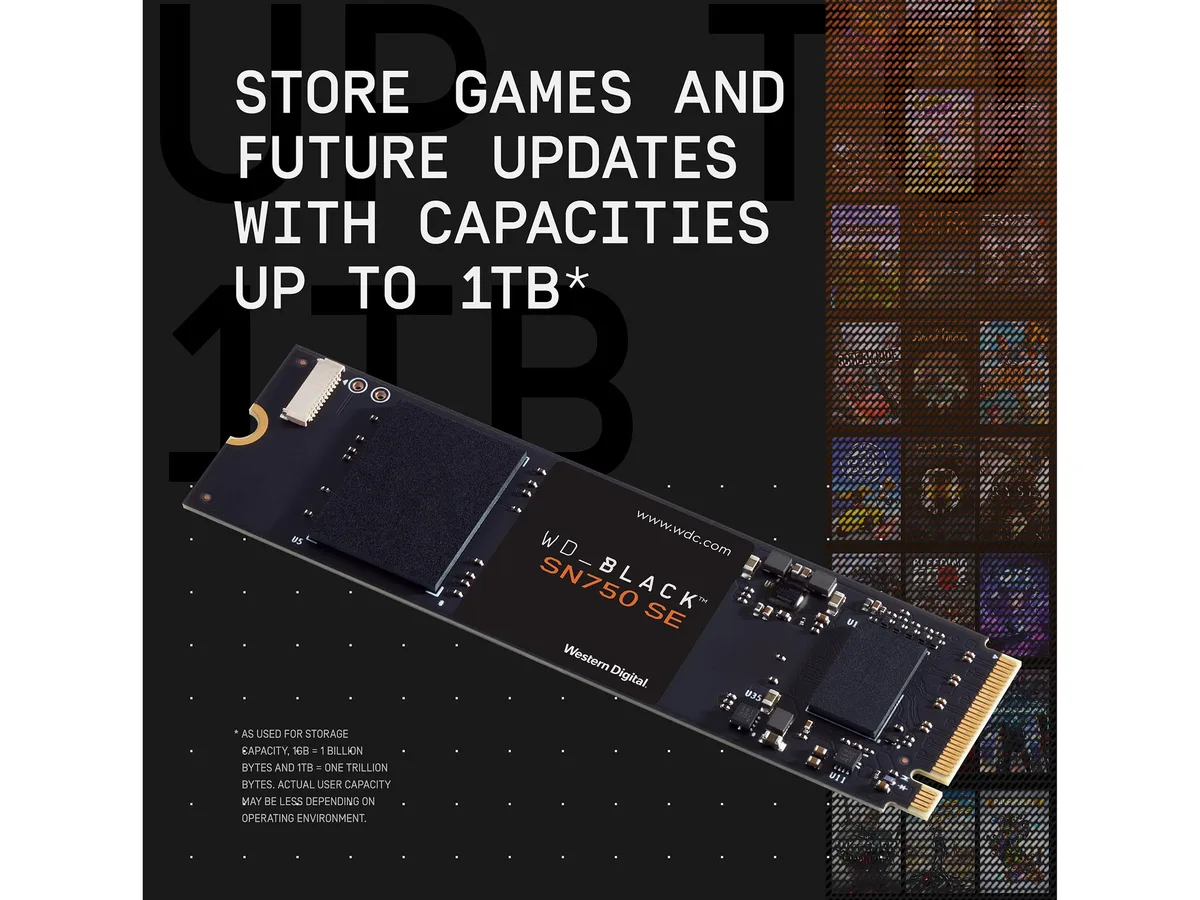

Available in capacities up to 1TB, the WD_BLACK SN750 SE NVMe SSD gives you tons of space for storing the latest games and future updates.
Compete Longer
The WD_BLACKTM SN750 SE NVMe
Operating Temperature0°C ~ +70°C
Storage Temperature-55°C ~ +85°C
Height2.38mm
Width22.00mm
Depth80.00mm
Weight7.50g
Shipping weight0.05 kg
Package size124 × 102 × 20 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the 500 GB WD Black SN750 SE include and is a heatsink required?

The drive ships as a bare M.2 2280 module without a heatsink; the motherboard slot provides all mechanical retention and power, so no extra parts are needed for installation.

Should I choose the 500 GB model or the larger 1 TB version?

The 500 GB model delivers 300 TBW endurance and up to 3 600 MB/s sequential reads; the 1 TB variant doubles capacity and raises TBW to 600, so pick 1 TB if you need more game storage and write longevity.

How does the quoted 3 600 MB/s sequential read translate to real gaming loads?

In a PCIe 4.0 slot the drive can sustain 3 600 MB/s reads and 2 000 MB/s writes, cutting game and level load times versus PCIe 3.0 SSDs while drawing up to 30 % less power.
