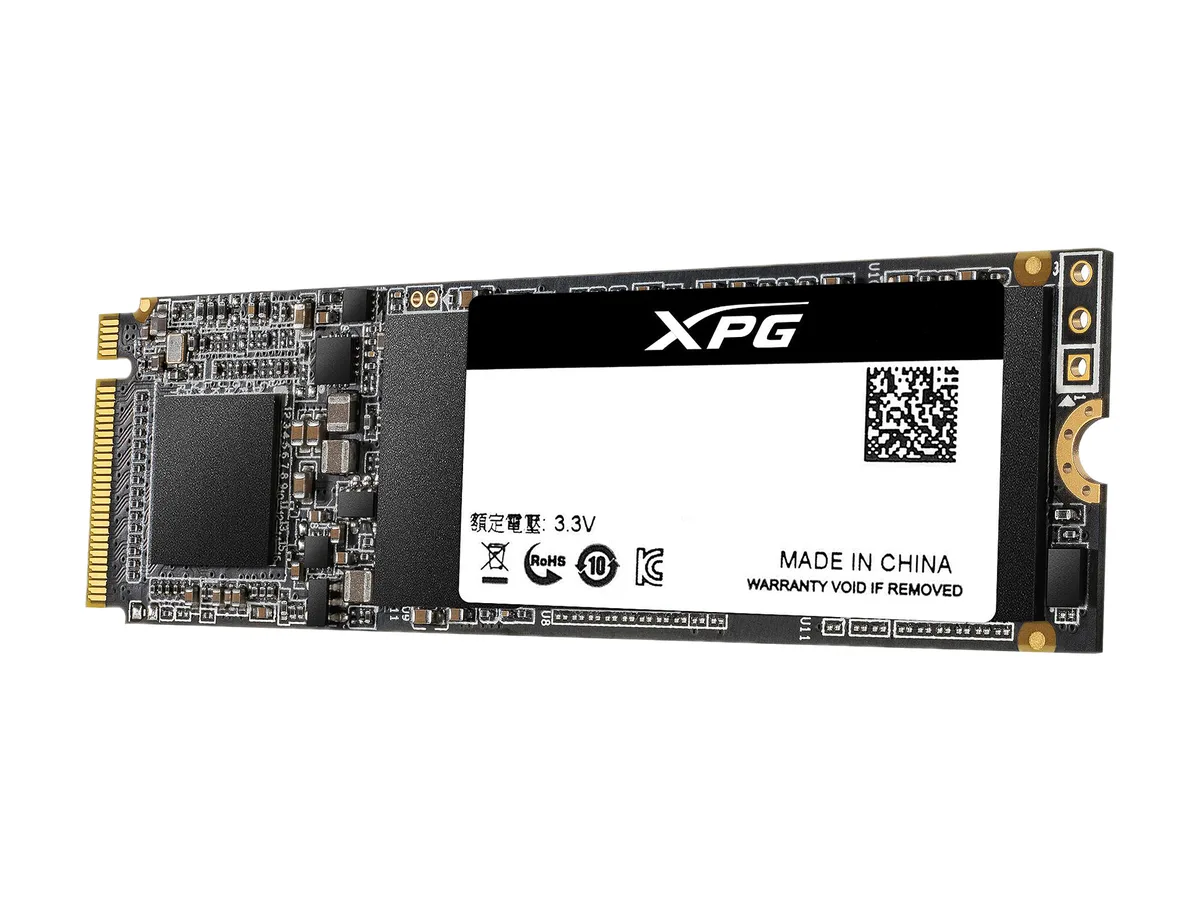

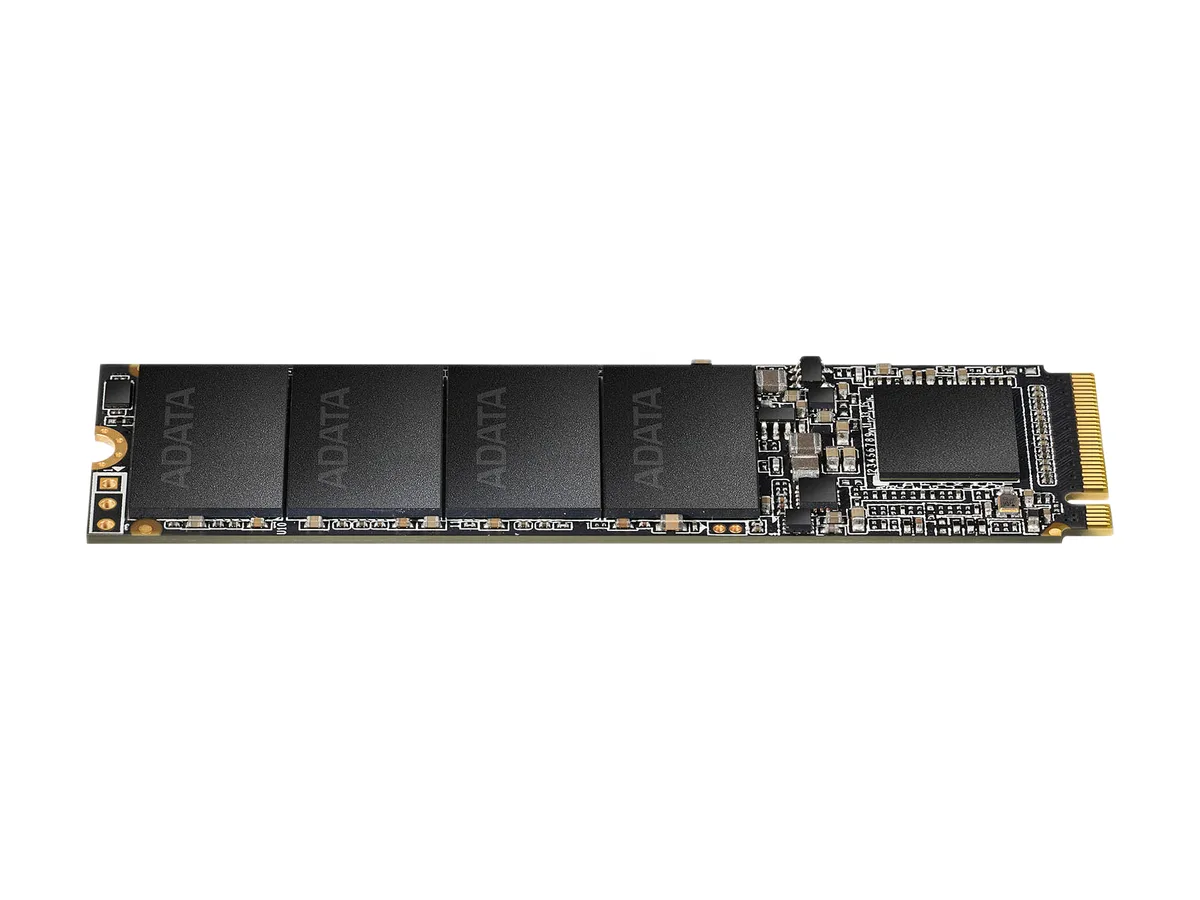

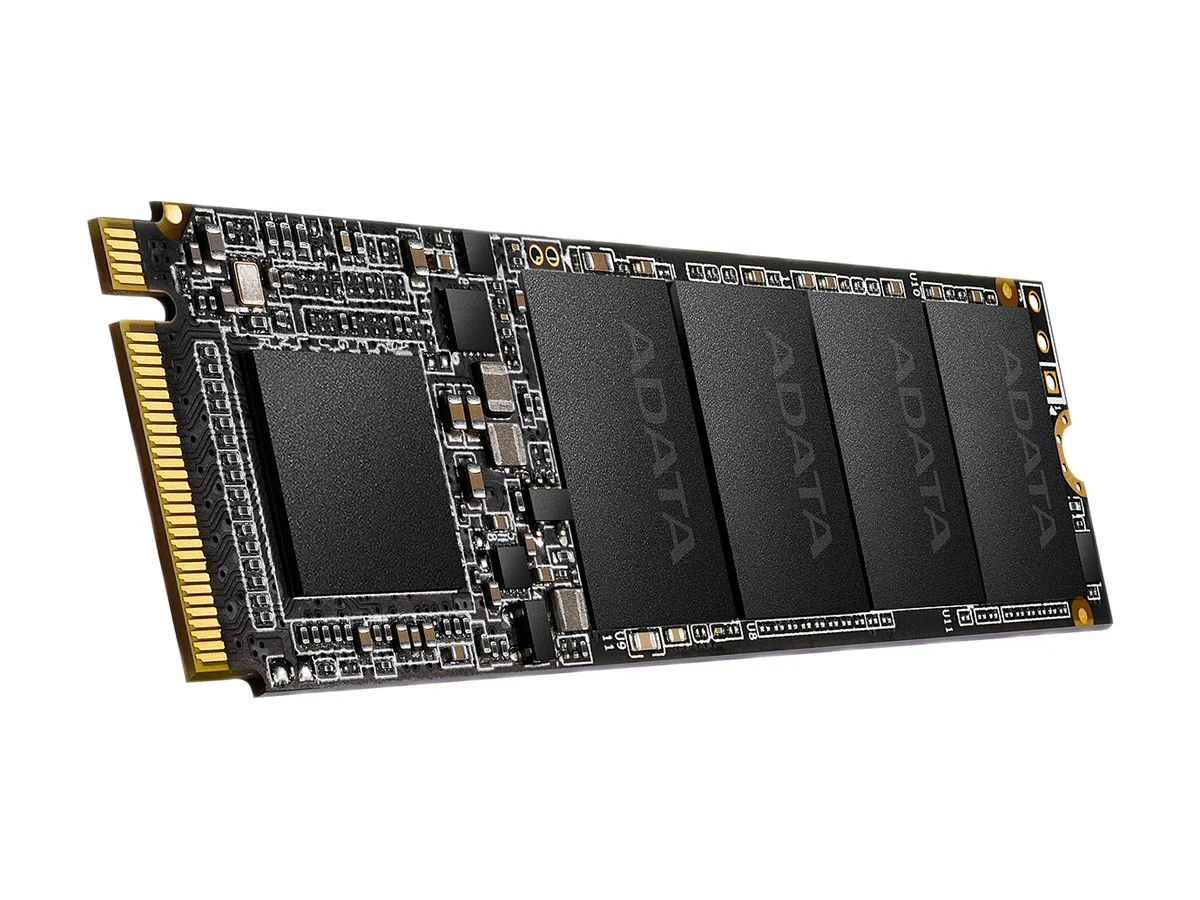

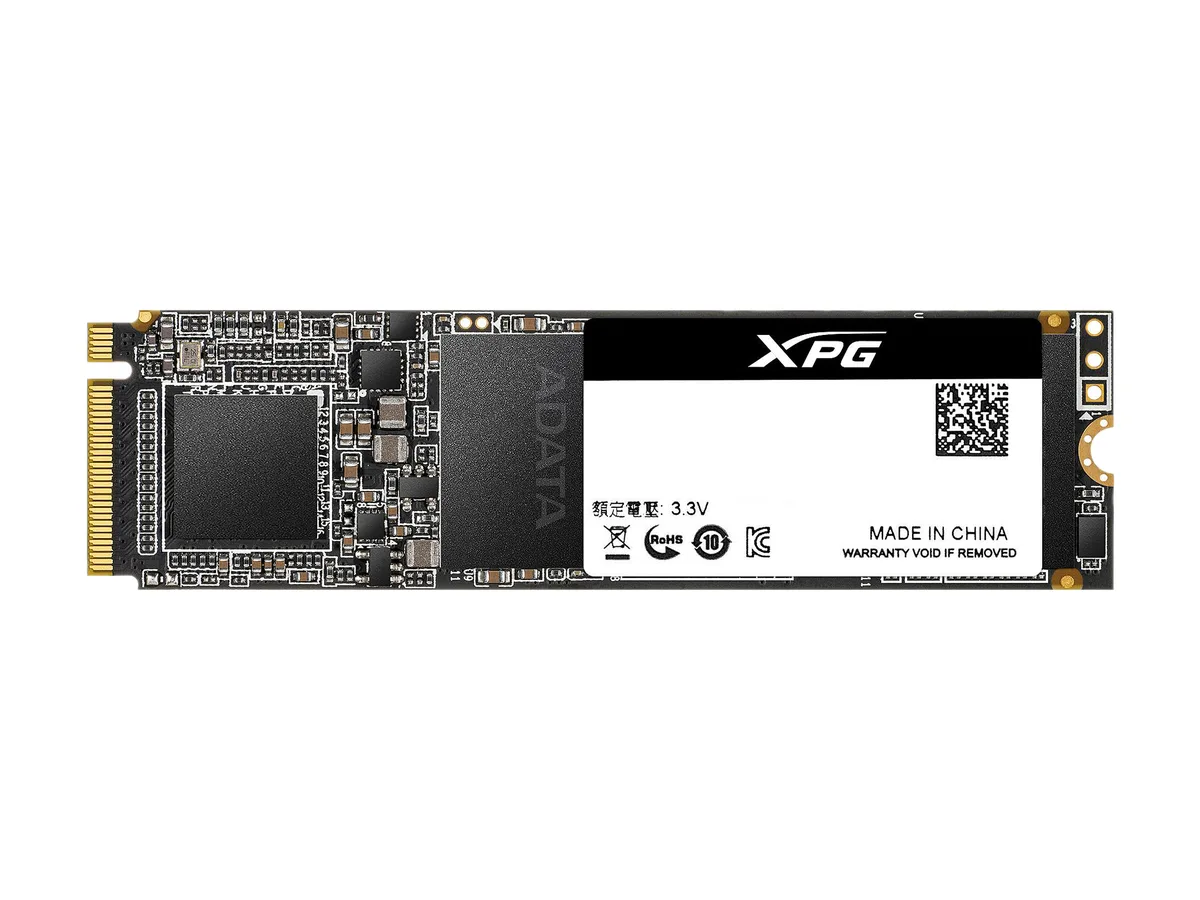

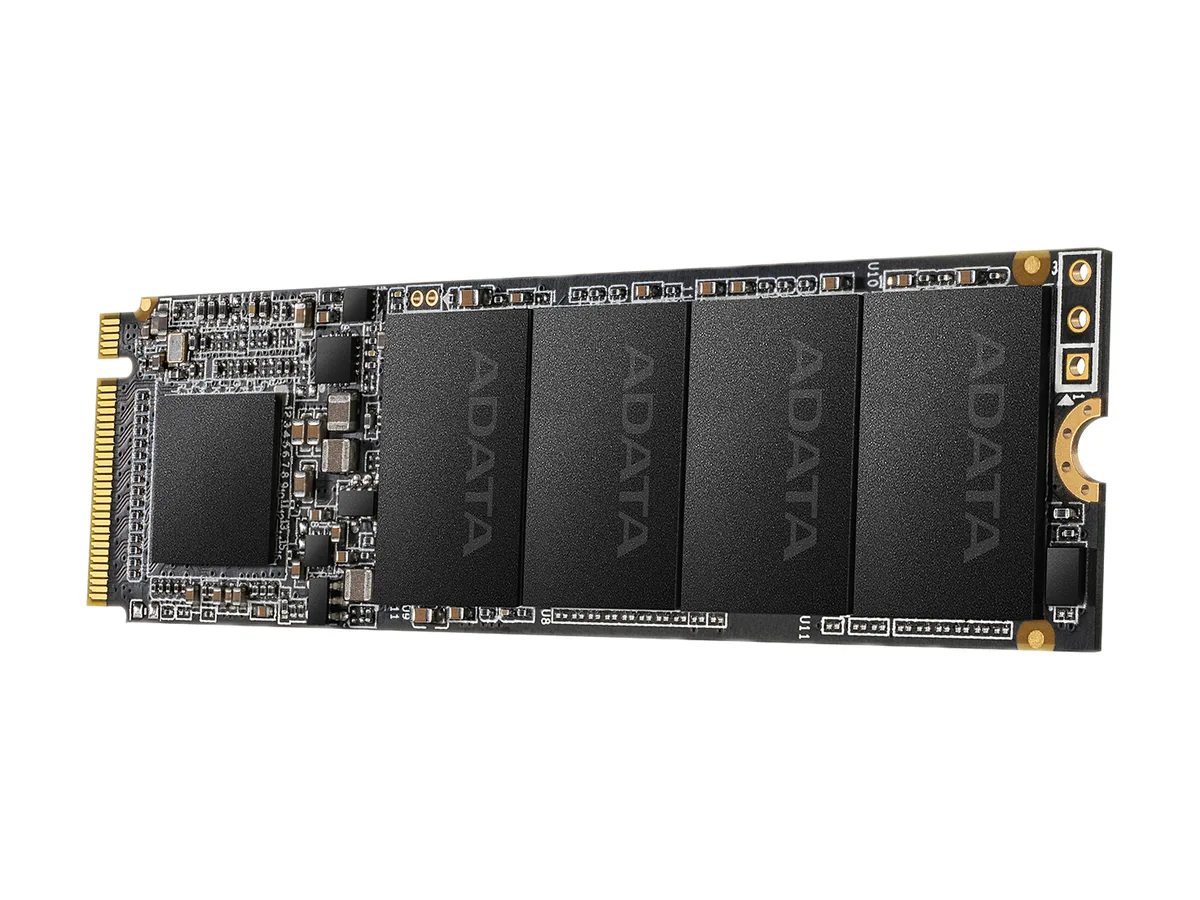

Green M.2 2280 circuit board with gold edge connector and black controller chip

XPG

XPG ASX6000LNP-256GT-C SX6000 Lite 256GB internal SSD

SKU CH-GM6R-ZF5CM MPN ASX6000LNP-256GT-C

M.2 2280 internal SSD with 256 GB capacity, PCIe 3.0 x4 interface, sequential read up to 1800 MBps and write up to 900 MBps

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity256GB
  • Memory Components3D NAND
  • InterfacePCI-Express 3.0 x4

Options 256GB Lite

  • Sequential read up to 1800 MBps speeds up boot and load times
  • Sequential write up to 900 MBps accelerates file saves and installs
  • Random read 100000 IOPS sharpens multitasking responsiveness
  • Random write 170000 IOPS keeps heavy write workloads smooth
  • 120 TBW endurance rating supports long-term daily use

SX6000 Lite 256GB M.2 2280 NVMe drive

This XPG SX6000 Lite is a 256GB internal solid state drive in the M.2 2280 form factor. It connects through a PCI-Express 3.0 x4 interface and uses 3D NAND flash with NVMe 1.3 support. The drive is built for consumer desktops, notebooks and ultrabooks that have a compatible M.2 slot. Sequential read reaches up to 1800 MBps and sequential write up to 900 MBps.

Upgrade from SATA SSD to PCIe 3.0 x4 NVMe

Replacing a SATA SSD with this PCIe 3.0 x4 NVMe drive raises sequential read to 1800 MBps and write to 900 MBps. Random read reaches 100,000 IOPS and random write 170,000 IOPS. Endurance is rated at 120TB written and MTBF at 1,800,000 hours. The jump is worthwhile when the system can boot from NVMe and the workload benefits from lower latency and higher throughput.

Check M.2 slot key, PCIe generation

Verify the motherboard or laptop provides an M.2 2280 slot wired for PCIe 3.0 x4 and that the BIOS or UEFI can boot from an NVMe device. Confirm the operating system includes an NVMe driver or can load one during installation. The drive operates from 0°C to 70°C and draws 0.33W active and 0.14W idle.

Highlights

  • Sequential read up to 1800 MBps speeds up boot and load times
  • Sequential write up to 900 MBps accelerates file saves and installs
  • Random read 100000 IOPS sharpens multitasking responsiveness
  • Random write 170000 IOPS keeps heavy write workloads smooth
  • 120 TBW endurance rating supports long-term daily use

Specifications

BrandXPG
SeriesSX6000 Lite
ModelASX6000LNP-256GT-C
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity256GB
Memory Components3D NAND
InterfacePCI-Express 3.0 x4
Max Sequential ReadUp to 1800 MBps
Max Sequential WriteUp to 900 MBps
4KB Random ReadUp to 100,000 IOPS
4KB Random WriteUp to 170,000 IOPS
Terabytes Written (TBW)120TB
MTBF1,800,000 hours
FeaturesTBW: 120TB
NVMe 1.3 support
3D NAND Flash for higher capacity and durability
Advanced LDPC ECC Technology
HMB (Host Memory Buffer) and SLC Caching
Compact M.2 2280 form factor - ideal for high-end desktops, notebooks and Ultrabooks
Power Consumption (Idle)0.14W
Power Consumption (Active)0.33W
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Max Shock Resistance1500G / 0.5 ms
Height2.15mm
Width22.00mm
Depth80.00mm
Weight8.00g
Shipping weight0.03 kg
Package size132 × 104 × 18 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What size M.2 slot does the 2280 form factor need?

The drive uses the M.2 2280 form factor, which requires a motherboard slot that accepts 80 mm long modules.

Which step is often missed when installing the PCI-Express 3.0 x4 NVMe drive?

Many builders forget to enable the NVMe 1.3 option in the BIOS before cloning or installing the operating system.

When should the drive be replaced based on its 120 TBW endurance rating?

Plan a replacement once the host writes approach 120 terabytes, which the SMART attributes will report as the drive nears its rated endurance.
