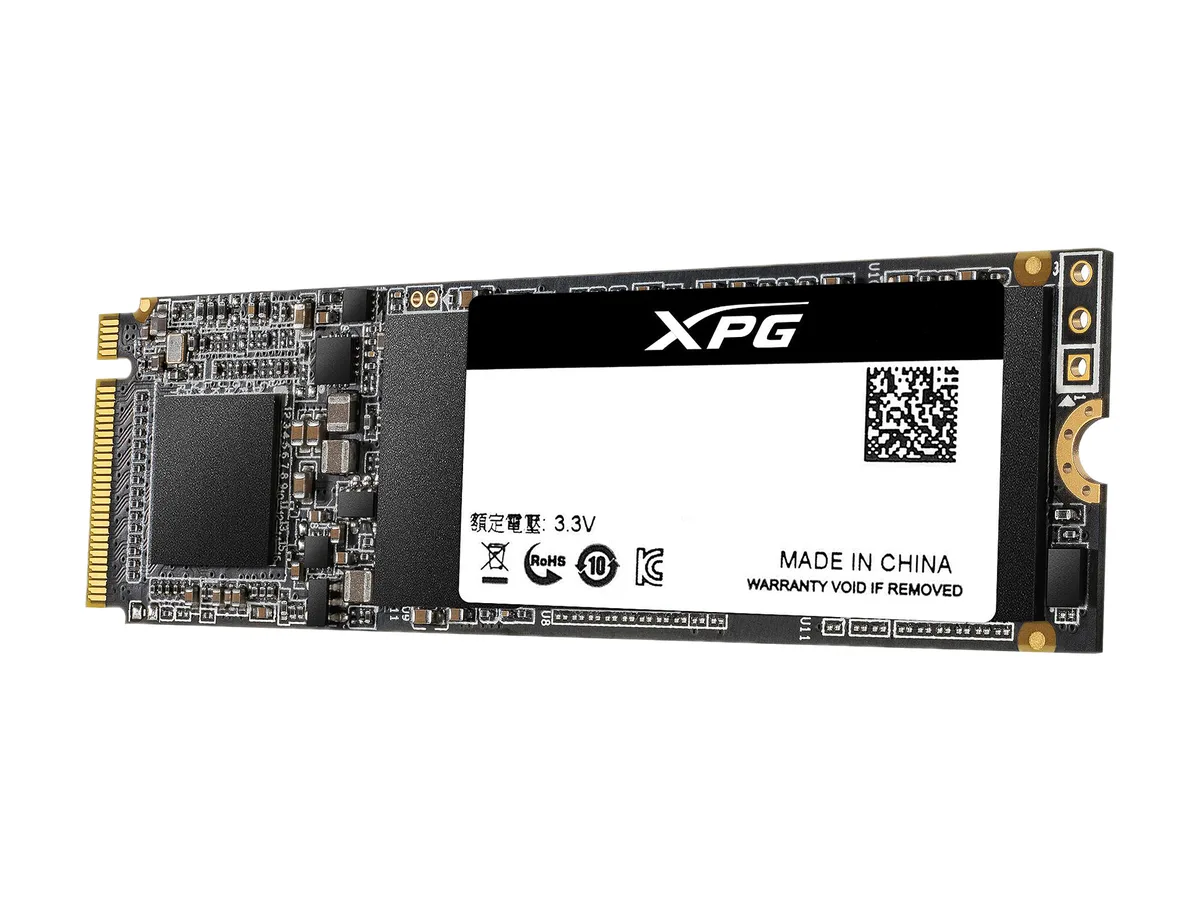

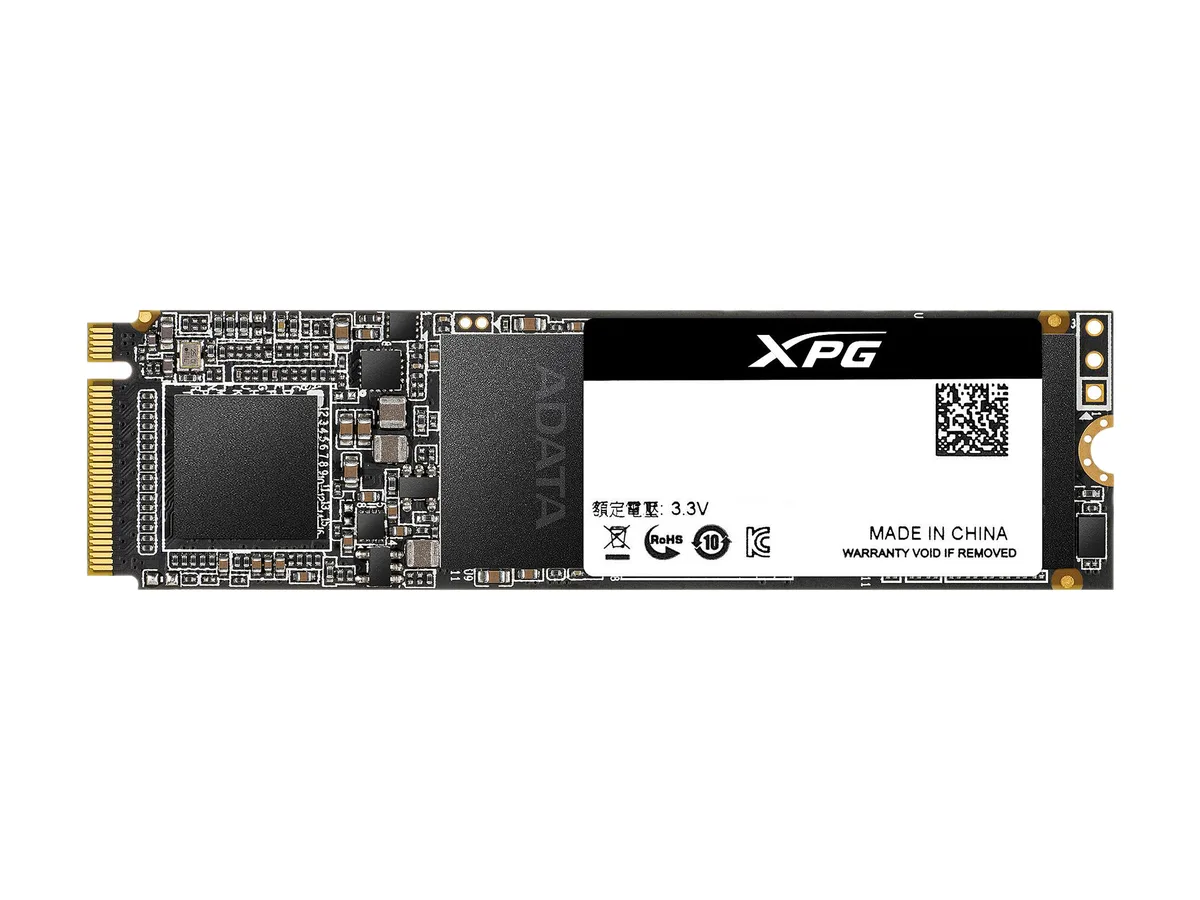

Small green M.2 2280 circuit board with black controller and silver label

XPG

XPG SX6000 Lite ASX6000LNP-512GT-C 512GB internal SSD

SKU CH-NNN5-BNEEE MPN ASX6000LNP-512GT-C

512 GB M.2 2280 PCIe 3.0 x4 SSD delivering up to 1800 MB/s read and 1200 MB/s write with 240 TBW endurance

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity512GB
  • Memory Components3D NAND
  • InterfacePCI-Express 3.0 x4

Options 512GB Lite

  • Fast boot and app loads with up to 1800 MB/s sequential read
  • Smooth multitasking backed by up to 1200 MB/s sequential write
  • Responsive random access at up to 180,000 read IOPS and 200,000 write IOPS
  • Long-term reliability with 240 TBW endurance and 1,800,000-hour MTBF
  • Low power draw of 0.33 W active and 0.14 W idle extends laptop battery life

Capacity and interface

The XPG SX6000 Lite is a 512GB internal solid state drive using the M.2 2280 form factor and a PCI-Express 3.0 x4 connection. It supports the NVMe 1.3 protocol and uses 3D NAND flash with advanced LDPC ECC, HMB and SLC caching to deliver sequential reads up to 1800 MBps and writes up to 1200 MBps. Endurance is rated at 240TB written with a 1.8 million hour MTBF.

Who this suits and who should look elsewhere

This drive suits users upgrading a laptop, ultrabook or desktop that has an M.2 slot wired for PCI-Express 3.0 x4 and wants a noticeable speed lift over a SATA SSD. Systems limited to SATA-only M.2 slots or older PCIe 2.0 lanes will not realise the quoted throughput, so a SATA M.2 drive may be a better match.

What to check before ordering

Verify that your motherboard or laptop provides an M.2 2280 slot keyed for PCI-Express 3.0 x4 NVMe operation and that the BIOS recognises NVMe boot devices. Confirm the operating temperature range of 0°C to 70°C fits your chassis airflow, and ensure the power budget can accommodate 0.33W active draw.

Highlights

  • Fast boot and app loads with up to 1800 MB/s sequential read
  • Smooth multitasking backed by up to 1200 MB/s sequential write
  • Responsive random access at up to 180,000 read IOPS and 200,000 write IOPS
  • Long-term reliability with 240 TBW endurance and 1,800,000-hour MTBF
  • Low power draw of 0.33 W active and 0.14 W idle extends laptop battery life

Specifications

BrandXPG
SeriesSX6000 Lite
ModelASX6000LNP-512GT-C
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity512GB
Memory Components3D NAND
InterfacePCI-Express 3.0 x4
Max Sequential ReadUp to 1800 MBps
Max Sequential WriteUp to 1200 MBps
4KB Random ReadUp to 180,000 IOPS
4KB Random WriteUp to 200,000 IOPS
Terabytes Written (TBW)240TB
MTBF1,800,000 hours
FeaturesTBW: 240TB
NVMe 1.3 support
3D NAND Flash for higher capacity and durability
Advanced LDPC ECC Technology
HMB (Host Memory Buffer) and SLC Caching
Compact M.2 2280 form factor - ideal for high-end desktops, notebooks and Ultrabooks
Power Consumption (Idle)0.14W
Power Consumption (Active)0.33W
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Max Shock Resistance1500G / 0.5 ms
Height2.15mm
Width22.00mm
Depth80.00mm
Weight8.00g
Shipping weight0.03 kg
Package size132 × 102 × 18 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does my motherboard need an M.2 2280 slot that runs PCI-Express 3.0 x4 for this drive to work?

Yes, the drive uses the M.2 2280 form factor and requires a PCI-Express 3.0 x4 connection to operate at its rated speeds of up to 1800 MBps read and 1200 MBps write.

Can I keep my existing SATA SSD and add this drive as a secondary boot or storage device?

Yes, the drive installs in an M.2 slot while your SATA SSD stays connected to its own port; the system will see both drives independently.

How can I verify the drive is delivering its rated 1800 MBps read and 1200 MBps write performance after installation?

Run a sequential benchmark such as CrystalDiskMark; results near 1800 MBps read and 1200 MBps write confirm the PCI-Express 3.0 x4 link and NVMe 1.3 support are active.
