Blue PCB kit with IO analog board V6.1, USB hub V2.1 and fan for DE10-Nano

YINGHUA

YINGHUA Mister FPGA IO Analog Board V6.1 + USB Hub V2.1 + Fan server motherboard

SKU CH-TWV1-08TY6

Expansion kit adds VGA, audio, SD slot, fan and a 2.1 USB hub to the DE10-Nano MiSTer platform

  • CPU TypeIntel Atom
  • Mister FPGA IO Analog Board V6.1 adds VGA, audio, SD card and fan cooling

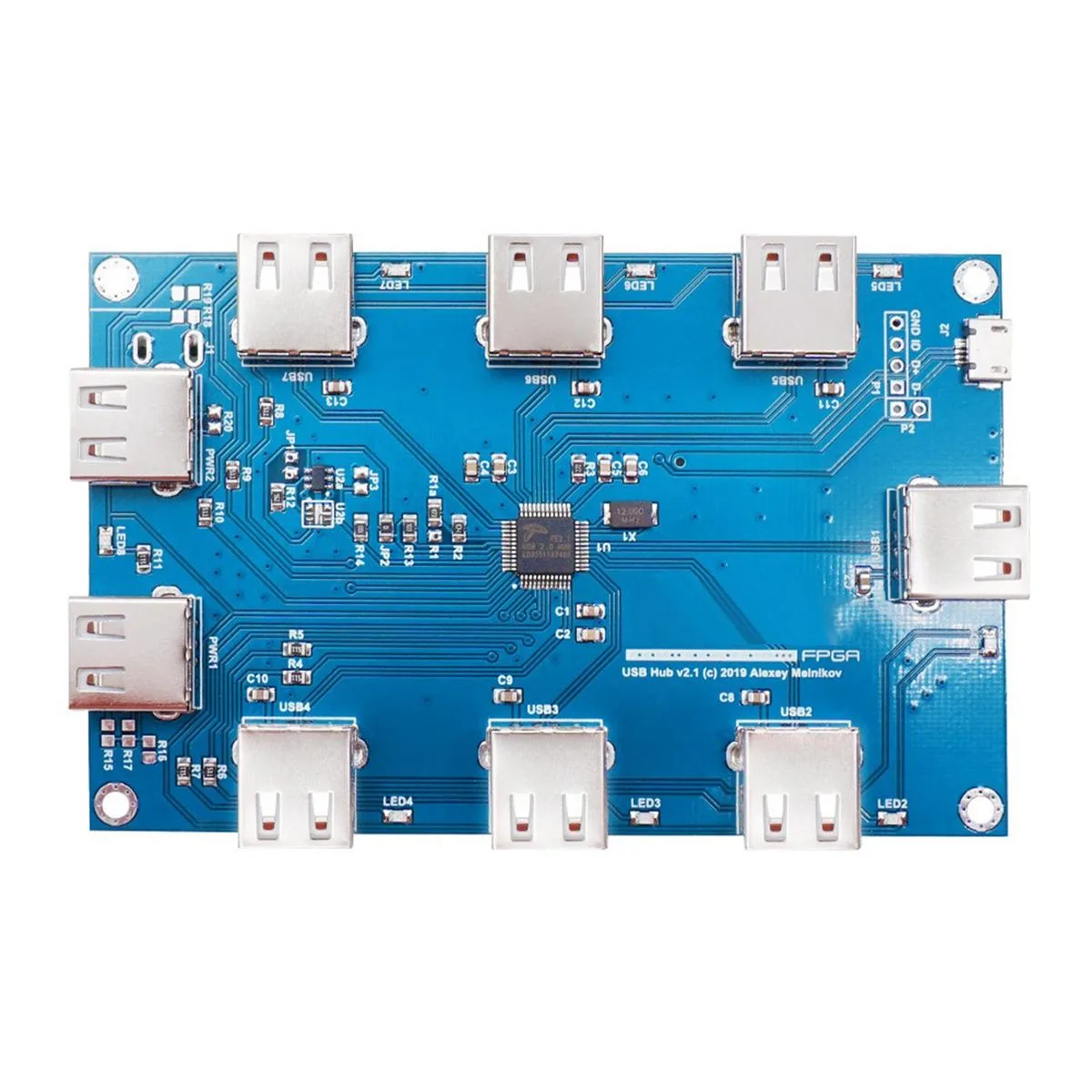

  • USB Hub V2.1 board provides extra ports that fit under the DE10-Nano chassis
  • Expansion connector uses USB 3.0 form factor for case integration, not USB signalling

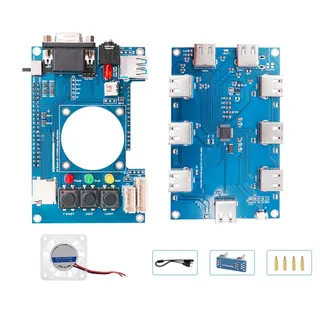

  • Kit includes IO board, USB hub board and fan for complete Mister FPGA setup
  • Blue PCB components designed specifically for Terasic DE10-Nano Mister FPGA platform

MiSTer IO Analog Board V6.1

This kit combines the Mister FPGA IO Analog Board V6.1 with a USB Hub V2.1 and a cooling fan. It is designed for owners of the Terasic DE10-Nano who want to expand their MiSTer FPGA platform with additional connectivity and thermal management. The components plug directly onto the DE10-Nano SoC board without extra wiring.

Upgrades from basic DE10-Nano

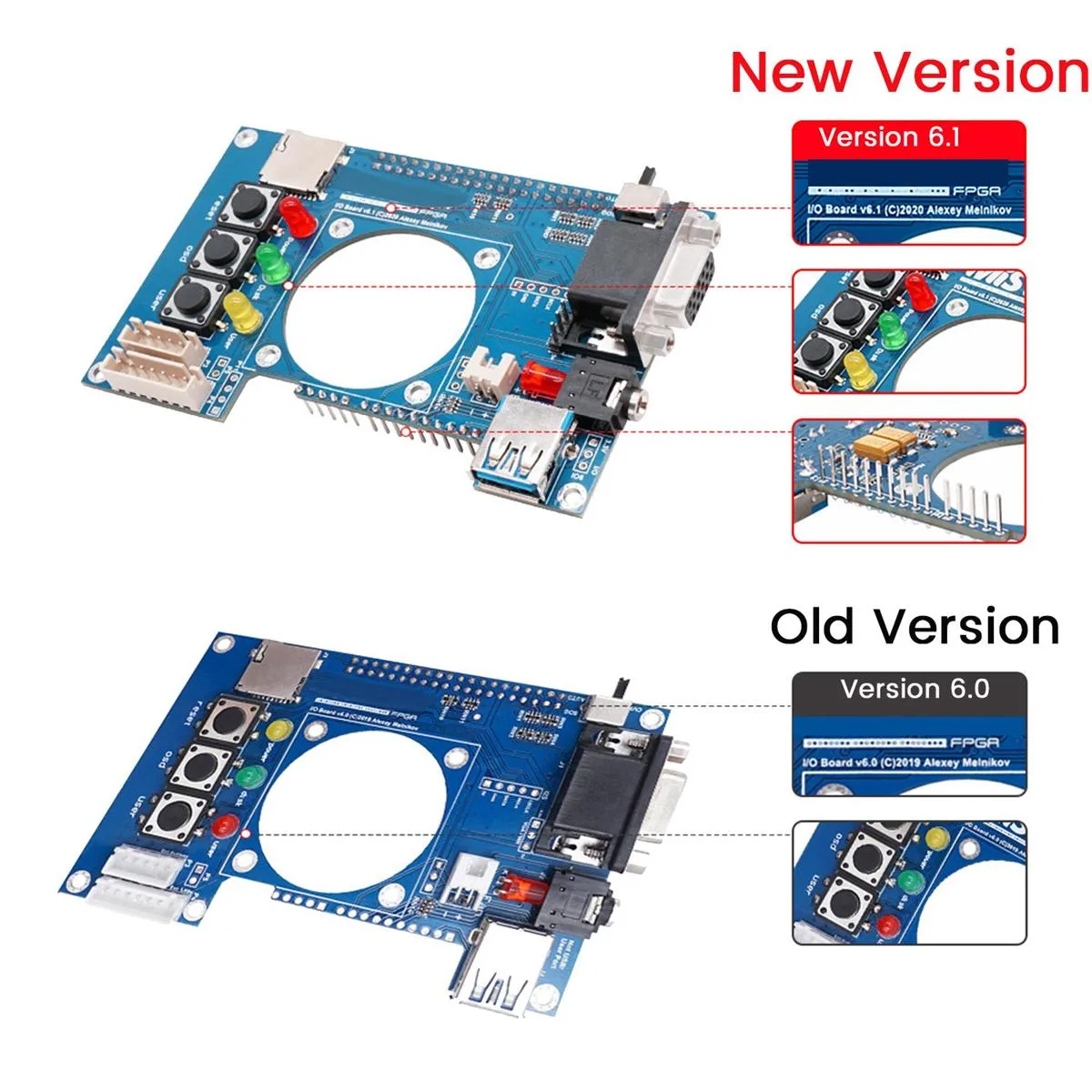

The IO board adds a VGA connector, a 3.5 mm audio jack with TOSLink, three buttons, three status LEDs, a secondary SD card slot, and a case integration connector. The USB Hub board provides extra ports that fit under the existing chassis and connects via an upstream micro-USB port. The jump is worth it when you need analog video output, digital audio, or more USB devices without external hubs.

Limits of the expansion interface

The expansion connector uses a USB 3.0 form factor but does not carry USB signals. The USB Hub is based on an FE 2.1 chip and requires a 5 V DC connection. The secondary SD card slot is only usable by certain cores. Appearance and colour may vary between batches without affecting function.

Highlights

  • Mister FPGA IO Analog Board V6.1 adds VGA, audio, SD card and fan cooling
  • USB Hub V2.1 board provides extra ports that fit under the DE10-Nano chassis
  • Expansion connector uses USB 3.0 form factor for case integration, not USB signalling
  • Kit includes IO board, USB hub board and fan for complete Mister FPGA setup
  • Blue PCB components designed specifically for Terasic DE10-Nano Mister FPGA platform

Specifications

CPU TypeIntel Atom

Questions about this item

Does the expansion connector use a standard USB 3.0 header for case mounting?

The expansion connector has the form of a USB 3.0 connector but is not USB; it provides additional pins for integrating the MiSTer into custom cases.

How does the USB Hub board connect to the DE10-Nano without extra wiring?

The hub uses an upstream micro-USB port that plugs directly into the DE10-Nano SoC board, and a 5 V DC connection for power.

Will the analogue VGA output and 3.5 mm audio jack with TOSLink need any future servicing?

The board adds a VGA connector and a 3.5 mm audio jack with TOSLink; these are passive ports with no moving parts and no scheduled maintenance.
