Black rectangular server motherboard with two CPU sockets and multiple expansion slots

YINGHUA

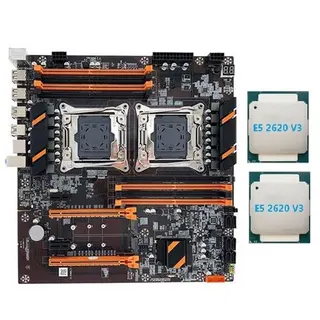

YINGHUA X99 Dual CPU Server Motherboard 2×E5-2620 V3

SKU CH-WB73-19944

Dual-socket X99 server board with two E5-2620 V3 CPUs, eight DDR4 ECC slots up to 32 GB each, six SATA 3.0 ports and one M.2 slot

  • CPU TypeIntel Atom
  • Dual LGA 2011 sockets scale compute with two included E5-2620 V3 CPUs
  • Eight DDR4 slots accept ECC modules up to 32 GB each at 2133/2400/2800 MHz
  • Six SATA 3.0 ports plus two M.2 slots support storage expansion
  • Four USB 3.0 and four USB 2.0 ports provide peripheral connectivity
  • Dual PCIe x16 and two PCIe slots enable add-in cards

Dual-CPU X99 Server Board

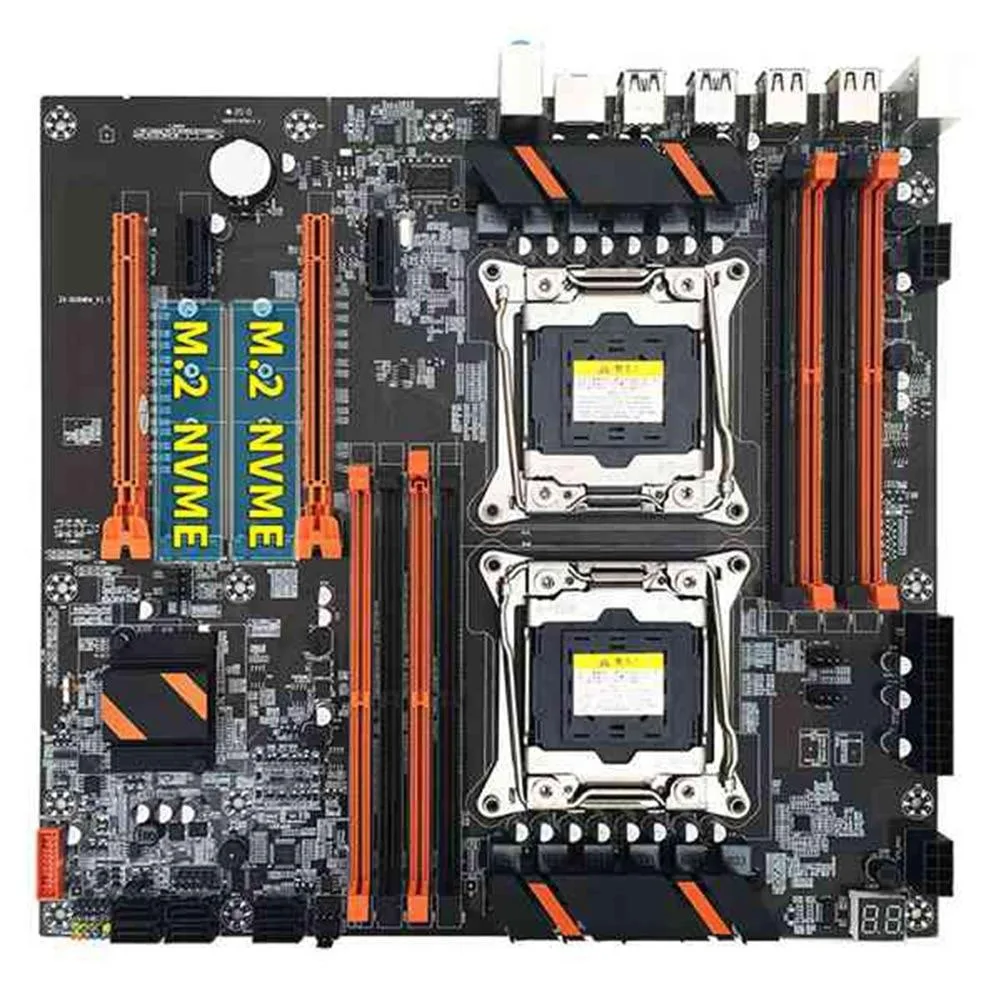

This motherboard ships with a pair of Intel E5-2620 V3 CPUs already installed in dual LGA 2011 sockets on the Intel X99 chipset. It targets builders assembling a multi-processor server or workstation that can use up to eight DDR4 ECC modules at 2133, 2400 or 2800 speeds. The board provides six SATA 3.0 ports, one M.2 slot for PCIe-only drives and a second M.2 slot that accepts both PCIe and SATA devices.

Installation Notes and Common Pitfalls

The E5-2620 V3 processors are pre-mounted, so the main steps are seating DDR4 ECC memory in the eight slots, connecting the 100M Realtek 8106E or 8111H network port and wiring the six SATA 3.0 drives. Builders often forget that the first M.2 slot accepts PCIe drives only, while the second supports both PCIe and SATA; using the wrong drive type in the first slot will prevent detection. The board measures 290 by 280 millimetres and uses a standard black PCB layout.

Pre-Purchase Compatibility Checklist

Verify that your chassis can accommodate a 290 by 280 millimetre E-ATX form factor and that the power supply delivers the dual 8-pin or 4+4-pin CPU connectors required by the X99 platform. Confirm that any M.2 storage you plan to use matches the slot specifications: PCIe-only for the first slot and PCIe or SATA for the second. Ensure your operating system supports the integrated Realtek 100M network controller and the onboard three-in-one audio interface.

Highlights

  • Dual LGA 2011 sockets scale compute with two included E5-2620 V3 CPUs
  • Eight DDR4 slots accept ECC modules up to 32 GB each at 2133/2400/2800 MHz
  • Six SATA 3.0 ports plus two M.2 slots support storage expansion
  • Four USB 3.0 and four USB 2.0 ports provide peripheral connectivity
  • Dual PCIe x16 and two PCIe slots enable add-in cards

Specifications

CPU TypeIntel Atom

Questions about this item

How can I confirm both E5-2620 V3 processors are recognised after assembly?

Enter the BIOS on first boot and verify that two CPUs are detected with the correct model name and core counts shown on the main screen.

What comes in the box and what must I source separately?

The package includes the X99 dual-socket motherboard and two E5-2620 V3 CPUs; you must add DDR4 ECC memory modules, storage drives, a power supply and a chassis.

Which memory speed should I choose for this board?

The board supports DDR4 at 2133, 2400 and 2800 MT/s; pick modules rated for 2400 or 2800 MT/s to match the highest supported frequencies.
