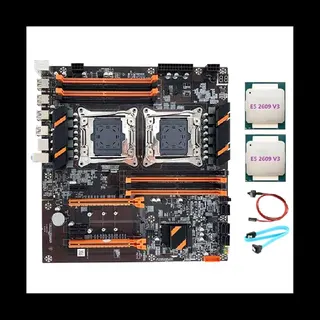

Black rectangular server motherboard with two LGA2011 CPU sockets, eight DDR4 slots, six SATA ports, two PCIe x16 slots

YINGHUA

YINGHUA X99 Dual LGA2011 Server Motherboard + 2×E5-2609 V3

SKU CH-HMXF-907C0

Dual LGA2011 server board with two E5-2609 V3 CPUs, eight DDR4 ECC slots up to 32 GB each, six SATA 3.0 ports, one PCIe-only M.2 and one M.2 supporting PCIe and SATA, dual PCIe 16x slots.

  • CPU TypeIntel Atom
  • Dual LGA 2011 sockets enable multi-threaded server workloads with two E5-2609 V3 CPUs included
  • Eight DDR4 slots support up to 32 GB per module at 2133/2400/2800 speeds for large memory capacity
  • Six SATA 3.0 ports plus two M.2 PCIe interfaces provide flexible high-speed storage options
  • Four USB 3.0 and four USB 2.0 ports give ample peripheral connectivity for rackmount deployments
  • Integrated Realtek 8106E/8111H 100 M network controllers deliver basic out-of-band management connectivity

Dual LGA2011 server board with two E5-2609 V3 CPUs

This YINGHUA X99 motherboard arrives new with a pair of Intel E5-2609 V3 processors already installed. It targets builders who need an affordable dual-socket platform for virtualization hosts, render nodes or lab clusters. The board provides eight DDR4 ECC slots and six SATA 3.0 ports for storage arrays.

Check DDR4 ECC modules and LGA2011 cooler clearance

Verify you have DDR4 ECC DIMMs rated for 2133, 2400 or 2800 MT/s; each slot accepts up to 32 GB modules. The two LGA 2011 sockets require coolers with the correct mounting pattern and enough height clearance for a 290 × 280 mm PCB. Confirm your chassis can route power to both CPU 8-pin headers and that the single 100 Mbit REALTEK LAN port meets your network speed needs.

Included SATA and switch cables enable first boot

The bundle supplies one SATA data cable and one front-panel switch cable so you can connect a boot drive and power button immediately. No extra CPU, memory or M.2 hardware is provided. The board exposes two PCIe x16 slots, two additional PCIe slots, four USB 3.0 and four USB 2.0 ports, plus a single M.2 slot limited to PCIe signalling.

Highlights

  • Dual LGA 2011 sockets enable multi-threaded server workloads with two E5-2609 V3 CPUs included
  • Eight DDR4 slots support up to 32 GB per module at 2133/2400/2800 speeds for large memory capacity
  • Six SATA 3.0 ports plus two M.2 PCIe interfaces provide flexible high-speed storage options
  • Four USB 3.0 and four USB 2.0 ports give ample peripheral connectivity for rackmount deployments
  • Integrated Realtek 8106E/8111H 100 M network controllers deliver basic out-of-band management connectivity

Specifications

CPU TypeIntel Atom

Questions about this item

What comes in the box and which cables or parts must be purchased separately?

The package includes the X99 dual-socket motherboard, two E5-2609 V3 processors, one SATA cable and one switch cable. DDR4 ECC memory modules, storage drives, a power supply and a chassis are not included.

Which of the listed CPU options should I choose for this board?

The board is shipped with two E5-2609 V3 CPUs installed. The specifications also list E5-2678 V3, E5-2696 V3, E5-2629 V3, E5-2666 V3 and E5-2668 V3 as supported alternatives if you wish to upgrade later.

What does the 2133/2400/2800 memory speed rating mean once the system is running?

Those figures are the supported DDR4 frequencies. The board will run memory at up to 2800 MT/s when compatible modules are installed, otherwise it will operate at the highest common speed between the CPU and the DIMMs.
