Compact black steel micro-ATX case with perforated front panel and top-mounted PSU area

Zalman

Zalman Cubix Compact Micro-ATX ITX PC Case Black

SKU CH-XK8X-C5KYA

Micro-ATX and Mini-ITX chassis in 17.1-litre steel body fits GPU to 260 mm, CPU cooler to 137 mm and standard ATX PSU to 140 mm, with front USB 3.0 and pre-installed 80 mm fan

  • TypeMicro ATX
  • ColorBlack
  • Case MaterialSteel
  • With Power SupplyNo
  • Power Supply MountedTop
  • Motherboard CompatibilityMicro ATX

Options Cubix Black

  • Cubix Black

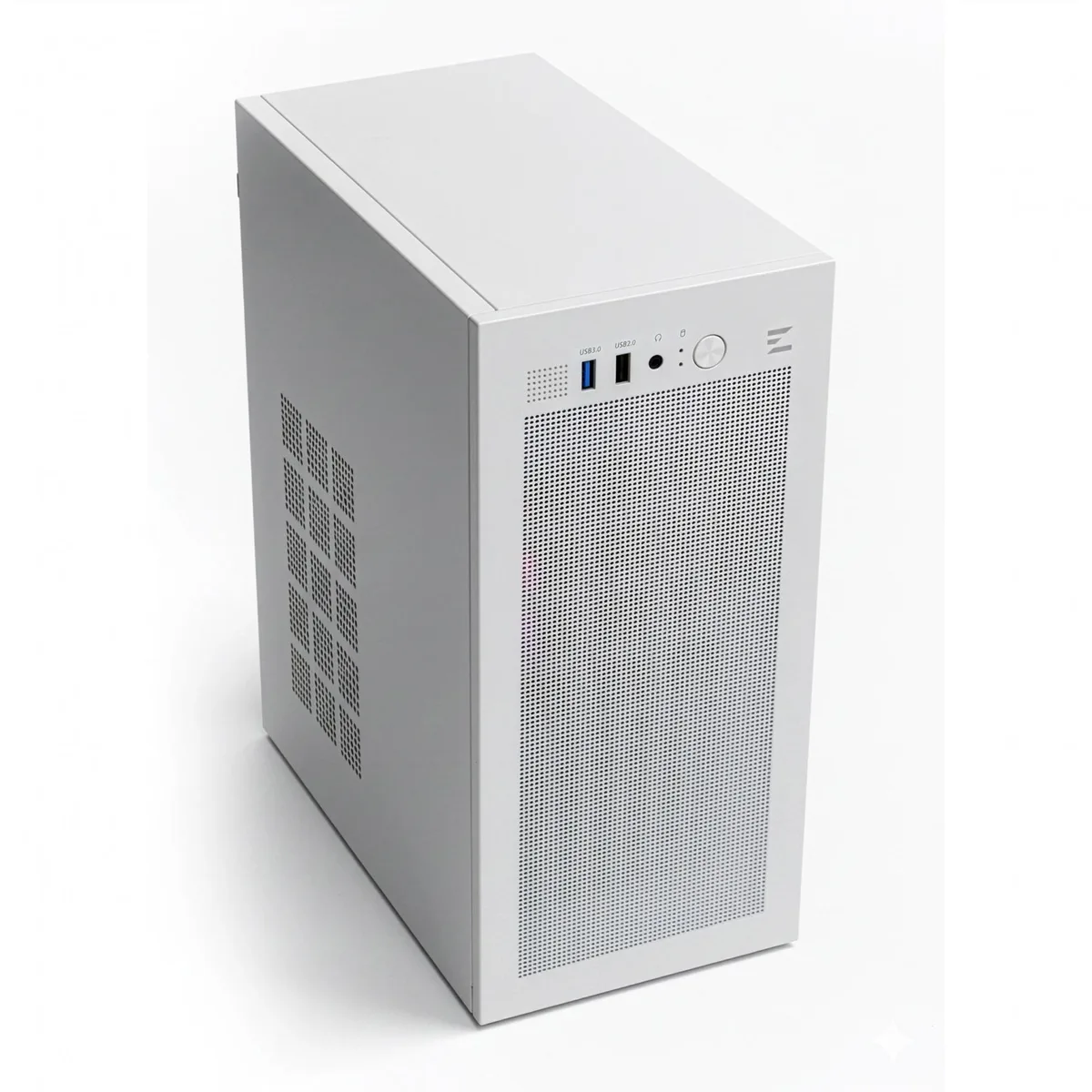

  • Cubix White
  • Cubix Black + 600W PSU
  • Cubix White + 600W PSU

Struck-through versions exist but are not stocked here.

  • Compact 17.1 L chassis fits Micro-ATX, Mini-ITX and DTX boards

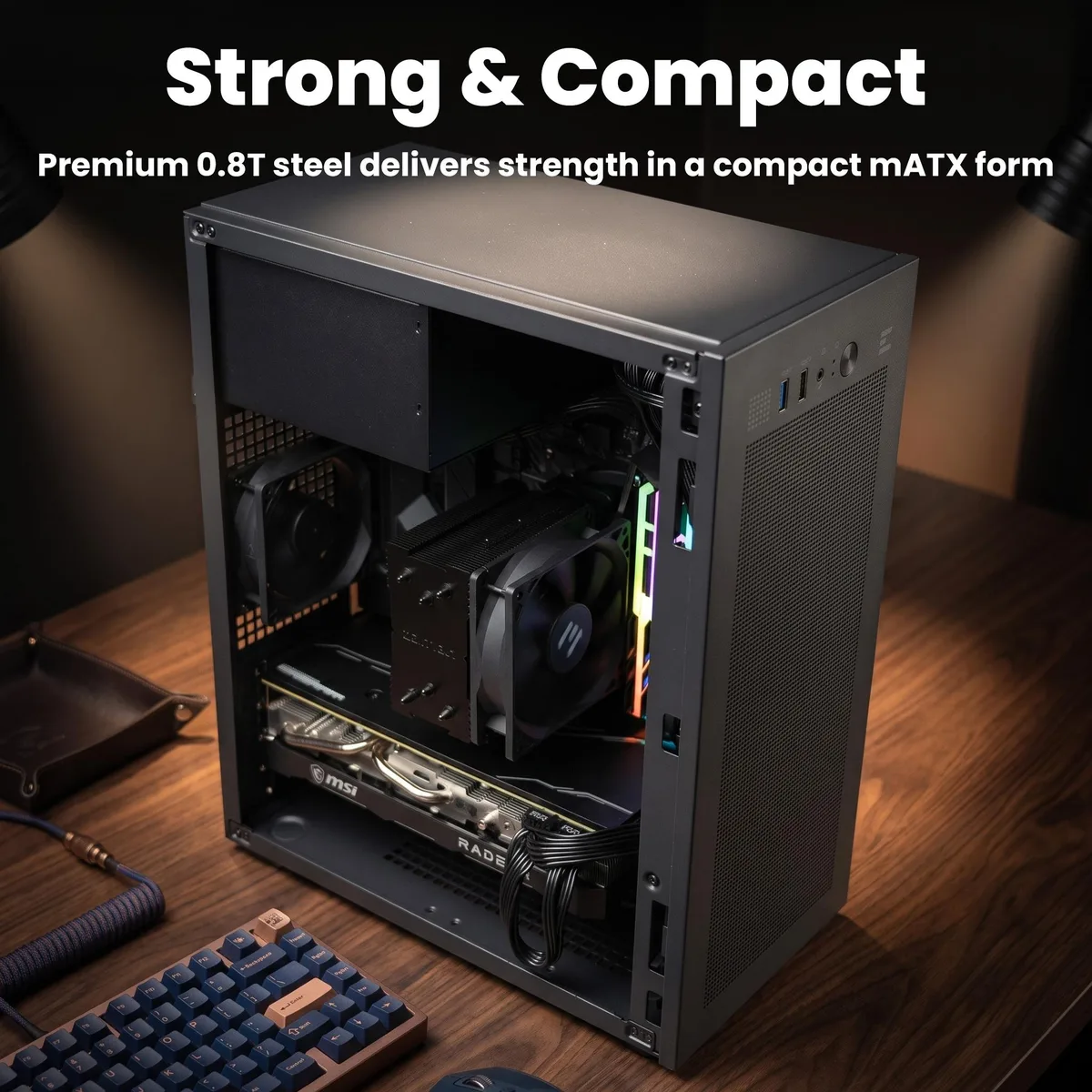

  • 8 T steel frame gives durable protection in a small footprint
  • Pre-installed 80 mm rear fan plus 120 mm front mount for strong airflow
  • Front panel offers USB 3.0, USB 2.0 and 3.5 mm audio for quick access

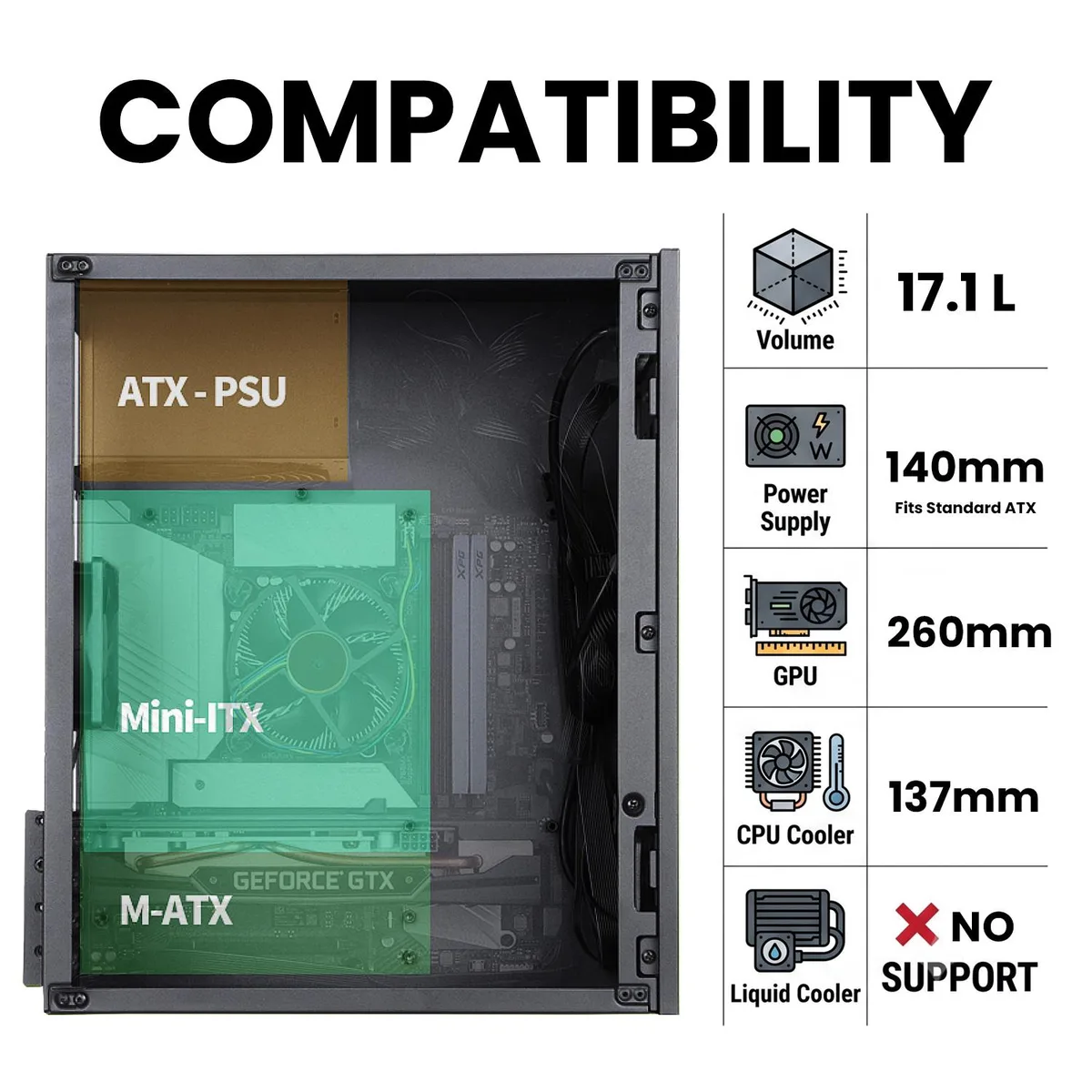

  • Supports 260 mm GPU, 137 mm cooler and 140 mm ATX PSU for capable builds

Compact Steel Chassis

The Zalman Cubix is a 17.1-litre steel enclosure that accepts Micro-ATX, Mini-ITX and DTX motherboards. It targets builders who want a small-footprint workstation or home-theatre PC without sacrificing standard ATX power-supply support. Buyers who need room for multiple 3.5-inch drives or a second graphics card will find the internal layout too restrictive.

Drive Capacity And GPU Clearance

One internal 3.5-inch bay and one 2.5-inch bay provide enough space for a boot SSD plus a bulk storage drive, but no further expansion is possible. Graphics cards up to 260 mm in length fit comfortably, while longer models exceed the available depth and cannot be installed. CPU coolers are limited to 137 mm in height, so taller tower designs will not clear the side panel.

Thermals Noise And Power Draw

A pre-installed 80 mm rear fan exhausts heat through the perforated front panel, and an optional 120 mm front fan can be added for extra intake. The open front mesh keeps airflow paths short, so typical office or media workloads run cool with low acoustic output. Power draw is dictated solely by the chosen components, as the case includes no supply of its own.

Highlights

  • Compact 17.1 L chassis fits Micro-ATX, Mini-ITX and DTX boards
  • 8 T steel frame gives durable protection in a small footprint
  • Pre-installed 80 mm rear fan plus 120 mm front mount for strong airflow
  • Front panel offers USB 3.0, USB 2.0 and 3.5 mm audio for quick access
  • Supports 260 mm GPU, 137 mm cooler and 140 mm ATX PSU for capable builds

Specifications

BrandZALMAN
SeriesCubix
ModelCubix
Part NumberCUBIX-BK
TypeMicro ATX
ColorBlack
Case MaterialSteel
With Power SupplyNo
Power Supply MountedTop
Motherboard CompatibilityMicro ATX
Side Panelwithout Side Window
Internal 3.5" Drive Bays1
Internal 2.5" Drive Bays1
Fan OptionsFront - 1 x 120mm
Rear - 1 x 80mm
Radiator OptionsN/A
80mm Fans1
Max GPU Length260 mm
Max CPU Cooler Height135 mm
Max PSU Length140 mm
Dimensions352 x 160 x 304mm
Weight2.6 kg

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will a standard ATX power supply fit in this case alongside a Micro-ATX motherboard?

Yes, the chassis accepts standard ATX power supplies up to 140 mm long, mounted at the top, while still supporting Micro-ATX, Mini-ITX and DTX boards.

How can I confirm the pre-installed 80 mm rear fan is running after I build the system?

Connect the fan to a motherboard header or Molex adapter, power on the PC and verify the blade spins; the perforated front panel draws fresh air through the case past the GPU and CPU cooler.

Which drive brackets and front-panel cables are included, and what must I supply myself?

The box contains one internal 3.5-inch bay, one 2.5-inch bay, a pre-installed 80 mm rear fan, and front-panel USB 3.0, USB 2.0 and 3.5 mm audio leads; you provide the power supply, motherboard, CPU cooler (up to 137 mm), GPU (up to 260 mm) and any additional 120 mm front fan.
