Zalman
Zalman CUBIX-WH White mATX ITX PC Case
A compact 17.1-litre steel chassis for Micro-ATX, Mini-ITX and DTX boards with a pre-installed 80 mm rear fan, front 120 mm mount, USB 3.0 and 2.0 ports, and room for 260 mm GPUs.
- TypeMicro ATX
- ColorWhite
- Case MaterialSteel
- With Power SupplyNo
- Power Supply MountedTop
- Motherboard CompatibilityMicro ATX
Options Cubix White
- Cubix Black
- Cubix White
- Cubix Black + 600W PSU
- Cubix White + 600W PSU
Struck-through versions exist but are not stocked here.
- Compact 17.1 L chassis fits Micro-ATX, Mini-ITX and DTX boards

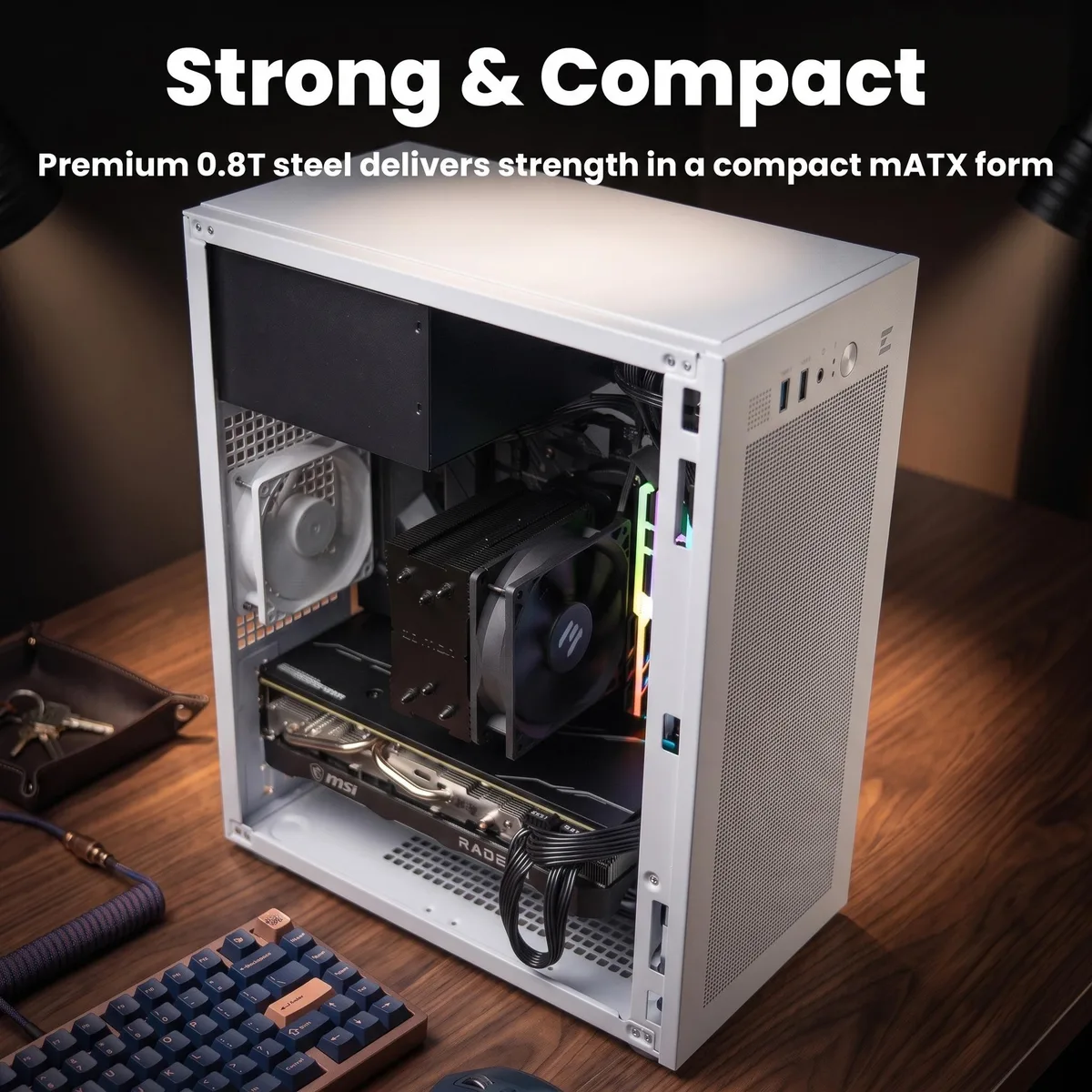

- 8T steel construction gives a sturdy, durable small-form-factor build
- Front perforations plus pre-installed 80 mm fan deliver high airflow cooling
- USB 3.0, USB 2.0 and 3.5 mm audio ports on the front panel

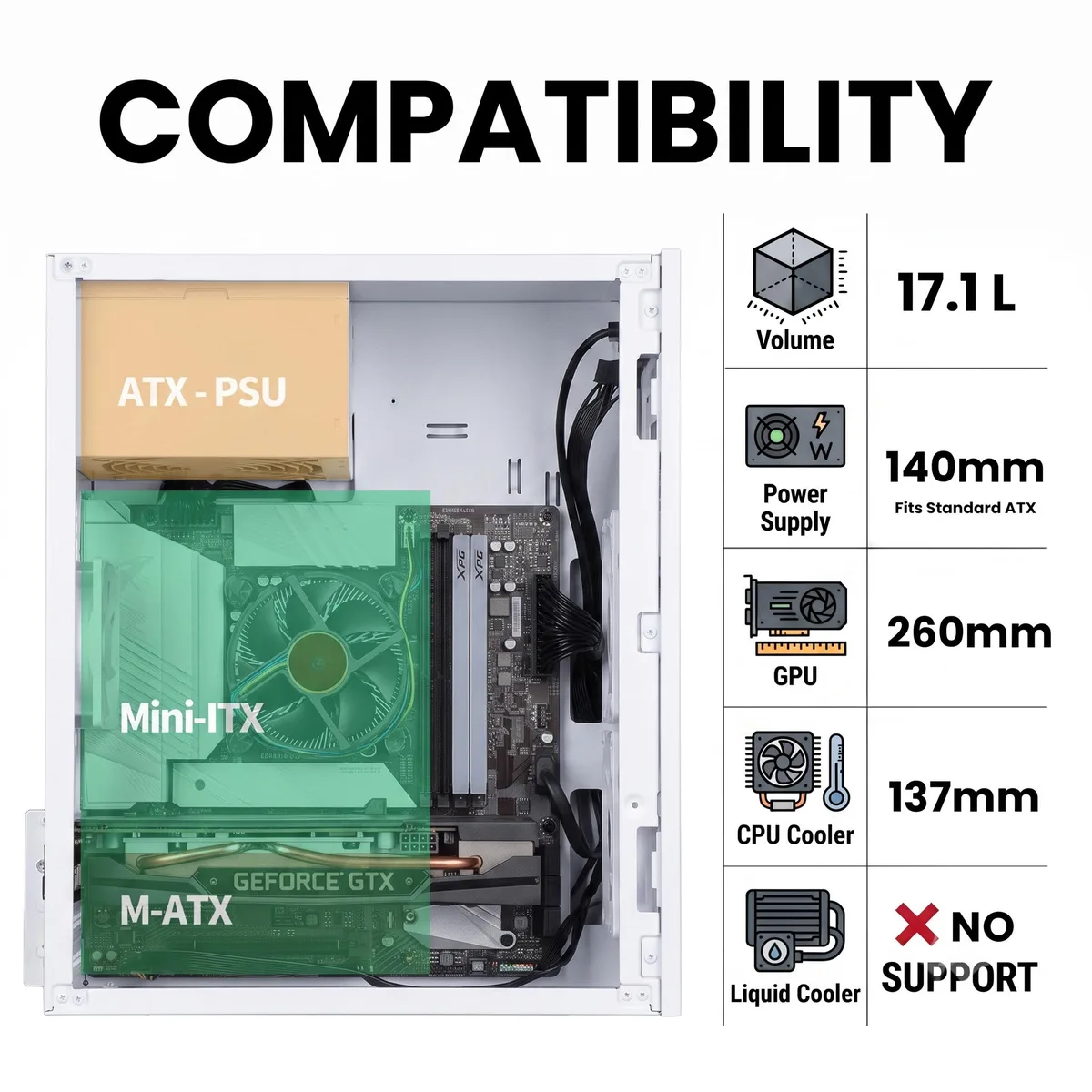

- Supports GPUs up to 260 mm, CPU coolers up to 137 mm and ATX PSUs up to 140 mm
Compact white Micro-ATX chassis
The Zalman CUBIX-WH is a 17.1-litre steel case finished in white, built for Micro-ATX, Mini-ITX and DTX motherboards. It ships without a power supply and uses a top-mounted ATX PSU bracket. A single 80 mm rear fan is pre-installed, and the front panel can accept one 120 mm fan for additional airflow.
Suited to space-constrained builds.
This chassis fits small-form-factor workstations or home-theatre PCs that need a standard ATX power supply, a graphics card up to 260 mm long and a CPU cooler no taller than 135 mm. Builders using full-size ATX motherboards, radiators, or power supplies longer than 140 mm must choose a larger enclosure.
260 mm maximum graphics-card length
The internal clearance allows GPUs up to 260 mm, which determines whether a specific card will fit. Four PCI expansion slots are available for full-height add-in cards. One internal 3.5-inch bay and one 2.5-inch bay handle storage, while front I/O provides USB 3.0, USB 2.0 and a 3.5 mm audio jack.
Highlights
- Compact 17.1 L chassis fits Micro-ATX, Mini-ITX and DTX boards
- 8T steel construction gives a sturdy, durable small-form-factor build
- Front perforations plus pre-installed 80 mm fan deliver high airflow cooling
- USB 3.0, USB 2.0 and 3.5 mm audio ports on the front panel
- Supports GPUs up to 260 mm, CPU coolers up to 137 mm and ATX PSUs up to 140 mm
Specifications
| Brand | ZALMAN |
|---|---|
| Series | CUBIX |
| Model | CUBIX |
| Part Number | CUBIX-WH |
| Type | Micro ATX |
| Color | White |
| Case Material | Steel |
| With Power Supply | No |
| Power Supply Mounted | Top |
| Motherboard Compatibility | Micro ATX |
| Side Panel | without Side Window |
| Internal 3.5" Drive Bays | 1 |
| Internal 2.5" Drive Bays | 1 |
| Front Ports | USB 2.0 / USB 3.0 / Audio |
| Fan Options | Front - 1 x 120mm Rear - 1 x 80mm |
| Radiator Options | N/A |
| 80mm Fans | 1 |
| Max GPU Length | 260 mm |
| Max CPU Cooler Height | 135 mm |
| Max PSU Length | 140 mm |
| Dimensions | 304mm x 160mm x 352mm |
| Weight | 2.6 kg |
Other versions of this model
1 more in the same range
Same family, different memory, cooler or clock — compare before you commit.
Questions about this item
What USB standard does the front-panel USB 3.0 port use, and what practical speed ceiling does that impose?
The port follows the USB 3.0 specification, capping real-world throughput at the 5 Gbit/s signalling rate defined by that standard.
What motherboard form factors and maximum graphics-card length does the chassis accept?
It fits Micro-ATX, Mini-ITX and DTX boards and clears graphics cards up to 260 mm long.
How is the power supply mounted, and what length limit applies?
The PSU sits in a top-mounted bay and must be no longer than 140 mm; the step often missed is checking that dimension before purchase.
