ZOTAC
ZOTAC ZT-B50610H-10A GeForce RTX 5060 Ti 8GB graphics card
GeForce RTX 5060 Ti graphics card with 8GB GDDR7 memory, 4608 CUDA cores, 2602 MHz boost clock and PCI Express 5.0 x8 interface
- InterfacePCI Express 5.0 x8
- Chipset ManufacturerNVIDIA
- GPU SeriesNVIDIA GeForce RTX 50 Series
- GPUGeForce RTX 5060 Ti
- ArchitectureBlackwell
- Boost Clock2602 MHz
- Boost clock of 2602 MHz lifts frame rates in demanding titles
- 4608 CUDA cores accelerate ray-tracing and AI workloads
- 8 GB GDDR7 memory at 28 Gbps feeds high-resolution textures
- PCI Express 5.0 x8 interface doubles host bandwidth for modern platforms
- HDMI 2.1b plus three DisplayPort outputs drive four displays simultaneously

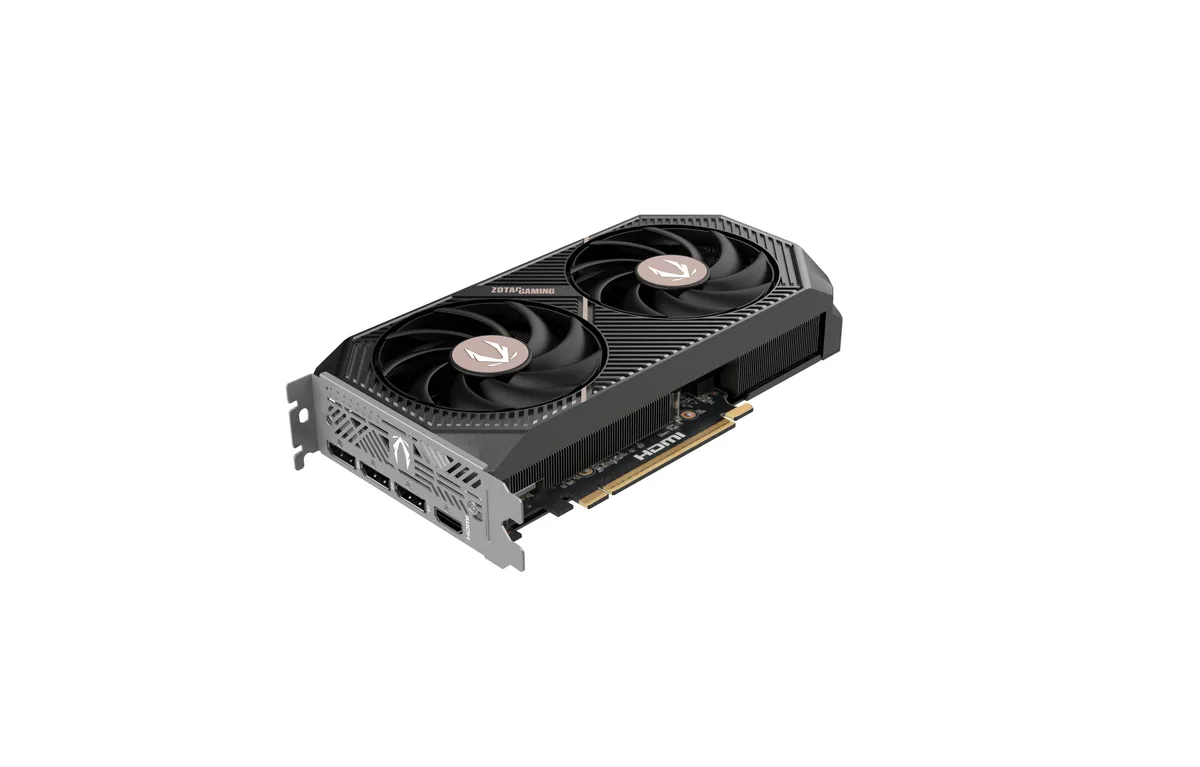

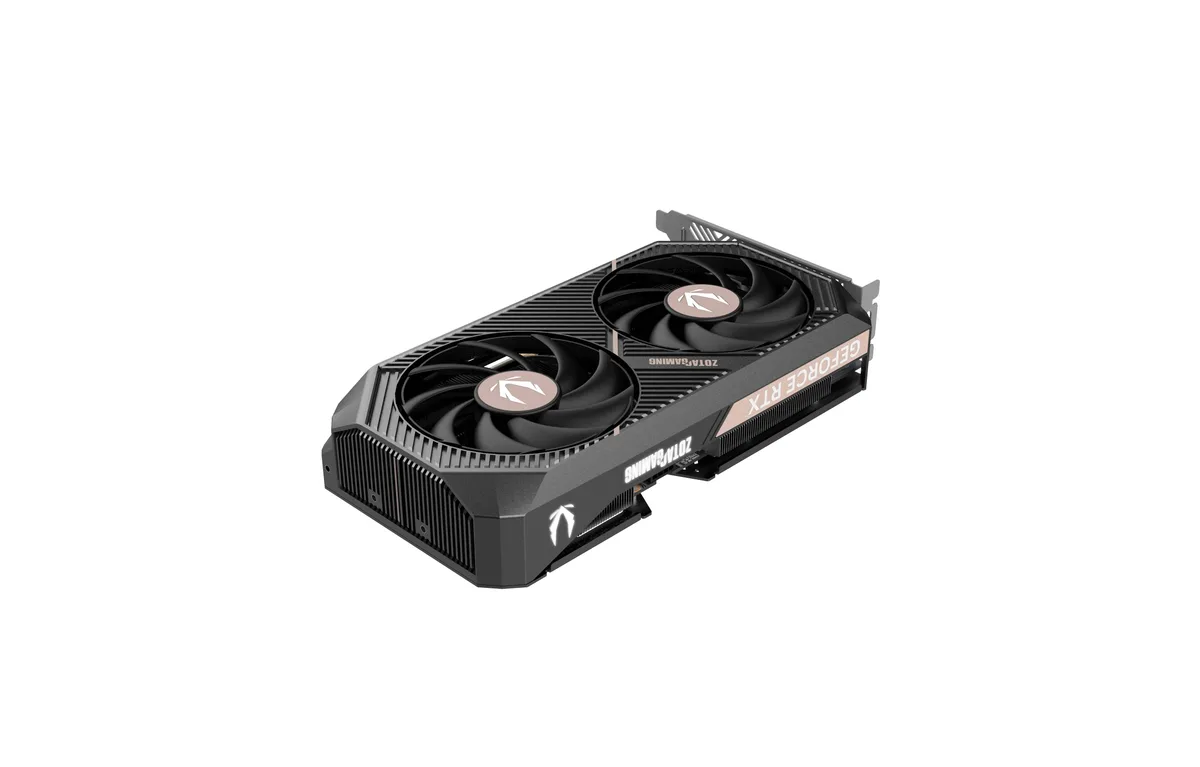

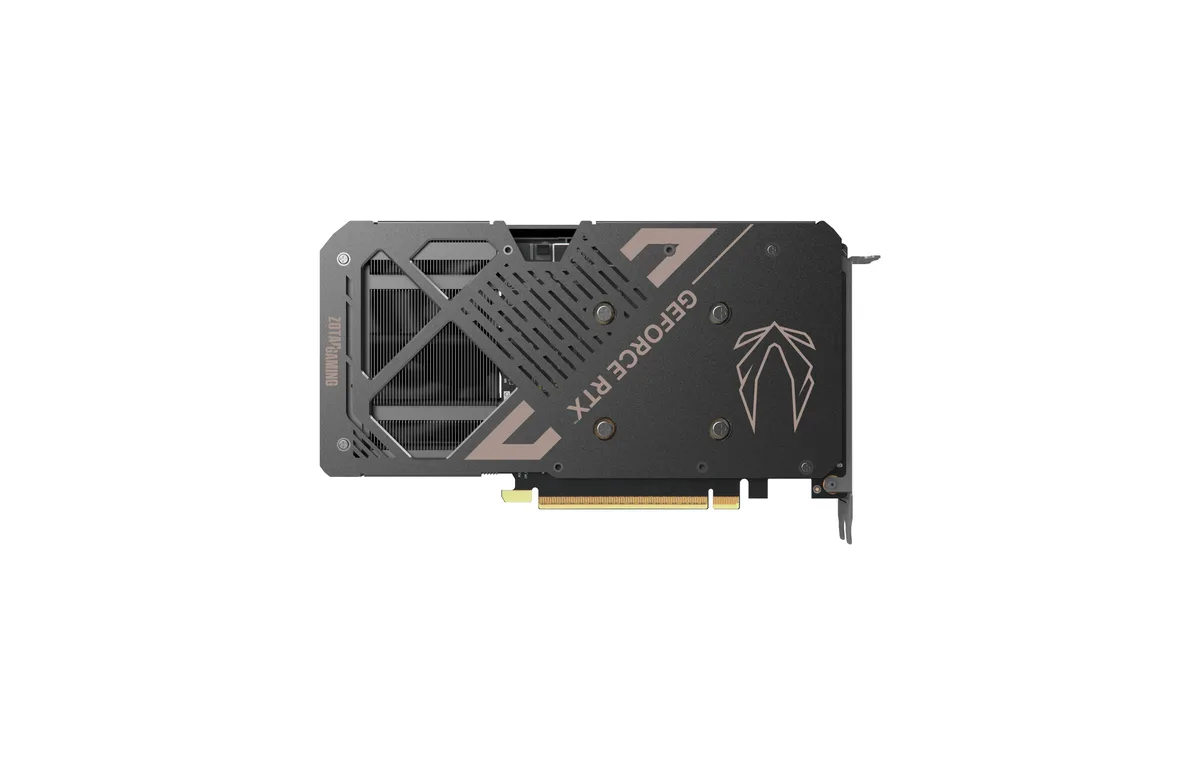

ZOTAC Twin Edge OC 8GB GDDR7
The ZOTAC Twin Edge OC GeForce RTX 5060 Ti 8GB is a graphics card built on the NVIDIA Blackwell architecture. It connects via a PCI Express 5.0 x8 interface and delivers a boost clock of 2602 MHz. The board carries 4608 CUDA cores and 8GB of GDDR7 memory running at 28 Gbps across a 128-Bit bus.
Suits 1080p and 1440p builds with 650W PSU
This card fits systems that can supply a single 8-pin power connector and a 650W power supply for its 180W thermal design. It supports four displays through one HDMI 2.1b port and three DisplayPort outputs. Builds needing SLI or CrossFireX multi-GPU scaling should look elsewhere because neither is supported.
8GB 128-Bit GDDR7 decides 4K texture headroom
The 8GB frame buffer on a 128-Bit bus sets the practical ceiling for high-resolution texture pools and heavy ray-tracing workloads. If your target titles or professional apps demand more video memory at 4K, a card with a wider bus or larger capacity will be the right part.
Highlights
- Boost clock of 2602 MHz lifts frame rates in demanding titles
- 4608 CUDA cores accelerate ray-tracing and AI workloads
- 8 GB GDDR7 memory at 28 Gbps feeds high-resolution textures
- PCI Express 5.0 x8 interface doubles host bandwidth for modern platforms
- HDMI 2.1b plus three DisplayPort outputs drive four displays simultaneously
Specifications
| Brand | ZOTAC |
|---|---|
| Series | Twin Edge OC |
| Model | ZOTAC GAMING GeForce RTX 5060 Ti 8GB Twin Edge OC |
| Part Number | ZT-B50610H-10A |
| Interface | PCI Express 5.0 x8 |
| Chipset Manufacturer | NVIDIA |
| GPU Series | NVIDIA GeForce RTX 50 Series |
| GPU | GeForce RTX 5060 Ti |
| Architecture | Blackwell |
| Boost Clock | 2602 MHz |
| CUDA Cores | 4608 |
| Effective Memory Clock | 28 Gbps |
| Memory Size | 8GB |
| Memory Interface | 128-Bit |
| Memory Type | GDDR7 |
| DirectX | DirectX 12 Ultimate |
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
| HDMI | 1 x HDMI 2.1b |
| DisplayPort | 3 x DisplayPort |
| Color | Gray |
| CrossFireX Support | No |
| SLI Support | No |
| Virtual Reality Ready | Yes |
| Cooler | Air Cooler |
| Operating Systems Supported | Windows 11 / Windows 10 64-bit (v1809 November 2018 or later) 👉Check gaming pc with Windows 11 Pro |
| Thermal Design Power | 180W |
| System Requirements | 1 x 8-pin power input |
| Recommended PSU Wattage | 650W |
| Power Connector | 8-Pin |
| HDCP Ready | Yes |
| Features | KEY FEATURES • NVIDIA Blackwell Architecture • 5th Generation Tensor cores • 4th Generation RT cores • NVIDIA DLSS 4 • Game Ready and NVIDIA Studio Drivers • NVIDIA® GeForce Experience™ • NVIDIA Broadcast, NVIDIA G-SYNC® • 8GB GDDR7 graphics memory • IceStorm 2.0 advanced cooling • FREEZE fan stop • White LED Lighting • Dual 90mm BladeLink Fans • Metal backplate • ZOTAC GAMING FireStorm Utility • Side Retention Mount for secure transport • SFF-Ready compact footprint |
| Form Factor | ATX |
| Max GPU Length | 221 mm |
| Low Profile Bracket Included | No |
| Card Dimensions (L x H) | Product: • Length: 220.5 mm (8.7 in) • Height: 120.25 mm (4.7 in) • Width: 2 slot (41.6 mm) (1.6 in) |
| Slot Width | 2 Slots |
| Package Contents | INSIDE THE BOX • ZOTAC GAMING GeForce RTX 5060 Ti 8GB AMP • User Manual |
| Shipping weight | 1.09 kg |
| Package size | 286 × 222 × 89 mm |
Questions about this item
Will the 128-bit memory interface and 8GB GDDR7 fit a standard dual-slot bracket in my case?
The Twin Edge OC uses a dual-slot air cooler that occupies two expansion slots and needs a PCI Express 5.0 x8 slot; check case clearance for a card of this length.
What is the correct way to seat the 8-pin power connector so the 180W TDP is met?
Insert the single 8-pin PCIe power cable firmly until the latch clicks; a loose connection is the most common cause of instability.
How often should I clean the Twin Edge OC fans to keep the 2602 MHz boost clock stable?
Use compressed air to clear dust from the heatsink fins and fan blades every three to six months depending on environment.
