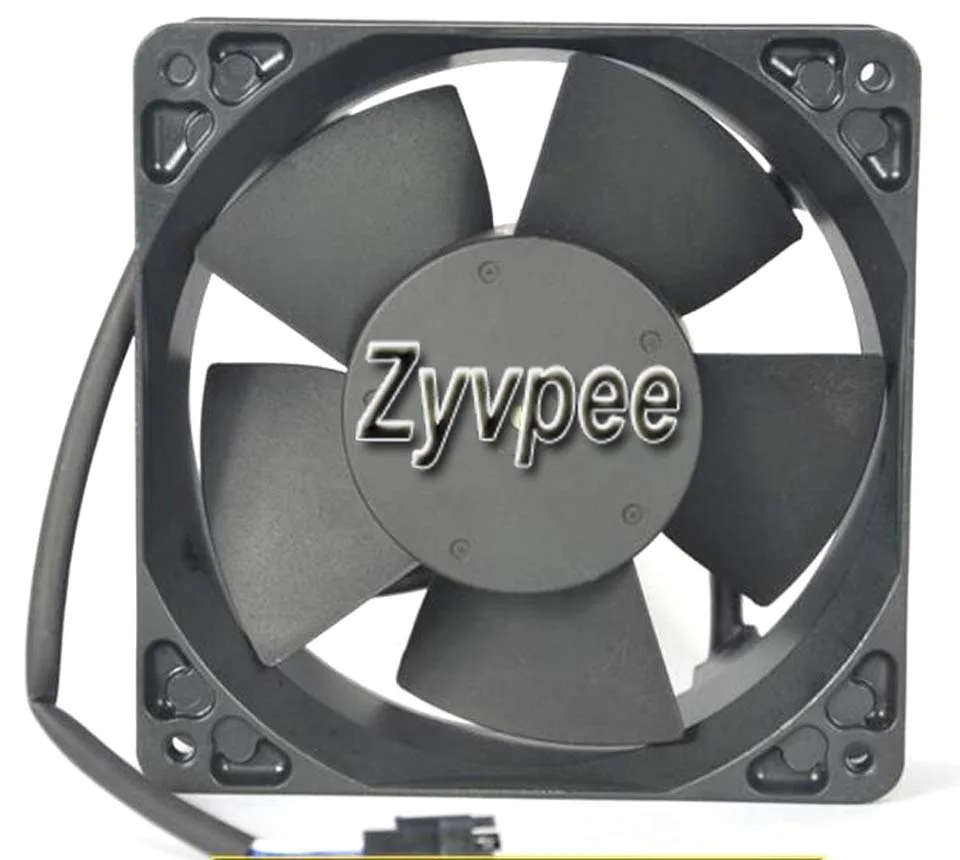

Black 120mm square case fan, 38mm thick, three-pin connector

Zyvpee

Zyvpee 4114N/2XH 120mm 38mm 24V 11W 3 Pin Case Fan

SKU CH-SNC7-ZNS0X

A 120 mm case fan with 38 mm thickness, dual ball bearings, and over 80 CFM airflow at 24 V

  • TypeCase Fan
  • CompatibilityCase
  • Bearing Type2 Ball
  • Air Flow>80 CFM
  • Power Connector3 Pin
  • ColorBlack
  • High airflow over 80 CFM cools cases effectively
  • Dual ball bearing ensures long operational life
  • 11 W at 24 V keeps power draw low
  • 38 mm thick frame fits standard 120 mm mounts
  • Three-pin connector enables simple motherboard control

120 mm 24 V case fan for server cooling

The Zyvpee 4114N/2XH is a 120 mm square fan built for 24 V DC systems. It moves more than 80 CFM through a 38 mm thick frame using a dual-ball bearing. The unit draws 458 mA at 11 W and terminates in a three-pin connector.

Check voltage header and mounting depth

Verify that your chassis or controller supplies a 24 V DC header; a standard 12 V motherboard header will not run this fan. Confirm the 38 mm thickness clears nearby cables, drive cages or radiator brackets. Ensure the three-pin plug matches the pin-out of your fan header or adapter.

Three-pin tachometer enables speed monitoring

The third wire carries a tachometer signal so the host can report real-time RPM. No PWM wire is present, so speed control depends on voltage regulation from the controller. Black non-LED blades keep the assembly visually neutral in rack or workstation builds.

Highlights

  • High airflow over 80 CFM cools cases effectively
  • Dual ball bearing ensures long operational life
  • 11 W at 24 V keeps power draw low
  • 38 mm thick frame fits standard 120 mm mounts
  • Three-pin connector enables simple motherboard control

Specifications

Series4114N/2XH
Model4114N/2XH
TypeCase Fan
CompatibilityCase
Bearing Type2 Ball
Air Flow>80 CFM
Power Connector3 Pin
ColorBlack
LEDNon-LED
FeaturesDC square Cooler
Dimensions120mm*120mm*38mm

Questions about this item

Does the Zyvpee 4114N/2XH include mounting screws or do I need to supply them?

The fan ships as the bare 120 mm unit with a 3-pin lead; mounting hardware is not included and must be sourced separately.

Is the 11 W, 24 V version the only option in the 4114N series?

The listing specifies the single 24 V, 458 mA, 11 W model with 2-ball bearings; no other voltage or power variants are offered.

What does the >80 CFM airflow figure deliver inside a typical chassis?

At 24 V the fan moves over 80 CFM through its 38 mm frame, providing strong directed cooling for inverter or component zones.
