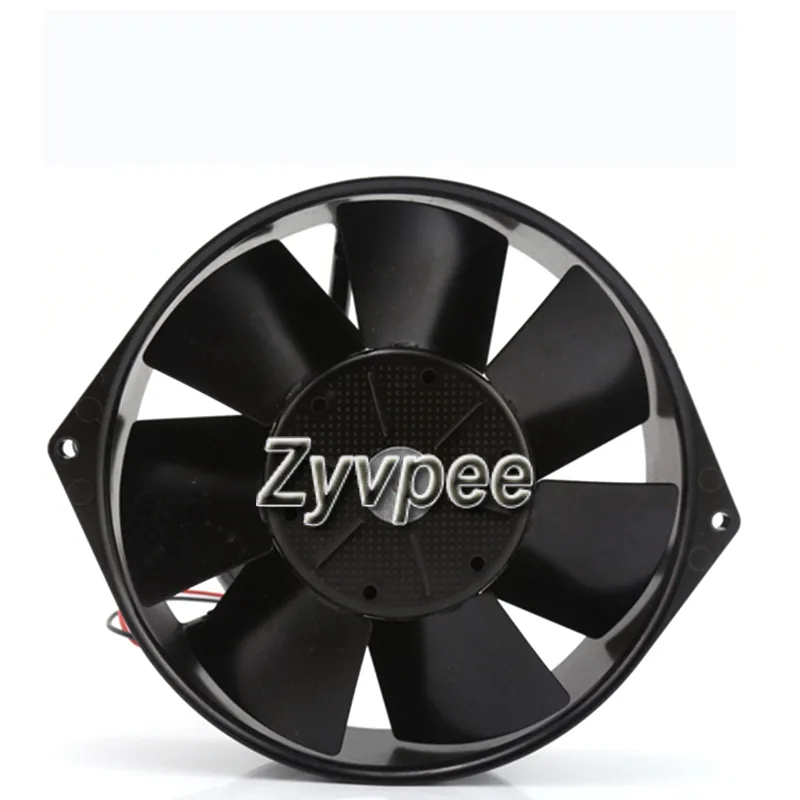

Black 170 mm all-metal axial case fan with 2-pin connector

Zyvpee

Zyvpee 7114NHR 170mm 24Vdc 19W 2 Pin Case Fan

SKU CH-X2BC-390HR

A 170 mm all-metal axial case fan with dual-ball bearings, 24 V 19 W power and a 2-pin connector running at 3350 RPM

  • TypeCase Fan
  • CompatibilityCase
  • Fan Size170mm
  • Bearing Type2 Ball
  • RPM3350
  • Power Connector2 Pin
  • 170 mm frame fits standard 170 mm mounts
  • 3350 RPM delivers strong airflow for cooling
  • Dual ball bearing extends operating life
  • 24 V 19 W draw suits industrial power rails
  • All-metal housing resists vibration and heat

170 mm 24 V DC axial fan for industrial cases

The Zyvpee 7114NHR is a 170 mm all-metal axial cooler designed for 24 V DC systems. It draws 19 W at a fixed 3350 RPM using a two-ball bearing. The two-pin connector suits power supplies without PWM control. Builders integrating ABB inverter gear or similar 24 V infrastructure will find it a direct fit.

Fixed-speed 24 V supply limits speed control

The fan runs at a constant 3350 RPM whenever 24 V is present. No PWM or voltage-regulation header is provided on the two-pin lead, so speed cannot be adjusted from a motherboard. Systems requiring variable airflow must implement external voltage control. The 19 W draw also demands a 24 V source rated for at least that continuous load.

Replaces 172 mm metal-frame fans in 24 V enclosures

This unit fits the 172 mm by 150 mm by 38 mm footprint common in legacy ABB inverter cabinets. It upgrades older sleeve-bearing models that have worn out or become noisy. The jump is worthwhile when the original fan fails or when a two-ball bearing is preferred for longer service life in continuous operation.

Highlights

  • 170 mm frame fits standard 170 mm mounts
  • 3350 RPM delivers strong airflow for cooling
  • Dual ball bearing extends operating life
  • 24 V 19 W draw suits industrial power rails
  • All-metal housing resists vibration and heat

Specifications

Series7114NHR
Model7114NHR
TypeCase Fan
CompatibilityCase
Fan Size170mm
Bearing Type2 Ball
RPM3350
Power Connector2 Pin
ColorBlack
LEDNon-LED
FeaturesDC axial fan
Dimensions172*150*38MM

Questions about this item

Should I pick the 170 mm 24 Vdc 19 W version or a different voltage?

This model runs on 24 Vdc and draws 19 W; choose it only if your system provides a 24 V rail.

What does the 3350 RPM rating mean for airflow in my chassis?

At 3350 RPM the 170 mm all-metal axial fan moves a high volume of air through the 38 mm thick frame for strong case cooling.

The 2-pin connector — does it limit speed control or monitoring?

A 2-pin connector supplies power only, so the fan runs at full 3350 RPM without PWM speed control or tachometer feedback.
