Black 92mm square case fan with 25mm depth and 2-pin connector

Zyvpee

Zyvpee DFS9025SM 92mm 12V 0.23A 2-pin case fan

SKU CH-C4J8-9ATSM

92 mm sleeve-bearing case fan delivering 25 to 30 CFM at 2500 to 2999 RPM on a 12 V 2-pin connector

  • TypeCase Fan
  • CompatibilityCPU Cooler
  • Bearing TypeSleeve bearing
  • RPM2500-2999 RPM
  • Air Flow25-30 CFM
  • Power Connector2 Pin
  • 92 mm square frame fits standard mounting points
  • 12 V DC power draws only 0.23 A
  • 25–30 CFM airflow at 2500–2999 RPM
  • Sleeve bearing runs quietly in low-load builds
  • Non-LED black design keeps the interior clean

92 mm sleeve-bearing case fan

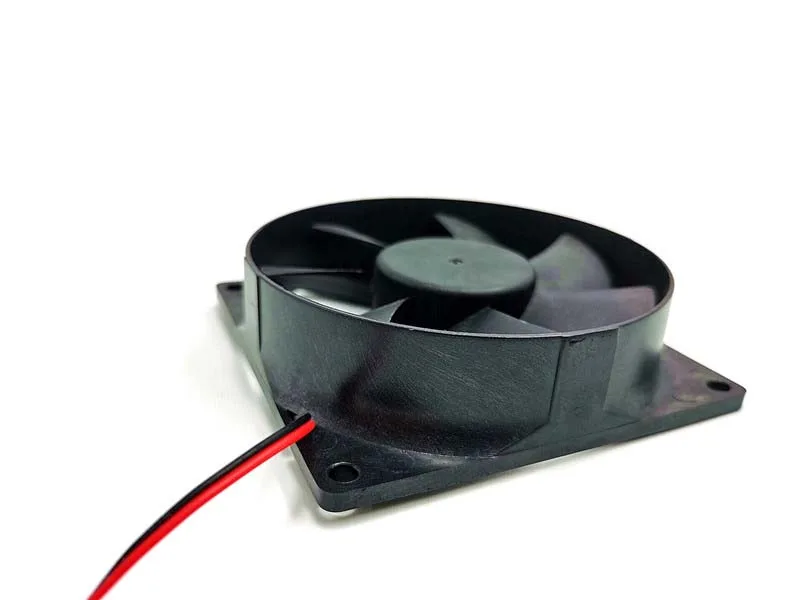

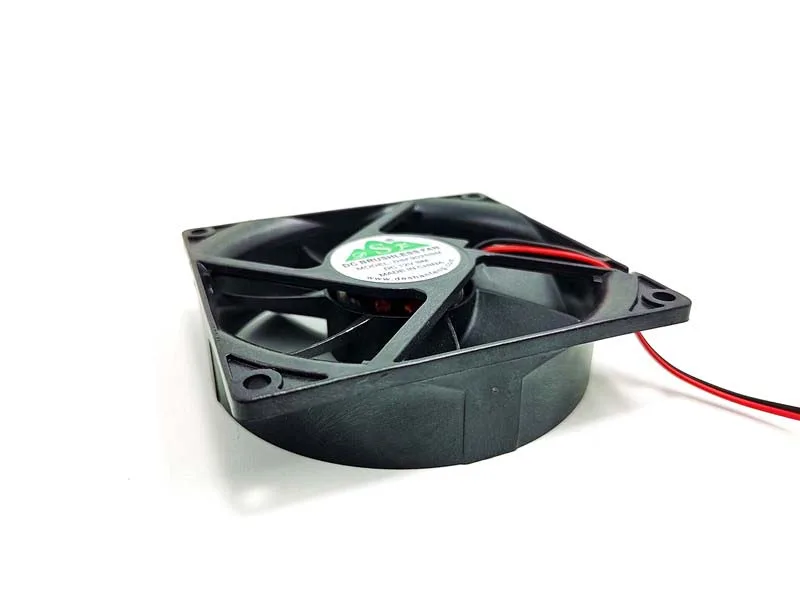

The Zyvpee DFS9025SM is a 92 mm square frame fan designed for CPU cooler mounting or general chassis airflow. It runs on 12 V DC at 0.23 A and spins between 2500 and 2999 RPM to deliver 25 to 30 CFM. The black non-LED housing suits builds that prefer a subtle look.

Two-pin power and sleeve bearing notes

Connection uses a standard two-pin header supplying constant voltage; speed control depends on the motherboard or controller varying that voltage. Sleeve bearings run quietly at first but can develop rattle or reduced lifespan if mounted horizontally with the shaft under side load. Ensure the fan screws sit flush to avoid vibration transfer to the frame.

Check clearance and header type before ordering

Verify the mounting holes match a 92 mm pattern and that 25 mm thickness fits between your cooler fins and side panel. Confirm the board or fan hub provides a two-pin DC header; a four-pin PWM header will work but cannot regulate speed through the missing sense wire. No adapter or extra wiring is included.

Highlights

  • 92 mm square frame fits standard mounting points
  • 12 V DC power draws only 0.23 A
  • 25–30 CFM airflow at 2500–2999 RPM
  • Sleeve bearing runs quietly in low-load builds
  • Non-LED black design keeps the interior clean

Specifications

SeriesDFS9025SM
ModelDFS9025SM
TypeCase Fan
CompatibilityCPU Cooler
Bearing TypeSleeve bearing
RPM2500-2999 RPM
Air Flow25-30 CFM
Power Connector2 Pin
ColorBlack
LEDNon-LED
FeaturesDC square Cooler
Dimensions92mm*92mm*25mm

Questions about this item

How can I confirm the DFS9025SM is spinning at the correct speed after installation?

Check the RPM in BIOS or monitoring software; it should read between 2500 and 2999 RPM when the 12 V line is active.

What comes with the fan and what extra parts are needed to mount it?

The box contains the 92 mm square frame fan with two-wire 2-pin lead; you must supply mounting screws and a 12 V header or adapter.

Which version of the DFS9025SM should I pick for a standard 92 mm case opening?

Choose the 92 mm × 25 mm model rated 12 V 0.23 A; it delivers 25–30 CFM and fits the common 92 mm mounting pattern.
