Black 70×25 mm 3-pin case fan with maglev bearing

Zyvpee

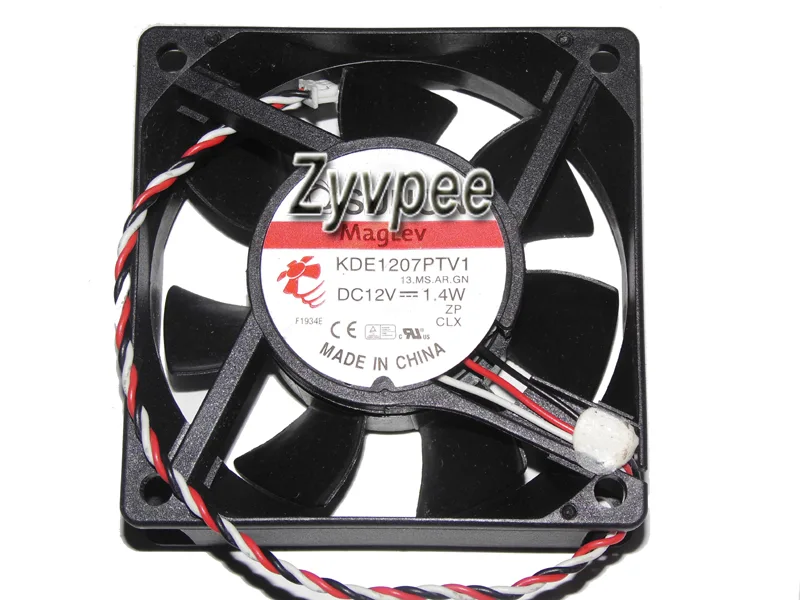

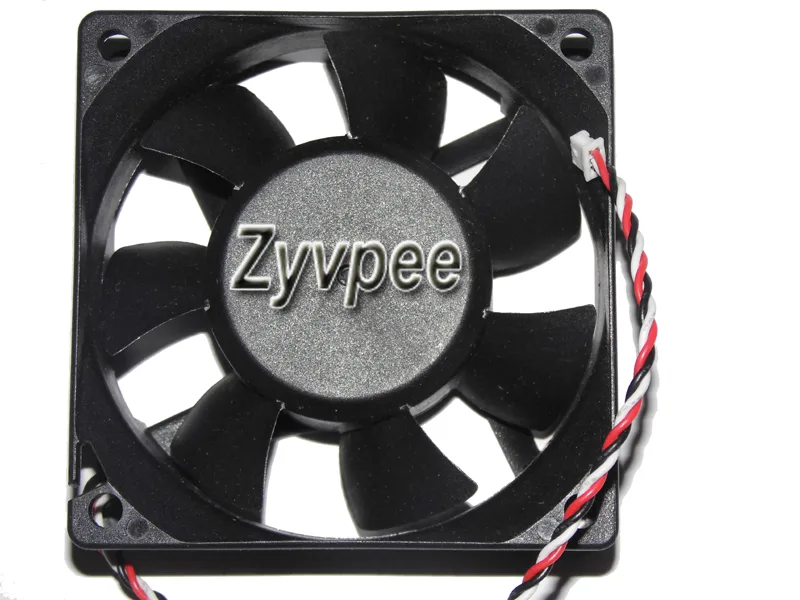

Zyvpee KDE1207PTV1 70×25 mm 3-pin 12 V 1.4 W case fan

SKU CH-AGPZ-TV7D3

A 70×25 mm Maglev case fan running below 1600 RPM with a 3-pin 12 V 1.4 W connector for CPU cooler mounting

  • TypeCPU Cooler Fan
  • CompatibilityCPU Cooler
  • Bearing TypeMaglev
  • RPM<1600 RPM
  • Power Connector3 Pin
  • ColorBlack
  • Maglev bearing reduces friction for quieter operation
  • 12 V 1.4 W power draw keeps energy use low
  • 70 mm × 25 mm frame fits standard 7025 mounts
  • Three-pin connector enables direct motherboard control
  • Sub-1600 RPM speed balances airflow and noise

Compact 70 mm maglev fan for CPU coolers

The Zyvpee KDE1207PTV1 is a 70 by 25 millimetre case fan built for CPU cooler mounting. It runs on 12 volts and draws 1.4 watts through a three-pin power connector. The maglev bearing keeps friction low while the black non-LED frame suits understated builds.

Three-pin voltage control limits speed precision

The 3-pin connector adjusts fan speed by varying voltage rather than a PWM signal. This means the fan cannot hold a target RPM as tightly as a four-pin design and may not spin down to zero. Builders who need fine-grained curves or semi-passive operation should note this constraint.

1600 RPM ceiling defines thermal headroom

Maximum rotational speed is rated below 1600 RPM, setting the upper bound for airflow and static pressure. If your cooler demands higher RPM to meet its TDP target, this fan will not deliver enough cooling capacity.

Highlights

  • Maglev bearing reduces friction for quieter operation
  • 12 V 1.4 W power draw keeps energy use low
  • 70 mm × 25 mm frame fits standard 7025 mounts
  • Three-pin connector enables direct motherboard control
  • Sub-1600 RPM speed balances airflow and noise

Specifications

BrandZyvpee
SeriesKDE1207PTV1
ModelKDE1207PTV1
TypeCPU Cooler Fan
CompatibilityCPU Cooler
Bearing TypeMaglev
RPM<1600 RPM
Power Connector3 Pin
ColorBlack
LEDNon-LED
FeaturesCPU Cooling Fan
Dimensions70*20MM

Questions about this item

Which Zyvpee KDE1207PTV1 version should I choose for my CPU cooler?

This model is a single 70 mm × 25 mm Maglev fan rated at 12 V, 1.4 W with a 3-pin connector; there are no alternative capacities or versions listed, so this exact specification is the only one to select.

What does the <1600 RPM figure mean once the fan is installed?

The fan will spin at up to 1600 revolutions per minute, delivering airflow for CPU cooling while the Maglev bearing keeps noise low at that speed.

What does the 3-pin connector cap in practice?

The 3-pin DC connector allows the motherboard to monitor speed via the tach wire and vary voltage for basic speed control, but it does not support PWM duty-cycle regulation.
