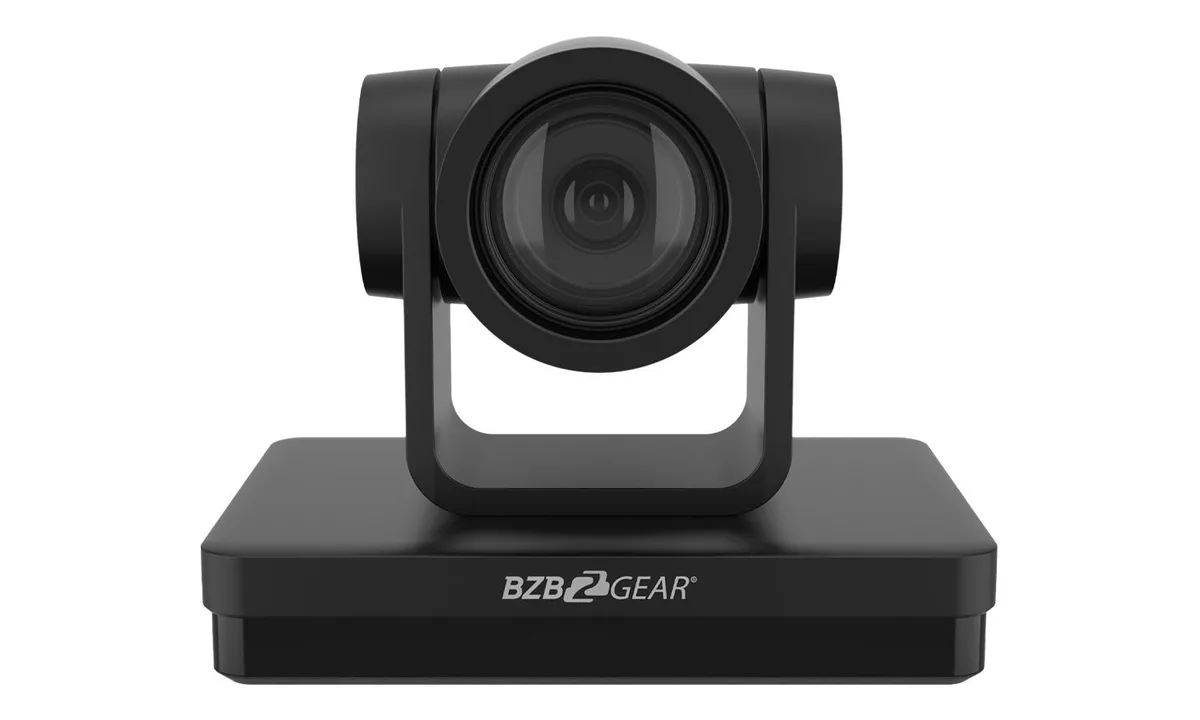

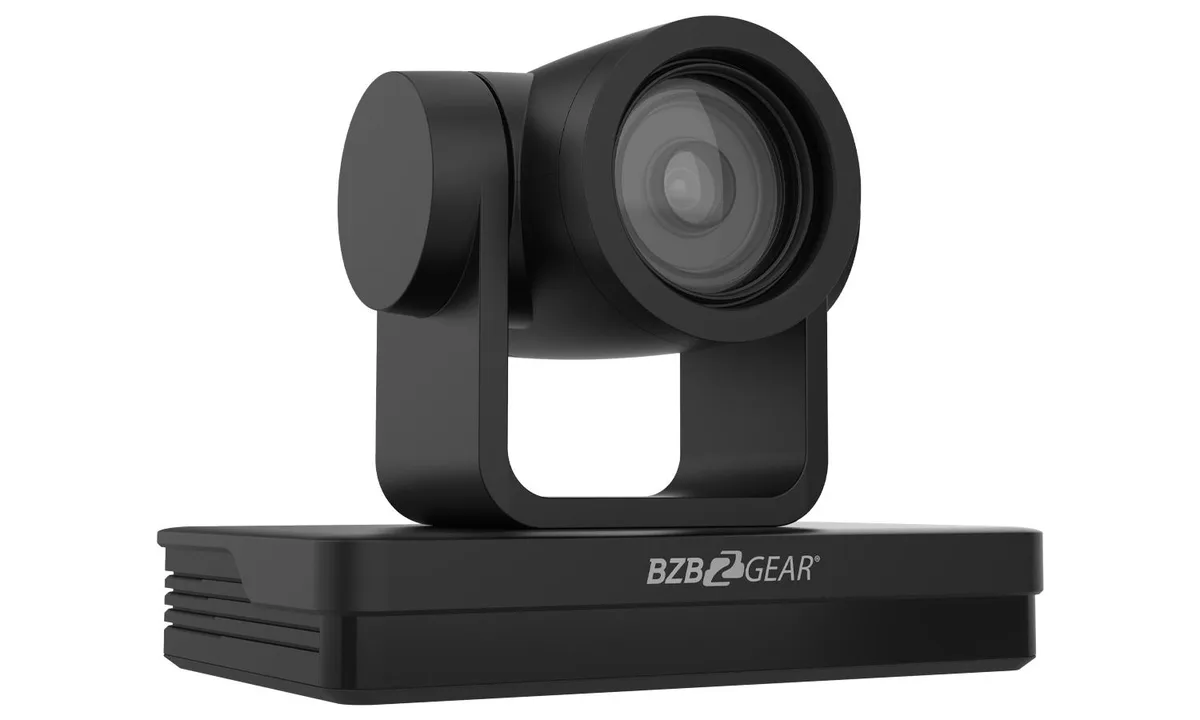

Black PTZ network camera with 12x optical zoom, rectangular body, matte finish, front lens and pan-tilt base

BZBGEAR

BZBGEAR BG-UPTZ-12XHSU-B 12x PTZ Network Camera Black

SKU CH-RSN3-MMQMC

12× optical zoom PTZ camera streams 1080p60 over HDMI, 3G‑SDI, USB 3.0 and IP simultaneously with PoE power

  • Bundled Camera Number1 Camera
  • Camera Type2 Megapixel
  • Network CameraYes
  • TypePTZ HDMI/SDI/USB 3.0 RS232/485 Live Streaming Camera
  • Connection TypeUSB 3.0, HDMI, 3G-SDI, LAN(POE), RS232/485, LINE IN
  • ColorBlack

Option 12X

  • 12× optical zoom captures distant subjects clearly
  • Simultaneous HDMI, 3G-SDI, USB 3.0 and IP streaming fits any workflow
  • PoE delivers power and data over one cable
  • 340° pan and -30° to +90° tilt covers wide areas
  • ONVIF, RTSP, RTMP and GB/T28181 support integrates with major platforms

Product identity

The BZBGEAR BG-UPTZ-12XHSU-B is a 2-megapixel PTZ network camera built for live streaming and professional video production. It targets integrators and operators who need simultaneous HDMI, 3G-SDI, USB 3.0 and IP outputs from a single unit. The camera supports ONVIF, RTSP, RTMP and GB/T28181 protocols for broad software compatibility. PoE and 12 V DC power options simplify installation in fixed venues.

Capacity and headroom

A 1/2.8" progressive CMOS sensor delivers 1080p at up to 60 fps with 12x optical zoom and 10x digital zoom. Pan covers 340° at up to 80°/s while tilt ranges from -30° to +90° at up to 60°/s. H.264 and H.265 compression keep bandwidth manageable for streaming to platforms such as YouTube or Twitch. The 255 preset positions speed up repeated camera moves during productions.

Interface limits

USB 3.0, HDMI and 3G-SDI outputs operate simultaneously alongside the IP stream, but each follows its own bandwidth and cable-length constraints. RS-232 and RS-485 control use VISCA or Pelco-D/P protocols over daisy-chained cabling. The 3.5 mm line input embeds external audio into the video feed. ONVIF Profile S compliance ensures basic interoperability, yet advanced features may require vendor-specific implementations.

Najważniejsze cechy

  • 12× optical zoom captures distant subjects clearly
  • Simultaneous HDMI, 3G-SDI, USB 3.0 and IP streaming fits any workflow
  • PoE delivers power and data over one cable
  • 340° pan and -30° to +90° tilt covers wide areas
  • ONVIF, RTSP, RTMP and GB/T28181 support integrates with major platforms

Specyfikacja

BrandBZBGEAR
ModelBG-UPTZ-12XHSU-B
Bundled Camera Number1 Camera
Camera Type2 Megapixel
Network CameraYes
TypePTZ HDMI/SDI/USB 3.0 RS232/485 Live Streaming Camera
Connection TypeUSB 3.0, HDMI, 3G-SDI, LAN(POE), RS232/485, LINE IN
ColorBlack
Networking ProtocolRTSP, RTMP, ONVIF, GB/T28181
ONVIFYes
Pan/Tilt340°(max. speed: 80°/s) / -30° to +90° (max. speed: 60°/s)
Sensor & Detector1/2.8" Progressive CMOS
Pixels2 MP
HD Resolution1080p60/50, 1080i60/50, 1080p30/25,720p60/50
Frame Rateup to 60fps
Optical Zoom12x Optical Zoom
AudioYes
Power over EthernetYes
Power12V DC
Dimension(L)178× (W)115.5 ×(H)150.9mm
Weight1.38KG

Inne wersje tego modelu

Jeszcze 5 w tej samej serii

Ta sama rodzina, inna pamięć, inne chłodzenie lub taktowanie — proszę porównać przed decyzją.

Pytania dotyczące tego produktu

Will the BG-UPTZ-12XHSU-B work with my existing RS-232 and RS-485 control system?

Yes, the camera supports cascadable RS-232 and RS-485 control using VISCA and Pelco-D/P protocols, allowing it to join your current serial control chain alongside older PTZ units.

How can I verify the camera is streaming correctly after installation?

Check for a stable H.264 or H.265 stream at up to 1080p60 via RTSP, RTMP, or ONVIF in your video production software, and confirm the onboard resolution dial matches your output setting.

What comes in the box and what must I buy separately?

The box includes one BG-UPTZ-12XHSU-B camera and an IR remote. You will need to provide a 12V DC power supply or a PoE-enabled network switch, plus any HDMI, 3G-SDI, or USB 3.0 cables for your specific outputs.
