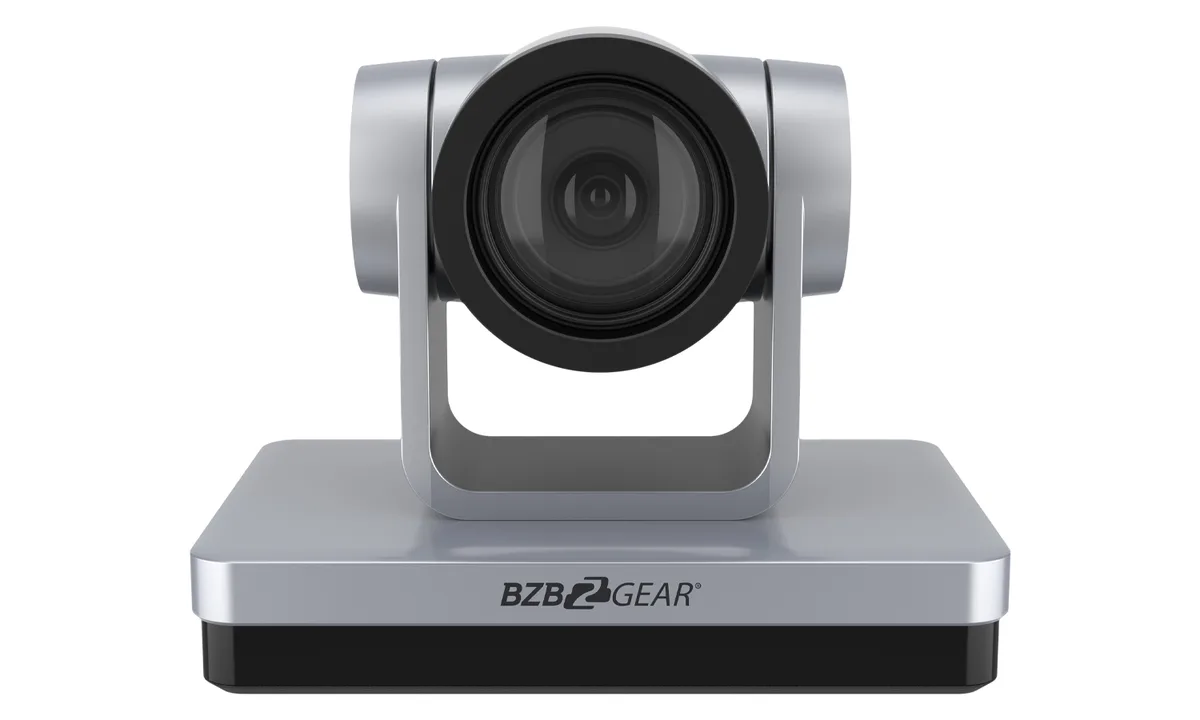

Silver PTZ camera with 12x optical zoom, compact rectangular body

BZBGEAR

BZBGEAR BG-UPTZ-12XHSU-S Silver 12x PTZ network camera

SKU CH-11ZY-WZFNV

PTZ network camera with 12x optical zoom, 1080p60 capture and simultaneous HDMI, 3G-SDI, USB 3.0 and IP streaming outputs

  • Bundled Camera Number1 Camera
  • Camera Type2 Megapixel
  • Network CameraYes
  • TypePTZ HDMI/SDI/USB 3.0 RS232/485 Live Streaming Camera
  • Connection TypeUSB 3.0, HDMI, 3G-SDI, LAN(POE), RS232/485, LINE IN
  • ColorSilver

Option 12X

  • 12× optical zoom captures distant detail clearly
  • Simultaneous HDMI, 3G-SDI, USB 3.0 and IP outputs fit any workflow
  • ONVIF, RTSP, RTMP and GB/T28181 protocols integrate with most platforms
  • PoE delivers power over a single Ethernet cable
  • 340° pan and −30° to +90° tilt cover wide areas fast

Purpose & Audience

The BZBGEAR BG-UPTZ-12XHSU-S is a 2-megapixel PTZ network camera built for live streaming and professional video production. It suits houses of worship, universities, hospitals and performing-arts venues that need simultaneous multi-output delivery. Installers who require IP, HDMI, 3G-SDI and USB 3.0 feeds from a single unit will find it practical.

Build & Connectivity

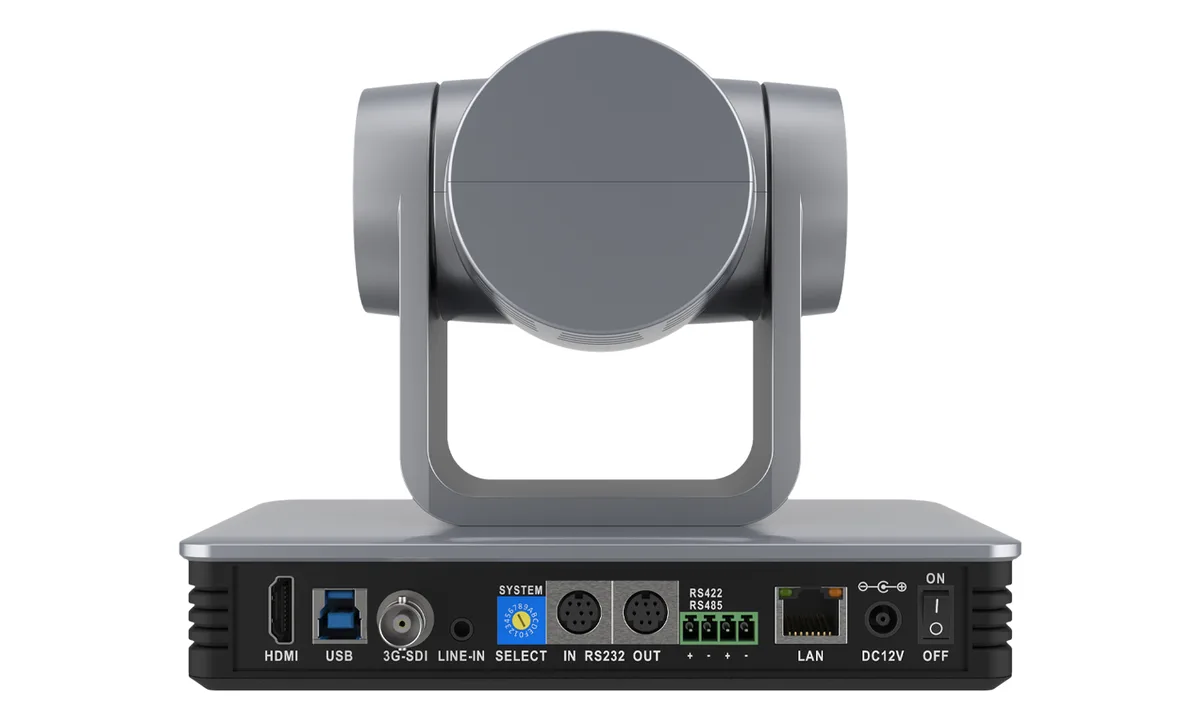

A silver chassis houses a 1/2.8" progressive CMOS sensor with 12x optical zoom and 10x digital zoom. Pan covers 340° at up to 80°/s; tilt ranges from -30° to +90° at up to 60°/s. Connectors include HDMI, 3G-SDI, USB 3.0, LAN with PoE, RS-232/485 and a 3.5 mm line input for embedding external audio. An onboard dial locks the output resolution to prevent mismatches.

Protocol Limits

Video compression uses H.264 and H.265 with frame rates up to 60 fps at 1080p. Streaming protocols are RTSP, RTMP, ONVIF and GB/T28181, enabling direct delivery to platforms such as YouTube, Twitch and Facebook. Control is possible via IR remote, IP VISCA, ONVIF and cascadable RS-232/485 with 255 preset positions. PoE simplifies cabling but requires a compatible switch or injector.

Najważniejsze cechy

  • 12× optical zoom captures distant detail clearly
  • Simultaneous HDMI, 3G-SDI, USB 3.0 and IP outputs fit any workflow
  • ONVIF, RTSP, RTMP and GB/T28181 protocols integrate with most platforms
  • PoE delivers power over a single Ethernet cable
  • 340° pan and −30° to +90° tilt cover wide areas fast

Specyfikacja

BrandBZBGEAR
ModelBG-UPTZ-12XHSU-S
Bundled Camera Number1 Camera
Camera Type2 Megapixel
Network CameraYes
TypePTZ HDMI/SDI/USB 3.0 RS232/485 Live Streaming Camera
Connection TypeUSB 3.0, HDMI, 3G-SDI, LAN(POE), RS232/485, LINE IN
ColorSilver
Networking ProtocolRTSP, RTMP, ONVIF, GB/T28181
ONVIFYes
Pan/Tilt340°(max. speed: 80°/s) / -30° to +90° (max. speed: 60°/s)
Sensor & Detector1/2.8" Progressive CMOS
Pixels2 MP
HD Resolution1080p60/50, 1080i60/50, 1080p30/25,720p60/50
Frame Rateup to 60fps
Optical Zoom12x Optical Zoom
AudioYes
Power over EthernetYes
Power12V DC
Dimension(L)178× (W)115.5 ×(H)150.9mm
Weight1.38KG

Inne wersje tego modelu

Jeszcze 5 w tej samej serii

Ta sama rodzina, inna pamięć, inne chłodzenie lub taktowanie — proszę porównać przed decyzją.

Pytania dotyczące tego produktu

What does the USB 3.0 interface cap in practical use?

The USB 3.0 output delivers up to 1080p60 video simultaneously with HDMI, 3G-SDI and IP streaming.

What physical space does the camera need for mounting?

The unit measures 178 mm long, 115.5 mm wide and 150.9 mm high and pans 340° with tilt from -30° to +90°.

How is the camera powered and configured for network streaming, and what step is often missed?

Connect a PoE cable for power and data, then set the streaming protocol to RTSP, RTMP or ONVIF; the onboard resolution dial must be locked to avoid mismatches.
