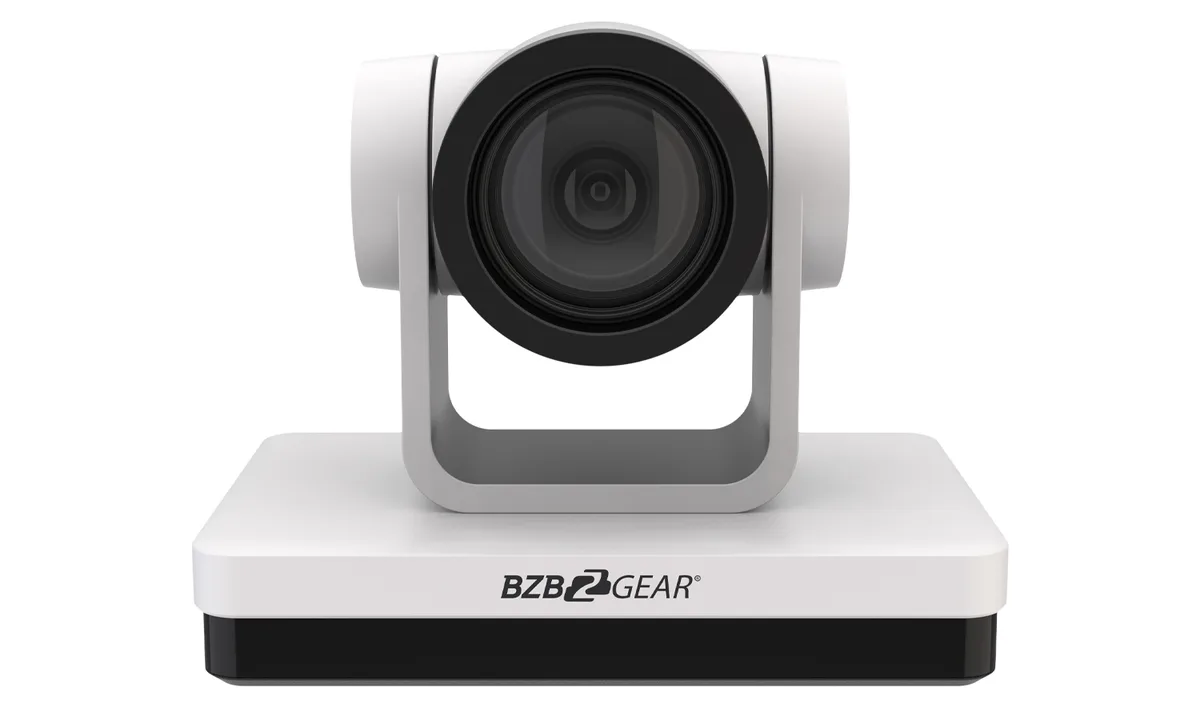

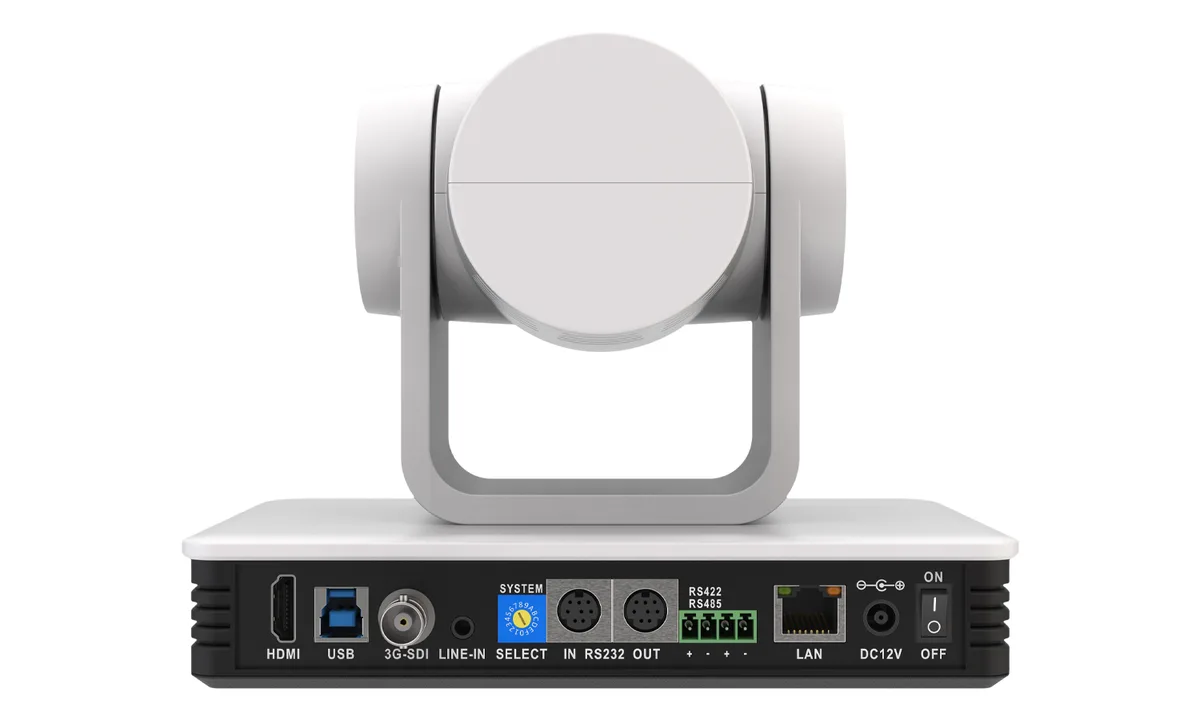

White PTZ camera body with 20x zoom lens, HDMI SDI USB LAN ports

BZBGEAR

BZBGEAR BG-UPTZ-20XHSU-W 20X PTZ network camera White

SKU CH-2D5N-T9W5R

A 20x optical zoom PTZ camera with simultaneous HDMI, 3G-SDI, USB 3.0 and IP streaming outputs, PoE power and ONVIF support

  • Bundled Camera Number1 Camera
  • Camera Type2 Megapixel
  • Network CameraYes
  • TypePTZ HDMI/SDI/USB 3.0 RS232/485 Live Streaming Camera
  • Connection TypeUSB 3.0, HDMI, 3G-SDI, LAN(POE), RS232/485, LINE IN
  • ColorWhite

Option 20X

  • 20× optical zoom captures distant detail clearly
  • Simultaneous HDMI, 3G-SDI, USB 3.0 and IP streaming fits any workflow
  • PoE delivers power and data over one cable
  • Pan 340° and tilt −30° to +90° covers wide areas
  • ONVIF, RTSP, RTMP and GB/T28181 support integrates with common platforms

Purpose & audience

The BZBGEAR BG-UPTZ-20XHSU-W is a 20x optical zoom PTZ network camera designed for live production in houses of worship, education, healthcare and performing arts venues. It delivers simultaneous 1080p60 video over HDMI, 3G-SDI, USB 3.0 and IP streams. ONVIF, RTSP, RTMP and GB/T28181 protocols ensure broad software and platform compatibility.

Thermals, noise & power

The camera operates on 12V DC or Power over Ethernet, drawing power through a single LAN cable for simplified cabling. With no moving parts active during static shots, acoustics remain negligible in quiet rooms. Pan and tilt motors move at up to 80°/s and 60°/s respectively, producing only faint mechanical sound during preset recalls.

Sustained-load behaviour

During extended streaming sessions the H.264/H.265 encoder maintains stable bit-rates at 1080p60 without thermal throttling. The 1/2.8" progressive CMOS sensor and auto-focus algorithms keep focus accurate across the full 340° pan and -30° to +90° tilt range. 255 preset positions recall instantly for multi-camera workflows.

Najważniejsze cechy

  • 20× optical zoom captures distant detail clearly
  • Simultaneous HDMI, 3G-SDI, USB 3.0 and IP streaming fits any workflow
  • PoE delivers power and data over one cable
  • Pan 340° and tilt −30° to +90° covers wide areas
  • ONVIF, RTSP, RTMP and GB/T28181 support integrates with common platforms

Specyfikacja

BrandBZBGEAR
ModelBG-UPTZ-20XHSU-W
Bundled Camera Number1 Camera
Camera Type2 Megapixel
Network CameraYes
TypePTZ HDMI/SDI/USB 3.0 RS232/485 Live Streaming Camera
Connection TypeUSB 3.0, HDMI, 3G-SDI, LAN(POE), RS232/485, LINE IN
ColorWhite
Networking ProtocolRTSP, RTMP, ONVIF, GB/T28181
ONVIFYes
Pan/Tilt340°(max. speed: 80°/s) / -30° to +90° (max. speed: 60°/s)
Sensor & Detector1/2.8" Progressive CMOS
Pixels2 MP
HD Resolution1080p60/50, 1080i60/50, 1080p30/25,720p60/50
Frame Rateup to 60fps
Optical Zoom20x Optical Zoom
AudioYes
Power over EthernetYes
Power12V DC
Dimension(L)178× (W)115.5 ×(H)150.9mm
Weight1.38KG

Inne wersje tego modelu

Jeszcze 5 w tej samej serii

Ta sama rodzina, inna pamięć, inne chłodzenie lub taktowanie — proszę porównać przed decyzją.

Pytania dotyczące tego produktu

How do I mount and power the BG-UPTZ-20XHSU-W, and what step do installers often miss?

Mount the camera using its 178×115.5×150.9 mm footprint, run a single Ethernet cable for PoE power and IP streaming, then configure the ONVIF or RTSP stream in your NVR; the step often missed is locking the output resolution with the onboard dial before going live.

What maintenance or replacement will the camera need over time?

The 1/2.8" progressive CMOS sensor and 20× optical zoom lens are sealed with no user-serviceable parts; only periodic lens cleaning with a microfibre cloth and firmware updates via the IP interface are required.

What limit appears first during a long 1080p60 stream?

Sustained 1080p60 H.264/H.265 encoding over PoE will hit the Ethernet bandwidth ceiling before the sensor or pan/tilt motors (340° pan, -30° to +90° tilt) reach any thermal or mechanical limit.
