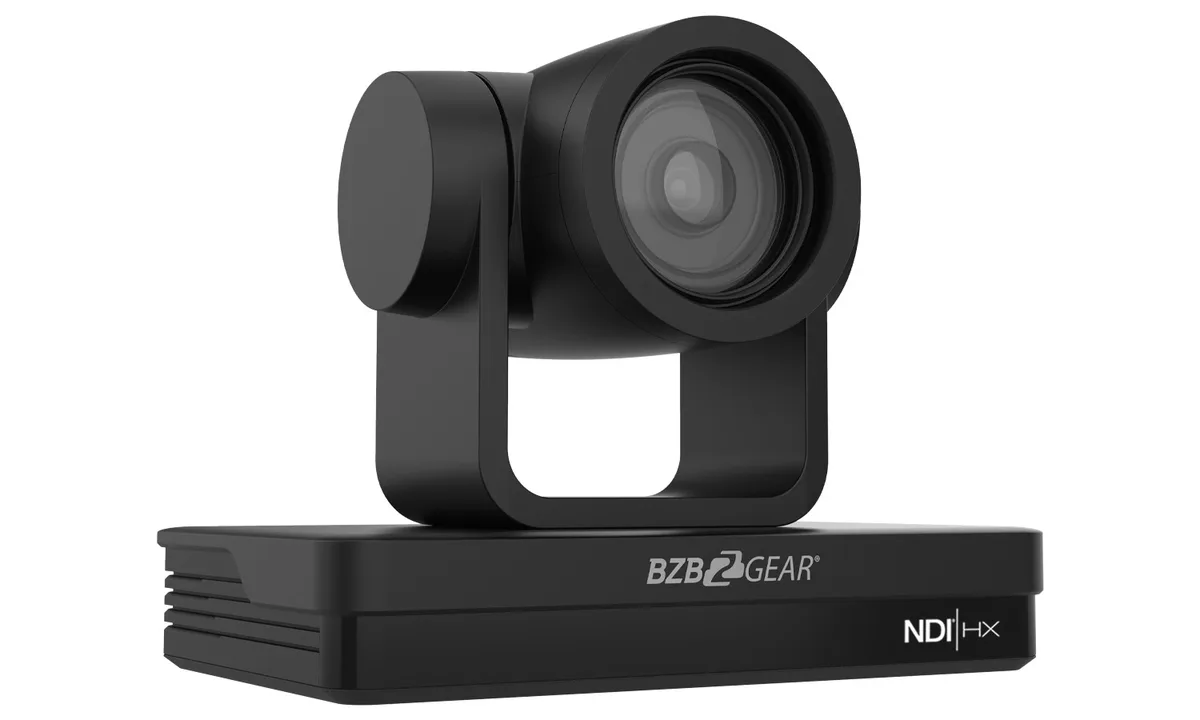

Black PTZ camera body, compact rectangular base with rounded front lens housing

BZBGEAR

BZBGEAR BG-UPTZ-ND20X-B 1080p PTZ network camera 20x zoom Black

SKU CH-ERR6-VZAJF

A 1080p PTZ network camera with 20x optical zoom, NDI 4.0, PoE and simultaneous HDMI, 3G-SDI, USB 3.0 and IP streaming outputs

  • Bundled Camera Number1 Camera
  • Camera Type2 Megapixel
  • Network CameraPTZ NDI/HDMI/SDI/USB 3.0 RS232/485 Live Streaming Camera
  • TypePTZ Camera
  • Connection TypeUSB 3.0, HDMI, 3G-SDI, LAN(POE), RS232/485, LINE IN
  • ColorBlack

Option 20X

  • 20× optical zoom captures distant detail clearly
  • Simultaneous HDMI, 3G-SDI, USB 3.0 and IP streaming simplifies multi-platform production
  • NDI 4.0 and PoE reduce cabling to a single Ethernet line
  • 340° pan at up to 80°/s with 255 presets covers wide areas smoothly
  • H.264/H.265 encoding plus RTMP(S) enables direct live streaming to YouTube and Facebook

PTZ Camera for Live Streaming and Production

The BZBGEAR BG-UPTZ-ND20X-B is a 2 megapixel PTZ network camera designed for live streaming, broadcast and video production. It delivers 1080p video at up to 60 frames per second with a 20x optical zoom lens. The unit suits operators who need simultaneous IP, HDMI, 3G-SDI and USB 3.0 outputs from a single camera.

Multi-Output Connectivity Changes Workflow

HDMI, 3G-SDI, USB 3.0 and IP streaming operate at the same time, letting the camera feed a switcher, a recorder, a soft codec and an NDI network without extra converters. PoE supplies power over the LAN cable, removing a separate 12V DC supply when a compatible switch is used. NDI 4.0 and RTMP(S) support direct streaming to platforms such as YouTube and Facebook from the camera itself.

Installation Notes and Common Pitfalls

The camera mounts in a standard orientation and connects via LAN, HDMI, SDI or USB 3.0; RS232/485 ports allow cascaded serial control using VISCA or Pelco protocols. Pan and tilt cover 340° at up to 80° per second with 255 preset positions. Buyers who need 4K resolution, greater than 20x optical reach or wireless operation should look elsewhere.

Najważniejsze cechy

  • 20× optical zoom captures distant detail clearly
  • Simultaneous HDMI, 3G-SDI, USB 3.0 and IP streaming simplifies multi-platform production
  • NDI 4.0 and PoE reduce cabling to a single Ethernet line
  • 340° pan at up to 80°/s with 255 presets covers wide areas smoothly
  • H.264/H.265 encoding plus RTMP(S) enables direct live streaming to YouTube and Facebook

Specyfikacja

BrandBZBGEAR
ModelBG-UPTZ-ND20X-B
Bundled Camera Number1 Camera
Camera Type2 Megapixel
Network CameraPTZ NDI/HDMI/SDI/USB 3.0 RS232/485 Live Streaming Camera
TypePTZ Camera
Connection TypeUSB 3.0, HDMI, 3G-SDI, LAN(POE), RS232/485, LINE IN
ColorBlack
Networking ProtocolRTSP, RTMP, ONVIF, GB/T28181
ONVIFYes
Pan/Tilt340° (max. speed: 80°/s)
Sensor & Detector1/2.8" Progressive CMOS
Pixels2 MP
HD Resolution1080p60/50, 1080i60/50, 1080p30/25,720p60/50
Lens Type54.7°(W)~3.3°(T)
Optical Zoom20x Optical Zoom
Digital Zoom10X
Shutter Control1/1~1/10,000s
Power12V DC
Dimension(L)178 × (W)115.5 × (H)150.9mm
Weight1.38KG

Inne wersje tego modelu

Jeszcze 5 w tej samej serii

Ta sama rodzina, inna pamięć, inne chłodzenie lub taktowanie — proszę porównać przed decyzją.

Pytania dotyczące tego produktu

Does the 1/2.8" CMOS sensor or 20x optical lens require periodic cleaning or replacement?

The sealed optical path has no user-serviceable parts; only the front glass may need occasional dusting with a lens cloth.

What limits continuous operation first — the 340° pan mechanism at 80°/s or the 12V DC PoE supply?

The 12V DC PoE input sets the practical limit; the pan/tilt motors are rated for sustained 340° movement at up to 80°/s.

How much fan noise and heat does the camera produce when streaming 1080p60 over NDI 4.0 all day?

The motor controller is designed for smooth, quiet movement; no active cooling fan is present, so heat stays low during extended 1080p60 streaming.
