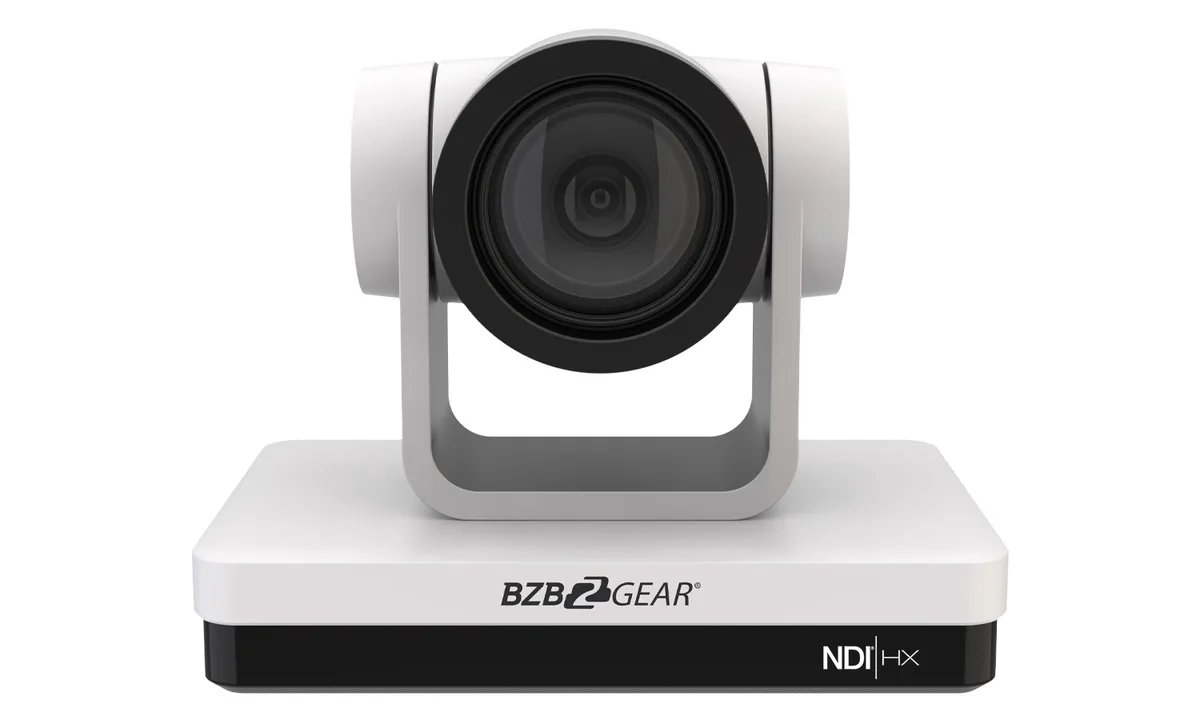

White rectangular PTZ camera with front lens and pan-tilt base

BZBGEAR

BZBGEAR BG-UPTZ-ND20X-W 20x PTZ network camera White

SKU CH-9XV3-3M5V2

A 20x optical zoom PTZ camera delivering 1080p60 video over NDI, HDMI, 3G-SDI, USB 3.0 and IP streaming with PoE power and 340° pan

  • Bundled Camera Number1 Camera
  • Camera Type2 Megapixel
  • Network CameraPTZ NDI/HDMI/SDI/USB 3.0 RS232/485 Live Streaming Camera
  • TypePTZ Camera

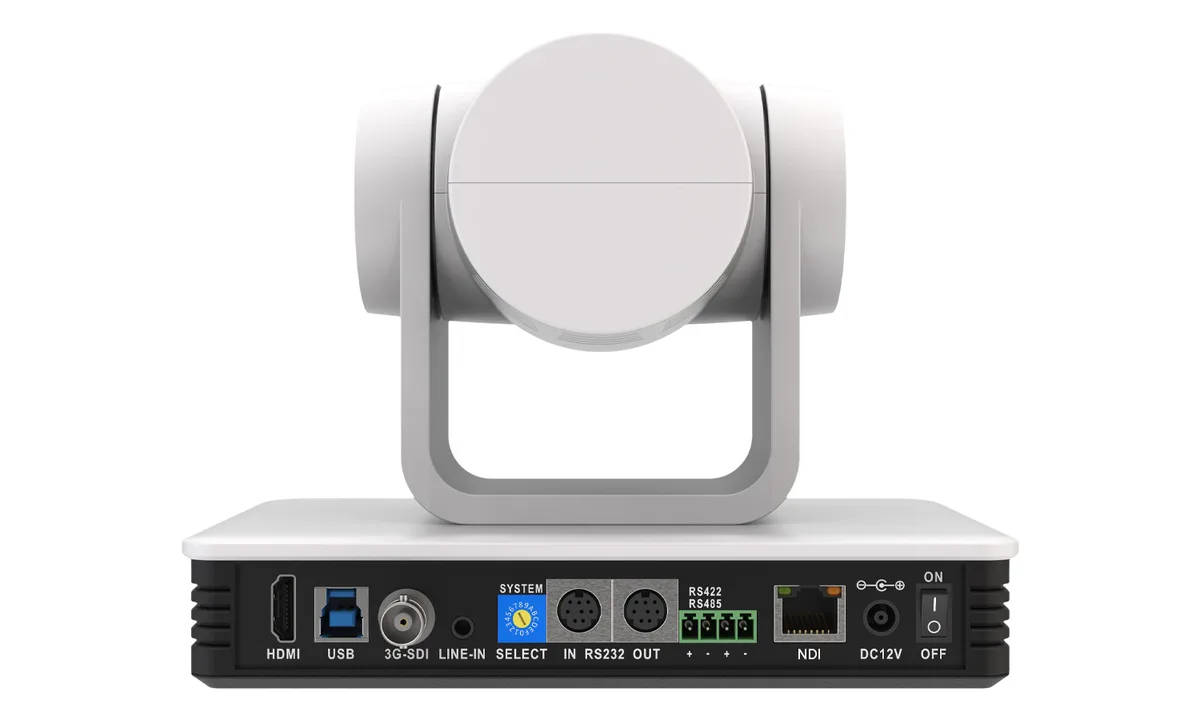

  • Connection TypeUSB 3.0, HDMI, 3G-SDI, LAN(POE), RS232/485, LINE IN
  • ColorWhite

Option 20X

  • 20× optical zoom brings distant subjects into sharp detail
  • Simultaneous HDMI, 3G‑SDI, USB 3.0 and IP outputs fit any workflow
  • NDI 4.0 compatibility enables low‑latency network production
  • 340° pan at 80°/s with 255 presets covers every angle
  • PoE power and H.264/H.265 encoding streamline live streaming

Live streaming camera with 20x optical zoom

The BZBGEAR BG-UPTZ-ND20X-W is a PTZ network camera designed for live streaming and broadcast production. It captures 1080p video at up to 60 frames per second using a 1/2.8" progressive CMOS sensor. The lens provides a 54.7° wide angle and 3.3° telephoto view with 20x optical zoom and 10x digital zoom. Simultaneous HDMI, 3G-SDI, USB 3.0, and IP streaming outputs simplify integration.

Suited for multi-camera productions needing NDI

This camera fits workflows that require NDI 4.0 compatibility, Power over Ethernet, and cascadable RS232/485 control with 255 preset positions. It supports RTSP, RTMP, ONVIF, and GB/T28181 protocols for direct streaming to platforms like YouTube and Facebook. Buyers who need 4K resolution, higher frame rates, or wireless connectivity should look at other models.

Easy PoE installation with standard network cabling

A single Ethernet cable delivers both power and data, removing the need for separate power supplies or video runs. The camera pans 340° at up to 80°/s and uses advanced auto-focus algorithms for quick, stable focus. Ensure the network switch provides sufficient PoE power and that firewall rules allow the required streaming protocols.

Najważniejsze cechy

  • 20× optical zoom brings distant subjects into sharp detail
  • Simultaneous HDMI, 3G‑SDI, USB 3.0 and IP outputs fit any workflow
  • NDI 4.0 compatibility enables low‑latency network production
  • 340° pan at 80°/s with 255 presets covers every angle
  • PoE power and H.264/H.265 encoding streamline live streaming

Specyfikacja

BrandBZBGEAR
ModelBG-UPTZ-ND20X-W
Bundled Camera Number1 Camera
Camera Type2 Megapixel
Network CameraPTZ NDI/HDMI/SDI/USB 3.0 RS232/485 Live Streaming Camera
TypePTZ Camera
Connection TypeUSB 3.0, HDMI, 3G-SDI, LAN(POE), RS232/485, LINE IN
ColorWhite
Networking ProtocolRTSP, RTMP, ONVIF, GB/T28181
ONVIFYes
Pan/Tilt340° (max. speed: 80°/s)
Sensor & Detector1/2.8" Progressive CMOS
Pixels2 MP
HD Resolution1080p60/50, 1080i60/50, 1080p30/25,720p60/50
Lens Type54.7°(W)~3.3°(T)
Optical Zoom20x Optical Zoom
Digital Zoom10X
Shutter Control1/1~1/10,000s
Power12V DC
Dimension(L)178 × (W)115.5 × (H)150.9mm
Weight1.38KG

Inne wersje tego modelu

Jeszcze 5 w tej samej serii

Ta sama rodzina, inna pamięć, inne chłodzenie lub taktowanie — proszę porównać przed decyzją.

Pytania dotyczące tego produktu

What do I need to power the BG-UPTZ-ND20X-W without a separate 12V DC adapter?

A PoE-capable network switch or injector that supplies power over the LAN cable is required to run the camera without the 12V DC supply.

Can I keep my existing VISCA or Pelco-D controller and use it with this camera?

Yes, the camera accepts cascadable RS-232 and RS-485 control using VISCA or Pelco protocols, so your current hardware joystick or software can drive its 255 preset positions.

How can I verify the camera is streaming correctly after I connect it?

Open an NDI viewer or an ONVIF-compatible client on the network; if the 1080p60 feed appears with smooth pan-tilt movement, the camera is working as intended.
