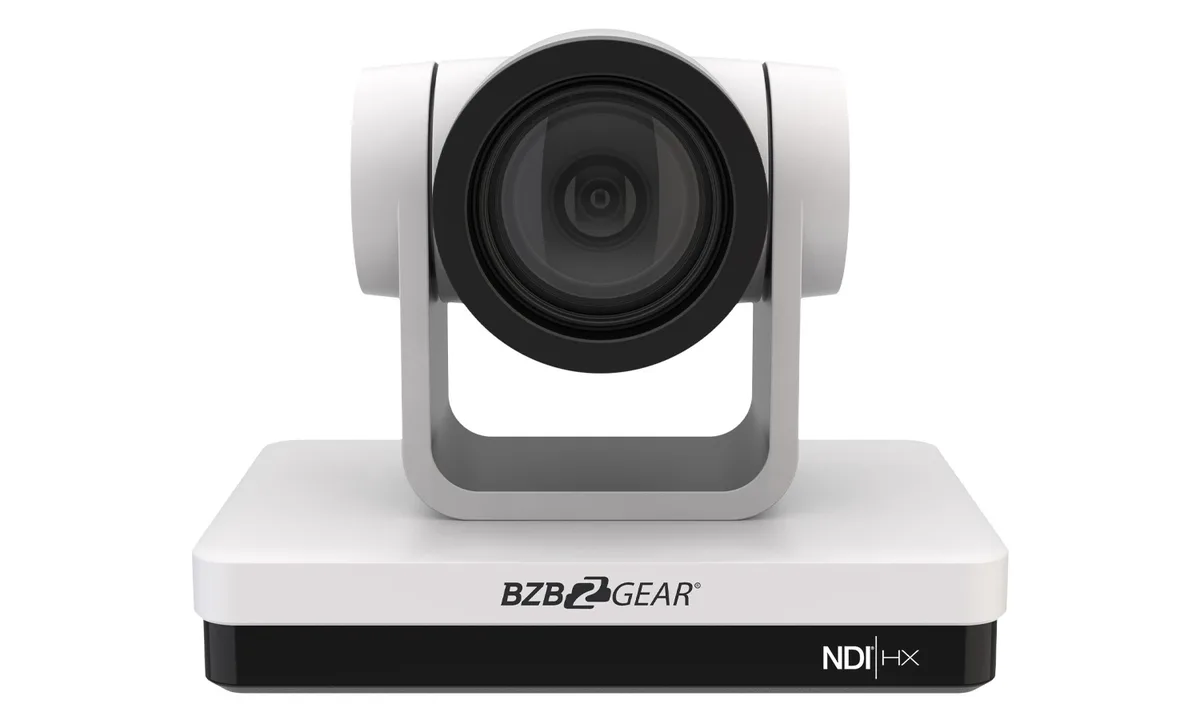

White PTZ network camera with 12x optical zoom lens, compact rectangular body

BZBGEAR

BZBGEAR BG-UPTZ-ND12X-W 12x PTZ network camera White

SKU CH-BQ2C-VBVFF

A 12x optical zoom PTZ camera delivering 1080p60 video over NDI, HDMI, 3G-SDI, USB 3.0 and IP streaming with PoE power

  • Bundled Camera Number1 Camera
  • Camera Type2 Megapixel
  • Network CameraPTZ NDI/HDMI/SDI/USB 3.0 RS232/485 Live Streaming Camera
  • TypePTZ Camera

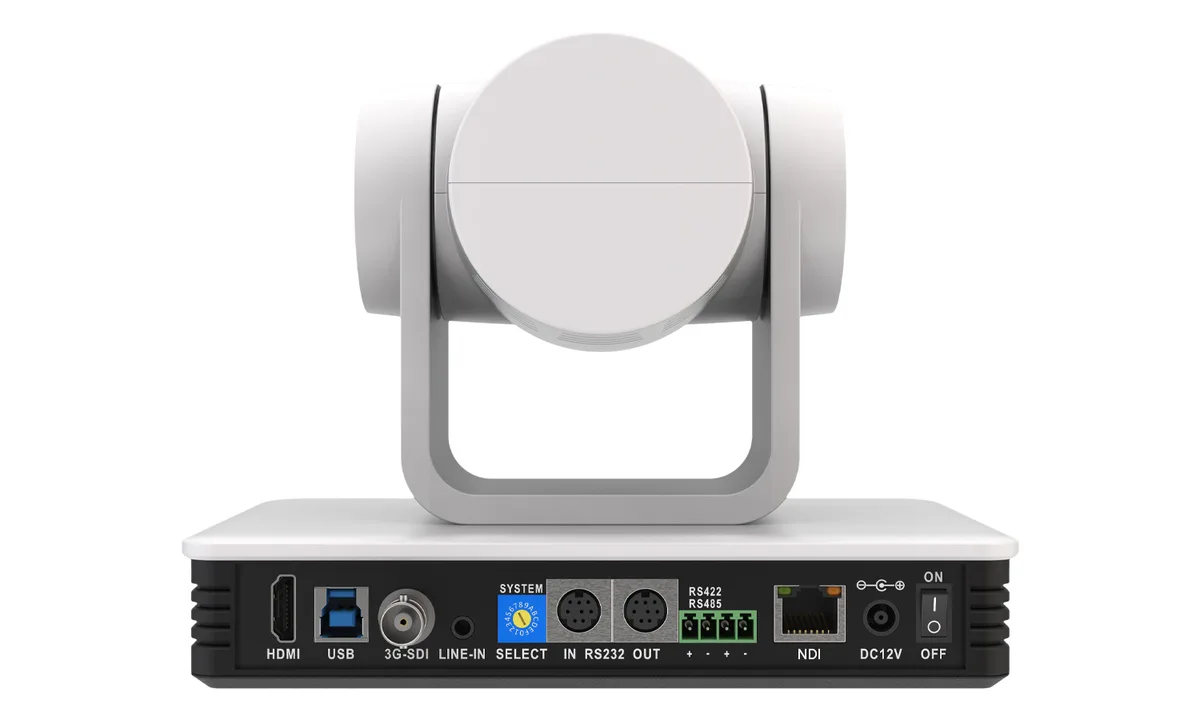

  • Connection TypeUSB 3.0, HDMI, 3G-SDI, LAN(POE), RS232/485, LINE IN
  • ColorWhite

Option 12X

  • 12× optical zoom captures distant detail
  • 340° pan and 80°/s speed covers wide areas
  • Four simultaneous outputs: HDMI, 3G‑SDI, USB 3.0, IP streaming
  • NDI® 4.0 and PoE simplify live‑production wiring
  • 255 presets plus RS‑232/485 give flexible control

BZBGEAR 12x PTZ NDI streaming camera

The BZBGEAR BG-UPTZ-ND12X-W is a white 2-megapixel PTZ network camera built for live streaming and production. It outputs 1080p at 60 frames per second through HDMI, 3G-SDI, USB 3.0 and IP simultaneously. The 1/2.8-inch progressive CMOS sensor pairs with a 12x optical zoom lens covering 72.5° to 6.3°. NDI 4.0 and PoE simplify cabling for studio or remote workflows.

Upgrade from fixed webcams or basic IP cameras

This model replaces static wide-angle webcams and entry-level IP cameras that lack optical zoom or multi-output flexibility. The jump is worth it when you need simultaneous HDMI, SDI, USB and NDI feeds, 255 preset positions, or direct RTMP(S) streaming to platforms without a separate encoder. It also supersedes setups that require separate power bricks because PoE delivers power over the LAN cable.

Installation notes and common pitfalls

Mount the 178 × 115.5 × 150.9 mm body on a wall or ceiling and connect a single Cat cable for PoE, video and control. Configure the static IP or DHCP reservation before joining the NDI network, and match the 12 V DC supply if PoE is unavailable. Common issues include forgetting to enable NDI|HX in the web UI, exceeding the 340° pan limit during preset programming, and mismatching RS-232/485 baud rates with third-party controllers.

Najważniejsze cechy

  • 12× optical zoom captures distant detail
  • 340° pan and 80°/s speed covers wide areas
  • Four simultaneous outputs: HDMI, 3G‑SDI, USB 3.0, IP streaming
  • NDI® 4.0 and PoE simplify live‑production wiring
  • 255 presets plus RS‑232/485 give flexible control

Specyfikacja

BrandBZBGEAR
ModelBG-UPTZ-ND12X-W
Bundled Camera Number1 Camera
Camera Type2 Megapixel
Network CameraPTZ NDI/HDMI/SDI/USB 3.0 RS232/485 Live Streaming Camera
TypePTZ Camera
Connection TypeUSB 3.0, HDMI, 3G-SDI, LAN(POE), RS232/485, LINE IN
ColorWhite
Networking ProtocolRTSP, RTMP, ONVIF, GB/T28181
ONVIFYes
Pan/Tilt340° (max. speed: 80°/s)
Sensor & Detector1/2.8" Progressive CMOS
Pixels2 MP
HD Resolution1080p60/50, 1080i60/50, 1080p30/25,720p60/50
Lens Type72.5°(W)~6.3°(T)
Optical Zoom12x Optical Zoom
Digital Zoom10X
Shutter Control1/1~1/10,000s
Power12V DC
Dimension(L)178 × (W)115.5 × (H)150.9mm
Weight1.38KG

Inne wersje tego modelu

Jeszcze 5 w tej samej serii

Ta sama rodzina, inna pamięć, inne chłodzenie lub taktowanie — proszę porównać przed decyzją.

Pytania dotyczące tego produktu

What are the exact dimensions I need to clear for the 178 × 115.5 × 150.9 mm body and the 340° pan range?

The camera measures 178 mm long, 115.5 mm wide and 150.9 mm high; its pan mechanism rotates up to 340° at a maximum speed of 80°/s, so allow clearance around the full sweep.

Which connection do I use first to get the camera on the network before configuring NDI 4.0 and the 255 presets?

Connect the LAN port for PoE power and data, then access the web interface to enable NDI 4.0, set RTSP/RTMP/ONVIF/GB/T28181 streaming and store up to 255 preset positions via IP, IR or cascaded RS232/485.

When should I clean the 1/2.8" CMOS sensor and check the 12× optical zoom mechanism?

Inspect the 1/2.8" progressive CMOS sensor and the 12× optical zoom lens (72.5° wide to 6.3° tele) every six months; use a blower brush for dust and verify smooth zoom/focus motion.
