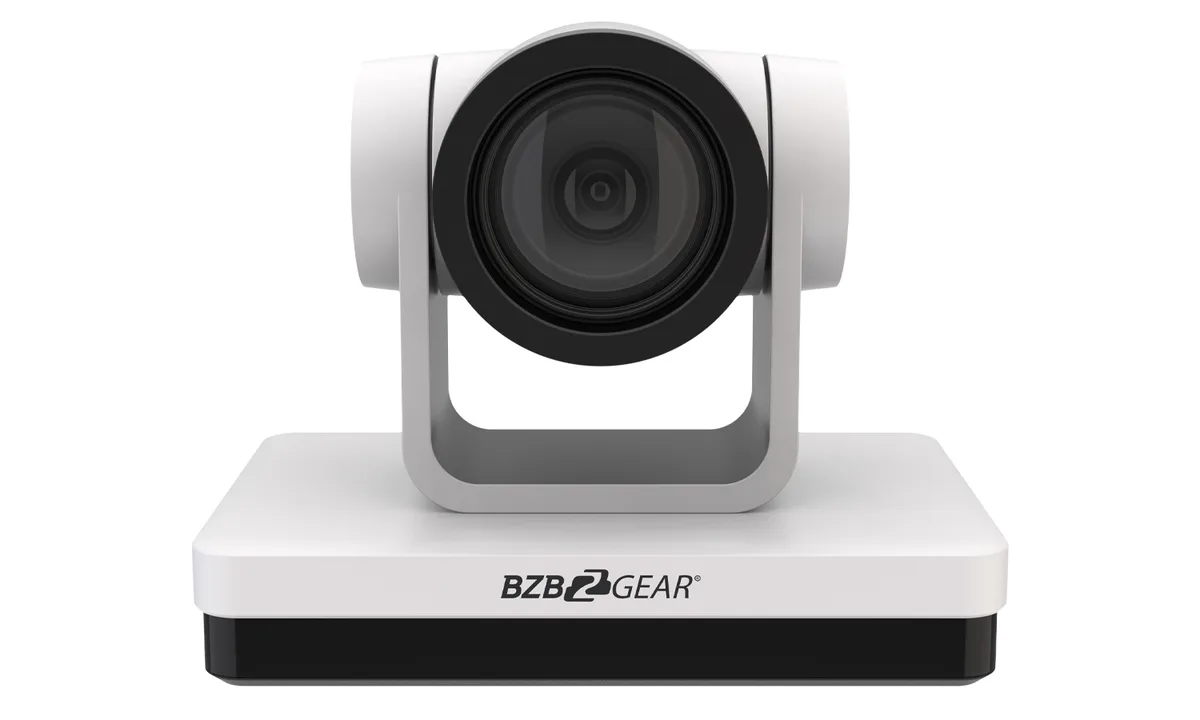

White PTZ camera body, rectangular with rounded edges, front lens and sensor array visible

BZBGEAR

BZBGEAR BG-UPTZ-30XHSU-W 30× PTZ network camera (White)

SKU CH-N94Z-V0113

PTZ network camera with 30× optical zoom, simultaneous HDMI, 3G-SDI, USB 3.0 and IP streaming, plus PoE power

  • Bundled Camera Number1 Camera
  • Camera Type2 Megapixel
  • Network CameraYes
  • TypePTZ HDMI/SDI/USB 3.0 RS232/485 Live Streaming Camera

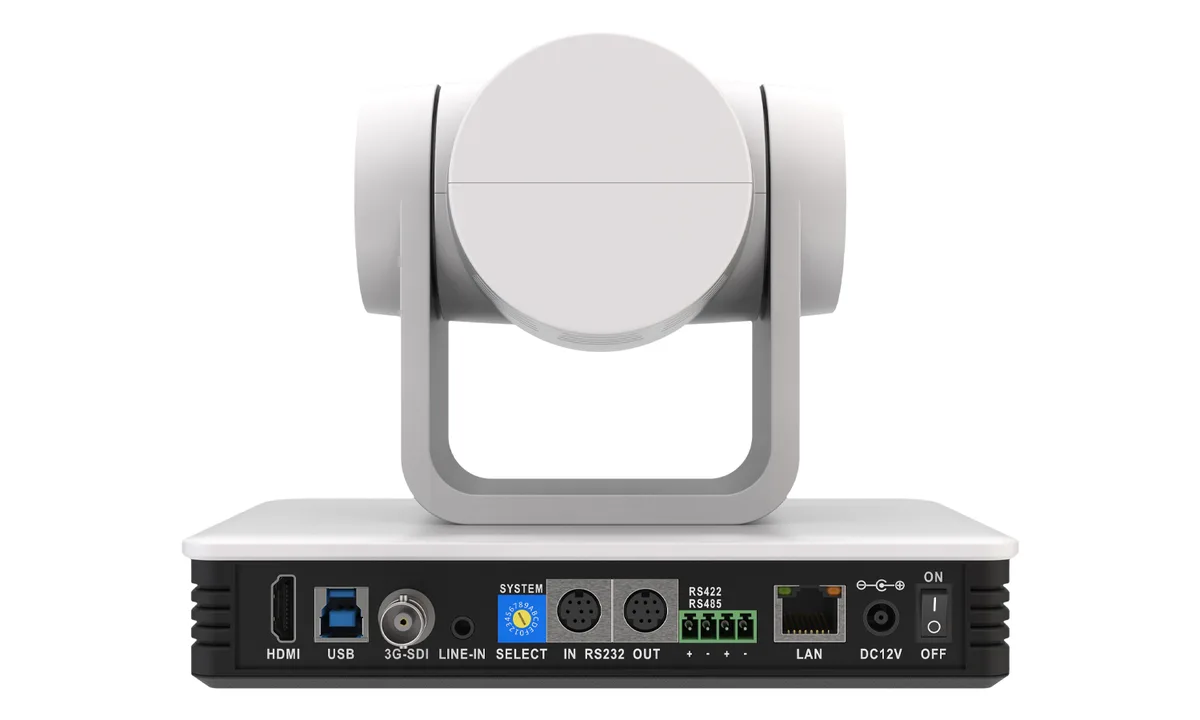

  • Connection TypeUSB 3.0, HDMI, 3G-SDI, LAN(POE), RS232/485, LINE IN
  • ColorWhite

Option 30X

  • 30× optical zoom captures distant detail
  • Simultaneous HDMI, 3G-SDI, USB 3.0 and IP outputs fit any workflow
  • PoE delivers power and data over one cable
  • 340° pan and -30° to +90° tilt cover wide areas
  • 1080p60 resolution at up to 60 fps for smooth video

White PTZ camera for live production

The BZBGEAR BG-UPTZ-30XHSU-W is a 2-megapixel network camera with 30x optical zoom and simultaneous HDMI, 3G-SDI, USB 3.0 and IP streaming outputs. It targets installers and operators who need a single unit for broadcast, conferencing or house-of-worship workflows. White finish suits light-coloured ceilings and walls.

Sustained streaming and PoE operation

H.264 and H.265 compression keep bandwidth stable during long sessions while Power over Ethernet removes the need for a local 12 V DC supply. The 1/2.8" progressive CMOS sensor maintains 1080p at up to 60 fps without thermal throttling. ONVIF, RTSP, RTMP and GB/T28181 protocols ensure reliable delivery to streaming platforms and video-management systems.

Interface limits for cabling and control

HDMI and 3G-SDI runs are constrained by their respective cable-length specifications, while USB 3.0 links require active extension beyond five metres. RS-232/485 cascading supports up to 255 preset positions using VISCA or Pelco protocols. The 3.5 mm line input embeds external audio but provides no phantom power.

Najważniejsze cechy

  • 30× optical zoom captures distant detail
  • Simultaneous HDMI, 3G-SDI, USB 3.0 and IP outputs fit any workflow
  • PoE delivers power and data over one cable
  • 340° pan and -30° to +90° tilt cover wide areas
  • 1080p60 resolution at up to 60 fps for smooth video

Specyfikacja

BrandBZBGEAR
ModelBG-UPTZ-30XHSU-W
Bundled Camera Number1 Camera
Camera Type2 Megapixel
Network CameraYes
TypePTZ HDMI/SDI/USB 3.0 RS232/485 Live Streaming Camera
Connection TypeUSB 3.0, HDMI, 3G-SDI, LAN(POE), RS232/485, LINE IN
ColorWhite
Networking ProtocolRTSP, RTMP, ONVIF, GB/T28181
ONVIFYes
Pan/Tilt340°(max. speed: 80°/s) / -30° to +90° (max. speed: 60°/s)
Sensor & Detector1/2.8" Progressive CMOS
Pixels2 MP
HD Resolution1080p60/50, 1080i60/50, 1080p30/25,720p60/50
Frame Rateup to 60fps
Optical Zoom30x Optical Zoom
AudioYes
Power over EthernetYes
Power12V DC
Dimension(L)178× (W)115.5 ×(H)150.9mm
Weight1.38KG

Inne wersje tego modelu

Jeszcze 5 w tej samej serii

Ta sama rodzina, inna pamięć, inne chłodzenie lub taktowanie — proszę porównać przed decyzją.

Pytania dotyczące tego produktu

How much power and heat does the BG-UPTZ-30XHSU-W draw when streaming all day?

The camera runs on 12V DC or Power over Ethernet, so a single network cable can supply both data and power without a separate adapter.

Which cables and controllers must I already have to operate the BG-UPTZ-30XHSU-W?

You need a PoE-capable switch or a 12V DC supply, plus an HDMI, 3G-SDI or USB 3.0 cable for direct video, and an RS-232 or RS-485 controller if you prefer serial control.

Will the BG-UPTZ-30XHSU-W work with my existing Pelco-D or VISCA matrix switcher?

Yes — the camera supports cascadable RS-232/485 using VISCA and Pelco protocols with up to 255 preset positions.
