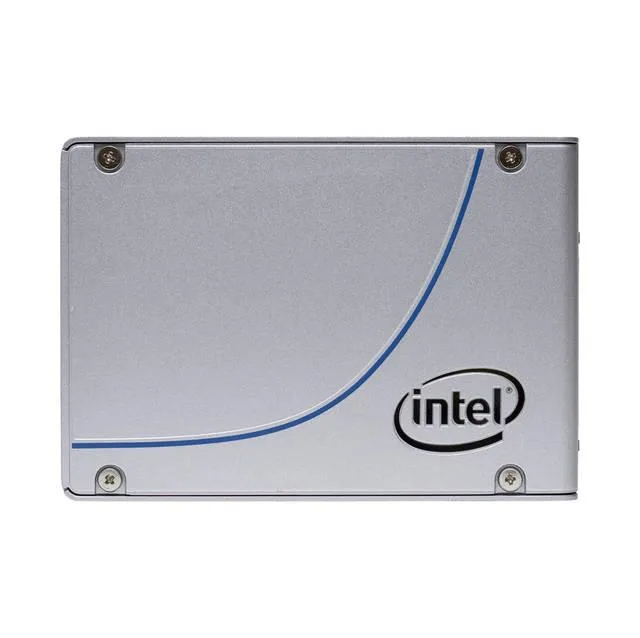

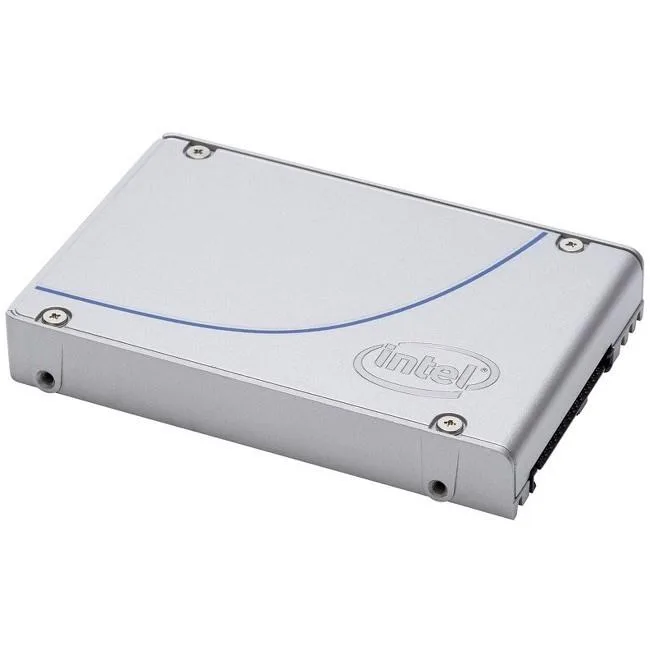

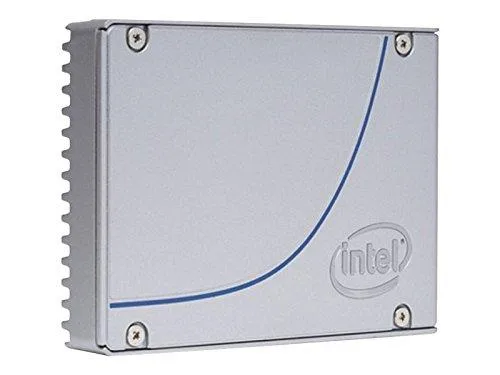

Silver 2.5 inch enterprise SSD with label showing Intel DC P3520 450GB

Intel

Intel DC P3520 SSDPE2MX450G701 2.5" 450GB PCIe 3.0 x4 enterprise SSD

SKU CH-5QEG-8WDEN MPN SSDPE2MX450G701

A 2.5" enterprise SSD with 450GB MLC storage, PCIe 3.0 x4 interface, 1200 MBps read and 600 MBps write speeds, plus 145,000 random read IOPS

  • Form Factor2.5"
  • Capacity450GB
  • Memory ComponentsMLC
  • InterfacePCI-Express 3.0 x4
  • Max Sequential ReadUp to 1200 MBps
  • Max Sequential WriteUp to 600 MBps

Options 450GB 2.5"

  • 450 GB capacity supports large enterprise workloads
  • PCIe 3.0 x4 interface delivers up to 1200 MBps sequential read
  • MLC memory provides up to 145,000 IOPS random read performance
  • 5 inch form factor fits standard server bays
  • 2,000,000 hours MTBF ensures long-term reliability

Intel DC P3520 450GB enterprise SSD

The Intel DC P3520 is a 450GB enterprise solid-state drive built for servers and storage arrays that demand consistent low-latency performance. It uses MLC NAND and a PCI-Express 3.0 x4 interface in a 2.5 inch form factor. This drive targets administrators who need reliable mixed-workload endurance in a standard drive bay.

PCIe 3.0 x4 interface limits

The PCI-Express 3.0 x4 link caps maximum sequential throughput at 1200 MBps read and 600 MBps write, so workloads that require higher bandwidth will saturate the bus. Random performance reaches 145,000 IOPS read and 19,000 IOPS write with 20 µs latency, which suits transactional databases and virtualisation. Systems limited to PCIe 2.0 or x2 electrical width will reduce these figures further.

450GB MLC capacity decides fit

The 450GB MLC capacity determines whether the drive can hold the working set for write-intensive applications such as logging, caching or online transaction processing. Larger datasets or long-term retention needs will exceed the available space, while read-heavy archives may find the cost per gigabyte less efficient than higher-capacity alternatives.

Pontos fortes

  • 450 GB capacity supports large enterprise workloads
  • PCIe 3.0 x4 interface delivers up to 1200 MBps sequential read
  • MLC memory provides up to 145,000 IOPS random read performance
  • 5 inch form factor fits standard server bays
  • 2,000,000 hours MTBF ensures long-term reliability

Especificações

BrandIntel
SeriesDC P3520
ModelSSDPE2MX450G701
Form Factor2.5"
Capacity450GB
Memory ComponentsMLC
InterfacePCI-Express 3.0 x4
Max Sequential ReadUp to 1200 MBps
Max Sequential WriteUp to 600 MBps
4KB Random ReadUp to 145,000 IOPS
4KB Random WriteUp to 19,000 IOPS
Read Latency20 µs
Write Latency20 µs
MTBF2,000,000 hours
Power Consumption (Idle)4W
Power Consumption (Active)Avg. 8W (Write), 9W (Read)
Operating Temperature0°C ~ +35°C
Max Shock Resistance1000G/0.5msec
Max Vibration ResistanceOperating: 2.17 GRMS
Non-Operating: 3.13 GRMS
Height15.00mm
Weight4.41 oz.
Peso de envio0.54 kg
Dimensões da embalagem152 × 109 × 28 mm

Outras versões deste modelo

Mais 1 nesta gama

Mesma família, memória, ventoinha ou frequência diferentes — compare antes de decidir.

Perguntas sobre este artigo

Should I pick the 450GB model or a larger capacity in the DC P3520 series?

The 450GB model provides up to 1200 MBps sequential read and 600 MBps sequential write. Larger capacities in the same series typically increase write IOPS and endurance, so choose based on whether your workload is read-heavy or write-intensive.

What does the 1200 MBps sequential read figure mean when the drive is installed in a server?

In a PCIe 3.0 x4 slot the drive can sustain up to 1200 MBps on large-block reads. Real-world throughput will depend on queue depth, CPU overhead and the application's I/O pattern, but the interface itself does not cap below that number.

How does the PCIe 3.0 x4 interface limit performance compared to newer standards?

The x4 lane width on PCIe 3.0 delivers a theoretical maximum of roughly 4 GBps. This drive's rated 1200 MBps read and 600 MBps write sit well within that ceiling, so the interface is not the bottleneck for this model.
