Gray fanless aluminum mini PC, rectangular with rounded edges, front ports and power button

partaker

partaker I34 barebone mini PC i5-4300U 16G 512G

SKU CH-KAT1-VM19W

Fanless industrial mini-PC with Core i5-4300U, 16G DDR3, 512G SATA SSD, dual LAN, six COM ports and wide-temperature aluminium chassis

  • ColorGray
  • CPU TypeIntel Core i5 4th Gen

I34 I5 4300U 16G+512G

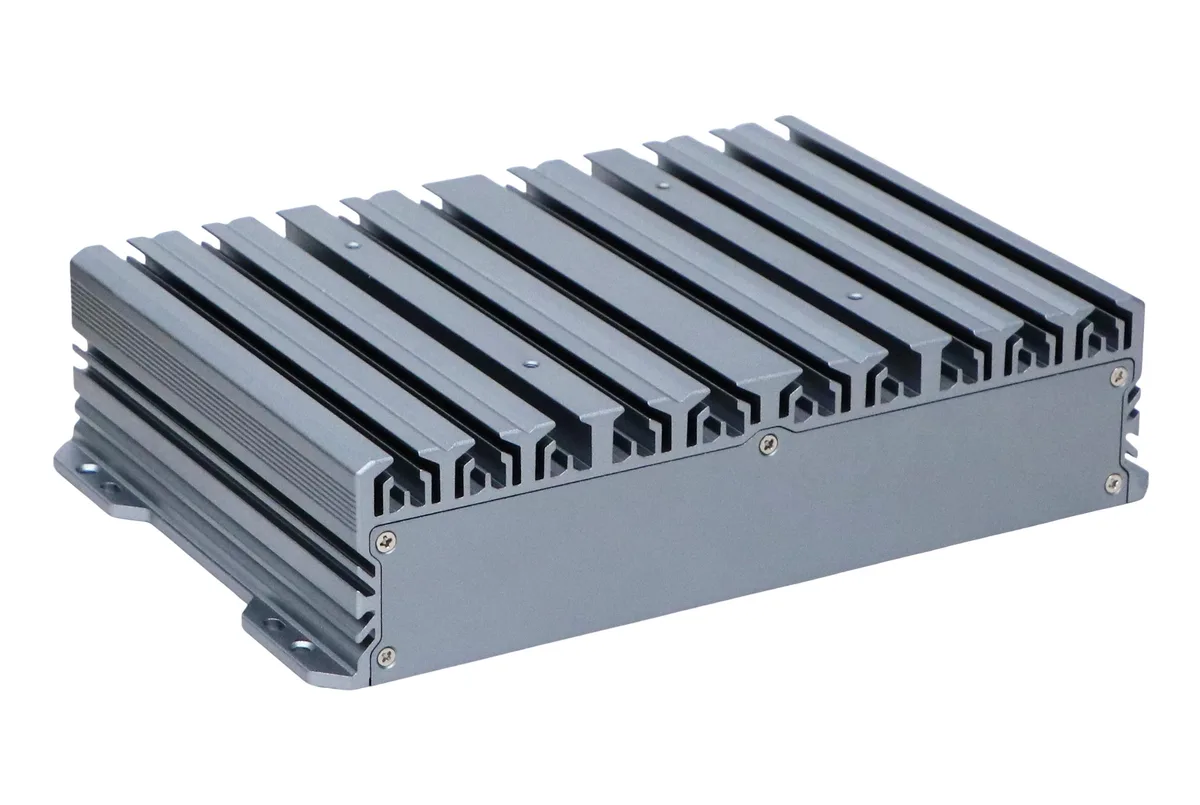

  • Fanless aluminium chassis runs silently from -20 to +60 °C
  • Intel Core i5-4300U up to 2.90 GHz handles industrial workloads

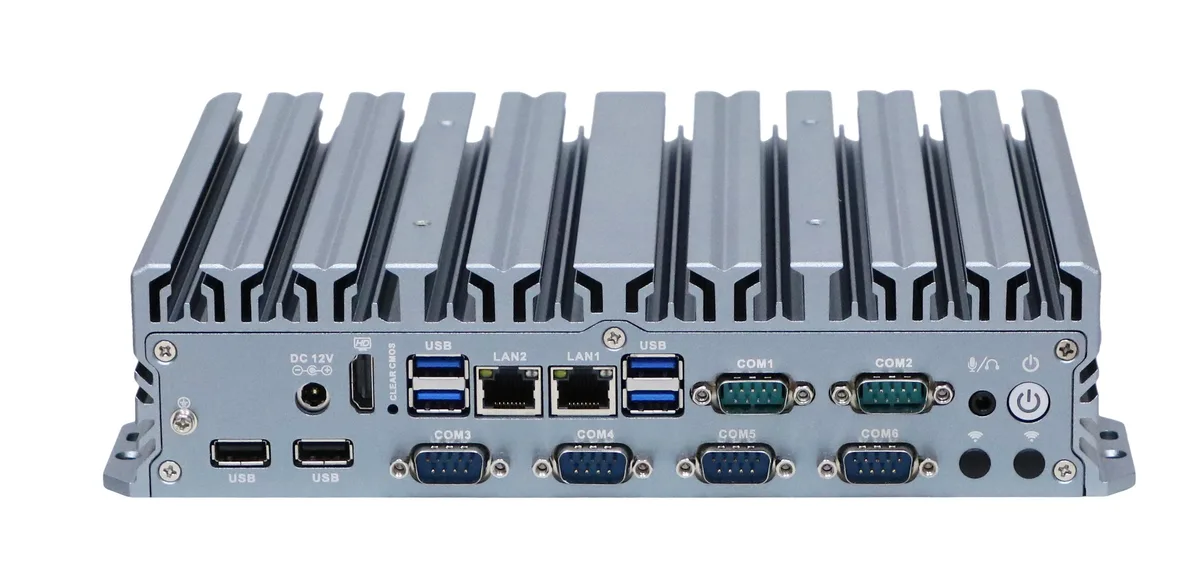

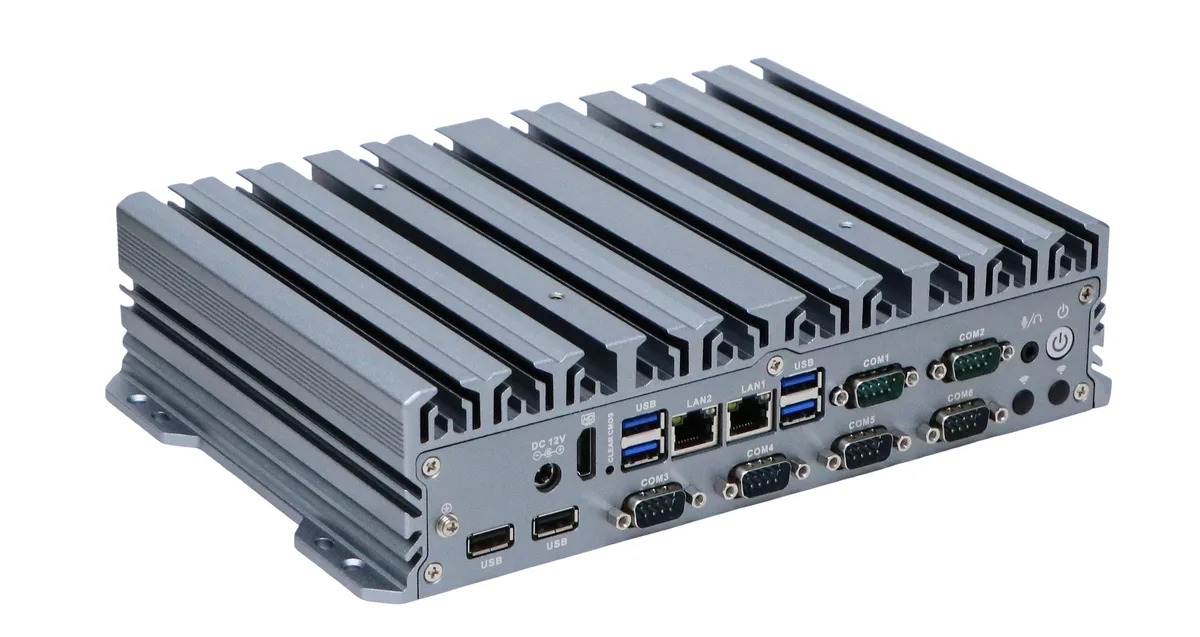

  • Six COM ports with RS232/485 plus four USB 3.0 and two USB 2.0
  • Dual Gigabit LAN with Wake-on-LAN and PXE for remote management
  • Dual storage bays: one mSATA slot and one 2.5″ SATA bay

Industrial fanless mini PC

The Partaker I34 is a compact barebone system built around an Intel Core i5-4300U processor with 16 GB of DDR3 memory and a 512 GB SSD. Its fanless aluminium chassis operates silently from -20 °C to 60 °C, making it suitable for industrial, medical or logistics deployments where dust and vibration are concerns. The unit ships with Windows 11 or Ubuntu Linux pre-installed. It targets integrators who need a ready-to-run edge computer with extensive legacy I/O.

Six COM ports and dual LAN

Six configurable RS232/485 serial ports connect directly to PLCs, barcode scanners or legacy instruments without adapters. Two Realtek RTL8111H Gigabit Ethernet ports support Wake-on-LAN and PXE boot for remote management and diskless deployments. Four USB 3.0 and two USB 2.0 ports handle modern peripherals, while an HDMI output drives a single display. An internal mSATA slot and a 2.5-inch SATA bay allow storage expansion beyond the supplied SSD.

DIN-rail ready, cable-heavy install

The 260 × 173 × 61 mm enclosure includes mounting ears for DIN-rail or wall installation and a 12 V DC power adapter in the box. Installers must route up to twelve I/O cables through tight cabinet space, so plan cable glands and strain relief before tightening the lid. The CLEAR CMOS button is recessed; a paperclip is needed to reset BIOS after a failed overclock or memory change. Mini-PCIe slots accept Wi-Fi or 4G modules, but antenna pigtails must be ordered separately.

Pontos fortes

  • Fanless aluminium chassis runs silently from -20 to +60 °C
  • Intel Core i5-4300U up to 2.90 GHz handles industrial workloads
  • Six COM ports with RS232/485 plus four USB 3.0 and two USB 2.0
  • Dual Gigabit LAN with Wake-on-LAN and PXE for remote management
  • Dual storage bays: one mSATA slot and one 2.5″ SATA bay

Especificações

ColorGray
CPU TypeIntel Core i5 4th Gen

Outras versões deste modelo

Mais 4 nesta gama

Mesma família, memória, ventoinha ou frequência diferentes — compare antes de decidir.

Perguntas sobre este artigo

How do I replace the 2.5-inch SATA drive or the mSATA module when they wear out?

Open the chassis, swap the 2.5-inch SATA drive in its bay or the mSATA module in its slot, then reinstall the operating system.

What limits sustained load before the i5-4300U throttles?

The fanless aluminium case dissipates heat passively; continuous full-load operation will raise the CPU temperature until thermal throttling engages at the chip's internal limit.

How much power does the DC 12 V input draw under all-day load?

The 12 V supply feeds the i5-4300U, 16 GB DDR3, SSD and six COM ports; total draw stays within the brick's rating and produces no fan noise.
