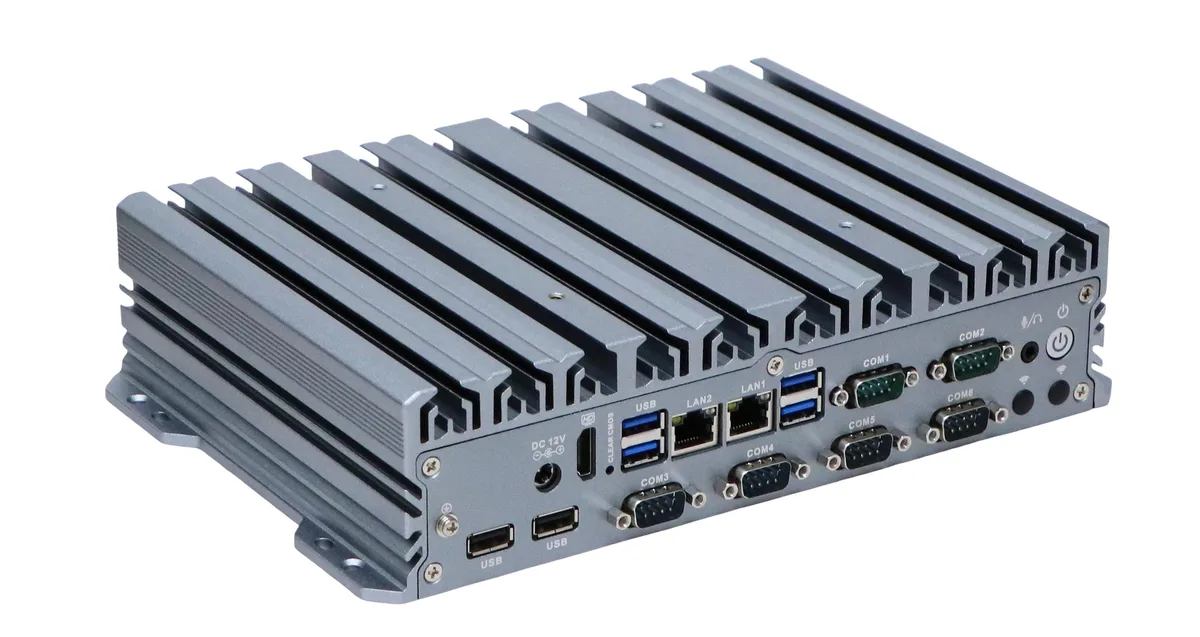

Gray fanless aluminum mini PC, compact rectangular shape with front ports and rear connectors visible

partaker

partaker I34 i5-4300U 8G 128G barebone mini PC

SKU CH-2ZHJ-XSWV3

Fanless industrial mini PC with an Intel Core i5-4300U, 8 GB DDR3, 128 GB SSD, six COM ports, dual Gigabit LAN and wide-temperature aluminium chassis

  • ColorGray
  • CPU TypeIntel Core i5 4th Gen

I34 I5 4300U 8G+128G

  • 4th Gen Core i5-4300U up to 2.90 GHz for industrial workloads
  • Fanless aluminum alloy chassis operates silently from -20 to 60 °C
  • Six COM ports RS232/485 plus six USB for legacy and modern peripherals
  • Dual Gigabit Ethernet with Wake-on-LAN and PXE for network boot
  • Dual storage with mSATA and 2.5" SATA bay for flexible capacity

Industrial barebone for embedded deployments

The Partaker I34 is a fanless mini PC built around an Intel Core i5-4300U processor with 8 GB of DDR3 memory and a 128 GB mSATA SSD. Its aluminium chassis supports dual Gigabit LAN, six COM ports and multiple USB interfaces for industrial automation, kiosk or edge-gateway roles. The system ships with Windows 11 or Ubuntu Linux pre-installed and operates from a 12 V DC supply.

Sustained load in wide temperature ranges

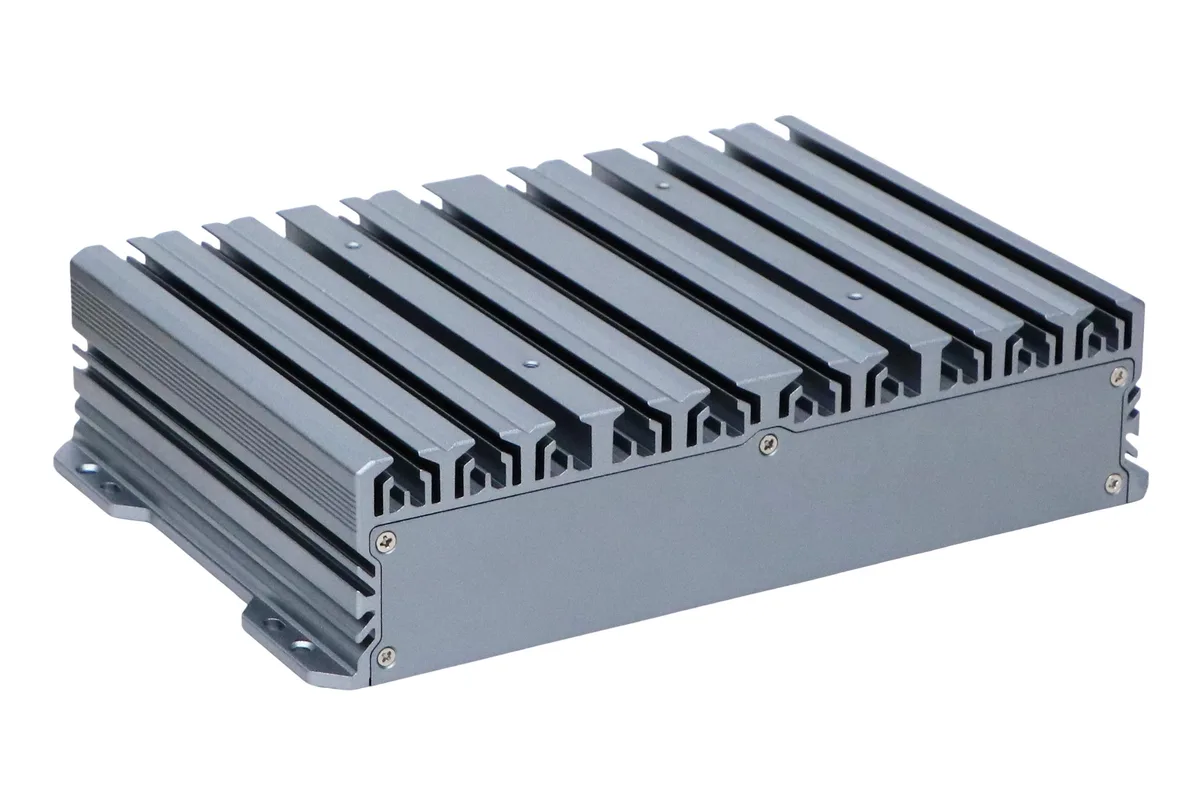

Passive cooling keeps the unit silent while dissipating heat across a -20 to 60 °C envelope when solid-state storage is used. The i5-4300U maintains its 2.90 GHz turbo ceiling without active airflow, so throughput stays consistent during long data-logging or protocol-conversion tasks. Dual Realtek 8111H controllers provide reliable network heartbeat under continuous duty.

Straightforward mounting with legacy I/O caveats

The 260 × 173 × 61 mm chassis fits standard DIN-rail or VESA brackets and includes a 12 V power brick in the box. Installers must verify COM port pin-outs for RS-232 or RS-485 modes and confirm mSATA versus 2.5-inch SATA drive selection before closing the case. GPIO and mini-PCIe slots require manual jumper configuration for specific expansion cards.

Pontos fortes

  • 4th Gen Core i5-4300U up to 2.90 GHz for industrial workloads
  • Fanless aluminum alloy chassis operates silently from -20 to 60 °C
  • Six COM ports RS232/485 plus six USB for legacy and modern peripherals
  • Dual Gigabit Ethernet with Wake-on-LAN and PXE for network boot
  • Dual storage with mSATA and 2.5" SATA bay for flexible capacity

Especificações

ColorGray
CPU TypeIntel Core i5 4th Gen

Outras versões deste modelo

Mais 4 nesta gama

Mesma família, memória, ventoinha ou frequência diferentes — compare antes de decidir.

Perguntas sobre este artigo

How much heat does the fanless i5-4300U design produce when running continuously in a sealed cabinet?

The aluminum chassis dissipates heat passively and is rated for -20 to 60 °C with an SSD or 0 to 50 °C with a hard disk, so no active cooling is needed even under constant load.

Which storage drives must I supply to use the mSATA slot and the 2.5″ SATA bay?

You provide any mSATA SSD and any 2.5″ SATA drive; the board accepts one of each up to the 16 GB DDR3 memory ceiling.

Will the six COM ports and dual Gigabit LAN work with my legacy RS-232/485 PLCs and older 10/100 switches?

Yes, COM1-2 are configurable for RS232 or RS485 and both RTL8111H ports negotiate down to 10 or 100 Mbit automatically.
