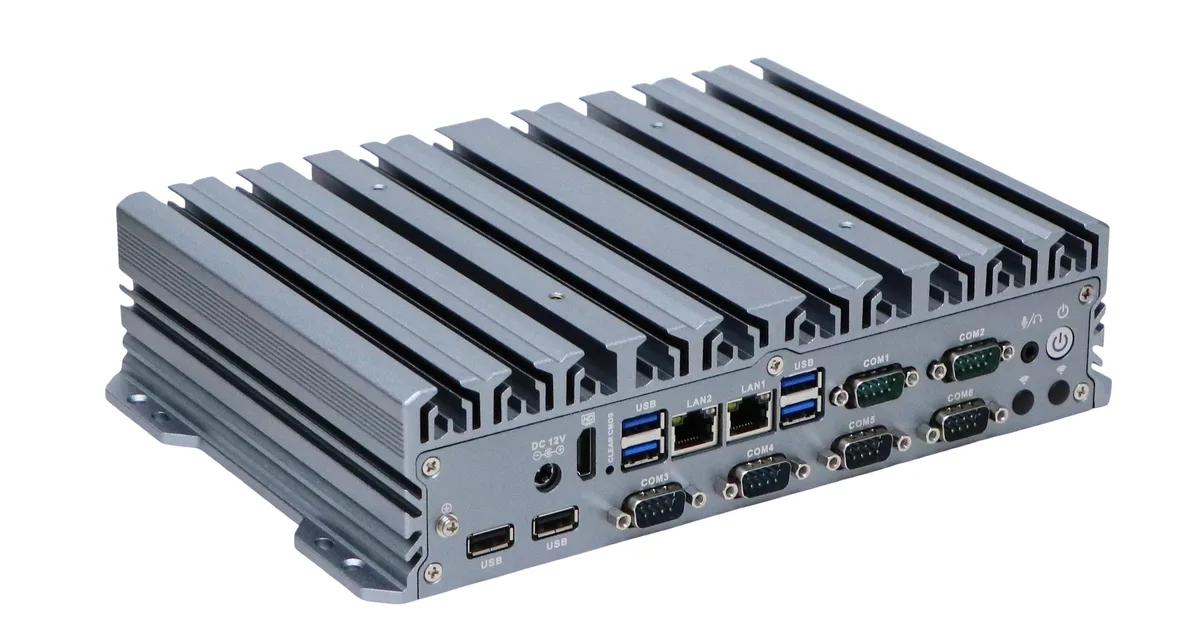

Compact gray aluminum fanless mini PC with multiple ports

partaker

partaker I34 barebone mini PC J1900 8G 256G 1T

SKU CH-RHKN-ZEFY2

Fanless industrial mini-PC with Celeron J1900, 8 GB DDR3, 256 GB SSD plus 1 TB HDD, six COM ports, dual Gigabit LAN and wide-temperature aluminium chassis

  • ColorGray
  • CPU TypeIntel Celeron

I34 J1900 8G RAM 256G SSD 1TB HDD

  • Silent operation in harsh environments with fanless aluminium build rated from -20 to 60 °C
  • Six COM ports with RS232/485 support plus six USB ports for extensive industrial connectivity
  • Dual Gigabit Ethernet with Wake-on-LAN and PXE for reliable network boot and remote management
  • Flexible storage via mSATA slot and 2.5-inch SATA bay supporting both SSD and HDD
  • Mini-PCIe expansion slots for Wi-Fi, 3G or 4G modules with optional GPIO for automation control

Industrial barebone for embedded tasks

The Partaker I34 is a fanless mini PC built around an Intel Celeron J1900 processor with 8 GB of DDR3 memory. It ships with a 256 GB mSATA SSD and a 1 TB 2.5-inch hard drive installed. Windows 11 Pro is pre-loaded and Linux Ubuntu is also supported. This configuration targets integrators deploying kiosks, automation controllers or edge gateways.

Aluminium chassis with legacy I/O

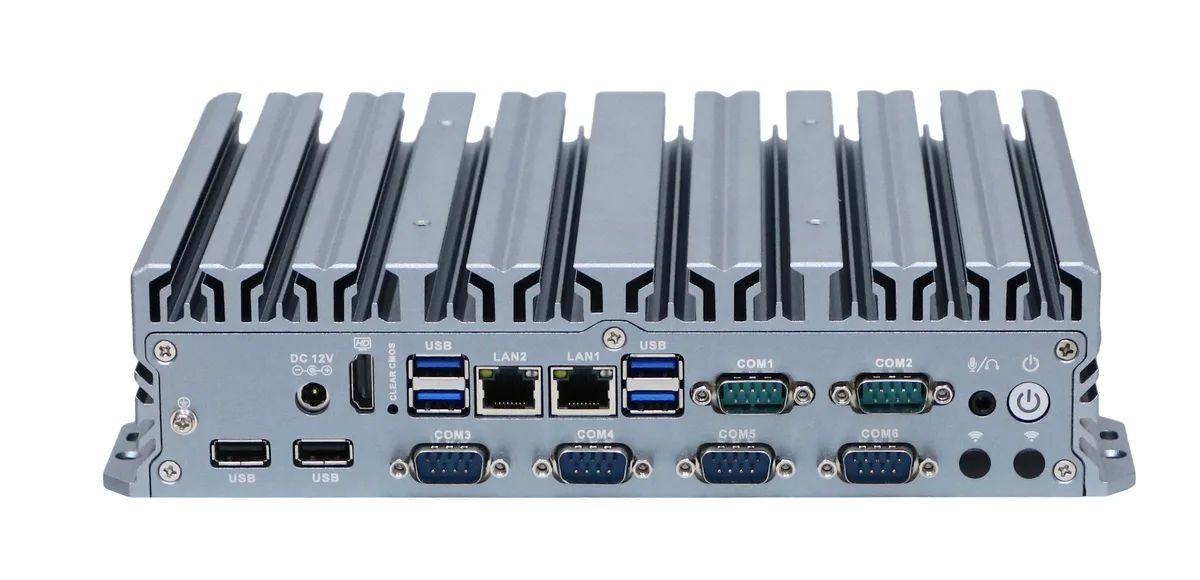

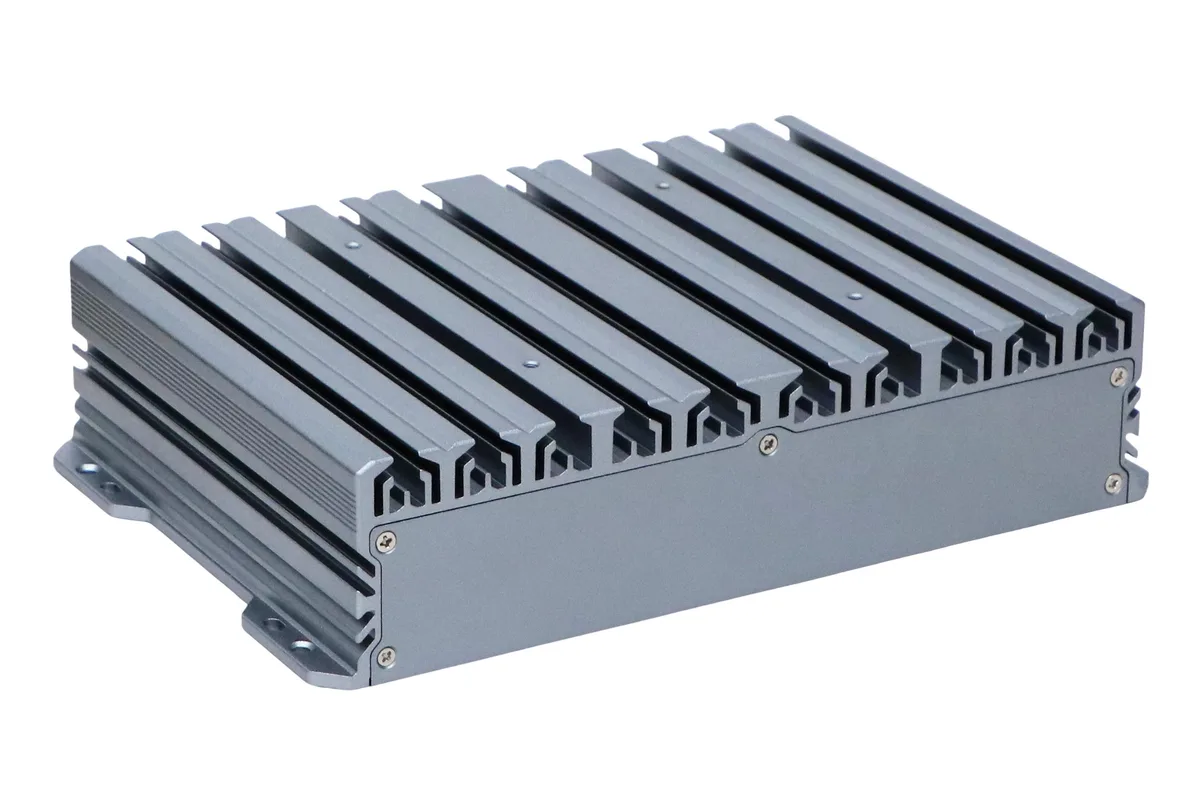

The grey anodised aluminium case acts as a heatsink, allowing silent operation from -20 to 60 °C with solid-state storage. Dual Realtek RTL8111H Gigabit ports provide redundant wired networking with Wake-on-LAN and PXE boot. Six COM ports, including two switchable between RS232 and RS485, plus four USB 3.0 and two USB 2.0 ports connect serial and peripheral gear directly.

Expansion slots and automation extras

Two mini-PCIe sockets accept Wi-Fi, Bluetooth, 3G or 4G modules, one with a SIM holder. An optional GPIO header adds four inputs and four outputs for custom control logic. The box includes a 12 V power supply, power cord and warranty card. Auto power-on, timed boot and a hardware watchdog complete the embedded feature set.

Pontos fortes

  • Silent operation in harsh environments with fanless aluminium build rated from -20 to 60 °C
  • Six COM ports with RS232/485 support plus six USB ports for extensive industrial connectivity
  • Dual Gigabit Ethernet with Wake-on-LAN and PXE for reliable network boot and remote management
  • Flexible storage via mSATA slot and 2.5-inch SATA bay supporting both SSD and HDD
  • Mini-PCIe expansion slots for Wi-Fi, 3G or 4G modules with optional GPIO for automation control

Especificações

ColorGray
CPU TypeIntel Celeron

Outras versões deste modelo

Mais 4 nesta gama

Mesma família, memória, ventoinha ou frequência diferentes — compare antes de decidir.

Perguntas sobre este artigo

What speed do the two Realtek RTL8111H Gigabit ports actually cap at?

Each port negotiates at 10, 100 or 1000 Mbps; the J1900 platform and the RTL8111H controller limit practical throughput to 1 Gbps per port.

What are the exact mounting dimensions and weight for the I34 chassis?

The aluminum enclosure measures 260 x 173 x 61 mm and weighs 2.5 kg; verify VESA or DIN-rail bracket compatibility before ordering.

How is the mSATA SSD installed and which step is commonly missed?

Remove the bottom cover, insert the mSATA card into the slot at an angle, secure it with the retention screw, then enable the drive in BIOS — many forget the BIOS step and the drive stays invisible.
