Gray fanless aluminum mini PC, compact rectangular shape, matte finish

partaker

Partaker I34 J1900 8G 512G 1TB barebone mini PC

SKU CH-YAVN-FJN7Y

Fanless industrial mini-PC with Intel Celeron J1900, 8GB DDR3, 512GB SSD plus 1TB HDD, six COM ports and dual Gigabit LAN

  • ColorGray
  • CPU TypeIntel Celeron

I34 J1900 8G RAM 512G SSD 1TB HDD

  • Fanless aluminium chassis runs silently from -20 to 60 °C
  • Intel Celeron J1900 with 8 GB DDR3 handles embedded workloads
  • Dual Gigabit LAN plus six COM ports connect industrial gear
  • One mSATA slot and one 2.5" SATA bay give flexible storage
  • Mini-PCIe slots and optional GPIO enable Wi-Fi, 4G or automation add-ons

Industrial Fanless Mini PC

The Partaker I34 is a compact barebone system built around an Intel Celeron J1900 processor with 8 GB of DDR3 memory, a 512 GB mSATA SSD and a 1 TB 2.5-inch SATA hard drive. It targets integrators and operators who need silent, fanless compute for automation, signage or edge data collection in space-constrained cabinets.

Silent Thermal Design

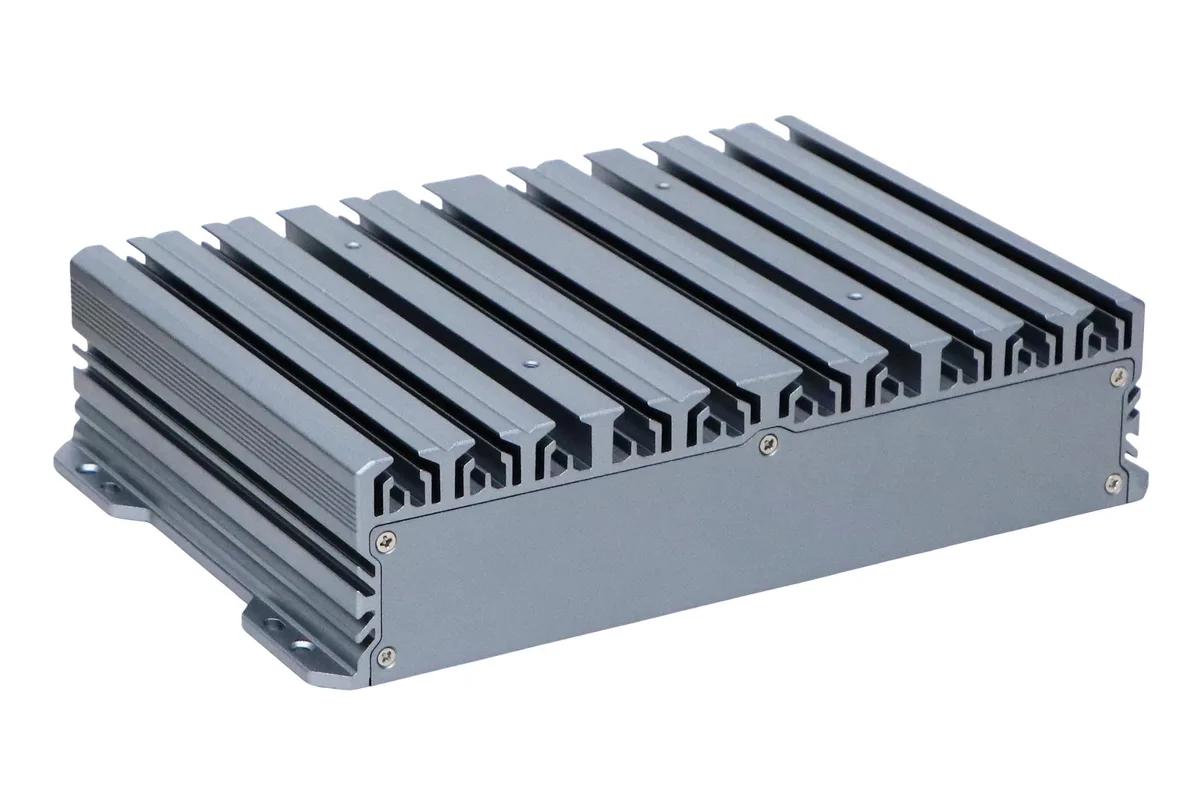

A full aluminium chassis with hard-anodised finish dissipates heat passively across a 0 °C to 50 °C range with the hard drive installed, or -20 °C to 60 °C with solid-state storage only. The fanless construction eliminates moving-part noise and reduces dust ingress, drawing power from a 12 V DC input that can be widened to 9 V–36 V on request.

Ready-to-Deploy Connectivity

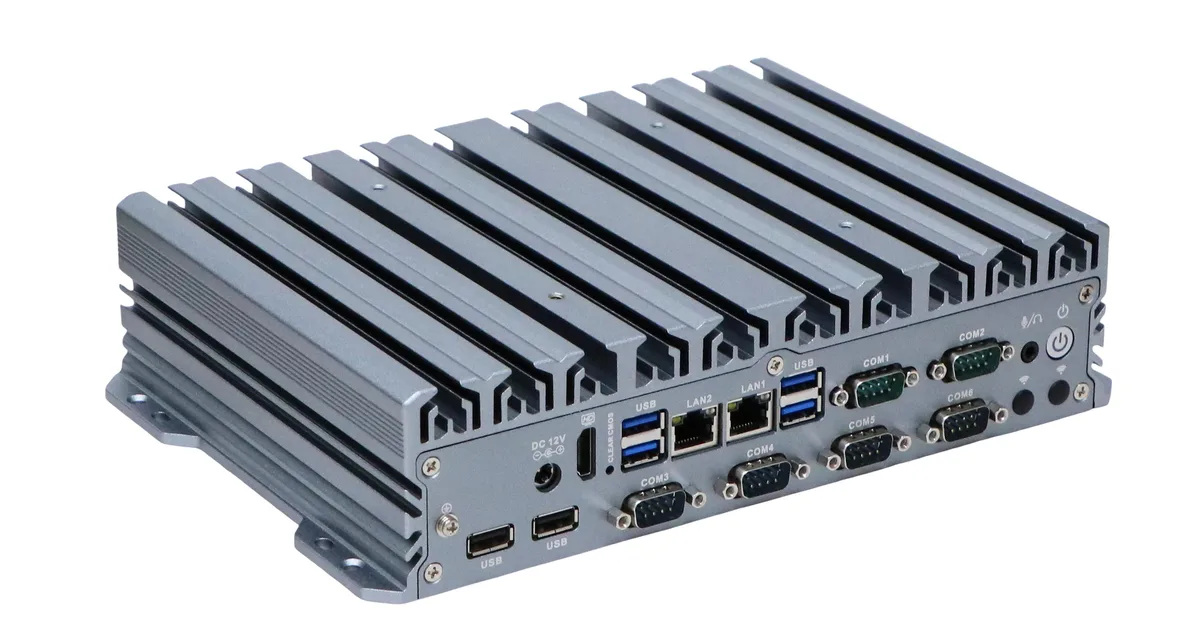

The box ships with a 12 V power supply, power cord and warranty card, while the board provides dual Realtek 8111 Gigabit LAN ports with Wake-on-LAN and PXE, six COM ports (two RS232/485), four USB 3.0, two USB 2.0, HDMI and audio. Two mini-PCIe slots accept Wi-Fi, Bluetooth or cellular modules, and an optional 4-in/4-out GPIO header enables direct industrial I/O control.

Pontos fortes

  • Fanless aluminium chassis runs silently from -20 to 60 °C
  • Intel Celeron J1900 with 8 GB DDR3 handles embedded workloads
  • Dual Gigabit LAN plus six COM ports connect industrial gear
  • One mSATA slot and one 2.5" SATA bay give flexible storage
  • Mini-PCIe slots and optional GPIO enable Wi-Fi, 4G or automation add-ons

Especificações

ColorGray
CPU TypeIntel Celeron

Outras versões deste modelo

Mais 4 nesta gama

Mesma família, memória, ventoinha ou frequência diferentes — compare antes de decidir.

Perguntas sobre este artigo

How do I mount the Partaker I34 and where is the DC jack located?

The unit measures 260 by 173 by 61 mm and weighs 2.5 kg. Mount it on a flat surface with screws through the chassis flanges, then plug the 12 V adapter into the single DC jack on the rear I/O panel.

Which storage drive will I need to replace first, the mSATA SSD or the 2.5-inch HDD?

The 1 TB mechanical drive in the 2.5-inch SATA bay has moving parts and a 0 to 50 °C rating, so it typically fails before the solid-state mSATA drive rated for -20 to 60 °C.

At what temperature does the fanless chassis hit its thermal limit under continuous load?

The aluminium case is rated for 60 °C ambient with an SSD installed; sustained heavy workloads at that temperature will trigger throttling before any other component limit is reached.
