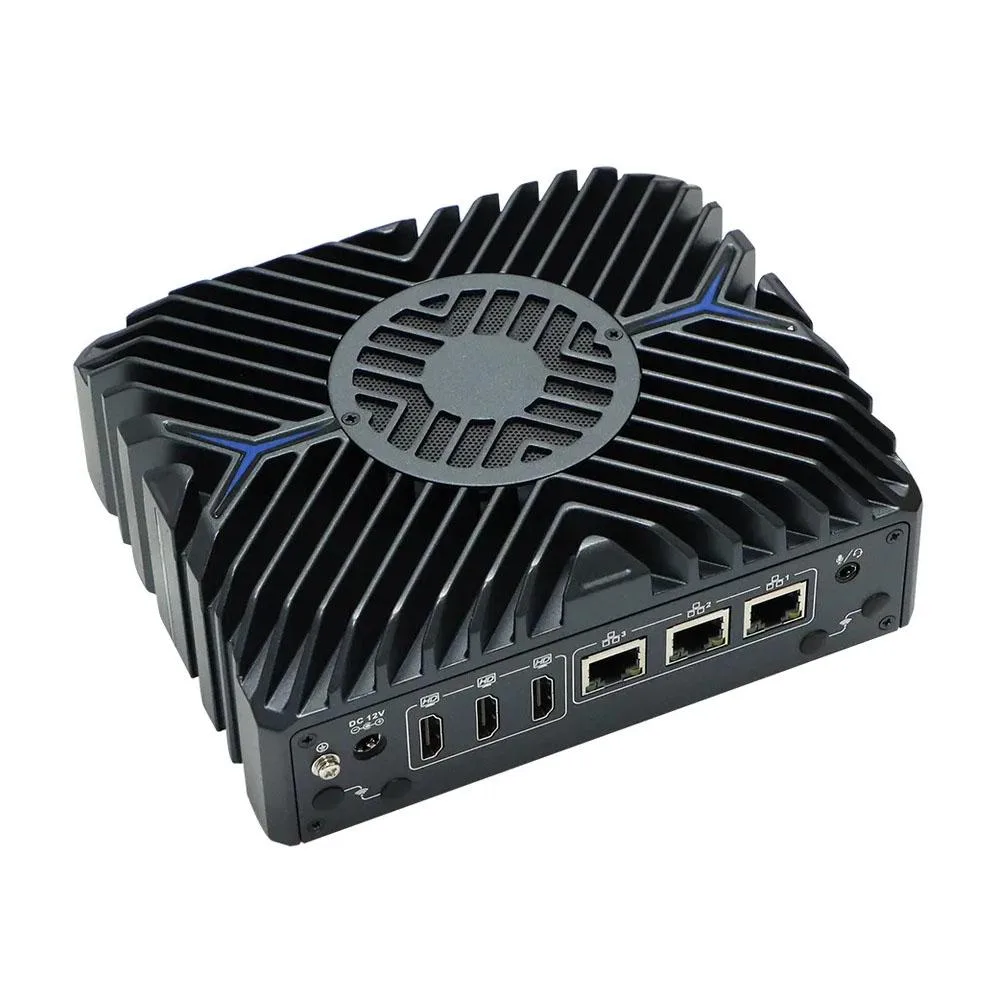

Compact black aluminium mini PC with cooling fan, three HDMI ports and three LAN ports

partaker

partaker N7 barebone mini PC i7 1255U 16GB 256GB

SKU CH-582X-BBG3H

Fan-cooled industrial mini PC with a 10-core Intel Core i7 1255U, 16 GB DDR5, 256 GB NVMe storage, three 2.5 GbE ports, three HDMI outputs and dual COM ports

  • ColorBlack
  • CPU TypeIntel Core i7 12th Gen

CPU Type Intel Core i7-1255U

Group 16GB RAM / 256GB SSD

  • Ten-core i7 1255U reaches 4.7 GHz for responsive compute
  • Triple 2.5 GbE Intel i225-V ports handle heavy network loads
  • Fan-cooled aluminium chassis operates from -20 °C to 50 °C
  • DDR5 4800 SODIMM slot supports up to 32 GB memory
  • M.2 2280 NVMe plus 2.5-inch bay give flexible storage

Industrial barebone for edge workloads

The Partaker N7 is a fan-cooled mini PC built around an Intel Core i7 1255U with ten cores and twelve threads. It ships with 16 GB of DDR5 4800 memory and a 256 GB SSD, running Windows 11 Pro or Linux Ubuntu. The aluminium chassis measures 170 x 140 x 58 mm and weighs 2.5 kg, designed for industrial control, automation, robotics and IoT gateway deployments.

Straightforward installation with cable planning

The unit mounts via VESA and accepts a single 12 V DC input. One SODIMM slot supports up to 32 GB of DDR5, while storage uses an M.2 2280 NVME slot plus a 2.5-inch bay. Three HDMI outputs and three Intel i225-V 2.5G LAN ports are fixed on the I/O face, so cable routing must account for the clustered layout. A SIM slot and M.2 3052 B-key allow 4G or 5G expansion, and a mini-PCIe slot adds Wi-Fi or Bluetooth.

Headroom for memory and storage, fixed I/O

The 16 GB DDR5 configuration handles typical edge computing and machine vision tasks, with the single slot allowing a doubling to 32 GB when workloads grow. The 256 GB NVME drive plus the 2.5-inch bay give flexible capacity for OS and data separation. Network throughput is capped at the three 2.5G LAN interfaces, and the ten-core CPU tops out at 4.7 GHz turbo, limiting heavy multi-threaded compute beyond the designed industrial scope.

Pontos fortes

  • Ten-core i7 1255U reaches 4.7 GHz for responsive compute
  • Triple 2.5 GbE Intel i225-V ports handle heavy network loads
  • Fan-cooled aluminium chassis operates from -20 °C to 50 °C
  • DDR5 4800 SODIMM slot supports up to 32 GB memory
  • M.2 2280 NVMe plus 2.5-inch bay give flexible storage

Especificações

ColorBlack
CPU TypeIntel Core i7 12th Gen

Outras versões deste modelo

Mais 5 nesta gama

Mesma família, memória, ventoinha ou frequência diferentes — compare antes de decidir.

Perguntas sobre este artigo

How do I confirm the three Intel i225-V 2.5G Lan ports are active after setup?

Connect cables to each of the three 2.5G Lan ports; link lights on the ports and in the OS network adapter list will show 2.5 Gbps negotiation.

What comes in the box and what must I add for a working system?

The barebone includes the N7 chassis, fan, power adapter and VESA mount; you must install DDR5 4800 SODIMM memory up to 32 GB and an M.2 2280 NVME drive or 2.5-inch SSD/HDD.

Which memory and storage combination should I choose for the i7 1255U model?

The board has one DDR5 4800 SODIMM slot supporting up to 32 GB and one M.2 2280 NVME slot plus a 2.5-inch bay; pick capacity based on your workload.
