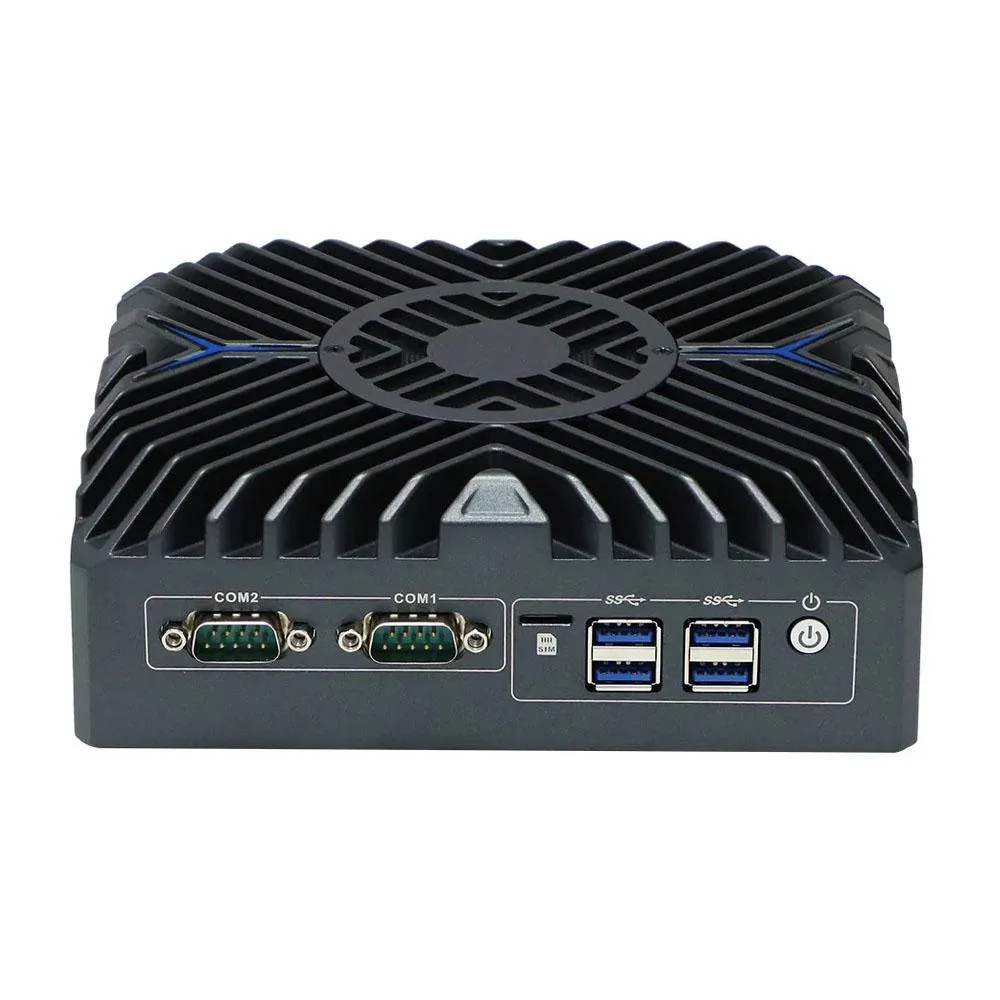

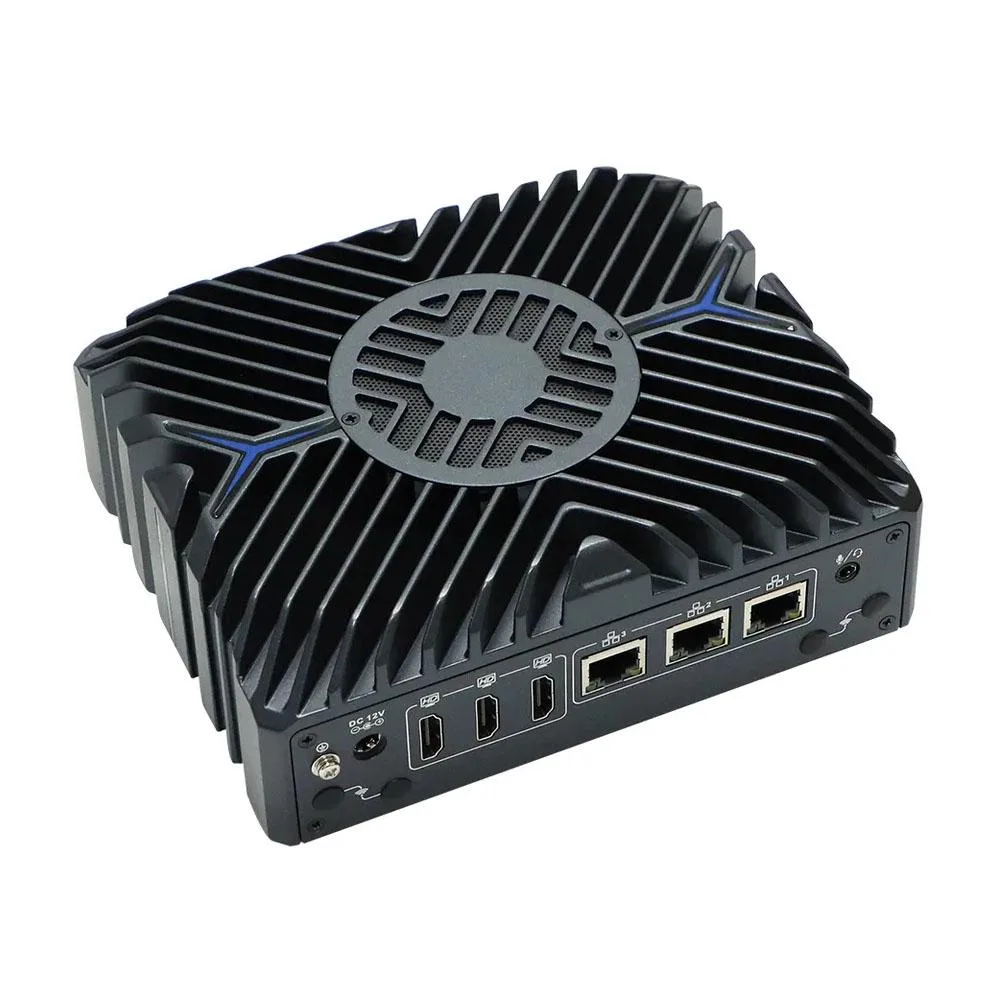

Black aluminium mini PC with fan cooling, three HDMI ports and three LAN ports

partaker

partaker N7 i7-1255U 8GB DDR5 256GB barebone mini PC

SKU CH-K4S5-QJ393

Fan-cooled barebone with Intel Core i7 1255U, 8GB DDR5, 256GB SSD, three 2.5G LAN ports, triple 4K HDMI, dual COM and VESA mount

  • ColorBlack
  • CPU TypeIntel Core i7 12th Gen

CPU Type Intel Core i7-1255U

Group 8GB / 256GB SSD

  • Intel Core i7 1255U ten-core CPU delivers responsive compute
  • 8 GB DDR5 4800 MHz memory and 256 GB storage ready to work
  • Triple Intel i225-V 2.5 GbE LAN ports for high-speed networking
  • Three HDMI outputs drive three 4K displays simultaneously
  • Fan-cooled aluminium chassis supports VESA mount and wide temperature range

partaker N7 barebone with i7-1255U

This fan-cooled mini PC arrives with an Intel Core i7 1255U processor, ten cores and twelve threads reaching 4.7 GHz turbo. It includes 8 GB of DDR5 4800 memory and a 256 GB NVME drive pre-installed. The aluminium chassis measures 170 x 140 x 58 mm and supports VESA mounting for industrial or edge deployments.

Installation notes and common issues

The barebone uses a single DDR5 SODIMM slot (max 32 GB) plus one M.2 2280 slot and one 2.5-inch bay for storage expansion. A SIM slot and M.2 3052 B-key slot accept 4G or 5G modules, while a mini-PCIe slot adds Wi-Fi or Bluetooth. Three HDMI ports and three Intel i225-V 2.5G LAN ports are ready for multi-display or gateway roles. Missing antenna cables for wireless cards are the typical oversight.

Sustained-load behaviour

Active fan cooling keeps the system inside its 0 °C to 40 °C commercial range or -20 °C to 50 °C industrial range during continuous operation. The 12 V DC input powers the CPU at full turbo without throttling in typical edge-computing workloads such as machine vision or AGV control. Buyers who need passive silence or higher storage density should look elsewhere.

Pontos fortes

  • Intel Core i7 1255U ten-core CPU delivers responsive compute
  • 8 GB DDR5 4800 MHz memory and 256 GB storage ready to work
  • Triple Intel i225-V 2.5 GbE LAN ports for high-speed networking
  • Three HDMI outputs drive three 4K displays simultaneously
  • Fan-cooled aluminium chassis supports VESA mount and wide temperature range

Especificações

ColorBlack
CPU TypeIntel Core i7 12th Gen

Outras versões deste modelo

Mais 5 nesta gama

Mesma família, memória, ventoinha ou frequência diferentes — compare antes de decidir.

Perguntas sobre este artigo

How do I confirm the three Intel i225-V 2.5G LAN ports and three HDMI outputs are active after first boot?

Enter the AMI EFI BIOS to verify all three Intel i225-V 2.5G LAN controllers and three HDMI ports are detected, then boot into Windows 11 Pro or Linux and check Device Manager or lspci for each interface.

Which components are pre-installed and which must I add to complete the N7 barebone?

The unit ships with the Intel Core i7 1255U CPU, 8 GB DDR5 4800 SODIMM, and a 256 GB M.2 2280 drive installed; the 2.5-inch bay, M.2 3052 B-key, and Mini-PCIe slots are empty for optional storage, 4G/5G, or Wi-Fi/BT cards.

Which CPU variant should I choose for the highest turbo frequency in the N7 series?

Select the Intel Core i7 1255U option, which reaches a 4.7 GHz turbo with ten cores and twelve threads, above the i5 1235U and i3 1215U alternatives.
