Aqua blue duplex fibre patch cable with LC and FC connectors, 15m length

Enfain

Enfain OM3 LC-FC Duplex Multimode Fibre Optic Cable 15m Aqua Blue

SKU CH-B40Y-8QE5D

A 15 metre OM3 multimode duplex patch cord with LC to FC ceramic ferrules, 3.0 mm jacket, 850 nm wavelength, .2 dB typical insertion loss and >38 dB return loss for 10 GbE links

Length 15m

  • Supports 10 Gbps links with OM3 10-gigabit core
  • Low typical insertion loss of .2 dB preserves signal strength

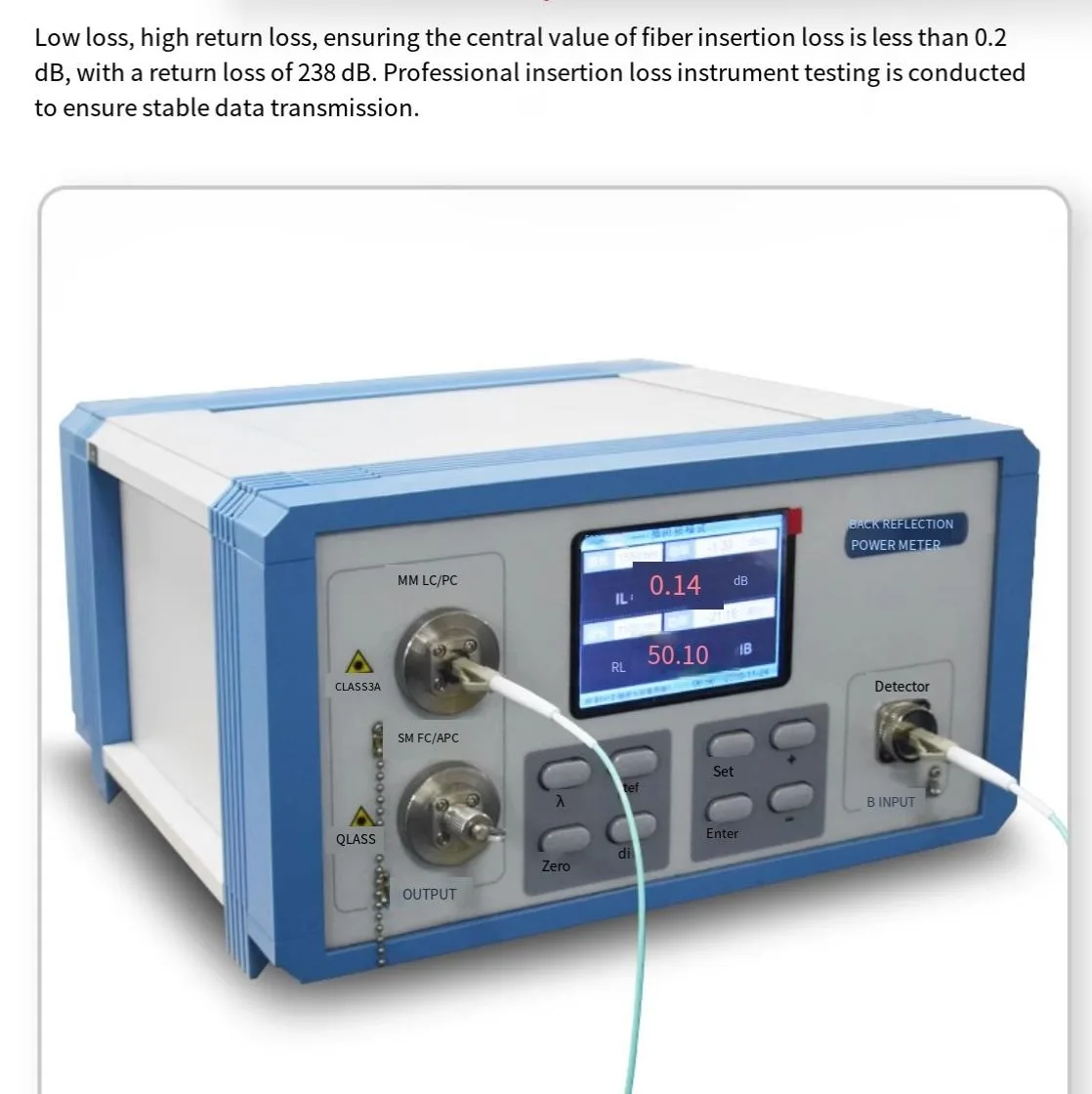

  • High return loss above 38 dB reduces reflection
  • Durable 3.0 mm PVC jacket handles 1000 mating cycles
  • Operates reliably from -20 °C to 60 °C

Enfain OM3 Duplex Fibre Cable 15m

This 15 metre aqua blue patch cord uses OM3 multimode fibre with LC and FC connectors in a duplex configuration. It is built for 1 Gbit, 10 Gbit and 40 Gbit Ethernet links in data centres, server rooms and network switches. The 3.0 mm PVC jacket protects the ceramic ferrule ends during routine handling.

Suits short reach 10G and 40G links

Installers who need a factory terminated OM3 jumper with LC to FC ends for patch panels or transceiver ports will find the specified insertion loss of 0.2 dB typical and 0.3 dB maximum useful. Buyers who require singlemode fibre, different connector types or lengths other than 15 metres should look at other cable families.

OM3 10 gigabit core at 850 nm

The cable is specified for 850 nm transmission with a return loss greater than 38 dB. A minimum bending radius of 330 mm and 1000 mating cycles are rated for the operating range of -20 °C to +60 °C.

Prednosti

  • Supports 10 Gbps links with OM3 10-gigabit core
  • Low typical insertion loss of .2 dB preserves signal strength
  • High return loss above 38 dB reduces reflection
  • Durable 3.0 mm PVC jacket handles 1000 mating cycles
  • Operates reliably from -20 °C to 60 °C

Špecifikácie

Pre tento produkt zatiaľ nie sú zverejnené žiadne špecifikácie.

Ďalšie verzie tohto modelu

Ďalších 5 v tomto rade

Rovnaký rad, iná pamäť, chladič alebo frekvencia — porovnajte pred rozhodnutím.

Otázky k tomuto produktu

Which OM3 LC-FC duplex length should I pick for a 15-metre run?

The 15 m option matches your link distance exactly and keeps loss within the 0.3 dB maximum per connector.

What does the 10G rating mean when the cable is installed in a live rack?

It certifies 10 Gbit/s throughput over OM3 multimode at 850 nm with typical insertion loss of 0.2 dB and return loss better than 38 dB.

How does the LC-FC duplex interface limit real-world speed?

The duplex LC-FC connectors support 1 G, 10 G and 40 G Ethernet over OM3 fibre, capped by the 0.3 dB maximum insertion loss per connection.
