Aqua blue duplex fibre cable with LC and ST connectors, 3.0 mm jacket, 20 m length

Enfain

Enfain OM3 LC-ST Duplex Multimode Fibre Optic Cable 20m

SKU CH-CYTF-YG1YB

OM3 duplex multimode cable with LC and ST connectors, 3.0 mm jacket, 850 nm wavelength, .2 dB typical insertion loss and >38 dB return loss for 10 Gbit links up to 20 m

Length 20m

  • OM3 10-gigabit core enables 10 Gbps transmission
  • Duplex LC-ST connectors link switches and servers
  • 2 dB typical insertion loss preserves signal strength
  • 0 mm PVC jacket with 330 mm bend radius eases routing

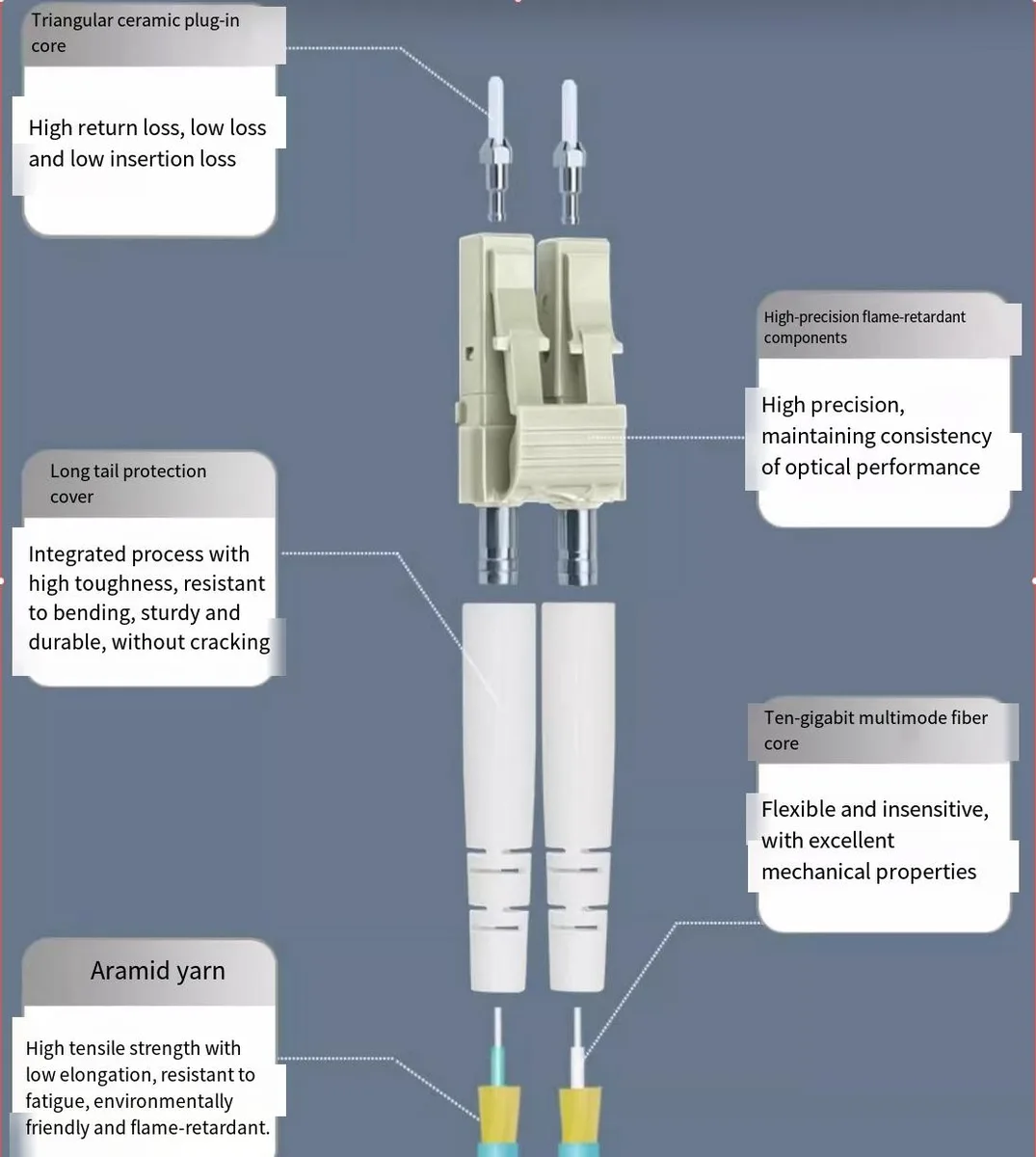

  • Ceramic ferrules rated for 1000 mating cycles

Ready-to-install 20-metre OM3 patch cord

This 20-metre duplex multimode cable connects switches, servers and data-centre gear using LC and ST connectors. The aqua jacket identifies OM3 10-gigabit core rated for 1G, 10G and 40G links. It arrives new and terminated, so no polishing or splicing is required.

850 nm wavelength with .2 dB typical loss

Transmission runs at 850 nm with insertion loss of .2 dB typical and .3 dB maximum, while return loss exceeds 38 dB. These figures decide whether the link meets your loss budget across the 20-metre run.

Fits 3.0 mm pathways and tolerates 330 mm bends

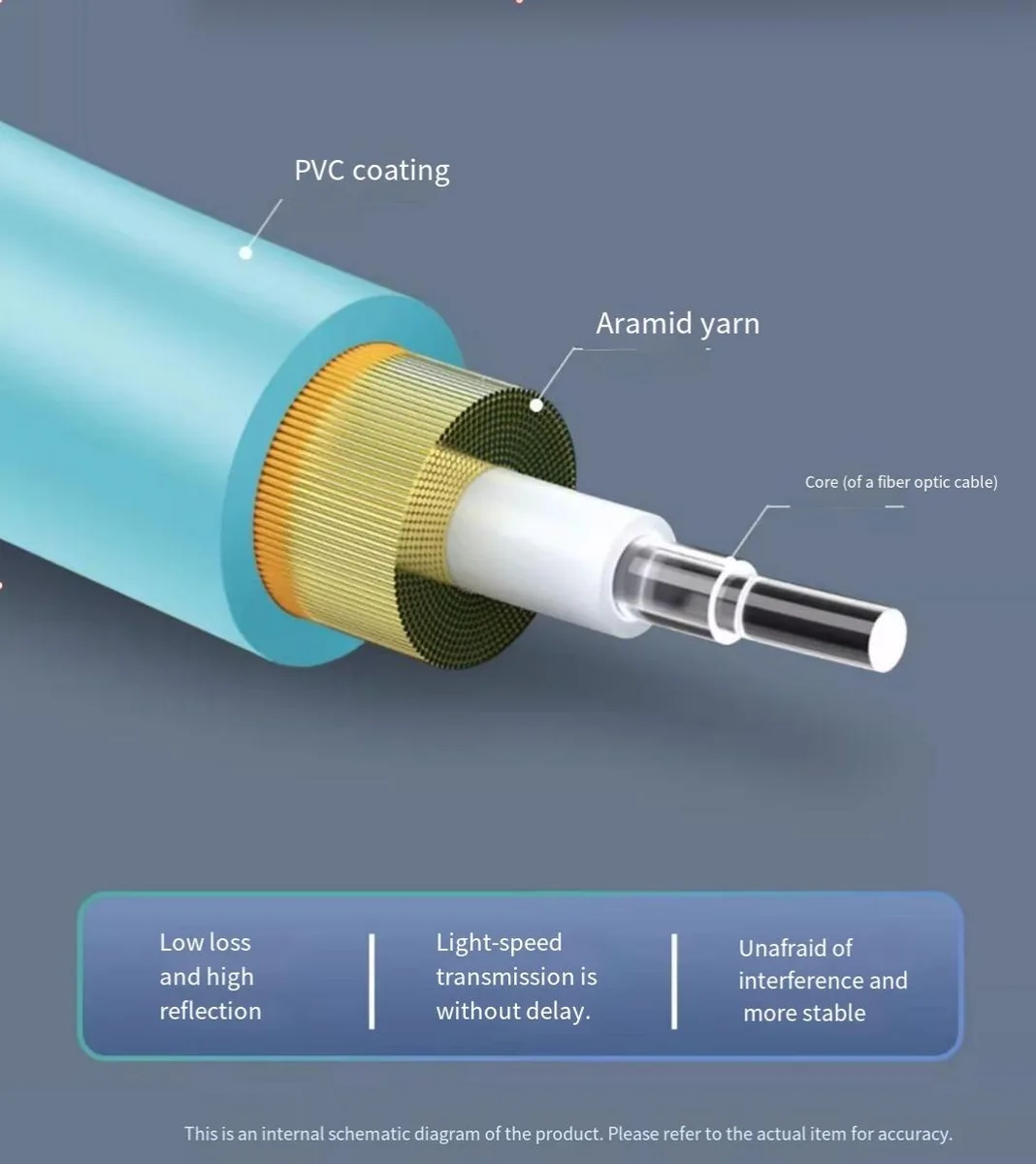

The 3.0 mm PVC jacket routes through standard cable managers and survives a 330 mm minimum bend radius. Ceramic ferrules withstand 1000 mating cycles, and the assembly operates from -20 °C to 60 °C without extra environmental controls.

Prednosti

  • OM3 10-gigabit core enables 10 Gbps transmission
  • Duplex LC-ST connectors link switches and servers
  • 2 dB typical insertion loss preserves signal strength
  • 0 mm PVC jacket with 330 mm bend radius eases routing
  • Ceramic ferrules rated for 1000 mating cycles

Špecifikácie

Pre tento produkt zatiaľ nie sú zverejnené žiadne špecifikácie.

Ďalšie verzie tohto modelu

Ďalších 5 v tomto rade

Rovnaký rad, iná pamäť, chladič alebo frekvencia — porovnajte pred rozhodnutím.

Otázky k tomuto produktu

How far can the 10-gigabit OM3 core reliably carry a 10G signal in a live link?

The OM3 multimode core is rated for 10G transmission at 850nm over the full 20m length with typical insertion loss of .2dB and maximum .3dB.

What does the LC-ST duplex interface limit in a real installation?

The duplex LC-ST connectors support 1G, 10G and 40G operation; return loss exceeds 38dB, so the connectors do not cap the 10G OM3 core performance.

What clearance does the 3.0mm jacket need to bend without signal loss?

A minimum bend radius of 330mm is specified for the 3.0mm PVC jacket, so allow at least that much space behind the patch panel or switch.
