Aqua duplex fibre cable with FC connectors on both ends, 3.0 mm jacket, twenty metres long

Enfain

Enfain OM3 FC-FC Duplex Multimode Fibre Optic Cable 20m

SKU CH-NNDD-X93GQ

A 20-metre OM3 duplex multimode patch cable with FC connectors, 3.0 mm jacket and 850 nm wavelength for 10 GbE links

Length 20m

  • Low insertion loss with typical .2 dB and maximum .3 dB
  • High return loss exceeding 38 dB for signal integrity
  • OM3 core supports 10 Gbps multimode transmission
  • 0 mm PVC jacket with 330 mm bend radius
  • Rated for 1000 mating cycles from -20 °C to +60 °C

Cable type and reach

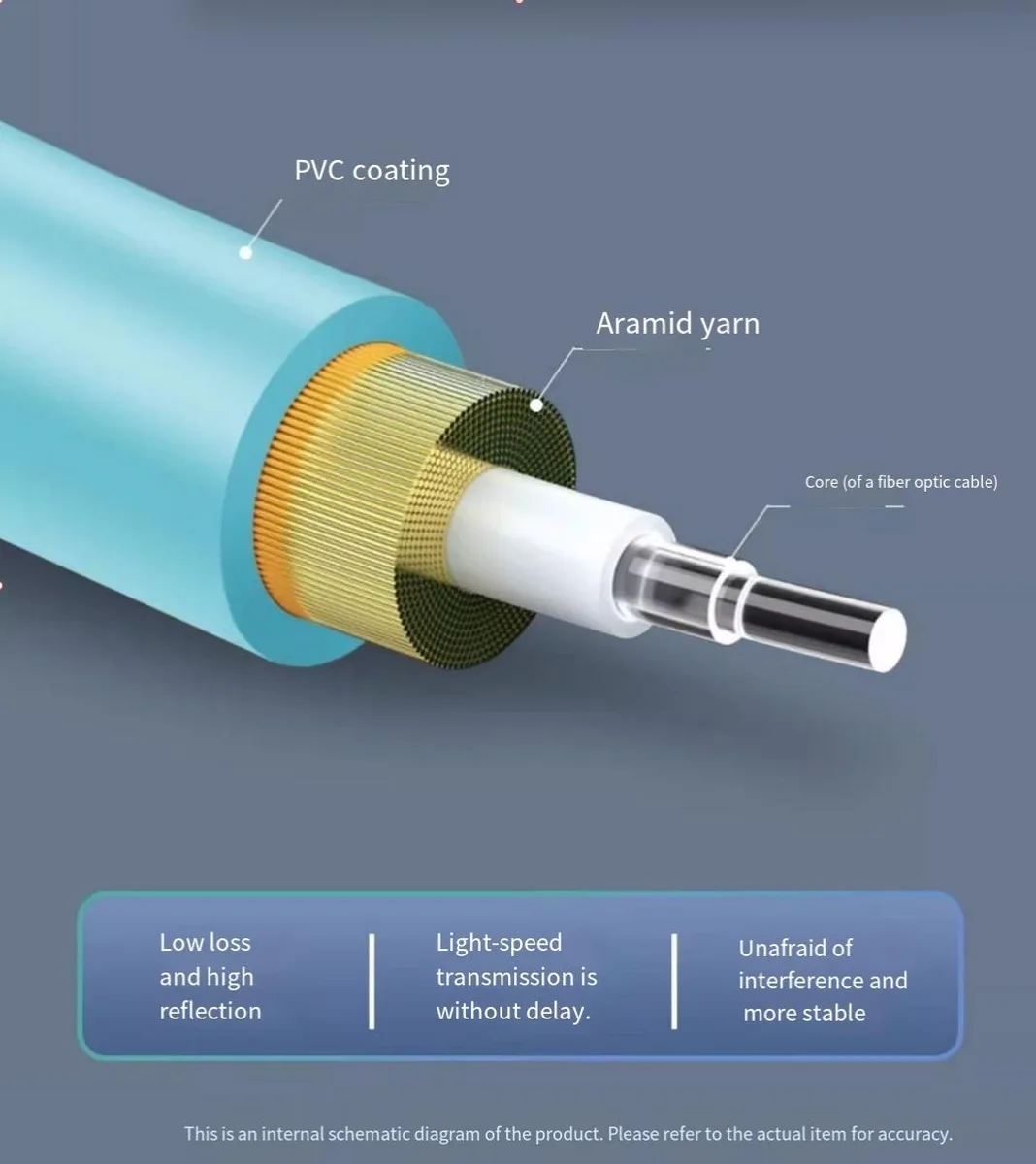

This is a twenty-metre duplex multimode fibre patch cord with FC connectors on both ends. It uses an OM3 core rated for ten-gigabit transmission at eight hundred fifty nanometres. The aqua blue jacket is three millimetres in diameter and made of PVC. It is intended for switch-to-server or data-centre links.

Connector and jacket check

Verify that both ends of your link accept FC connectors and that the equipment supports multimode OM3 at ten gigabits. The cable requires a minimum bend radius of three hundred thirty millimetres, so plan routing with enough clearance. Operating temperature range is minus twenty to plus sixty degrees Celsius.

Build integration

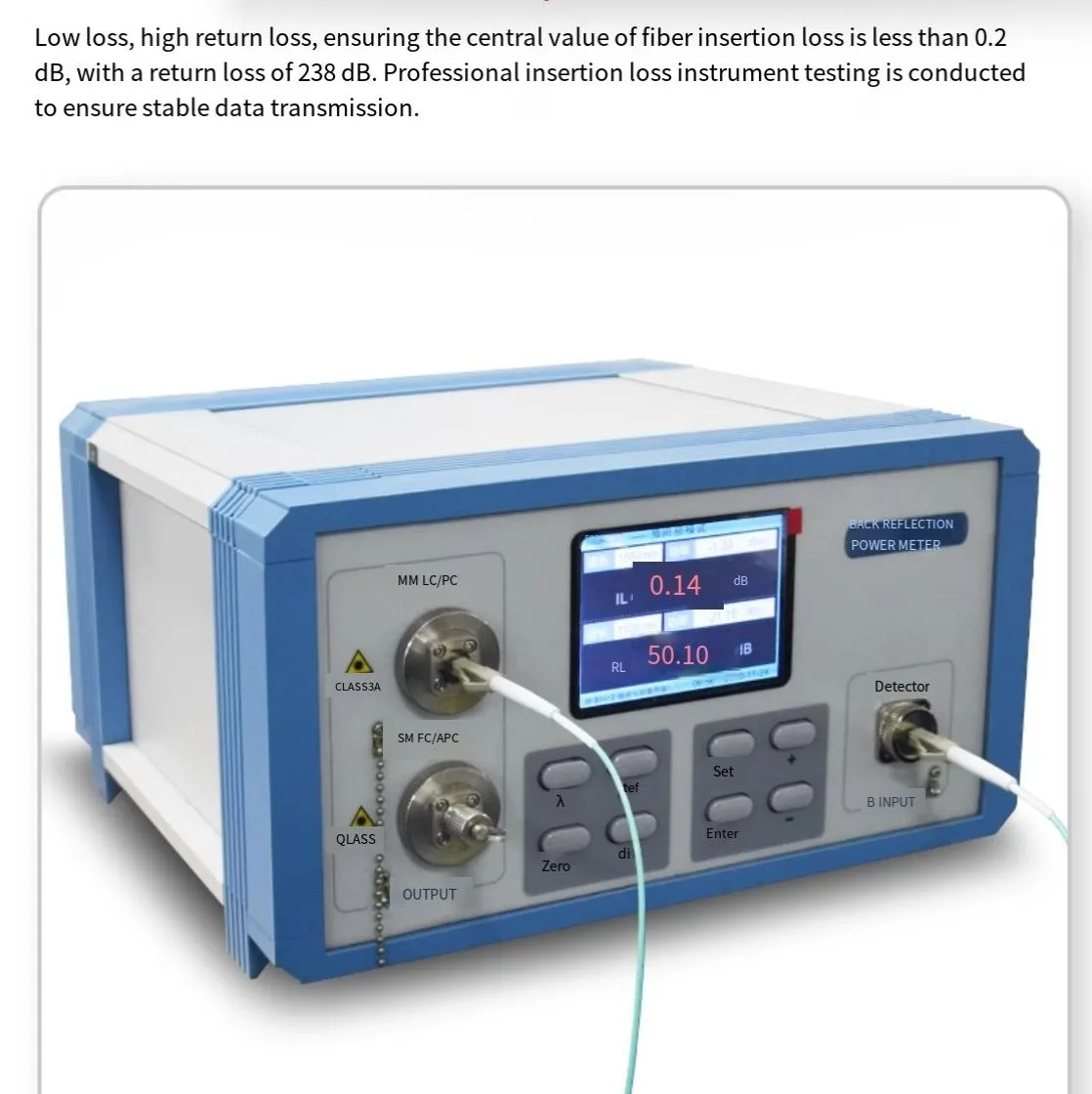

The cord provides a ready-made duplex run without on-site termination. Its ceramic ferrules are rated for one thousand insertion cycles, and typical insertion loss is point two decibels with a maximum of point three decibels. Return loss exceeds thirty-eight decibels. It frees you from fusion splicing while delivering ten-gigabit multimode performance.

Prednosti

  • Low insertion loss with typical .2 dB and maximum .3 dB
  • High return loss exceeding 38 dB for signal integrity
  • OM3 core supports 10 Gbps multimode transmission
  • 0 mm PVC jacket with 330 mm bend radius
  • Rated for 1000 mating cycles from -20 °C to +60 °C

Špecifikácie

Pre tento produkt zatiaľ nie sú zverejnené žiadne špecifikácie.

Ďalšie verzie tohto modelu

Ďalších 5 v tomto rade

Rovnaký rad, iná pamäť, chladič alebo frekvencia — porovnajte pred rozhodnutím.

Otázky k tomuto produktu

What comes in the box and do I need any extra connectors or tools?

The cable ships ready to use with FC connectors on both ends; no additional adapters or termination tools are required.

How do I decide between OM3 and other multimode grades for my link?

OM3 supports 10 Gbit/s over the full 20 m length at 850 nm, so choose it when your switches or servers run 1 G, 10 G or 40 G short-reach optics.

What does the 0.2 dB typical insertion loss mean for my 20 m run?

At 0.2 dB typical (0.3 dB max) the link loses only a fraction of a decibel, leaving ample margin for 10 Gbit/s transmission over the full distance.
