Silver metal centrifugal blower with forward-curved galvanised steel impeller and matching housing, 133mm diameter

CAFELE

CAFELE D2E133-CI33-56 230V 133mm Forward Centrifugal Fan Blower

SKU CH-W0VD-FBWVH

A 133 mm forward-curved centrifugal blower running on 230 VAC at 50/60 Hz with ball-bearing motor, IP44 protection and 175/190 W power draw

  • TypeCase Fan
  • 133 mm forward-curved impeller moves high static pressure
  • 230 VAC 50/60 Hz supply fits standard mains power
  • Ball-bearing motor runs at 1700/2100 rpm for long service life
  • IP44-rated galvanised steel housing resists dust and splashes
  • 175/190 W draw at 0.77/0.84 A keeps energy costs low

Industrial Centrifugal Blower for Printing Machines

The CAFELE D2E133-CI33-56 is a forward-leaning centrifugal fan built for 230 VAC industrial equipment. It suits technicians maintaining specialised printing machinery that requires the original ebm-papst motor specification. The unit operates at 50 or 60 Hz and meets CE, EAC and CCC approvals for regulated environments.

Galvanised Steel Housing with Ball-Bearing Motor

Both impeller and housing use galvanised sheet steel rated to IP44, protecting internal components from splashing water and solid particles larger than one millimetre. The M2E068-CF motor runs on ball bearings for continuous duty, while Class B insulation handles the thermal load of 175 to 190 W power draw at 0.77 to 0.84 A current.

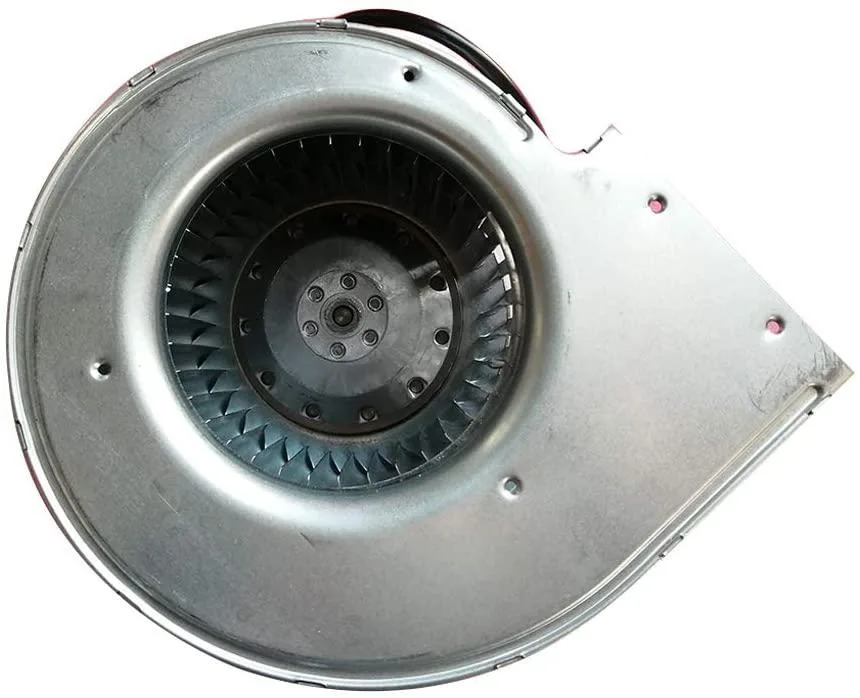

133 mm Impeller Diameter Fixes Mounting

The 133 mm wheel diameter and 68 mm motor frame determine whether this blower fits the existing cut-out and bolt pattern in the target machine. Installers must verify those dimensions against the equipment manual before ordering, as no alternative sizes or adapter kits are supplied.

商品特色

  • 133 mm forward-curved impeller moves high static pressure
  • 230 VAC 50/60 Hz supply fits standard mains power
  • Ball-bearing motor runs at 1700/2100 rpm for long service life
  • IP44-rated galvanised steel housing resists dust and splashes
  • 175/190 W draw at 0.77/0.84 A keeps energy costs low

商品規格

TypeCase Fan

商品問答

What voltage and frequency does the D2E133-CI33-56 fan require?

It runs on 230 VAC at 50/60 Hz, drawing 0.77 A at 50 Hz and 0.84 A at 60 Hz.

What are the mounting dimensions and weight of this 133 mm centrifugal blower?

The motor frame is 68 mm, the overall fan diameter is 133 mm, and the unit weighs 3.3 kg.

How is the fan wired and what capacitor rating is needed?

Connect the 230 VAC supply to the motor terminals and fit a 400 VDB capacitor; ensure the IP44-rated housing is earthed.
