DELL PERC H710 RAID controller 512MB cache PCIe 2.0
A RAID controller with 512MB non-volatile cache supporting RAID 0, 1, 5, 6, 10, 50, 60 for up to 32 SAS or SATA drives via PCIe 2.0
- 512 MB non-volatile cache protects data during power loss
- Eight-lane PCI Express 2.0 interface delivers 6 Gb/s SAS throughput
- LSI SAS 2208 dual-core processor handles RAID 0, 1, 5, 6, 10, 50, 60
- Supports up to 32 SAS or SATA drives via two mini-SAS SFF-8087 connectors
- Compatible with PowerEdge R620, R820, T320, T420, T620 and Precision T3600, T5600, T7600
Dell PERC H710 RAID controller

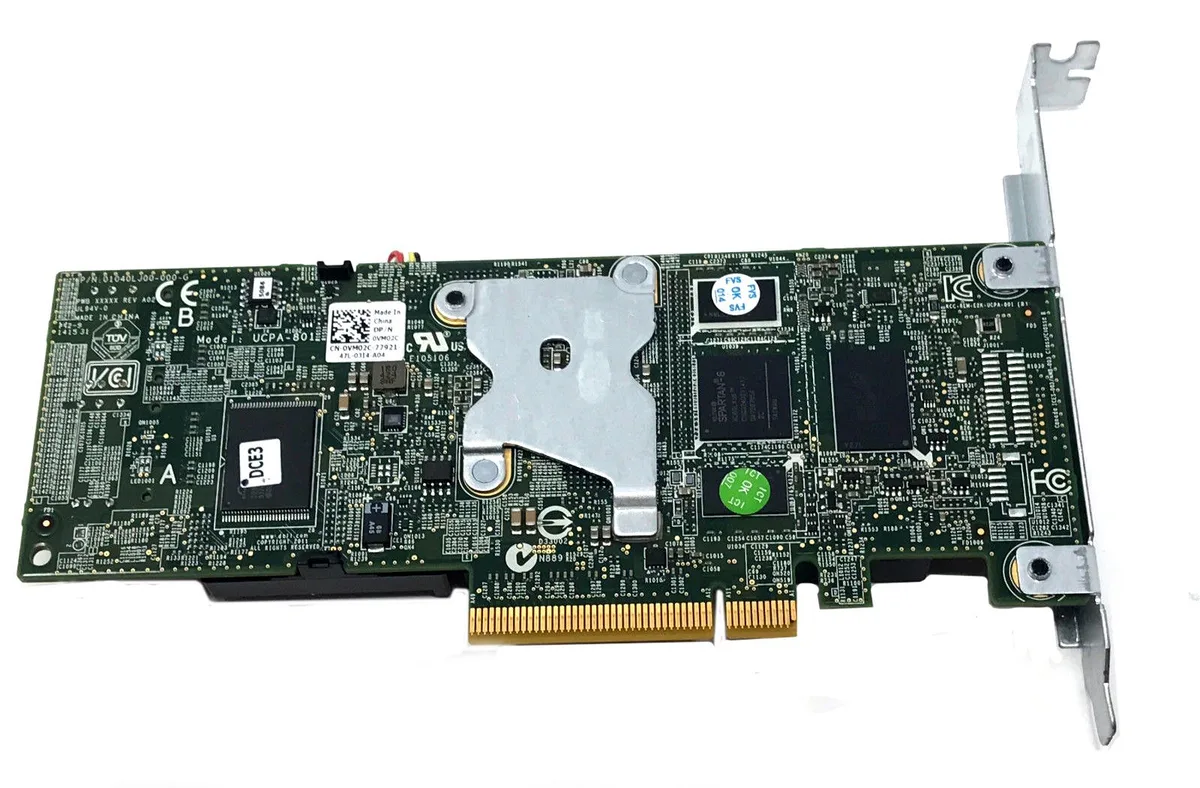

The Dell PERC H710 is a hardware RAID controller card built around the LSI SAS 2208 dual-core PowerPC ROC. It delivers 512 MB of non-volatile cache and supports RAID levels 0, 1, 5, 6, 10, 50 and 60 across SAS and SATA drives. The card targets servers and workstations that need protected, high-throughput internal storage arrays.
PCIe 2.0 x8 host bus and dual mini-SAS SFF-8087

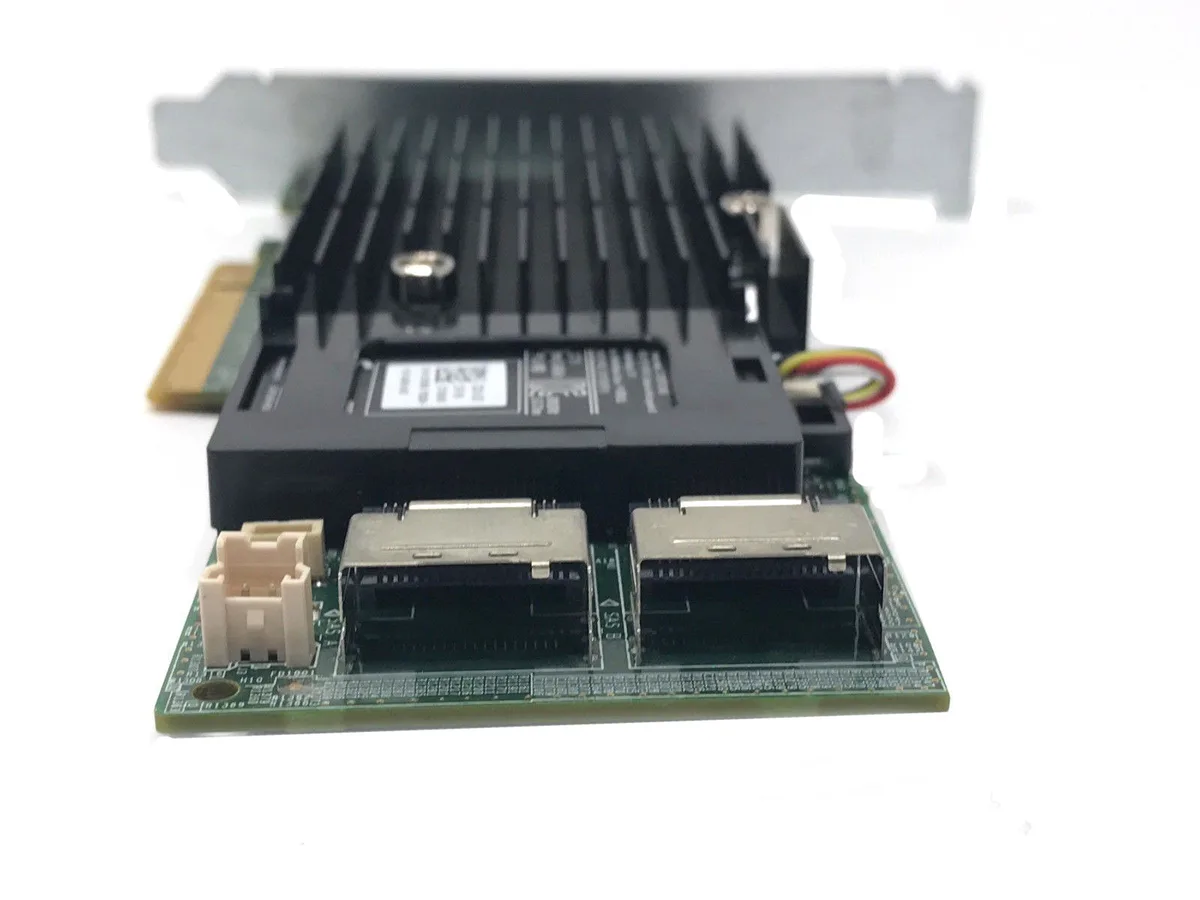

The controller installs in an eight-lane PCI Express 2.0 slot and presents two internal mini-SAS SFF-8087 connectors for cabling to backplanes or drive cages. A single card can manage up to 32 SAS or SATA devices, so cable routing and enclosure space become the practical limits rather than the controller itself. The PCIe 2.0 interface sets the host bandwidth ceiling for sustained array traffic.
Upgrades from entry-level or software RAID
Moving from a basic HBA or software RAID adds dedicated parity calculation, battery-backed cache protection and support for RAID 6, 50 and 60. The jump is worthwhile when workloads demand redundancy beyond mirroring, consistent write latency under load or the ability to span large drive counts without host CPU overhead. Systems limited to PCIe 1.x slots or lacking internal mini-SAS cabling cannot use this card.
商品特色
- 512 MB non-volatile cache protects data during power loss
- Eight-lane PCI Express 2.0 interface delivers 6 Gb/s SAS throughput
- LSI SAS 2208 dual-core processor handles RAID 0, 1, 5, 6, 10, 50, 60
- Supports up to 32 SAS or SATA drives via two mini-SAS SFF-8087 connectors
- Compatible with PowerEdge R620, R820, T320, T420, T620 and Precision T3600, T5600, T7600
商品規格
本商品目前尚未公佈規格。
商品問答
What throughput does the SAS 6.0 Gbps interface cap at in practice?
The controller uses a 6.0 Gbps SAS link, so each attached drive is limited to that transfer rate.
What slot and connectors does the PERC H710 need to fit?
It requires an 8-lane PCI Express 2.0 slot and uses two internal mini-SAS SFF-8087 connectors for drive cables.
How is the card installed and what step is often missed?
Insert the card into an 8-lane PCIe 2.0 slot, connect the two mini-SAS cables, then enable the controller in the server BIOS before creating arrays.
