Black 4U rackmount server chassis with aluminium front bezel, four 5.25 inch bays, one 3.5 inch bay, two USB 2.0 ports

iStarUSA Inc.

iStarUSA Inc. D-400SE 4U Rackmount Server Chassis

SKU CH-5XNW-AAZJ0 MPN D-400SE

4U rackmount chassis with four 5.25″ external bays, one 3.5″ external bay, two internal 3.5″ bays, seven expansion slots, front USB 2.0 ports and 80 mm plus 120 mm fans

  • Chassis TypeRackmount
  • Form Factor4U
  • ColorBlack
  • Case MaterialAluminum / Steel
  • Motherboard CompatibilityATX / Micro ATX
  • External 5.25" Drive Bays4

Model D-400SE

  • Fits standard 19.00" racks with 4U form factor
  • Holds up to five drives for RAID configurations
  • Seven expansion slots support multiple add-on cards
  • Dual fan setup with 80mm and 120mm units
  • Front bezel key lock secures physical access

4U Rackmount Chassis for Compact Servers

The iStarUSA D-400SE is a 4U rackmount server chassis built for ATX and Micro ATX motherboards. It targets system integrators and IT departments that need a compact, industrial enclosure with room for multiple drives and expansion cards in a standard 19-inch rack.

Cooling Layout with 80mm and 120mm Fans

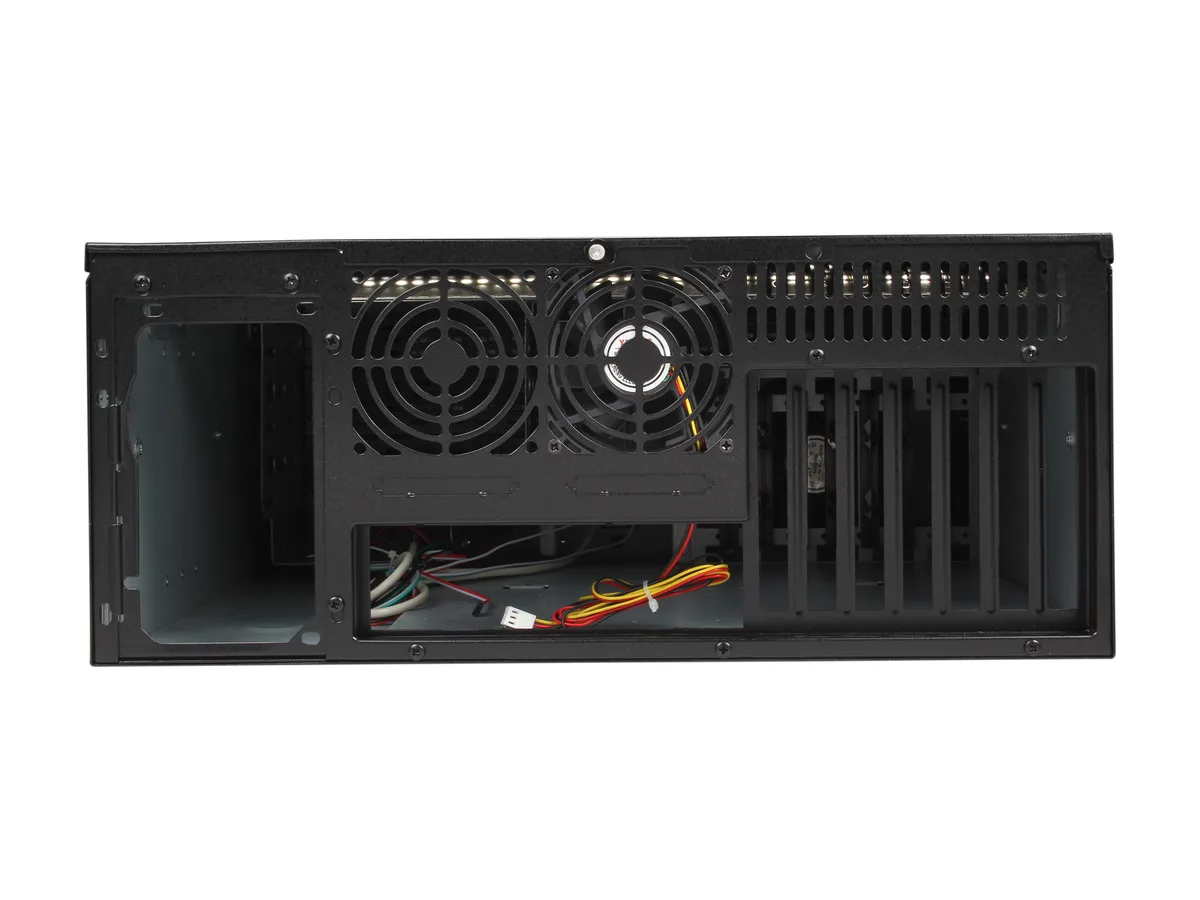

Thermal management relies on one 80mm fan and one 120mm fan mounted in the chassis. Front-panel indicators display power status, hard-drive activity, temperature and fan speed when the optional TC-ISF08 sensor board is installed, giving administrators basic environmental monitoring without extra software.

Drive Bay Configuration and Front Access

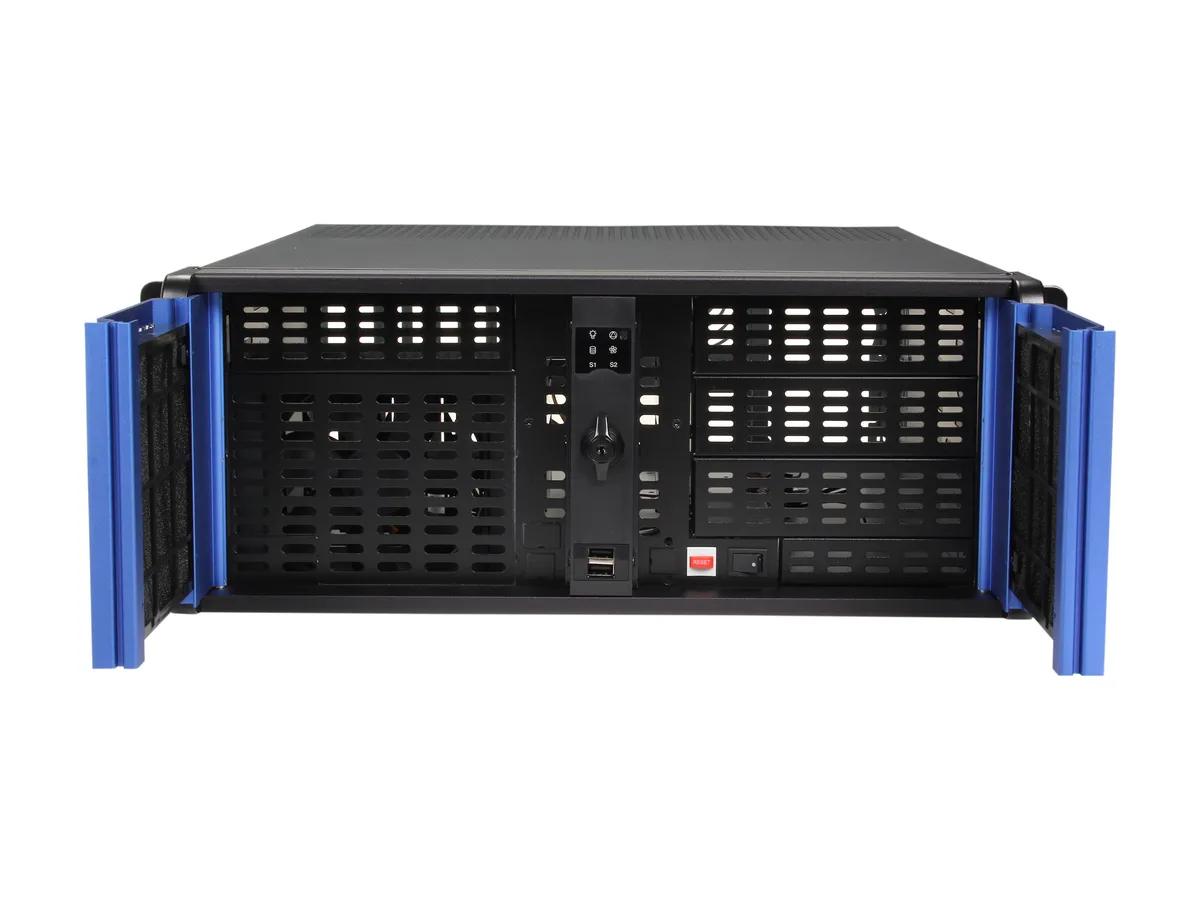

Four external 5.25-inch bays, one external 3.5-inch bay and two internal 3.5-inch bays support up to five drives for RAID arrays. Two front USB 2.0 ports provide local peripheral access, while a key-locked aluminium front bezel secures the drive bays and controls against unauthorised physical access.

商品特色

  • Fits standard 19.00" racks with 4U form factor
  • Holds up to five drives for RAID configurations
  • Seven expansion slots support multiple add-on cards
  • Dual fan setup with 80mm and 120mm units
  • Front bezel key lock secures physical access

商品規格

BrandiStarUSA
ModelD-400SE
Chassis TypeRackmount
Form Factor4U
ColorBlack
Case MaterialAluminum / Steel
Motherboard CompatibilityATX / Micro ATX
External 5.25" Drive Bays4
External 3.5" Drive Bays1
Internal 3.5" Drive Bays2
Expansion Slots7
Front Ports2 x USB 2.0
80mm Fans1
120mm Fans1
FeaturesColor of Front Bezel: Blue
Indicators: Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08)
Switches: Power, Reset
Security: Front Bezel Key Lock
Material:
Material of Front Bezel: Aluminum alloy
Material of Handle: SECC Zinc-Coated Steel
Material of Main Chassis: 1.2mm SECC Zinc-Coated Steel ( Japan Made )
Air Filter: Removable & Washable
Dimensions19.00" x 7.00" x 20.80"
出貨重量14.40 kg
包裝尺寸686 × 559 × 279 mm

其他版本

同系列還有 5 款

同系列產品，記憶體、散熱器或時脈不同 — 下單前請先比較。

商品問答

How do I mount the 4U chassis in a 19-inch rack, and which step is commonly missed?

Use the 19.00-inch wide front flanges with cage nuts or screws for the 4U height; the step often missed is installing the optional sensor board TC-ISF08 so the front temperature and fan indicators function.

What cooling parts will need cleaning or replacement over time?

One 80mm fan and one 120mm fan draw air through the front bezel; plan to vacuum or replace both fans periodically to maintain airflow.

How many expansion cards fit before the seven-slot backplane is full?

The chassis provides seven expansion slots, so the limit appears when the seventh add-on card is installed.
