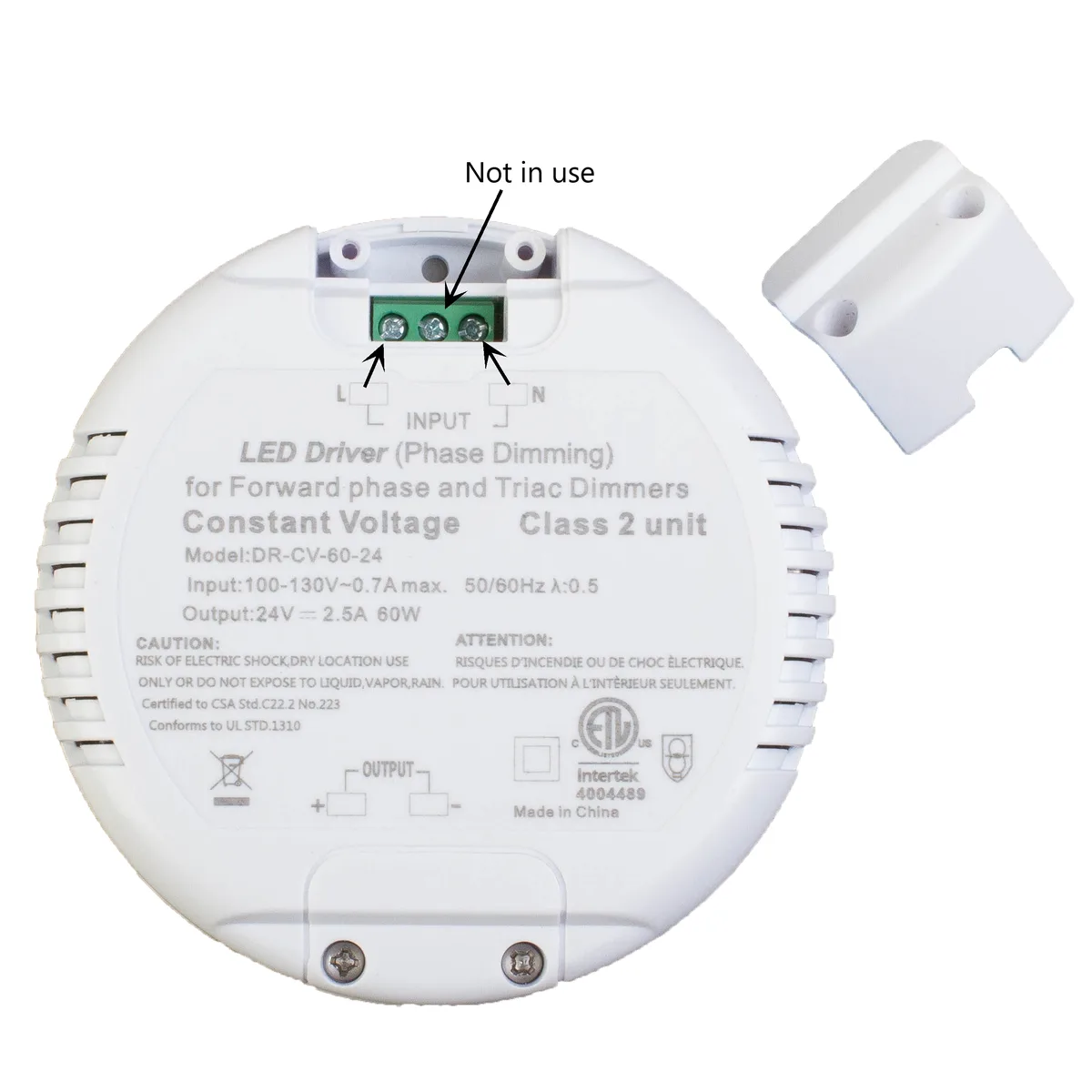

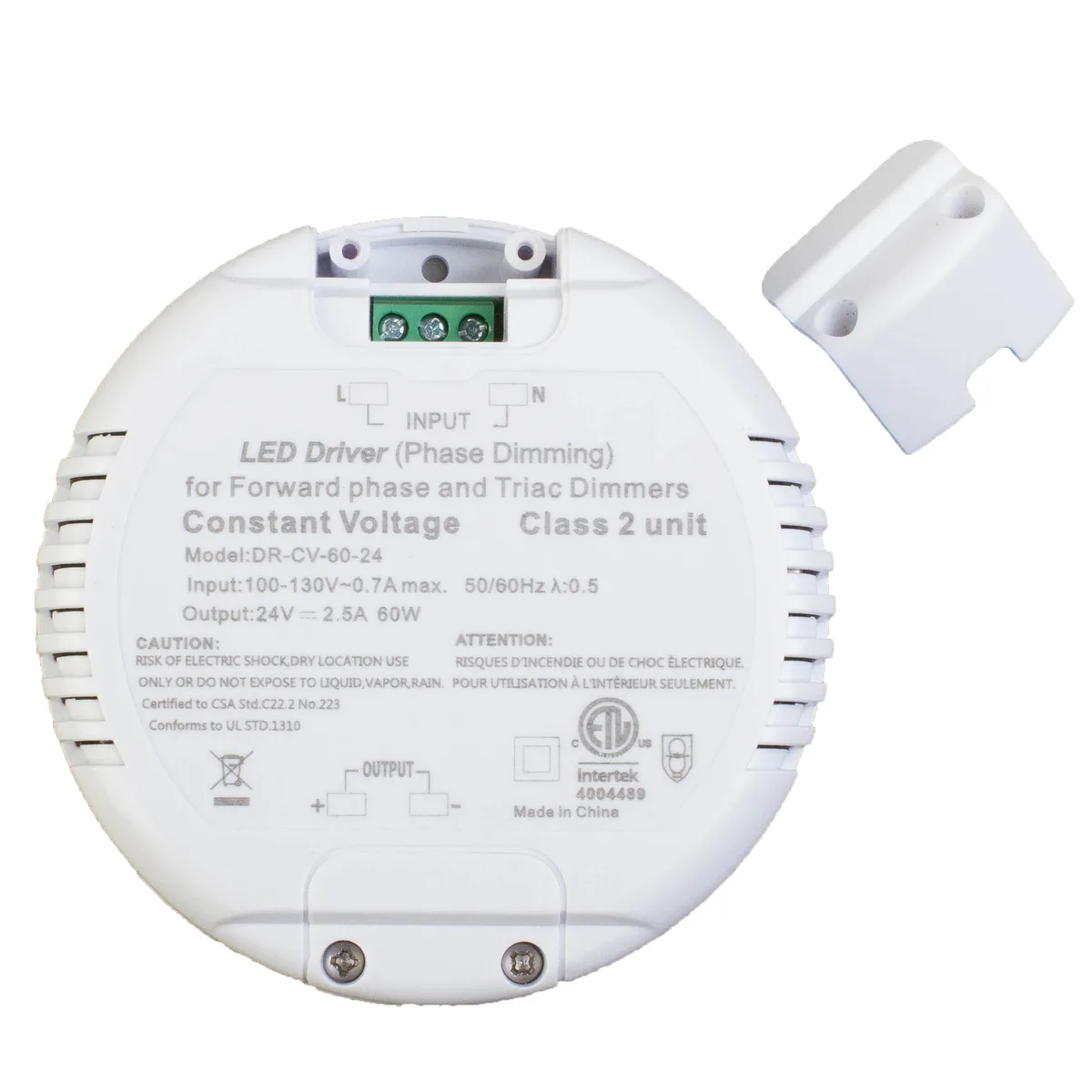

Round dimmable power supply with removable AC wire

LED Updates

LED Updates 24V 60W Class 2 Triac Dimmable Round Industrial Power Supply

SKU CH-V4JW-E93YZ

A 24 V, 60 W Class 2 Triac-dimmable driver fits a 4.75" junction box, runs silently with no minimum load, and powers LED strips, modules and puck lights from 100–130 V input

  • TypeDIMMABLE
  • ETL listed Class 2 power supply ensures safety compliance
  • Triac dimmable driver works with Lutron and Leviton dimmers
  • Compact 4.75 inch design fits inside standard junction boxes
  • 24 volt 60 watt output powers LED strips and modules
  • Zero minimum load and no audible buzz during operation

Product Purpose

This ETL listed Class 2 power supply delivers 24 V at 2.5 A for 60 W maximum output. It accepts 100 V to 130 V input at 50 Hz or 60 Hz and is designed for LED strip, module, puck and showcase lighting installations.

Who It Suits

Installers needing a triac dimmable driver that fits inside a 4.75 inch junction box and works with common Lutron or Leviton wall dimmers will find it compatible. It operates with no minimum load and no audible buzz. Builders who require an input range above 130 V or a different output voltage should select another unit.

Key Specification

The round housing measures 4 inches wide by 1.2 inches high and includes a 3 ft removable AC wire for switched outlet wiring. This compact form factor decides whether the unit can be mounted in the intended enclosure.

商品特色

  • ETL listed Class 2 power supply ensures safety compliance
  • Triac dimmable driver works with Lutron and Leviton dimmers
  • Compact 4.75 inch design fits inside standard junction boxes
  • 24 volt 60 watt output powers LED strips and modules
  • Zero minimum load and no audible buzz during operation

商品規格

TypeDIMMABLE

商品問答

How much continuous current can the 24 V output deliver before it hits its limit?

The unit supplies a steady 2.5 A at 24 V, giving a 60 W maximum load.

Does the driver run silently and stay cool when powering LED strips all day?

It is designed with no minimum load and produces no buzz or humming noise during continuous operation.

What size junction box do I need to have on hand for a code-compliant install?

The compact 4 in wide by 1.2 in high housing fits inside a standard 4.75 in junction box (box not included).
