Green circuit board with M.2 E-key slot and 16-pin ribbon cable attached

LORDWORLD

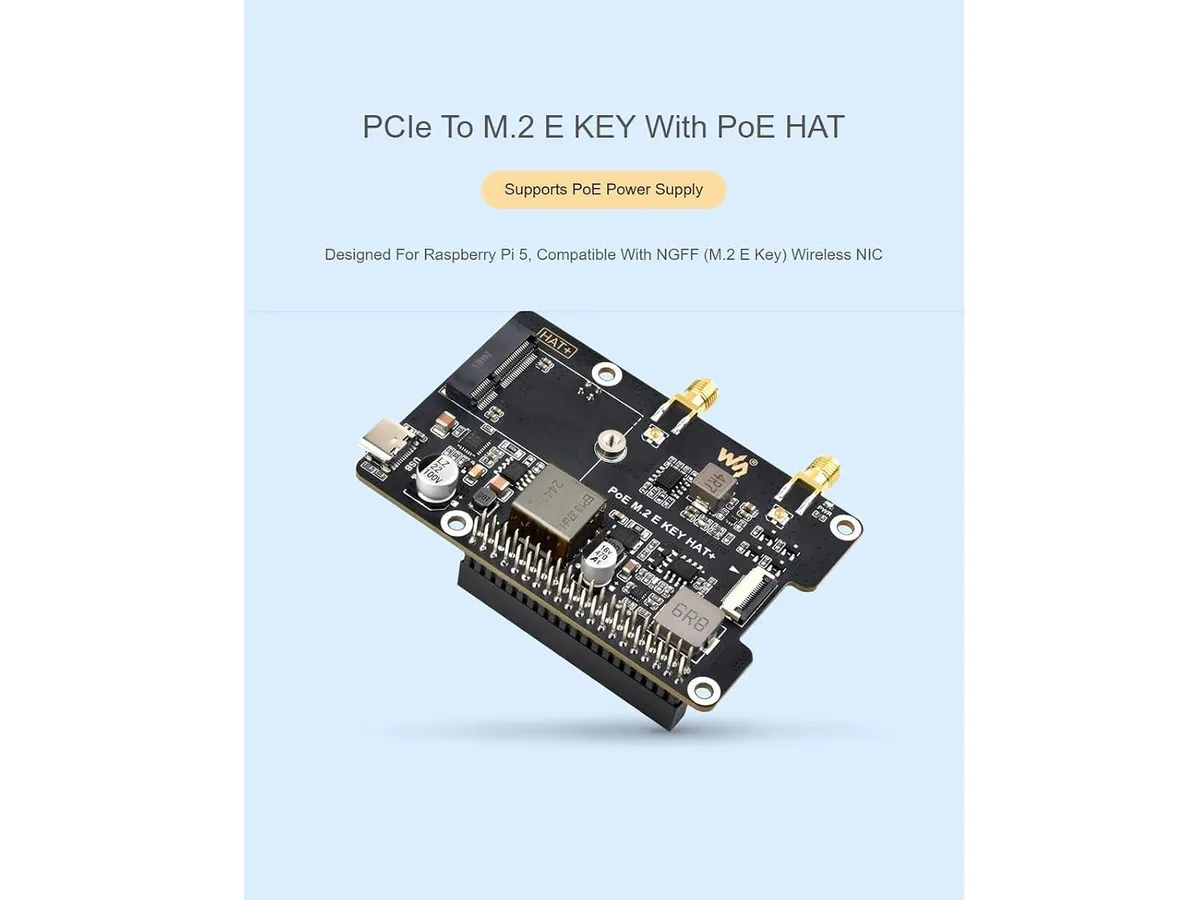

LORDWORLD PCIe to M.2 E Key HAT for Raspberry Pi 5 16PIN

SKU CH-VQCH-2W0HF

Adds an M.2 E-key wireless NIC to a Raspberry Pi 5 via 16-pin PCIe and routes Bluetooth through USB with an onboard SMA antenna connector

  • Adds Wi-Fi or Bluetooth to Raspberry Pi 5 via M.2 E-key slot
  • Connects through the 16-pin PCIe cable for direct board access
  • Accepts both A/E-key and E-key wireless modules for flexible choice
  • Routes Bluetooth signal to the Pi over USB for simple integration
  • Onboard SMA female connector lets you attach an external antenna easily

Target Platform and Purpose

This HAT adds an M.2 E-key slot to the Raspberry Pi 5 using its 16PIN PCIe interface. It accepts A/E-key and E-key wireless NIC modules and routes Bluetooth signals to the Pi through a USB connection. An onboard SMA female connector allows external antenna attachment for improved wireless range. The board is aimed at makers and developers who need to add Wi-Fi or Bluetooth capability to a Pi 5 project.

Build Integration Requirements

The HAT connects to the Pi 5 via the supplied 16PIN cable and occupies the PCIe lane on the single-board computer. An M.2 E-key wireless module must be sourced separately and installed on the HAT before the assembly is mounted. The USB link for Bluetooth consumes one USB port on the Pi 5. The SMA antenna connector requires a compatible antenna and cable, which are not included with the HAT.

Sustained Operation Behaviour

During continuous data transfer the wireless module draws power through the Pi 5 PCIe supply and the USB link, so the Pi’s own power budget must accommodate both. The SMA antenna connection maintains a stable RF path under prolonged use, reducing drop-outs compared with onboard chip antennas. Thermal performance depends on the chosen wireless module and the airflow inside the enclosure, as the HAT itself has no active cooling.

商品特色

  • Adds Wi-Fi or Bluetooth to Raspberry Pi 5 via M.2 E-key slot
  • Connects through the 16-pin PCIe cable for direct board access
  • Accepts both A/E-key and E-key wireless modules for flexible choice
  • Routes Bluetooth signal to the Pi over USB for simple integration
  • Onboard SMA female connector lets you attach an external antenna easily

商品規格

BrandLORDWORLD

商品問答

What limits the data rate when the HAT is used continuously with a wireless NIC?

The 16-pin PCIe link to the Raspberry Pi 5 sets the maximum sustained throughput for any attached M.2 E Key module.

Does the board add noticeable heat or fan noise during all-day operation?

The HAT has no active cooling; thermal load depends entirely on the wireless NIC you install and the Pi 5's own cooling.

Which wireless NIC must I already own for this HAT to function?

Any NGFF M.2 E Key or A/E Key wireless NIC that fits the slot and draws power from the Pi 5's 16-pin PCIe interface.
